- Stock: In Stock
- Brand: PLANET
- Model: IPOE-470-12V
- Weight: 0.99kg
- Dimensions: 8.78cm x 5.00cm x 13.50cm
Compact and Robust Industrial 802.3bt PoE++ Network Solution
PLANET IPOE-470-12V 4-port industrial IEEE 802.3bt PoE++ injector hub series features four 10/100/1000/2500BASE-T 95-watt 802.3bt type-4 PoE++ injector ports. With a total PoE budget of 240 watts, it delivers 802.3bt PoE++ power over Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).
The IPOE-470-12V provides a quick, safe and cost-effective 802.3bt PoE++ network solution for small businesses and enterprises. It is designed to perfectly upgrade an existing network infrastructure to 802.3bt PoE++ network system without replacing the existing Ethernet switches and also enables centralization of the power supply.
| Model | DC Redundant Power Input | PoE Standard | PoE Budget |
| IPOE-470-12V | 12~54 DC | IEEE 802.3bt PoE++ | 60 watts@12V 120 watts@24V 240 watts@54V |
802.3bt PoE++ Meets Ultra Power Demands of Powered Devices
As the IPOE-470-12V adopts the IEEE 802.bt PoE++ standard and Ultra PoE technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant PD. It possesses the triple amount of the power capability when compared to the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:
- PoE PTZ speed dome cameras
- Network devices
- Thin clients
- AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
- Remote digital signage displays
- PoE lightings
Quick and Easy 802.3bt/at PoE Network Deployment
The IPOE-470-12V is installed between a regular Ethernet Switch and the PDs. Four ports are network (Ethernet) ports for data input while the other four ports are PoE++ ports for data and power output. Both power and data are transferred simultaneously over the UTP cables to various 802.3bt/at PDs without affecting the existing network performance and functions.
With data and Power over Ethernet from one unit, the IPOE-470-12V can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.
Intelligent LED Indicator for Power Input and Real-time PoE Usage
The IPOE-470-12V helps users to monitor the current status of power input and PoE power usage easily and efficiently via its advanced LED indication. The “Power Input” allows user to know the status of dual DC power input. The “PoE Usage” displayed on the panel of the IPOE-470-12V has three amber LED indicators of different power usages indicating 80W, 160W and 240W. Via the power usage LED, the IPOE-470-12V enables the administrator to monitor the status of the power usage of the connected PDs in real time.
Convenient and Reliable Power System
The IPOE-470-12V adopts the 12~54V DC to 54V power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs.
Ultra Power Budget for PoE Extension
With up to 95-watt PoE output capability, the IPOE-470-12V can extend much longer distances by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away.
Stable Operating Performance under Difficult Environments
Today, the PoE demand expands from commercial applications to many critical networks in the harsh environment. The IPOE-470-12V provides a high level of immunity against electromagnetic interference and heavy electrical surges typical of environments found on plant floors or in curb-side traffic control cabinets.

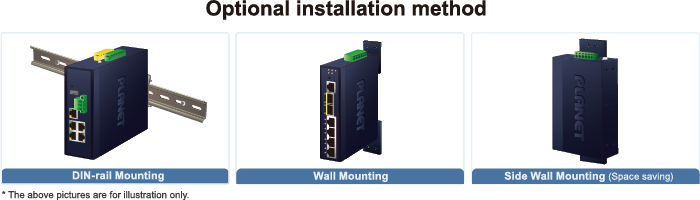

The IPOE-470-12V series can be easily installed by way of Plug and Play and operates stably under temperature range from -40 to 75 degrees C which enables the users to conveniently apply the device in almost any location of the network. The IPOE-470-12V series is also equipped with a compact IP30 standard metal case that allows either DIN-rail or wall mounting for space-limited environments.
Robust Protection
The IPOE-470-12V series provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
IEEE 802.3bt PoE++ Injector and 802.3bt PoE++ Compliant Devices Installation
Having the capability of IEEE 802.3bt Power over Ethernet standard, the IPOE-470-12V can directly connect and inject power via RJ45 Ethernet cable to any IEEE 802.3bt end-nodes like PoE PTZ speed dome cameras, thin clients, all-in-one touch PCs, point of sale (POS), information kiosks, remote digital signage displays and PoE lightings.
IEEE 802.3bt PoE++ Injector and 802.3bt PoE++ Splitter Installation
For a place which is hard to find the power inlet, the IPOE-470-12V and IPOE-173S can operate as a pair to provide the easiest way to power your Ethernet devices which need high power input, such as PTZ (pan, tilt, zoom) IP cameras, color touch-screen voice over IP (VoIP) telephones, and multi-channel wireless LAN access points installed on the top of the building or in enterprise office or home, as well as thin clients, all-in-one touch PCs, point of sale (POS), information kiosks and remote digital signage displays.
IEEE 802.3bt PoE++ Injector and 802.3at PoE+ Network Extension Installation
Is 100-meter cable long enough for a wide range of IP surveillance deployments? The answer is certainly not. To achieve the benefits of IP surveillance and also the long-distance IP camera distribution, the IPOE-470-12V series and PLANET IPOE-E302 PoE Extender can be a quick and cost-effective option. In the simplest application, the PoE Extender enables a PoE IP camera to be installed up to 200 meters away from the IPOE-470-12V series. The IPOE-470-12V series delivers PoE power over the first 100 meters to the PoE Extender over UTP cables, and then the PoE Extender forwards the Ethernet data and remaining PoE power to the remote PoE IP cameras.
