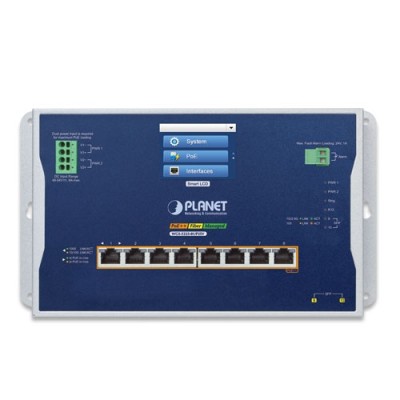

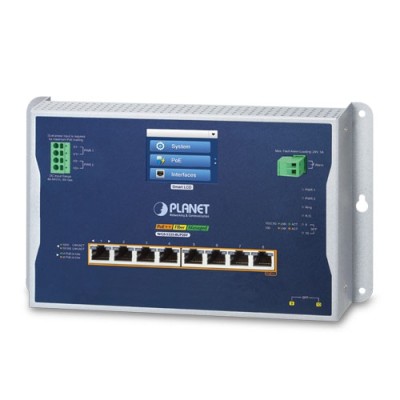

PLANET WGS-5225-8UP2SV Industrial L2+ 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP Wall-mount Managed Switch with LCD Touch Screen

PLANET WGS-5225-8UP2SV Industrial L2+ 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP Wall-mount Managed Switch with LCD Touch Screen
PLANET WGS-5225-8UP2SV Industrial L2+ 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP Wall-mount Managed Switch with LCD Touch Screen
PLANET WGS-5225-8UP2SV Industrial L2+ 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP Wall-mount Managed Switch with LCD Touch Screen
PLANET WGS-5225-8UP2SV Industrial L2+ 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP Wall-mount Managed Switch with LCD Touch Screen
PLANET WGS-5225-8UP2SV Industrial L2+ 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP Wall-mount Managed Switch with LCD Touch Screen
PLANET WGS-5225-8UP2SV Industrial L2+ 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP Wall-mount Managed Switch with LCD Touch Screen
PLANET WGS-5225-8UP2SV Industrial L2+ 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP Wall-mount Managed Switch with LCD Touch Screen
PLANET WGS-5225-8UP2SV Industrial L2+ 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP Wall-mount Managed Switch with LCD Touch Screen
PLANET WGS-5225-8UP2SV Industrial L2+ 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP Wall-mount Managed Switch with LCD Touch Screen
  • Stock: In Stock
  • Brand: PLANET
  • Model: WGS-5225-8UP2SV
  • Weight: 1.60kg
  • Dimensions: 3.60cm x 24.50cm x 14.00cm
771.48€
Ex Tax: 622.16€

Wall-mounted PoE++ Managed Switch with Advanced L2+/L4 Switching and Security

PLANET WGS-5225-8UP2SV is an Industrial Wall-mount PoE++ Managed Switch with LCD Touch Screen featuring PLANET intelligent PoE functions to improve the availability of industrial applications. It provides IPv6/IPv4 dual stack management and built-in L2+/L4 Gigabit switching engine along with eight 10/100/1000BASE-T ports featuring 95-watt PoE and two additional 100/1000/2500BASE-X SFP ports. With a total power budget of up to 720 watts for different kinds of PoE applications, and featuring networking speed and operating temperature ranging from -20 to 70 degrees C in a compact but rugged IP30 metal housing, the WGS-5225-8UP2SV is an ideal solution to meet the demand for the following network applications:





802.3bt PoE++ – 90~95-watt Power over 4-pair UTP Solution

As the WGS-5225-8UP2SV adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:

  • PoE PTZ speed dome cameras
  • Network devices
  • Thin clients
  • AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
  • Remote digital signage displays
  • PoE lightings

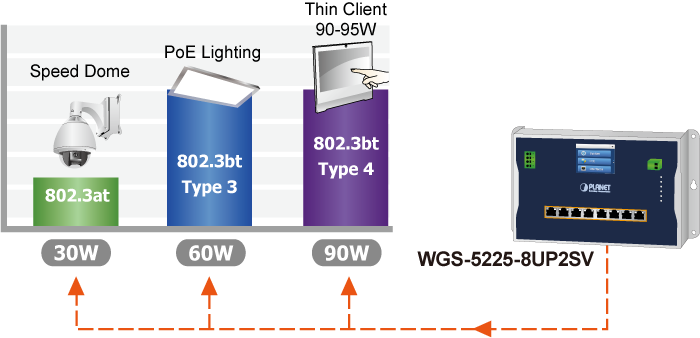

802.3bt PoE++ and Advanced PoE Power Output Mode Management

To meet the demand of various powered devices consuming stable PoE power, the WGS-5225-8UP2SV provides five different PoE power output modes for selection.

  • 90W 802.3bt PoE++ Power Output Mode
  • 95W UPOE/PoH Power Output Mode
  • 30W End-span PoE Power Output Mode
  • 30W Mid-span PoE Power Output Mode
  • 60W Force Power Output Mode



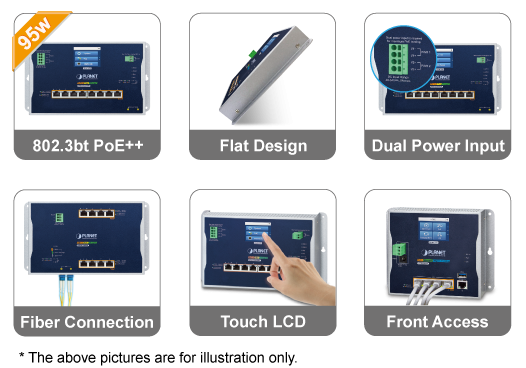

Innovative Wall-mount Installation

The WGS-5225-8UP2SV is specially designed to be installed in a narrow environment, such as wall enclosure or electric box. The compact, flat and wall-mounted design fits easily in any space-limited location. It adopts the user-friendly “Front Access” and touch color screen design, making the installing, cable wiring, LED monitoring and maintenance of the WGS-5225-8UP2SV placed in an enclosure very convenient for technicians. The WGS-5225-8UP2SV can be installed by fixed wall mounting, thereby making its usability more flexible.

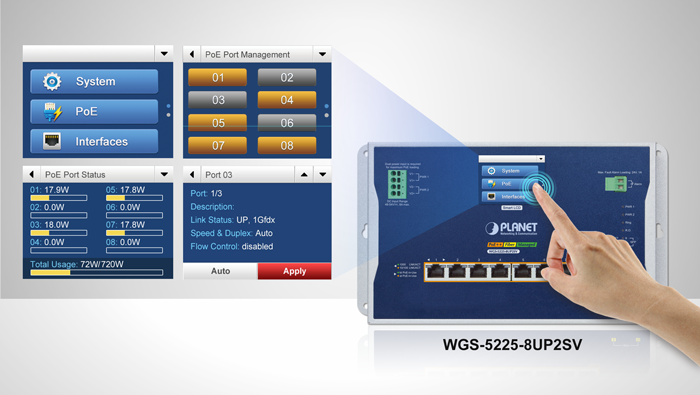

Intuitive LCD Control

The WGS-5225-8UP2SV comes with an intuitive touch panel on its front panel that facilitates the Ethernet PoE PD management that greatly promotes management efficiency in large-scale networks, such as enterprises, hotels, shopping malls, government buildings, and other public areas. It also features the following special management and status functions:

  • IP address, VLAN and QoS configuration
  • PoE management and status
  • Port management and status, and SFP information
  • Troubleshooting: cable diagnostic and remote IP ping
  • Maintenance: reboot, factory default and save configuration

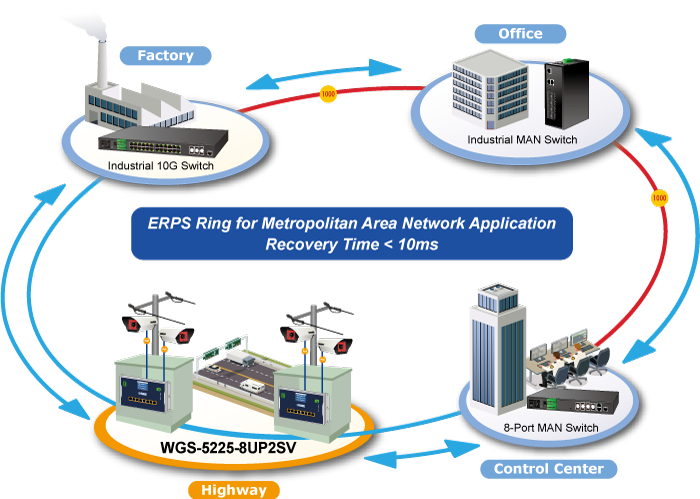

Redundant Ring, Fast Recovery for Critical Network Applications

The WGS-5225-8UP2SV supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and dual power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple ring network, the recovery time of data link can be as fast as 10ms.



Built-in Unique PoE Functions for Powered Devices Management

As it is the managed PoE switch for surveillance, wireless and VoIP networks, the WGS-5225-8UP2SV features the following special PoE management functions:

  • PD alive check
  • Scheduled power recycling
  • PoE schedule
  • PoE usage monitoring

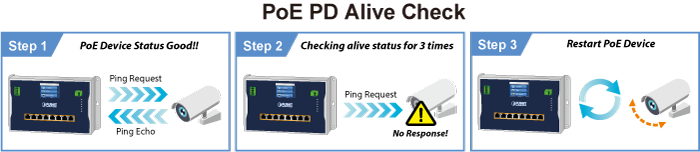

Intelligent Powered Device Alive Check

The WGS-5225-8UP2SV can be configured to monitor connected PD status in real time via ping action. Once the PD stops working and responding, the WGS-5225-8UP2SV will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.

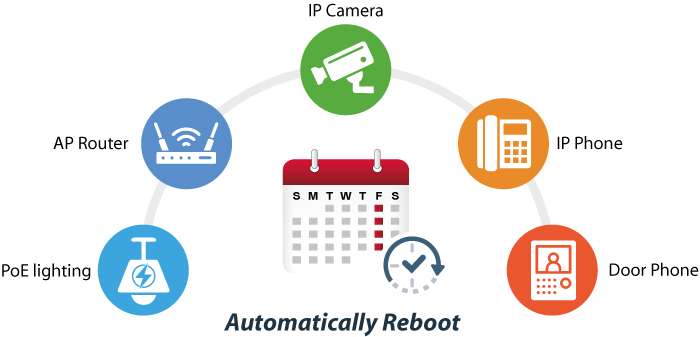

Scheduled Power Recycling

The WGS-5225-8UP2SV allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

PoE Schedule for Energy Saving

Under the trend of energy saving worldwide and contributing to environmental protection, the WGS-5225-8UP2SV can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.

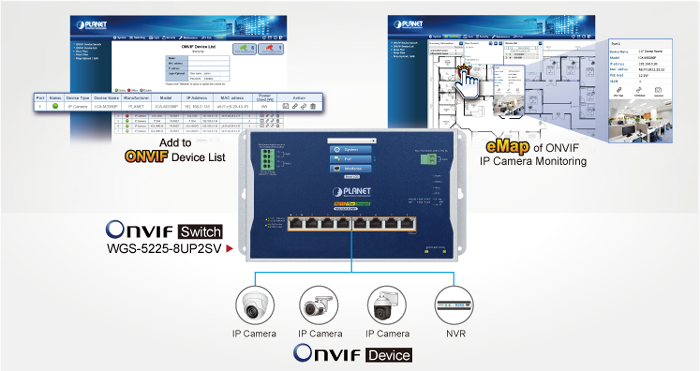

Convenient and Smart ONVIF Devices with Detection Feature

PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the WGS-5225-8UP2SV’s GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can upload floor images to the switch and can remotely monitor or inspect an assembly line. Moreover, you can get real-time surveillance information and online/offline status; the PoE reboot can be controlled from the GUI.

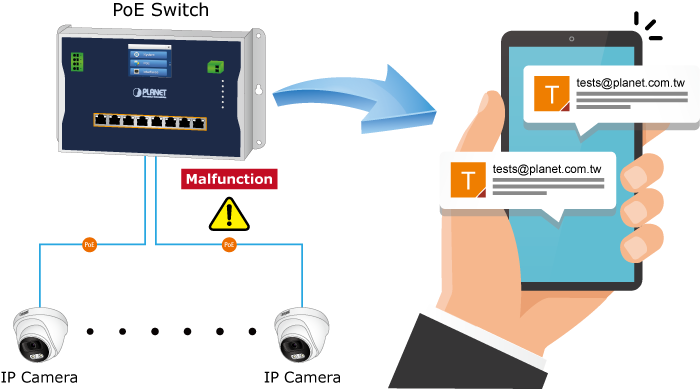

SMTP/SNMP Trap Event Alert

The WGS-5225-8UP2SV provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.



Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management

To help customers stay on top of their businesses, the WGS-5225-8UP2SV not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.



Robust Layer 2 Features

The WGS-5225-8UP2SV can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The WGS-5225-8UP2SV provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 2K. Via aggregation of supporting ports, the WGS-5225-8UP2SV allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 2 trunk groups with 2 ports per trunk group, and supports fail-over as well.

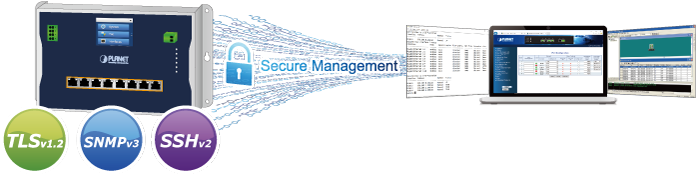

Network with Cybersecurity Helps Minimize Security Risks

The WGS-5225-8UP2SV comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer's critical equipment in a business network, the cybersecurity feature of the WGS-5225-8UP2SV protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.



Efficient Management

For efficient management, the WGS-5225-8UP2SV is equipped with Command line, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the WGS-5225-8UP2SV offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and SSHv2 protocol.
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.





Powerful Security from Layer 2 to Layer 4

The WGS-5225-8UP2SV offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.



Advanced IP Network Protection

The WGS-5225-8UP2SV also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.



Modbus TCP provides Flexible Network Connectivity for Factory Automation

With the supported Modbus TCP/IP protocol, the WGS-5225-8UP2SV can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory.



Flexibility and Extension Solution

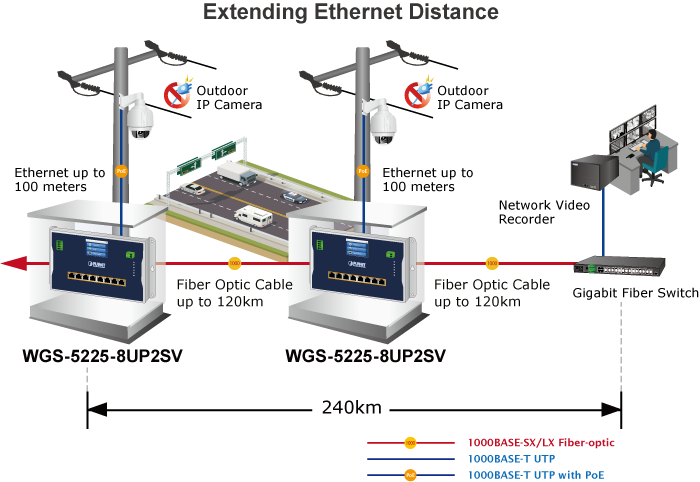

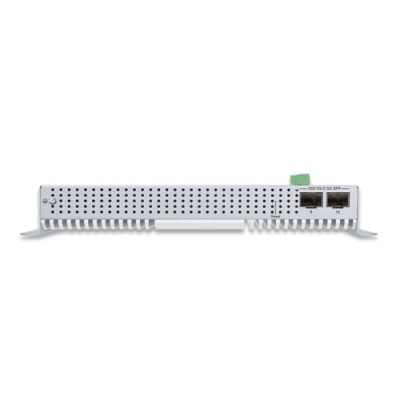

The additional two SFP slots built in the WGS-5225-8UP2SV support multi-speed, 100BASE-FX, 1000BASE-SX/LX and 2500BASE-X SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 550 meters (multi-mode fiber) to 20/40/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

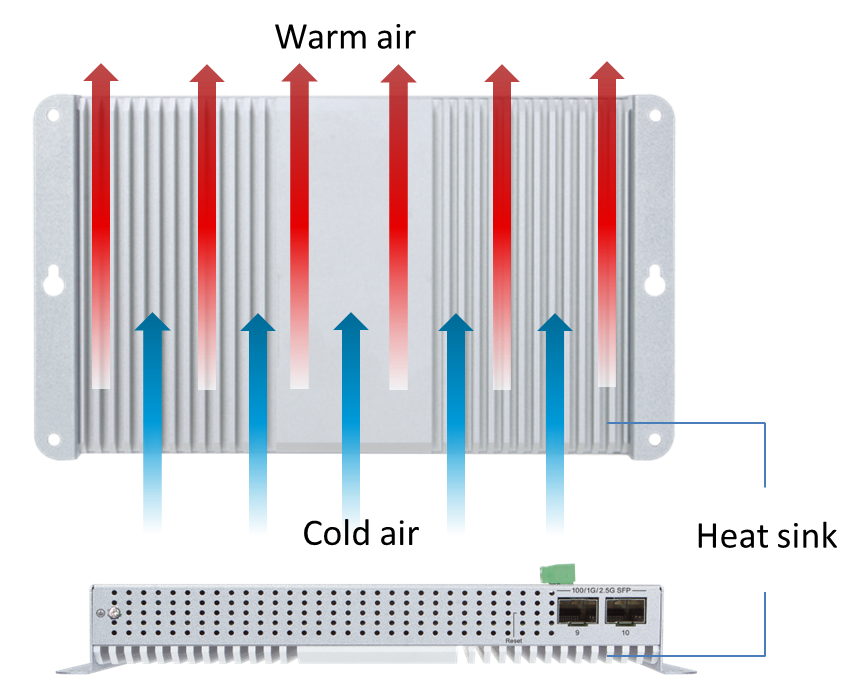

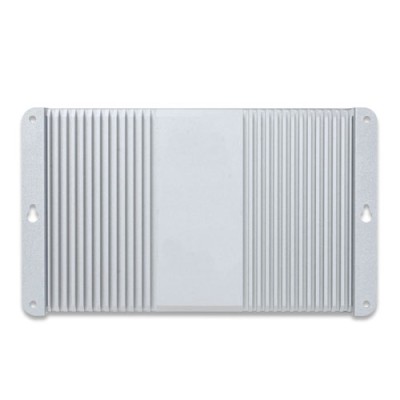

A One-piece Aluminum Enclosure Gives Protection and Heat Dissipation

The WGS-5225-8UP2SV comes with an unibody aluminum enclosure that, like a heat sink, has the shape of a fin profile on the rear side of the switch, thus dissipating heat very quickly, especially in the operating temperature of 70 degrees C.



Intelligent SFP Diagnosis Mechanism

The WGS-5225-8UP2SV supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

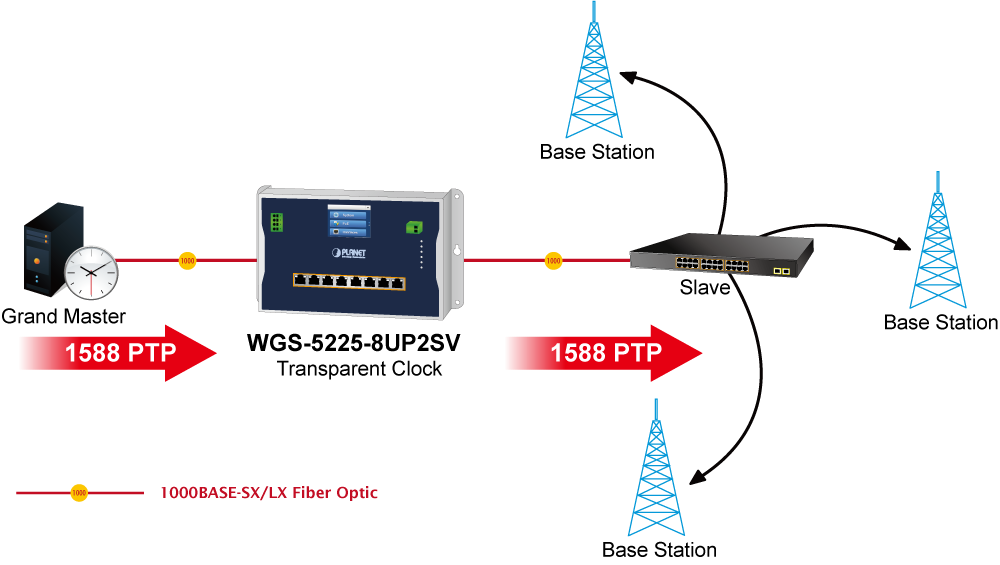

1588 Time Protocol for Industrial Computing Networks

The WGS-5225-8UP2SV is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.



Security Building Automation Switch

Suitable for buildings where security is strictly to be enforced, the WGS-5225-8UP2SV offers a comprehensive Layer 2 to Layer 4 Access Control List (ACL). The switch can restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. With the WGS-5225-8UP2SV, a tightly-controlled network can be easily had in no time.

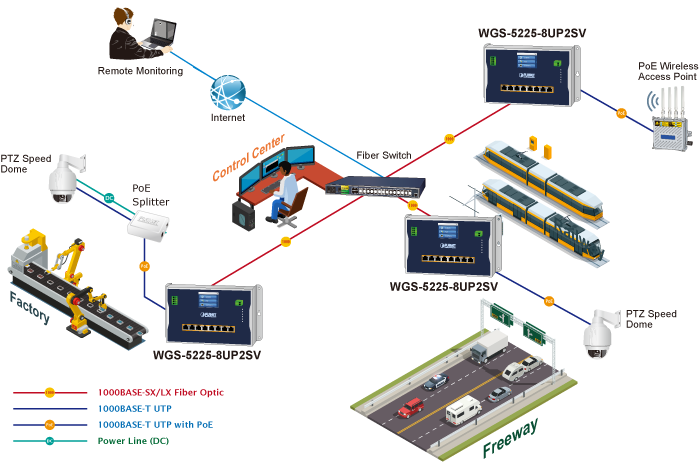

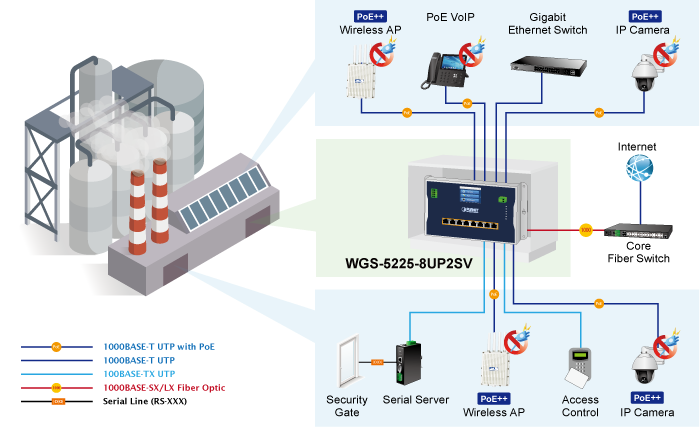

Different Networks Managed by One Control Center

Providing up to 8 PoE++, in-line power interfaces, the WGS-5225-8UP2SV can centrally manage power supplying to an industrial network system where IP phones, IP cameras, wireless APs and more are built. For instance, 8 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the WGS-5225-8UP2SV makes the installation of IP cameras and wireless APs easier and more efficient.



Physical Port

  • 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3bt PoE++ Injector function
  • 2 100/1000/2500BASE-X SFP slots for SFP type auto detection



Industrial Case and Installation

  • IP30 aluminum case
  • Supports -20 to 70 degrees C operating temperature
  • Supports ESD 6KV DC Ethernet protection
  • Dual power input design
    • 48V~54V DC wide power input with reverse polarity protection
  • Compact size with fixed wall-mounted design



Power over Ethernet

  • Complies with IEEE 802.3bt Power over Ethernet Plus Plus PSE
  • Backward compatible with 802.3at PoE+ end-span or mid-span PSE
  • Up to 8 IEEE 802.3af/802.3at/802.3bt devices powered
  • Supports PoE power up to 95 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m
  • PoE management features
    • Total PoE power budget control
    • Per port PoE function enable/disable
    • PoE admin-mode control
    • PoE port power feeding priority
    • Per PoE port power limit
    • PD classification detection
    • Sequence port PoE
    • PoE extend mode control to support power feeding up to a distance of up to 160 meters
    • Auto maximum PoE budget control by power input detection
  • Intelligent PoE features
    • PoE usage threshold control
    • PD alive check
    • PoE schedule



Industrial Protocol

  • Modbus TCP for real-time monitoring in SCADA system
  • IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode



Layer 3 IP Routing Features

  • Supports maximum 32 static routes and route summarization
  • Routing interface provides per VLAN routing mode



Layer 2 Features

  • Storm Control support
    • Broadcast/Multicast/Unicast
  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
    • Private VLAN Edge (PVE)
    • Protocol-based VLAN
    • MAC-based VLAN
    • Voice VLAN
    • GVRP (GARP VLAN Registration Protocol)
  • Supports Spanning Tree Protocol
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
    • BPDU Guard/BPDU Filtering
  • Supports Link Aggregation
    • 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
    • Maximum 2 trunk groups with 2 ports per trunk group
    • Up to 10Gbps bandwidth (duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  • Link Layer Discovery Protocol (LLDP)



Quality of Service

  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
    • IEEE 802.1p CoS
    • IP TOS/DSCP/IP precedence
    • IP TCP/UDP port number
    • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing on the switch port
  • DSCP remarking



Multicast

  • Supports IPv4 IGMP Snooping v1, v2 and v3
  • Supports IPv6 MLD Snooping v1 and v2
  • Querier mode support
  • IPv4 IGMP Snooping port filtering
  • IPv6 MLD Snooping port filtering
  • MVR (Multicast VLAN Registration)



Security

  • Authentication
    • IEEE 802.1x Port-based / MAC-based network access authentication
    • Built-in RADIUS client to cooperate with the RADIUS servers
    • TACACS+ login users access authentication
    • RADIUS/TACACS+ users access authentication
    • Guest VLAN assigns clients to a restricted VLAN with limited services
  • Access Control List
    • IP-based Access Control List (ACL)
    • MAC-based Access Control List
  • Source MAC / IP address binding
  • DHCP Snooping to filter un-trusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • Auto DoS rule to defend DoS attack
  • IP address access management to prevent unauthorized intruder



Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
    • Telnet Command Line Interface
    • Web switch management
    • SNMP v1, v2c, and v3 switch management
    • SSHv2 and TLSv1.2 secure access
  • SNMP Management
    • Four RMON groups (history, statistics, alarms, and events)
    • SNMP trap for interface Link Up and Link Down notification
  • IPv6 IP address/NTP/DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
    • Firmware upload/download via HTTP/TFTP
    • Reset button for system reboot or reset to factory default
    • Dual Images
  • DHCP Relay and DHCP Option 82
  • DHCP Server
  • User Privilege levels control
  • Network Time Protocol (NTP)
  • Network Diagnositc
    • ICMPv6/ICMPv4 Remote Ping
    • Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
    • SFP-DDM (Digital Diagnostic Monitor)
  • SMTP, Syslog and SNMP trap remote alarm
  • System Log
  • PLANET UNI-NMS (Universal Network Management) and Smart Discovery Utility for deployment management
  • Provides ONVIF for co-operating with PLANET video IP surveillances



Hardware Specifications
Copper Ports8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Slots2 100/1000/2500BASE-X SFP interfaces
Compatible with 100BASE-FX, 1000BASE-SX/LX/BX and 2500BASE-X SFP transceivers
PoE Injector Port8 ports with 802.3bt PoE++ injector function with Port-1 to Port-8
RAM128MBytes
Flash Memory64MBytes
Reset Button< 5 sec: System reboot
> 5 sec: Factory Default
Connector4-pin terminal block for power input
- Pin 1/2 for Power 1 (Pin 1: V+ / Pin 2: V-)
- Pin 3/4 for Power 2 (Pin 3: V+ / Pin 4: V-)
2-pin terminal block for event alarm
AlarmOne relay output for power failure. Alarm Relay current carry ability: 1A @ 24V DC
EnclosureIP30 aluminum case
InstallationWall-mount
Dimensions (W x D x H)245 x 36 x 140 mm
Weight1,299g
Power Requirements48~54V DC (>52V DC for PoE++ and PoE+ output recommended)
Dual power input is required for maximum power loading
Power ConsumptionMax. 14.72 watts/50.23 7BTU@50V DC input (Power on without any connection)
Max. 375 watts/1280BTU@Single 54V DC input (Full loading with 360 watts PoE function)
Max. 752 watts/2566BTU@Dual 54V DC input (Full loading with 720 watts PoE function)
ESD Protection6KV DC
LED IndicatorSystem:
- PWR 1(Green)
- PWR 2 (Green)
- Ring (Green)
- Ring Owner (Green)
Per 10/100/1000T RJ45 PoE++ Ports:
- 802.3bt PoE-in-Use (Green)
- 802.3af/at PoE-in-Use (Amber)
- 1000 LNK/ACT (Green)
- 10/100 LNK/ACT (Amber)
Per SFP Interface:
- 100 LNK/ACT (Amber)
- 1000/2500 LNK/ACT (Green)
Switching Specifications
Switch ArchitectureStore-and-Forward
Switch Fabric26Gbps/non-blocking
Throughput (packet per second)19.345Mpps@ 64 bytes packet
Address Table8K entries, automatic source address learning and aging
Shared Data Buffer4Mbits
Flow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame9Kbytes
Power Over Ethernet
PoE StandardIEEE 802.3bt PoE++ Type-4 PSE
Backward compatible with 802.3at PoE+ PSE
PoE Power Supply Type- 802.3bt
- UPOE/POH
- End-span
- Mid-span
- Force
PoE Power Output802.3bt PoE++
- Per port 52V~56V DC (depending on the power supply), max. 90 watts
UPoE(PoH)
- Per port 52V~56V DC (depending on the power supply), max. 95 watts
IEEE 802.3at Standard
- Per port 52V~56V DC (depending on the power supply), max. 36 watts
Force
- Per port 52V~56V DC (depending on the power supply), max. 60 watts
Power Pin AssignmentEnd-span: 1/2 (-), 3/6 (+)
Mid-span: 4/5 (+), 7/8 (-)
802.3bt/UPoE: 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-)
PoE Power Budget48V Power input
- 125W maximum (depending on power input)
52~54V Power input
- Single power input: 360W maximum (depending on power input)
- Dual power input: 720W maximum (depending on power input)
※Dual power input must be the same as DC voltage, like dual 54V
Max. number of Class 3 PDs8
Max. number of Class 4 PDs8
Max. number of Class 8 PDs8
PoE Management Functions
Active PoE device alive detectsYes
PoE Power RecycleYes, daily or predeinded schedule
PoE Schedule4 schedule profiles
PoE Extend ModeYes, max. 160 to 200 meters
PoE System ManagementSystem PoE Admin control
Total PoE power budget control
Auto power input and PoE budget control
PoE Legacy mode
Over-temperature threshold alarm
PoE usage threshold alarm
PoE Port ManagementPort Enable/Disable/Schedule
PoE mode control
- 802.3bt
- UPoE
- 802.3at End-span
- 802.3at Mid-span
- Force mode
Port Priority
Layer 3 Functions
IP InterfacesMax. 8 VLAN interfaces
Routing TableMax. 32 routing entries
Routing ProtocolsIpv4 software static routing
Ipv6 software static routing
Layer 2 Function
Port ConfigurationPort disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control
Port StatusDisplay each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port MirroringTX/RX/both
Many-to-1 monitor
VLANIEEE 802.1Q tag-based VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4094 VLAN IDs
Link AggregationIEEE 802.3ad LACP/static trunk
Supports 2 trunk groups with 2 ports per trunk group
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IGMP SnoopingIpv4 IGMP (v1/v2 /v3) Snooping
Ipv4 IGMP Querier mode support
Up to 255 multicast Groups
MLD SnoopingIpv6 MLD (v1/v2) Snooping
Ipv6 MLD Querier mode support
Up to 255 multicast Groups
Bandwidth ControlPer port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps
RINGSupports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms
SynchronizationIEEE 1588v2 PTP(Precision Time Protocol)
- Peer-to-peer transparent clock
- End-to-end transparent clock
QoSTraffic classification based, strict priority and WRR
8-level priority for switching
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP packet
Security Functions
Access Control ListIP-based ACL/MAC-based ACL
ACL based on:
- MAC Address
- IP Address
- Ethertype
- Protocol Type
- VLAN ID
- DSCP
- 802.1p Priority
Up to 256 entries
SecurityPort security
IP source guard
Dynamic ARP inspection
Command line authority control based on user level
AAARADIUS client
TACACS+ client
Network Access ControlIEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Management Functions
Basic Management InterfacesTelnet; Web browser; SNMP v1, v2c
Secure Management InterfacesSSHv2, TLS v1.2, SNMPv3
System ManagementFirmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
LLDP protocol
NTP
PLANET Smart Discovery Utility
Event ManagementRemote Syslog
System log
SMTP
ONVIFONVIF device discovery
ONVIF device monitoring
Floor Map
SNMP MIBsRFC 1213 MIB-II
IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Stability TestingIEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3ah OAM
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3367 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU-T G.8032 Ethernet Ring Protection Switching
Environment
Operating Temperature-20 ~ 70 degrees C
Storage Temperature-40 ~ 85 degrees C
Humidity5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2021-07-301.0WGS-5225-8UP2SV



Firmware

DateVersionDescriptionDownload
2024-05-211.440b240509Function added:
Supports PSTI Act to enhance product security.
(Default login authentications for the device are username: admin and password: sw + the last 6 characters of the MAC ID in lowercase.)
FW upgrade for PSTIA (Product Security and Telecommunications Infrastructure Act)
*Note: After updating the firmware, you will need to enter the product's MAC code at the first login. Please record the MAC code before proceeding with the update.



Quick Guide

DateVersionDescriptionDownload
2024-06-071.1Release for PSTI versoin.
2021-05-051.0Initial release



User's Manual

DateVersionDescriptionDownload
2021-06-211.0Initial release
