- Stock: In Stock
- Brand: PLANET
- Model: IGS-824UPT
- Weight: 1.02kg
- Dimensions: 8.61cm x 5.60cm x 13.50cm
Outstanding 802.3bt PoE++ Solution for Hardened Environment

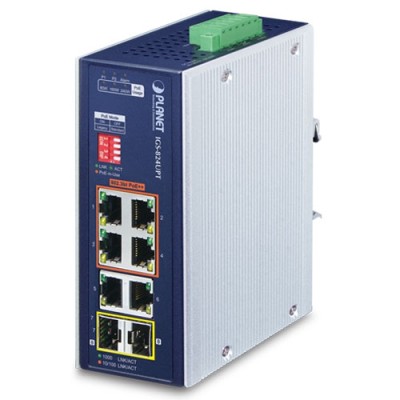

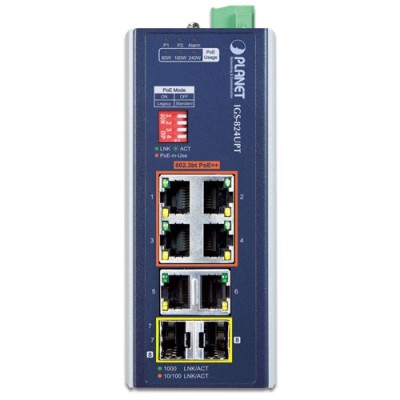

Featuring Plug and Play designed to be installed in heavy industrial environments, PLANET IGS-824UPT Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet Switch features four 10/100/1000BASE-T ports and IEEE 802.3bt PoE++ (Power over Ethernet Plus Plus) injector function to deliver up to 95 watts of power output and high data transmission speed to PDs (powered devices) installed in a remote area where sufficient and reliable power input is required. Its two 100/1000BASE-X SFP fiber optic uplink ports provide long distance, high speed and stable data transmission to a remote core network.
The IGS-824UPT is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 240 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.

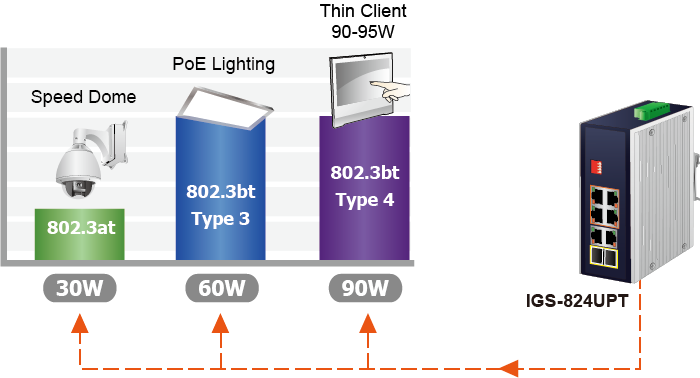

802.3bt PoE++ – 90~95-watt Power over 4-pair UTP Solution
As the IGS-824UPT adopts the IEEE 802.bt PoE++ standard and UPoE technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:
- PoE PTZ speed dome cameras
- Thin clients
- AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
- Remote digital signage displays
- PoE lightings

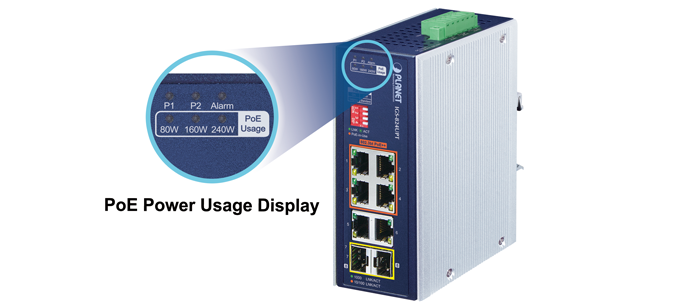

Intelligent LED Indicator for Real-time PoE Usage
The IGS-824UPT helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indicator. On the front panel of the Industrial Gigabit PoE++ Switch, there are three different power usage LED indicators indicating 80W, 160W and 240W.

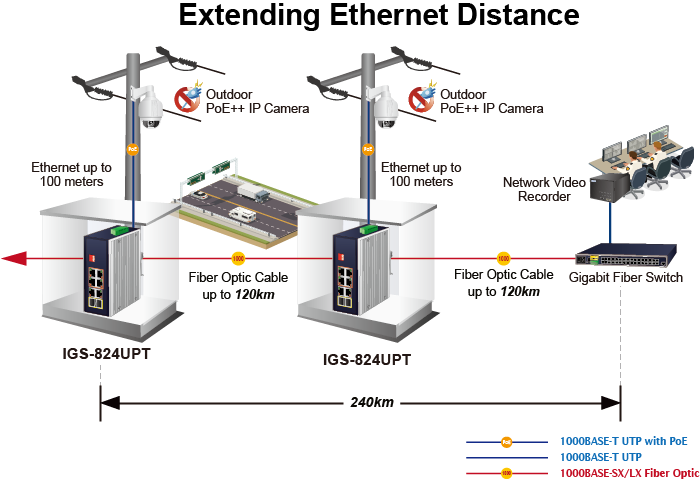

Fiber Optic Link Capability for Flexible Distance Extension
The additional two mini-GBIC slots built in the IGS-824UPT support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (small form-factor pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications to uplink to backbone switch and monitoring center in long distance.

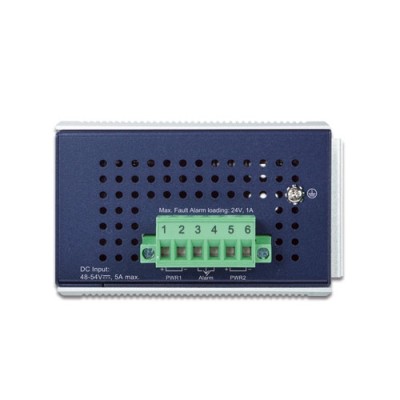

Dual Power Input for High Availability Network System
The IGS-824UPT features a strong dual power input system with 48~54V DC to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-824UPT via power supply 2 alternatively without any loss of operation.
Environmentally Hardened Design
With the IP30 metal industrial case, the IGS-824UPT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-824UPT can be placed in almost any difficult environment.
Robust Protection
The IGS-824UPT provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

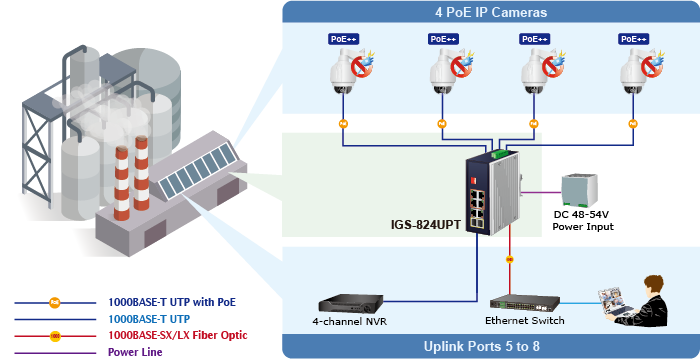

Perfect Integration Solution for IP PoE Camera and NVR System
The IGS-824UPT provides four 10/100/1000BASE-T 802.3bt PoE++ ports which can offer sufficient PoE power to 4 high-power required PoE IP cameras at the same time. In addition, with the Gigabit copper and 100/1000BASE-X fiber uplink interfaces, the IGS-824UPT can connect to a core switch and send video streams to an NVR and monitoring center.
Through the high-performance switch architecture, the IGS-824UPT facilitates the recorded video files from the 4 PoE++ IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote site via Internet. The IGS-824UPT undoubtedly brings an ideal secure surveillance system at a lower total cost.

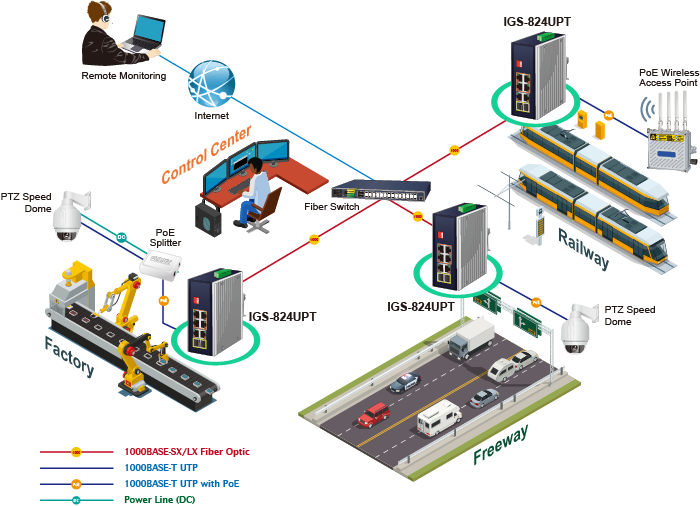

Industrial-grade PoE++ Switch for Building Automation and Security
Suitable for buildings where security is strictly enforced, the IGS-824UPT, with four Gigabit Ethernet 802.3bt PoE++, in-line power interfaces, can easily build a power that can centrally control an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment.
For instance, 4 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the IGS-824UPT makes the installation of IP cameras or wireless APs easier and more efficient.
