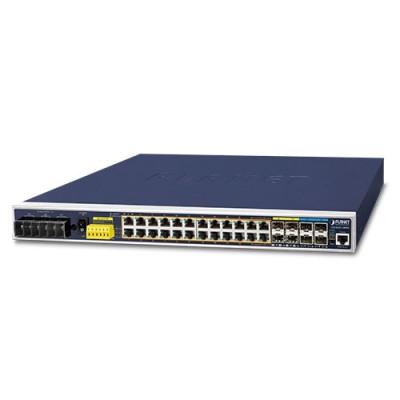

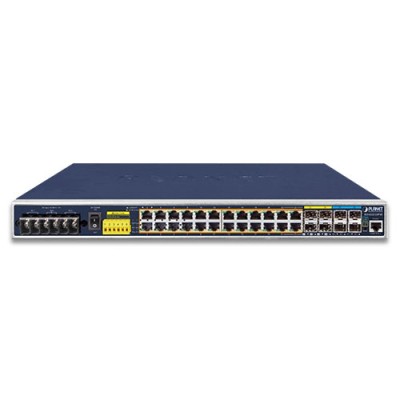

PLANET IGS-6325-24P4X Industrial L3 24-Port 10/100/1000T-802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch

PLANET IGS-6325-24P4X Industrial L3 24-Port 10/100/1000T-802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET IGS-6325-24P4X Industrial L3 24-Port 10/100/1000T-802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET IGS-6325-24P4X Industrial L3 24-Port 10/100/1000T-802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET IGS-6325-24P4X Industrial L3 24-Port 10/100/1000T-802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET IGS-6325-24P4X Industrial L3 24-Port 10/100/1000T-802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET IGS-6325-24P4X Industrial L3 24-Port 10/100/1000T-802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET IGS-6325-24P4X Industrial L3 24-Port 10/100/1000T-802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch
  • Stock: In Stock
  • Brand: PLANET
  • Model: IGS-6325-24P4X
  • Weight: 5.04kg
  • Dimensions: 30.00cm x 44.00cm x 4.40cm
1,523.55€
Ex Tax: 1,228.67€

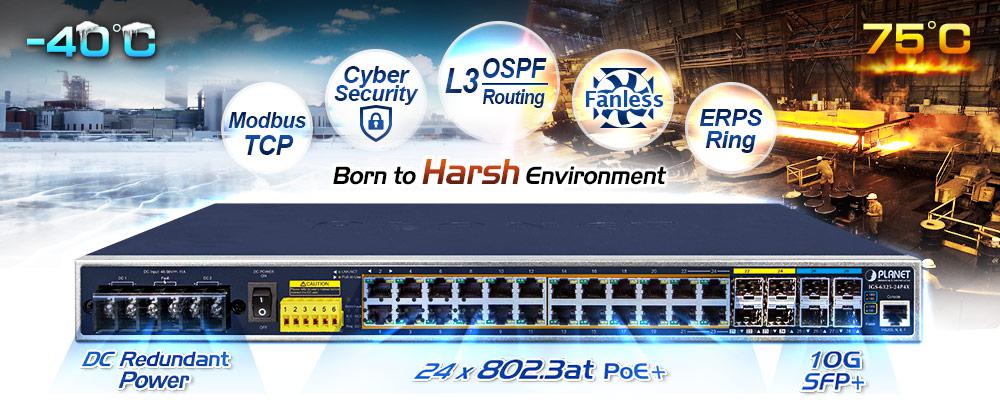

Advanced Layer 3 Manageable PoE Solution for Hardened Environment

PLANET IGS-6325-24P4X L3 Industrial Managed PoE+ Switch features 24 10/100/1000BASE-T 802.3at PoE+ ports with each port powering up to 36 watts, 4 shared SFP ports and 4 10G SFP+ ports in a 1U case. With 10Gbps uplink, the IGS-6325-24P4X can handle extremely large amounts of data in a secure topology linking to an industrial backbone or high capacity servers. It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions, Layer 3 OSPFv2 dynamic routing capability, and advanced ITU-G.8032 ERPS Ring technology to improve the rapid self-recovery capability and PLANET intelligent PoE functions for controlling the PoE outdoor IP surveillance and wireless network applications. It is able to operate reliably, stably and quietly in the temperature range from -40 to 75 degrees C.







Layer 3 Routing Support

The IGS-6325-24P4X enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, and the IPv4 OSPFv2 (Open Shortest Path First) settings automatically. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.



Cybersecurity Network Solution to Minimize Security Risks

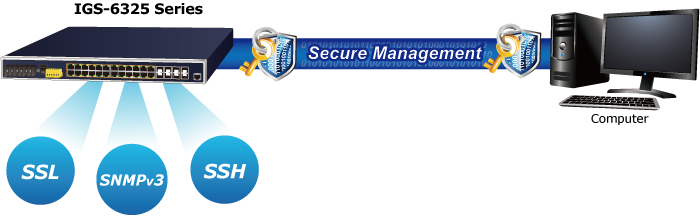

The IGS-6325 Series supports SSHv2, TLS and SSL protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, ARP Inspection Protection, 802.1x port-based and MAC-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.

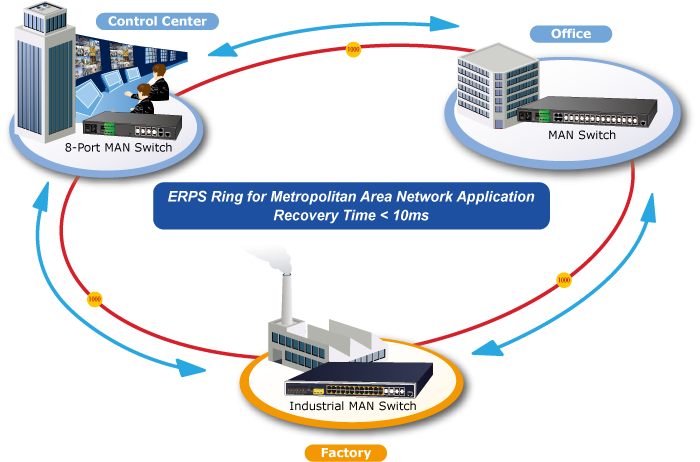

Redundant Ring, Fast Recovery for Critical Network Applications

The IGS-6325 Series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple Ring network, the recovery time of data link can be as fast as 10ms.



High Power PoE for Security and Public Service Applications

As the whole system comes with a total 440-watt PoE budget, the IGS-6325-24P4X is designed specifically to satisfy the growing demand of higher power consuming network PDs (powered devices) such as multi-channel (802.11a/b/g/n) wireless LAN access points, PTZ (pan, tilt, zoom) speed dome network cameras and other PoE network devices.

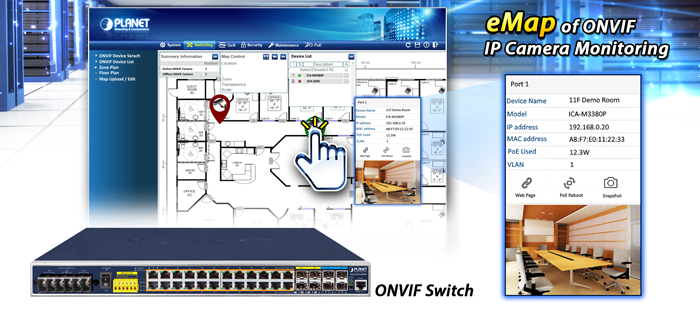

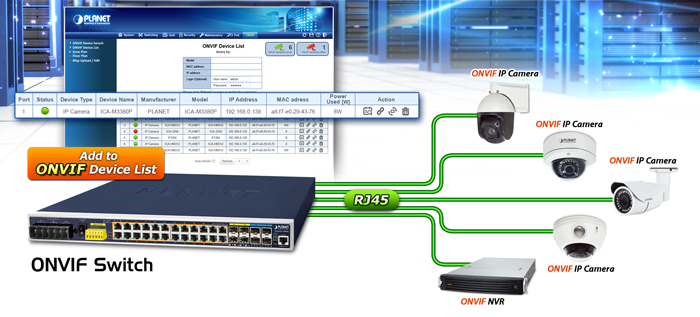

Convenient and Smart ONVIF Devices with Detection Feature

PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the IGS-6325-24P4X GUI, clients just need one click to search and show all of the ONVIF devices via network application. In addition, clients can upload floor images to the switch series, making the deployments of surveillance and other devices easy for planning and inspection purposes. Moreover, clients can get real-time surveillance’s information and online/offline status; the PoE reboot can be controlled from the GUI.

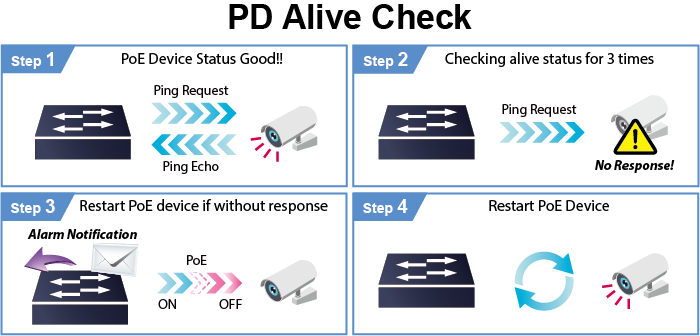

Intelligent Alive Check for Powered Device

The IGS-6325-24P4X PoE Switch can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-6325-24P4X will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.

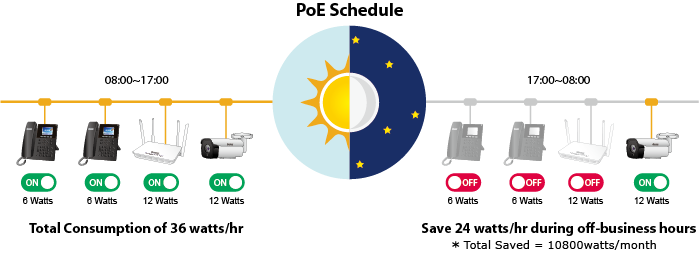

PoE Schedule for Energy Saving

Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the IGS-6325-24P4X can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.

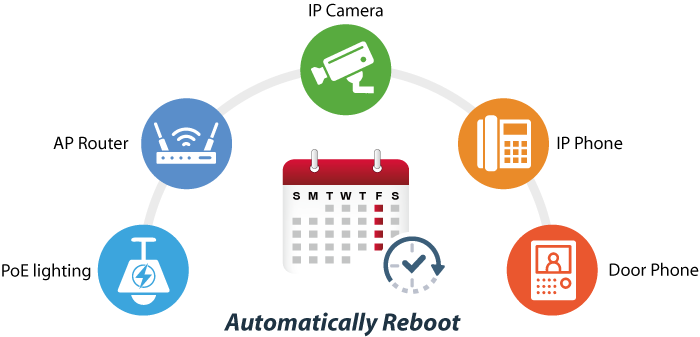

Scheduled Power Recycling

The IGS-6325-24P4X allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

SMTP/SNMP Trap Event Alert

The IGS-6325-24P4X provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.

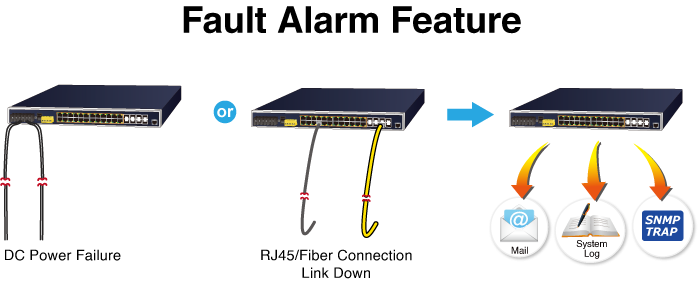

Effective Alarm Alert for Better Protection

The IGS-6325 Series supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.

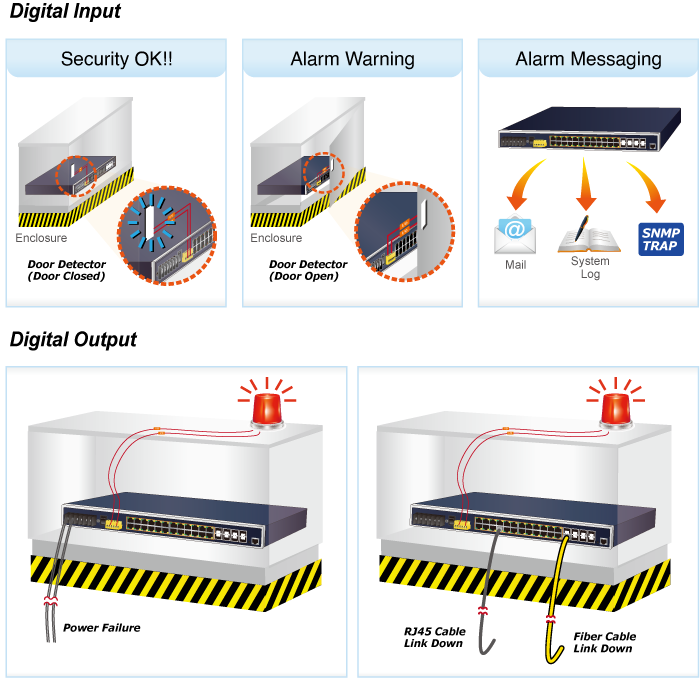

Digital Input and Digital Output for External Alarm

The IGS-6325 Series supports Digital Input and Digital Output on its upper panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-6325 Series’ port shows link down, link up or power failure.



Robust Layer 2 Switching

The IGS-6325 Series can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-6325 Series provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 255. Via aggregation of supporting ports, the IGS-6325 Series allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 14 trunk groups with 16 ports per trunk group, and supports fail-over as well.

 Powerful Security

The IGS-6325 Series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.



Modbus TCP Provides Flexible Network Connectivity for Factory Automation

With the supported Modbus TCP/IP protocol, the IGS-6325 Series can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

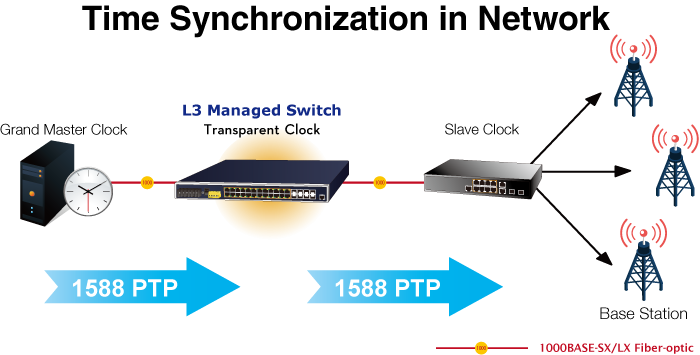

1588 Time Protocol for Industrial Computing Networks

The IGS-6325 Series is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.



Flexible and Extendable 10Gb Ethernet Solution

10G Ethernet is a big leap in the evolution of Ethernet. Each of the 10G SFP+ slots in the IGS-6325-24P4X supports triple speed and 10GBASE-SR/LR, 2500BASE-X or 1000BASE-SX/LX. With its 4-port, 10G Ethernet link capability and additional 4-port 1G Ethernet link capability, the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The IGS-6325-24P4X provides broad bandwidth and powerful processing capacity.



Intelligent SFP Diagnosis Mechanism

The IGS-6325 Series supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

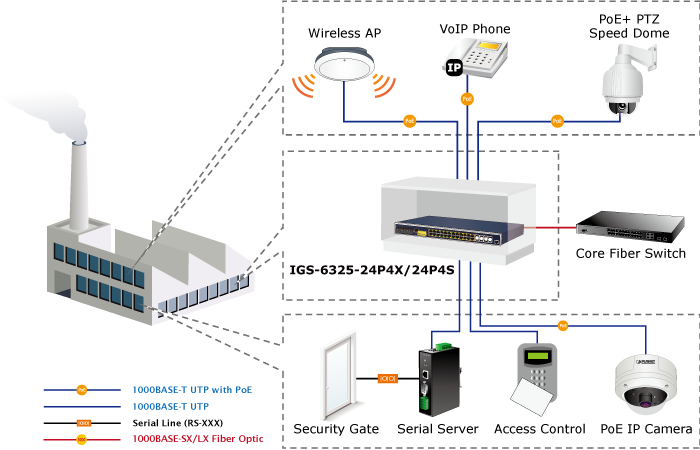

Industrial Area Department/Workgroup PoE Switch

Providing up to 24 PoE+, in-line power interfaces, the IGS-6325-24P4X can easily build a power centrally controlled for IP phone system, IP camera system, or wireless AP group for Industrial network. For instance, 24 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the IGS-6325-24P4X makes the installation of IP cameras or wireless AP easier and more efficient.

Physical Port

  • 24 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector function
  • 4 100/1000BASE-X mini-GBIC/SFP slots, shared with Port-21 to Port-24 compatible with 100BASE-FX SFP
  • 4 10GBASE-SR/LR SFP+ slots, backward compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP
  • RJ45 to RS232 DB9 console interface for basic management and setup



Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
  • Up to 24 IEEE 802.3af devices powered
  • Supports PoE power up to 36 watts for each PoE port
  • 440-watt PoE budget
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m
  • PoE management features
    • Total PoE power budget control
    • Per port PoE function enable/disable
    • PoE admin-mode control
    • PoE port power feeding priority
    • Per PoE port power limit
    • PD classification detection
  • Intelligent PoE features
    • Temperature threshold control
    • PoE usage threshold control
    • PD alive check
    • PoE schedule



Industrial Protocol

  • Modbus TCP for real-time monitoring in the SCADA system
  • IEEE 1588v2 PTP (Precision Time Protocol)



Industrial Case and Installation

  • IP30 metal case protection
  • 19-inch rack-mountable design
  • Dual 48~56V DC, redundant power with reverse polarity protection
    • Active-active redundant power failure protection
    • Backup of catastrophic power failure on one supply
    • Fault tolerance and resilience
  • Supports EFT protection for 6KV DC power and 5KV DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature



Digital Input and Digital Output

  • 2 digital input (DI)
  • 2 digital output (DO)
  • Integrate sensors into auto alarm system
  • Transfer alarm to IP network via email and SNMP trap



Layer 2 Features

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm Control support
  • Broadcast/Multicast/Unicast
  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Up to 4K VLANs groups, out of 4096 VLAN IDs
    • Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
    • Private VLAN Edge (PVE)
    • Protocol-based VLAN
    • MAC-based VLAN
    • Voice VLAN
    • GVRP (GARP VLAN Registration Protocol)
  • Supports Spanning Tree Protocol
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
    • BPDU Guard
  • Supports Link Aggregation
    • 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
    • Maximum 14 trunk groups with 16 ports per trunk group
    • Up to 32Gbps bandwidth (duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  • Link Layer Discovery Protocol (LLDP)



Layer 3 IP Routing Features

  • Supports maximum 128 static routes and route summarization
  • IPv4 dynamic routing protocol supports OSPFv2
  • IPv4/IPv6 hardware static routing
  • Routing interface provides per VLAN routing mode



Quality of Service

  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
  • IEEE 802.1p CoS
  • IP TOS/DSCP/IP precedence
  • IP TCP/UDP port number
  • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Traffic-policing on the switch port
  • DSCP remarking



Multicast

  • Supports IPv4 IGMP snooping v1, v2 and v3
  • Supports IPv6 MLD snooping v1 and v2
  • Querier mode support
  • IPv4 IGMP snooping port filtering
  • IPv6 MLD snooping port filtering
  • MVR (Multicast VLAN Registration)



Security

  • Authentication
    • IEEE 802.1x port-based / MAC-based network access authentication
    • Built-in RADIUS client to co-operate with the RADIUS servers
    • TACACS+ login users access authentication
    • RADIUS / TACACS+ users access authentication
  • Access Control List
    • IP-based Access Control List (ACL)
    • MAC-based Access Control List
  • Source MAC / IP address binding
  • DHCP Snooping to filter un-trusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder



Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
    • Console/Telnet Command Line Interface
    • Web switch management
    • SNMP v1 and v2c switch management
    • SSH, TLS, SSL and SNMP v3 secure access
  • SNMP Management
    • Four RMON groups (history, statistics, alarms, and events)
    • SNMP trap for interface Link Up and Link Down notification
  • IPv6 IP address/NTP/DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
    • Firmware upload/download via HTTP/TFTP
    • Reset button for system reboot or reset to factory default
    • Dual Images
  • DHCP Relay and DHCP Option 82
  • DHCP Server
  • User Privilege levels control
  • Network Time Protocol (NTP)
  • SFP-DDM (Digital Diagnostic Monitor)
  • Network Diagnositc
    • ICMPv6/ICMPv4 Remote Ping
    • Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
  • PLANET Remote Management (MQTT) and Smart Discovery Utility for deployment management
  • SMTP/Syslog remote alarm
  • System Log



Hardware Specifications
Copper Ports24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots4 100/1000BASE-X SFP interfaces, shared with Port-21 to Port-24
Backward compatible with 100BASE-FX SFP transceiver
SFP+ Slots4 10GbBASE-SR/LR SFP+ interfaces (Port-25 to Port-28)
Backward compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP
PoE Injector Port24 ports with 802.3af/at PoE injector function with Port-1 to Port-24
Console1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch ArchitectureStore-and-Forward
Switch Fabric128Gbps/non-blocking
Throughput (packet per second)95.2Mpps@ 64 bytes packet
Address Table16K entries, automatic source address learning and aging
Shared Data Buffer32M bits
Flow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame10K bytes
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
ESD Protection5KV DC
EnclosureIP30 metal case
InstallationRack-mountable kit
ConnectorFixed 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
AlarmOne relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
DI&DO2 digital input (DI):

Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Max. input current: 10mA

2 digital output (DO):

Open collector to 24V DC, 100mA max.

LED IndicatorsSystem:
DC 1 (Green)
DC 2 (Green)
Fault Alarm (Red)
Ring (Green)
Ring Owner (Green)
DIDO (Red)
Per 10/100/1000T RJ45 PoE+ Interfaces (Port 1 to Port 24):
PoE-in-Use (Amer)
LNK/ACT (Green)
100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24):
1000Mbps LNK/ACT (Green)
100Mbps LNK/ACT (Amer)
1/2.5/10Gbps SFP+ Interfaces (Port 25 to Port 28):
1G/2.5G LNK/ACT (Green)
10Gbps LNK/ACT (Amer)
Dimensions (W x D x H)443.7 x 301.5 x 44 mm, 1U height
Weight3800g
Power RequirementsDual 48~56V DC (>53V DC for PoE+ output recommended), 11A
Power ConsumptionMax. 33 watts/112.51 BTU (Power on without any connection)
Max. 540 watts/1841.13 BTU (Full loading with PoE function)
Power Over Ethernet
PoE StandardIEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply TypeEnd-span
PoE Power OutputIEEE 802.3af Standard

- Per port 48V~51V DC (depending on the power supply), max. 15.4 watts

IEEE 802.3at Standard

- Per port 52V~56V DC (depending on the power supply), max. 36 watts

Power Pin Assignment1/2 (+), 3/6 (-)
PoE Power Budget48V Power input

- Single power input: 240W maximum (depending on power input)
- Dual power input: 300W maximum (depending on power input)

52~56V Power input

- Single power input: 240W maximum (depending on power input)
- Dual power input: 440W maximum (depending on power input)

※Dual power input must be the same as DC voltage, like dual 56V
Max. Number of Class 2 PDs24
Max. Number of Class 3 PDs24
Max. Number of Class 4 PDs16
Layer 2 Function
Port ConfigurationPort disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Power saving mode control
Port StatusDisplay each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port MirroringTX / RX / Both
Many-to-1 monitor
VLANIEEE 802.1Q tag-based VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP (GARP VLAN Registration Protocol)
Up to 4K VLAN groups, out of 4096 VLAN IDs
Link AggregationIEEE 802.3ad LACP/static trunk
Supports 14 trunk groups with 16 ports per trunk group
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
QoSTraffic classification based, strict priority and WRR
8-level priority for switching
Port number
802.1p priority
802.1Q VLAN tag
DSCP/TOS field in IP packet
IGMP SnoopingIPv4 IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IPv4 IGMP querier mode support
MLD SnoopingIPv6 MLD (v1/v2) snooping, up to 255 multicast groups
IPv6 MLD querier mode support
Access Control ListIP-based ACL/MAC-based ACL
Up to 256 entries
Bandwidth ControlPer port bandwidth control
Ingress: 10Kbps~13000Mbps
Egress: 100Kbps~13000Mbps
Layer 3 Function
IP InterfacesMax. 128 VLAN interfaces
Routing TableMax. 128 routing entries
Routing ProtocolsIPv4 hardware static routing
IPv6 hardware static routing
IPv4 OSPFv2 dynamic routing
Management
Basic Management InterfacesConsole; Telnet; Web browser; SNMP v1, v2c
Secure Management InterfacesSSH, TLS, SSL, SNMP v3
SNMP MIBsRFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
FC 4292 IP Forward MIBIEEE 802.1X PAE
LLDP
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gigabit Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 1588 PTPv2
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU G.8032 ERPS Ring
Environment
Operating Temperature-40 ~ 75 degrees C
Storage Temperature-40 ~ 85 degrees C
Humidity5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2019-04-191.0IGS-6325-24P4X



Firmware

DateVersionDescriptionDownload
2021-01-081.440b201203Supports PLANET CloudViewer App and NMS controller.
2020-09-041.440b200827Added port 25 to port 28 that support an operating speed of 2.5G.



Quick Guide

DateVersionDescriptionDownload
2024-06-061.6Release for PSTI version.
2023-05-191.5Add IGS-6325-24UP4X.
2020-11-171.3Correct the package contents.
2019-10-151.2Initial Release For IGS-6325 Series_v1.2
2019-03-151.1Initial release for IGS-6325 series



User's Manual

DateVersionDescriptionDownload
2023-10-061.3Add IGS-6325-24UP4X.
2022-04-221.2Modify contents of user manual.
2019-05-031.1Initial release.



EC Declaration

DateVersionDescriptionDownload
2019-12-121.0
