Suitable for Industrial Environment

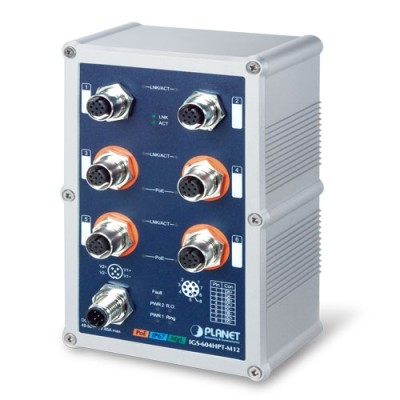

PLANET IGS-604HPT-M12, an Industrial Layer 2+ Managed Ethernet Switch, comes with an IP67-rated industrial case, 4-port 10/100/1000T 802.3at PoE, 2-port 10/100/1000T, and static Layer 3 routing, providing a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. The IGS-604HPT-M12 can be easily mounted on a DIN rail or wall taking up less space. Each of the four Gigabit PoE+ ports provides 36 watts of power, which means a total power budget of up to 144 watts can be utilized simultaneously without considering the different types of PoE applications being employed. It also provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.

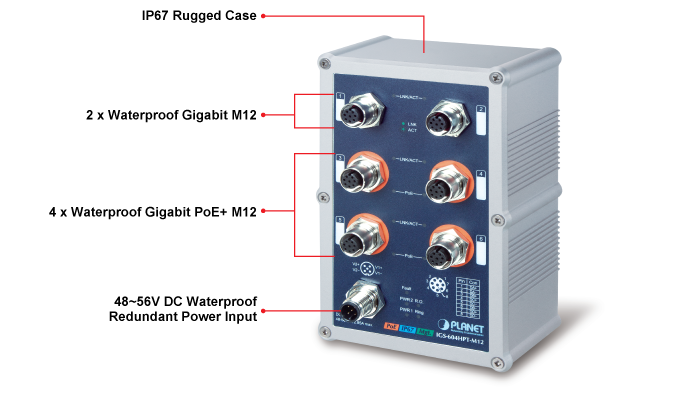

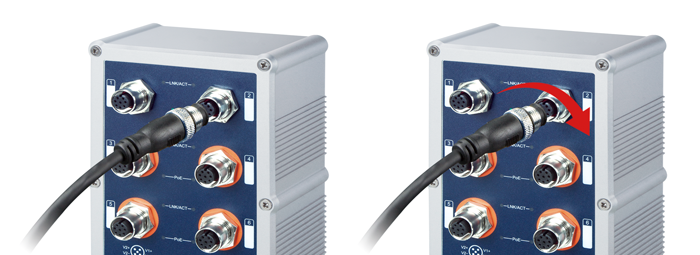

Waterproof and Dustproof M12 Ethernet Connector

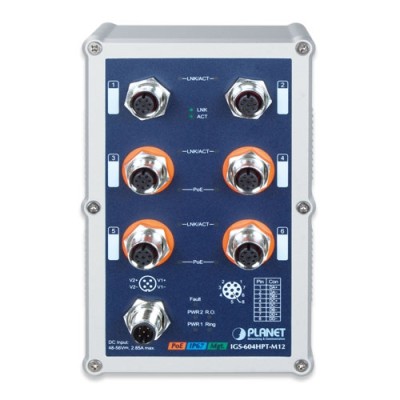

The IGS-604HPT-M12 is equipped with a 6-port 10/100/1000BASE-T auto-negotiation waterproof and dustproof M12 connector with 4-port IEEE 802.3at PoE+ (Port 3 to Port 6); each PoE port provides 36-watt PoE output. The M12 connector provides tight and strong connection and guarantees stable Ethernet operation performance under high vibration and shock environment and ensures it comes with the industrial protection rating of IP67 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold.

Environmentally Hardened Design
The IGS-604HPT-M12 is able to protect itself from dust and water ingress, and to operate under the temperature range from -40 to 75 degrees C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.

Dual Power Input for High Availability Network System
The IGS-604HPT-M12 features a strong dual power input system (Dual 48V~56V DC) incorporated into customer’s automation network to enhance system reliability and uptime. For example, when DC Power 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-604HPT-M12 via DC Power 2 alternatively without any loss of operation.


Centralized Power Management for Gigabit Ethernet PoE Networking
To fulfill the needs of higher power required PoE network applications with Gigabit speed transmission, the IGS-604HPT-M12 features high-performance Gigabit IEEE 802.3at PoE+ (up to 36 watts) on all ports. It perfectly meets the power requirements of PoE VoIP phone, PoE Wireless AP and all kinds of PoE IP cameras such as IR, PTZ, speed dome cameras and even box type IP cameras with a built-in fan and heater for high power consumption. The IGS-604HPT-M12’s PoE capabilities also help to reduce deployment costs for network devices as a result of freeing from restrictions of power outlet locations. Power and data switching are integrated into one unit, delivered over a single cable and managed centrally. It thus eliminates cost for additional AC wiring and reduces installation time.

Built-in Unique PoE Functions for Surveillance Management
As a managed PoE Switch for surveillance network, the IGS-604HPT-M12 features the following intelligent PoE management functions:
 ■ PD Alive Check
 ■ Scheduled Power Recycling
 ■ SMTP/SNMP Trap Event Alert
 ■ PoE Schedule

Intelligent Powered Device Alive Check
The IGS-604HPT-M12 can be configured to monitor a connected PD (Powered Device) status in real time via ping action. Once the PD stops working and it is without response, the IGS-604HPT-M12 will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source, thus reducing administrator management burden.

Scheduled Power Recycling

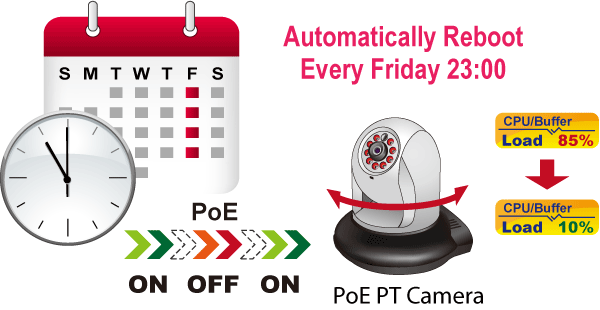

The IGS-604HPT-M12 allows each of the connected PDs to reboot at a specified time each week. Therefore, it will reduce the chance of PD crash resulting from buffer overflow.

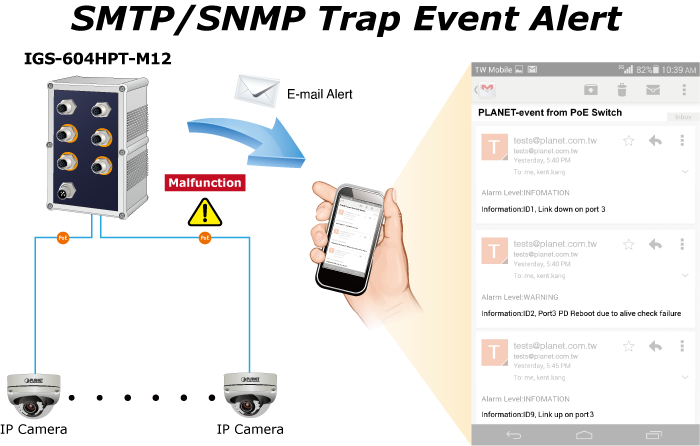

SMTP/SNMP Trap Event Alert
Though most NVR or camera management software offers SMTP email alert function, the IGS-604HPT-M12 further provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, loss of PoE power or the rebooting response by the PD Alive Check process.

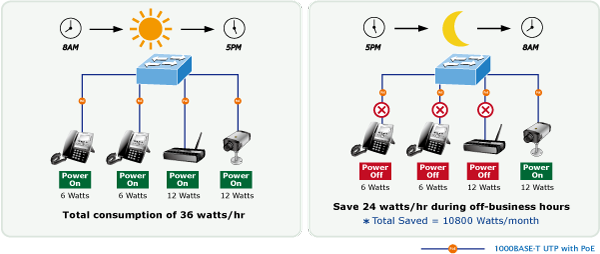

PoE Schedule for Energy Saving
Besides being used for IP surveillance, the IGS-604HPT-M12 is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the IGS-604HPT-M12 can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs and enterprises save energy and budget.

Redundant Ring, Fast Recovery for Critical Network Applications

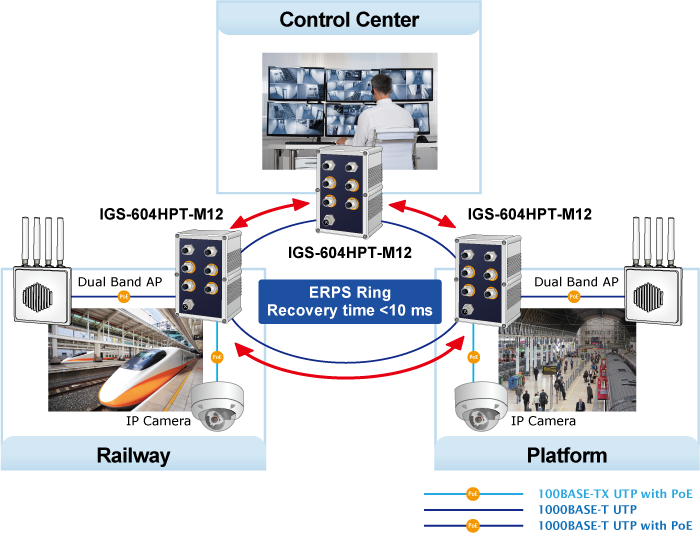

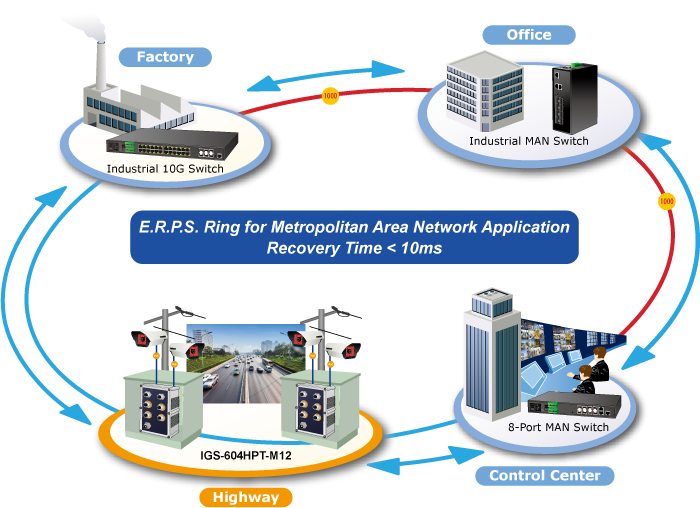

The IGS-604HPT-M12 supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain, simple Ring network, the recovery time of data link can be as fast as 20ms.

IPv6/IPv4 Dual Stack
Supporting both IPv6 and IPv4 protocols, the IGS-604HPT-M12 helps data centers, campuses, telecoms, and more to experience the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

Layer 3 IPv4 and IPv6 VLAN Routing for Secure and Flexible Management
The IGS-604HPT-M12 not only provides ultra high transmission performance, and excellent Layer 2 and Layer 4 technologies, but also layer 3 IPv4/IPv6 VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secure, flexibly-managed and simple networking application.

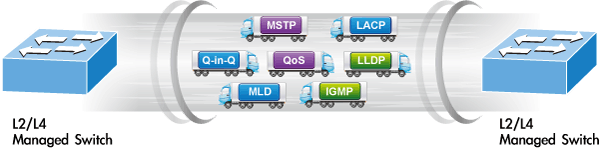

Robust Layer 2 Features
The IGS-604HPT-M12 can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control and IGMP/MLD Snooping. Via the link aggregation of supporting ports, the IGS-604HPT-M12 allows the operation of a high-speed trunk to combine with multiple fiber ports and supports fail-over as well.

Powerful Security
The IGS-604HPT-M12 offers a comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user, and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The IGS-604HPT-M12 also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Excellent Traffic Control
The IGS-604HPT-M12 is loaded with powerful traffic management and QoS features to enhance connection services by telecoms and ISPs. The QoS features include wire-speed Layer 4 traffic classifiers and bandwidth limit that are particularly useful for multi-tenant units, multi-business units, Telco and network service providers’ applications. It also empowers the industrial environment to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.

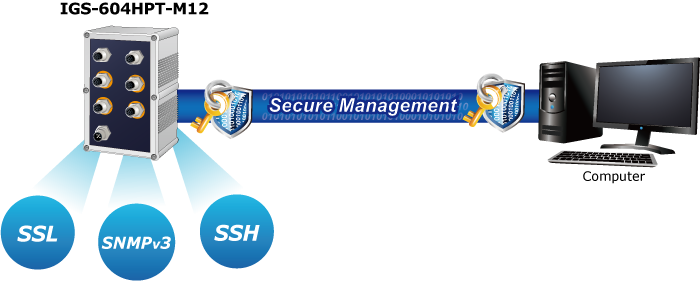

Efficient and Secure Management
With built-in Web-based management interface, the IGS-604HPT-M12 L2+ Managed Switch offers an easy-to-use, platform-independent management and configuration facility which includes Web and SNMP management interfaces. The SNMP can be managed via any management software based on the standard of SNMP Protocol. For reducing product learning time, it offers Cisco-like command via Telnet and customer does not need to learn new console command. Moreover, it also offers secure remote management by supporting SSH, SSL and SNMP v3 connections which encrypt the packet content at each session.

High Availability Networking Solution for Surveillance System
The IGS-604HPT-M12 features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) into customer’s automation network to enhance system reliability and uptime. The IGS-604HPT-M12 is the ideal solution for surveillance system to build redundant connection and establish high bandwidth for public transmission system and railway transmission.

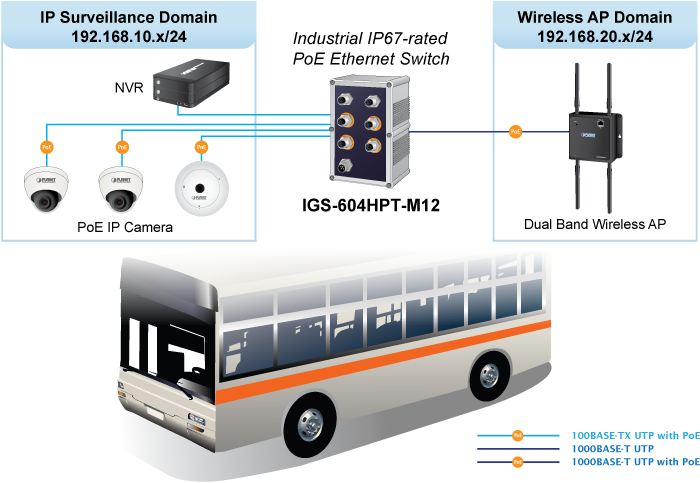

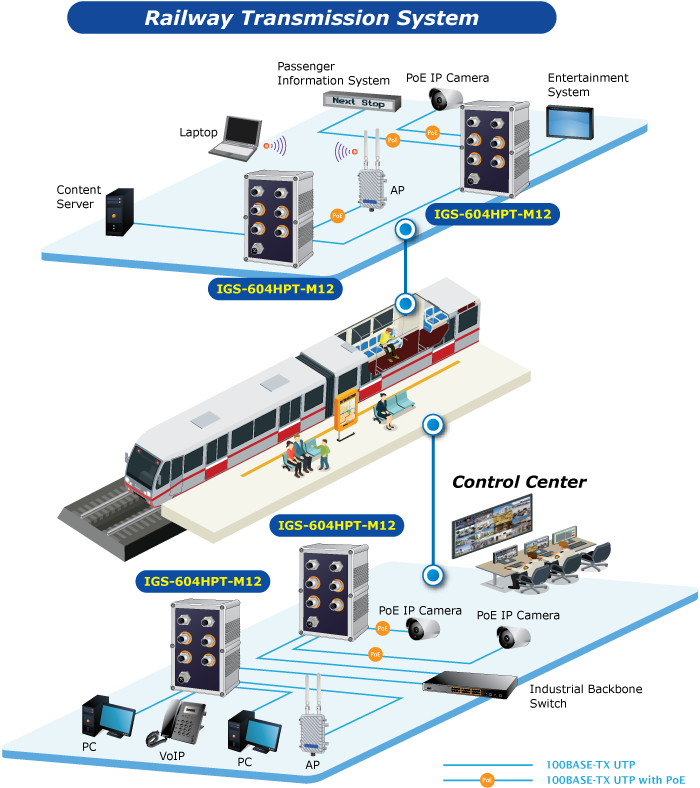

Layer 3 VLAN Routing and PoE Application
With the built-in, robust Layer 3 routing protocols, the IGS-604HPT-M12 ensures reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 32 routing entries. The IGS-604HPT-M12, certainly an ideal solution for industries, offers greater security, control and bandwidth conservation, and high-speed uplink.



Physical Port

  • 6-port 10/100/1000BASE-T waterproof and dustproof M12 connectors with 4-port IEEE 802.3at/af Power over Ethernet Injector function

Hardware Conformance

  • Complies with IEEE 802.3at Power over Ethernet Plus end-span PSE
  • Complies with IEEE 802.3af Power over Ethernet end-span PSE
  • Up to 4 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE Power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters
  • PoE Management
    • Total PoE power budget control
    • Per port PoE function enable/disable
    • PoE Port Power feeding priority
    • Per PoE port power limitation
    • PD classification detection
    • PD alive check
    • PoE schedule
    • PD scheduled power recycling



Hardware Conformance

  • IP67-rated aluminum case
  • Redundant power design
    • 48 to 56V DC, redundant power with polarity reverse protect function
    • Active-active redundant power failure protection
    • Backup of catastrophic power failure on one supply
    • Fault tolerance and resilience
  • DIN-rail and wall-mount design
  • Supports 6000V DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature



Layer 3 IP Routing Features

  • Supports maximum 32 static routes and route summarization


Layer 2 Features

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture, and runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth
  • Storm control support
  • Broadcast/Multicast/Unicast
  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Up to 255 VLANs groups, out of 4095 VLAN IDs
    • Provides Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
    • Private VLAN Edge (PVE)
    • Protocol-based VLAN
    • MAC-based VLAN
    • IP subnet-based VLAN
    • Voice VLAN
  • Supports Spanning Tree Protocol
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
    • BPDU Guard
  • Supports Link Aggregation
    • 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
    • Maximum 3 trunk groups, with 2 ports for each trunk
    • Up to 4Gbps bandwidth (full duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring monitors the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports E.R.P.S. (Ethernet Ring Protection Switching)
  • IEEE 1588 and synchronous Ethernet network timing

Quality of Service

  • Ingress shaper and egress rate limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
  • - IEEE 802.1p CoS- ToS/DSCP/IP precedence of IPv4/IPv6 packets- IP TCP/UDP port number- Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Traffic-policing policies on the switch port
  • DSCP remarking


Multicast

  • Supports IGMP snooping v1, v2 and v3
  • Supports MLD snooping v1 and v2
  • Querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering
  • MVR (Multicast VLAN Registration)


Security t

  • Authentication
  • - IEEE 802.1x port-based/MAC-based network access authentication- IEEE 802.1x authentication with guest VLAN- Built-in RADIUS client to cooperate with the RADIUS servers- RADIUS/TACACS+ users access authentication
  • Access Control List
  • - IP-based Access Control List (ACL)- MAC-based Access Control List (ACL)
  • Source MAC/IP address binding
  • DHCP Snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder


Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
  • - Telnet command line interface- Web switch management- SNMP v1, v2c, and v3 switch management- SSH/SSL secure access
  • IPv6 address/NTP management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
  • - Firmware upload/download via HTTP/TFTP- Reset button for system reboot or reset to factory default- Dual images
  • DHCP relay and option 82
  • User privilege levels control
  • NTP (Network Time Protocol)
  • Link Layer Discovery Protocol (LLDP) and LLDP-MED
  • Network diagnostic
  • - Cable diagnostic technology provides the mechanism to detect and report potential cabling issues- ICMPv6/ICMPv4 remote ping
  • SMTP/Syslog remote alarm
  • Four RMON groups (history, statistics, alarms and events)
  • SNMP trap for interface link up and link down notification
  • System Log
  • PLANET Smart Discovery Utility for deployment management
Hardware Specifications
Copper Ports6 x M12, 8-pin A-Coded female connector, 10/100/1000BASE-T auto-MDI/MDI-X ports
PoE Injector Port4 ports with 802.3at/af PoE injector function (Port-3 to Port-6)
Power Connector1 x M12, 5-pin A-Coded male connector
Switch ArchitectureStore-and-Forward
Switch Fabric12Gbps/non-blocking
Throughput8.9Mpps@64bytes
Address Table8K entries, automatic source address learning and aging
Shared Data Buffer4M bits
Flow ControlIEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame9K bytes
Dimensions (W x D x H)103 x 68.2 x 163 mm
Weight1069g
EnclosureIP67 aluminum case
InstallationWall-mount kit and DIN rail kit
LEDSystem:
PWR1 (Green), PWR2 (Green), Fault ( Red )
Ring (Green), R.O. (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 2):
LNK/ACT (Green)
10/100/1000T RJ45 Interfaces (Port 3 to Port 6):
LNK/ACT (Green)
PoE-in-Use (Orange)
Power ConsumptionMax. 165.3 watts/563.7 BTU
Power RequirementsDual 48~56V DC (>53V DC for PoE+ output recommended)
ESD Protection6KV DC
Power over Ethernet
PoE StandardIEEE 802.3af/802.3at PoE/PSE
PoE Power Supply TypeEnd-span
PoE Power OutputIEEE 802.3af Standard
- Per port 48V~53V DC (depending on the power supply), max. 15.4 watts

IEEE 802.3at Standard
- Per port 53V~56V DC (depending on the power supply), max. 36 watts
Power Pin Assignment1/2(+), 3/6(-)
PoE Power Budget144 watts max. (depending on power input)
PoE AbilityPD @ 7 watts: 4 units
PD @ 15.4 watts: 4 units
PD @ 30.8 watts: 4 units
Layer 2 Management Functions
Port ConfigurationPort disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port StatusDisplay each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port MirroringTX/RX/Both
Many-to-1 monitor
VLAN802.1Q tagged based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs
Link AggregationIEEE 802.3ad LACP/static trunk
3 groups with 2 ports per trunk
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
QoSTraffic classification based strict priority and WRR
8-level priority for switching:
- Port number
- 802.1p priority
- 802.1Q VLAN tagging
- DSCP/ToS field in IP packet
IGMP SnoopingIGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP querier mode support
MLD SnoopingMLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support
Access Control ListIP-based ACL/MAC-based ACL
Up to 256 entries
Bandwidth ControlPer port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
Layer 3 Functions
IP InterfacesMax. 8 VLAN interfaces
Routing TableMax. 32 routing entries
Routing ProtocolsIPv4 software static routing
IPv6 software static routing
Management
Basic Management InterfacesTelnet; Web browser; SNMP v1, v2c
Secure Management InterfacesSSH/SSL, SNMP v3
SNMP MIBsRFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
Power over Ethernet MIB
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Stability TestingIEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Railway Traffic*EN50155
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az EEE (Energy Efficient Ethernet)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
ITU-T G.8032 ERPS (Ethernet Ring Protection Switching)
Environment
OperatingTemperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -40 ~ 80 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Standard Accessories
Packet Contents1 x 8-pin A-code M12-to-RJ45 UTP cable, 2m
1 x M12 5-pin A-coded female connector power cable, 1.2m
1 x Wall-mount kit
1 x DIN-rail kit
1 x Quick Installation Guide
6 x M12 Female Dust Cap
1 x M12 Power Waterproof Cap



Datasheet

DateVersionDescriptionDownload
2017-04-211.0IGS-604HPT-M12



Firmware

DateVersionDescriptionDownload
2017-08-111.342c170628Bug Fixed - Fixed the System temperature that showed incorrectly when temperature was lower than 0.
2016-08-191.342c160728Initial release.



Quick Guide

DateVersionDescriptionDownload
2020-08-231.1Modify contents of Quick Guide.
2016-07-291.0Initial release.



User's Manual

DateVersionDescriptionDownload
2022-03-181.7[Command Guide]
Updated.
2016-10-071.4Initial release for Command Guide.
2016-10-071.0Initial release.



EC Declaration

DateVersionDescriptionDownload
2023-09-061.0EC Declaration.
