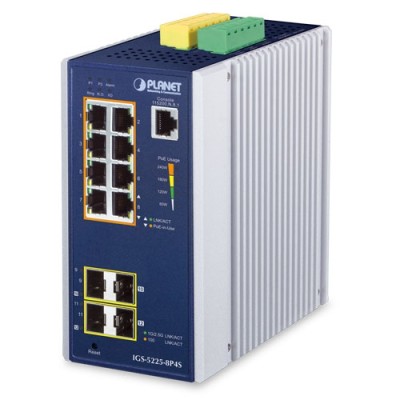

PLANET IGS-5225-8P4S Industrial L2+8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1G SFP + 2-Port 100/1G/2.5G SFP Managed Ethernet Switch

PLANET IGS-5225-8P4S Industrial L2+8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1G SFP + 2-Port 100/1G/2.5G SFP Managed Ethernet Switch
PLANET IGS-5225-8P4S Industrial L2+8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1G SFP + 2-Port 100/1G/2.5G SFP Managed Ethernet Switch
PLANET IGS-5225-8P4S Industrial L2+8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1G SFP + 2-Port 100/1G/2.5G SFP Managed Ethernet Switch
PLANET IGS-5225-8P4S Industrial L2+8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1G SFP + 2-Port 100/1G/2.5G SFP Managed Ethernet Switch
PLANET IGS-5225-8P4S Industrial L2+8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1G SFP + 2-Port 100/1G/2.5G SFP Managed Ethernet Switch
PLANET IGS-5225-8P4S Industrial L2+8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1G SFP + 2-Port 100/1G/2.5G SFP Managed Ethernet Switch
PLANET IGS-5225-8P4S Industrial L2+8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1G SFP + 2-Port 100/1G/2.5G SFP Managed Ethernet Switch
  • Stock: In Stock
  • Brand: PLANET
  • Model: IGS-5225-8P4S
  • Weight: 1.57kg
  • Dimensions: 10.70cm x 7.60cm x 15.20cm
790.89€
Ex Tax: 637.81€

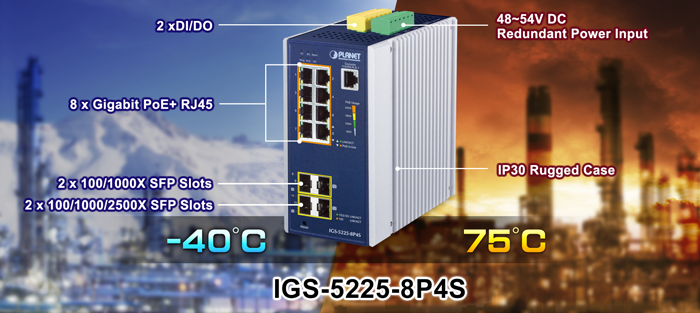

Advanced Manageable PoE Solution for Hardened Environment

PLANET IGS-5225-8P4S PoE L2+Industrial Managed PoE+ Switch, featuring eight 10/100/1000BASE-T 802.3at PoE+ ports with each port powering up to 36 watts, two 100/1G BASE-X SFP ports and two 100/1000/ 2500 BASE-X SFP ports in an IP30 rugged metal case, can be installed in any difficult environment. It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions, Layer 3 static routing capability, and advanced ITU-G.8032 ERPS Ring technology to improve the rapid self-recovery capability and PLANET intelligent PoE functions for controlling the PoE outdoor IP surveillance and wireless network applications. It is able to operate reliably, stably and quietly in the temperature range from -40 to 75 degrees C.

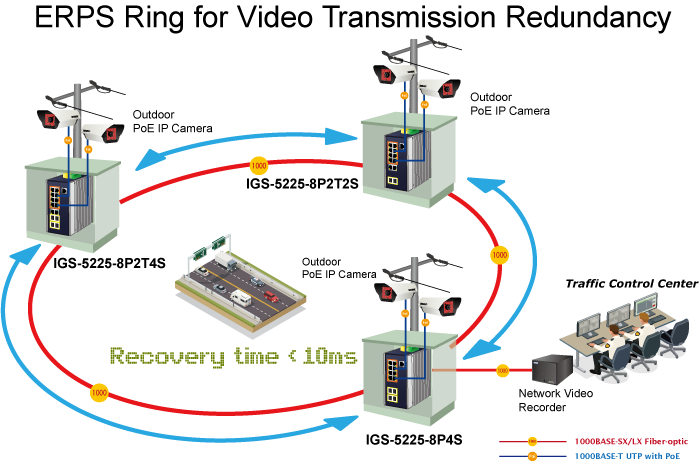

 Redundant Ring, Fast Recovery for Critical Network Applications

The IGS-5225-8P4S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple Ring network, the recovery time of data link can be as fast as 10ms.

High Power PoE for Security and Public Service Applications

As the whole system comes with a total 240-watt PoE budget, the IGS-5225-8P4S is designed specifically to satisfy the growing demand of higher power consuming network PDs (powered devices) such as multi-channel (802.11n/ac/ax) wireless LAN access points, PTZ (pan, tilt, zoom) speed dome network cameras and other PoE network devices.

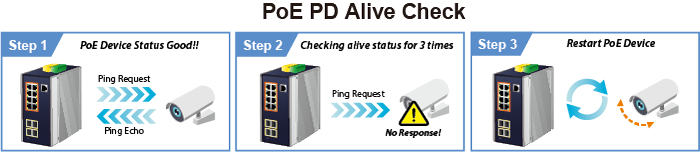

Intelligent Alive Check for Powered Device

The IGS-5225-8P4S can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-5225-8P4S will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.

 PoE Schedule for Energy Savings

Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the IGS-5225-8P4S can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.



 Scheduled Power Recycling

The IGS-5225-8P4S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

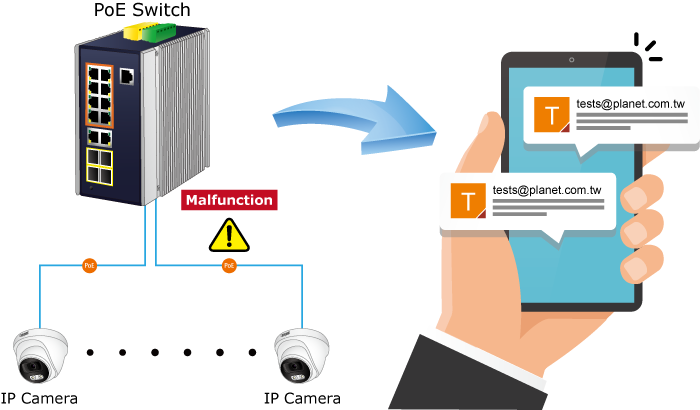

 SMTP/SNMP Trap Event Alert

The IGS-5225-8P4S provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.

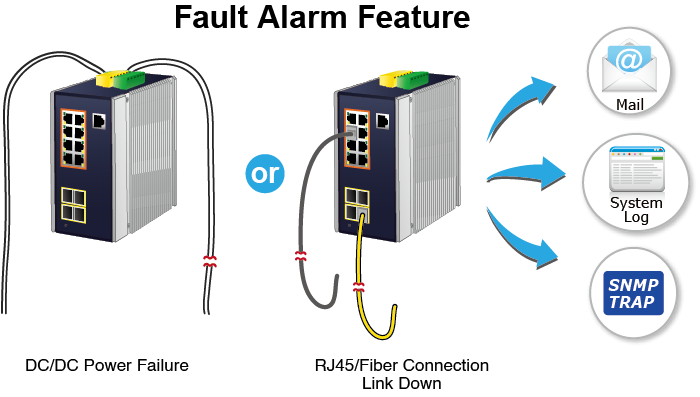

 Effective Alarm Alert for Better Protection

The IGS-5225-8P4S supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.

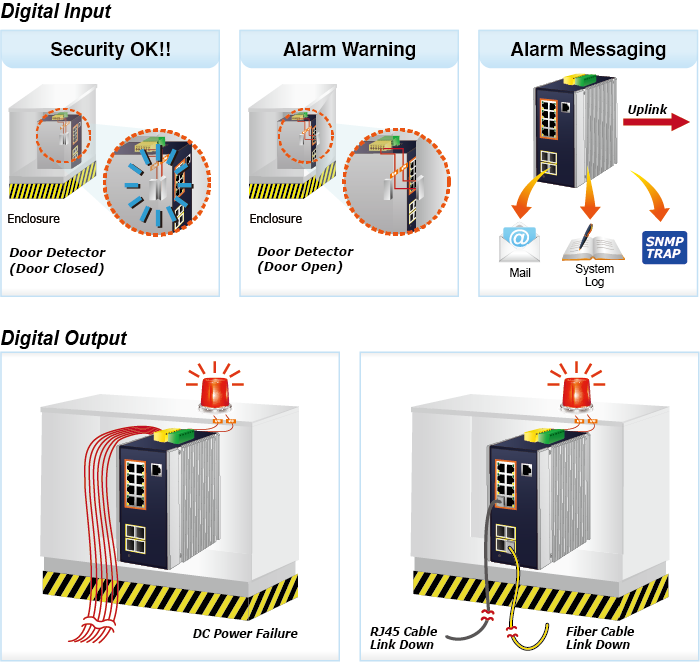

Digital Input and Digital Output for External Alarm

The IGS-5225-8P4S supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-5225-8P4S port shows link down, link up or power failure.

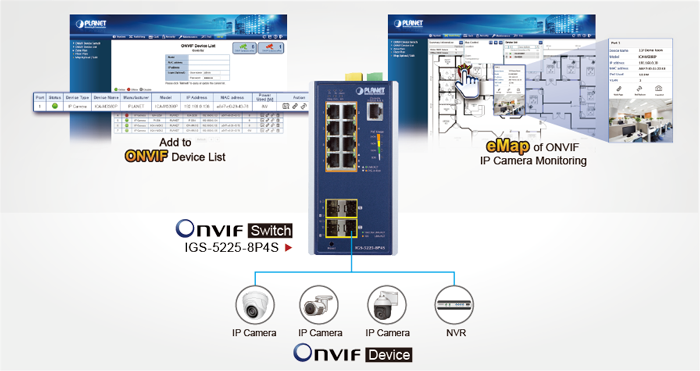

Convenient and Smart ONVIF Devices with Detection Feature

PLANET has developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the IGS-5225-8P4S GUI, clients just need one click to search and show all of the ONVIF devices via network application. In addition, clients can upload floor images to the switch series making the deployments of surveillance and other devices easy for planning and inspection purposes. Moreover, clients can get real-time surveillance’s information and online/offline status; the PoE reboot can be controlled from the GUI.





Robust Layer 2 Features

The IGS-5225-8P4S can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-5225-8P4S provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 4K. Via aggregation of supporting ports, the IGS-5225-8P4S allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 10 trunk groups with 4 ports per trunk group, and supports fail-over as well.



Network with Cybersecurity Helps Minimize Security Risks

The IGS-5225-8P4S comes with enhanced cybersecurity to fend off cyber threats and cyber attacks. It supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer's critical equipment in a business network, the cybersecurity feature of the IGS-5225-8P4S protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.

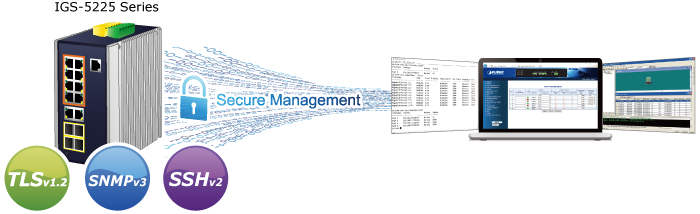

Efficient Management

For efficient management, the IGS-5225-8P4S is equipped with Command line, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the IGS-5225-8P4S offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port.
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.



 Powerful Security from Layer 2 to Layer 4

The IGS-5225-8P4S offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.



Advanced IP Network Protection

The IGS-5225-8P4S also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.



Modbus TCP Provides Flexible Network Connectivity for Factory Automation

With the supported Modbus TCP/IP protocol, the IGS-5225-8P4S can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

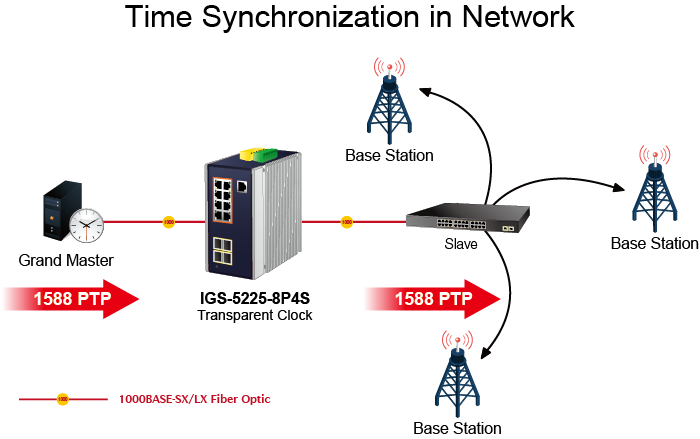

1588 Time Protocol for Industrial Computing Networks

The IGS-5225-8P4S is ideal for telecom and carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.

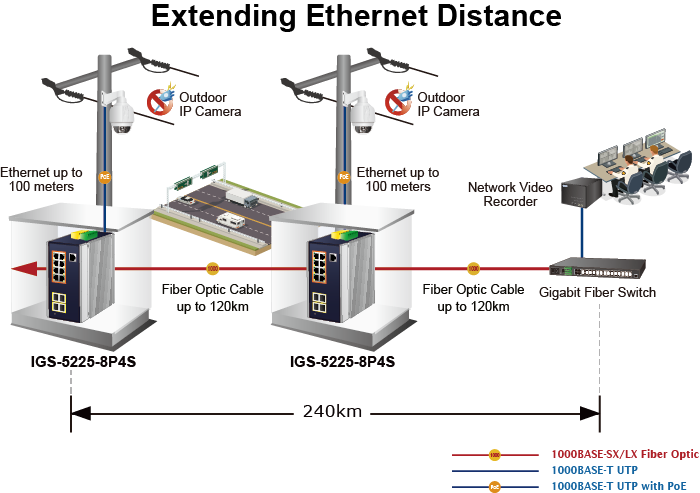

Flexibility and Extension Solution

The SFP ports built in the IGS-5225-8P4S support multi-speed, 100BASE-FX, 1000BASE-SX/LX and 2500BASE-X SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required.

The distance can be extended from 300 meters to 2km (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.



Intelligent SFP Diagnosis Mechanism

The IGS-5225-8P4S supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

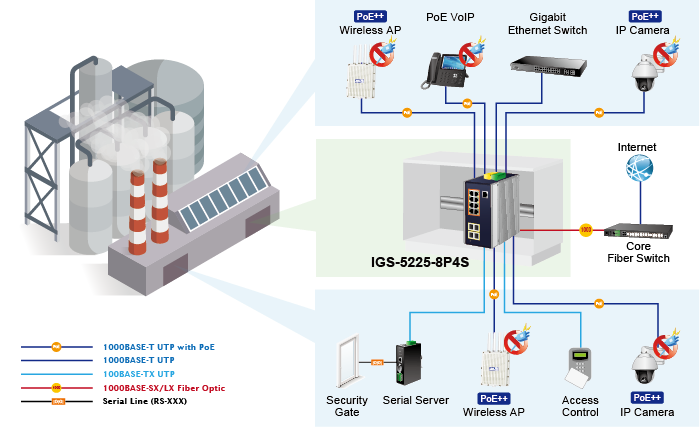

Industrial Area Department/Workgroup PoE Switch

Providing up to 8 PoE+, in-line power interfaces, the IGS-5225-8P4S can easily build a power centrally controlled for IP phone system, IP camera system, or wireless AP group for Industrial network. For instance, 8 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the IGS-5225-8P4S makes the installation of IP cameras or wireless AP easier and more efficient.

Perfect Integration Solution for IP PoE Camera and NVR System

The IGS-5225-8P4S provides eight 10/100/1000BASE-T 802.3at PoE+ ports which can offer sufficient PoE power to 8 PoE IP cameras at the same time. In addition, with the two 100/1G BASE-X SFP  and two 100/1000/2500BASE-X SFP interfaces, the IGS-5225-8P4S can connect to a core fiber switch and send video streams to an NVR and monitoring center. Through the high-performance switch architecture, the IGS-5225-8P4S facilitates the recorded video files from the 8 PoE+ IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote site via Internet. The IGS-5225-8P4S undoubtedly brings an ideal secure surveillance system at a lower total cost.

Physical Port

  • 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ injector function
  • 2 100/1000BASE-X SFP ports for SFP type auto detection
  • 2 100/1000/2500BASE-X SFP ports for SFP type auto detection
  • One RJ45 console interface for basic management and setup



Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
  • Up to 8 IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m
  • PoE management features
    • PoE admin-mode control
    • PoE management mode selection
    • PoE legacy mode selection
    • PoE budget setup option
    • Per port PoE function enable/disable
    • PoE port power feeding priority
    • Per PoE port power limit
    • PoE port status monitoring
    • PD classification detection
    • Sequence port PoE
    • PoE extend mode control to support power feeding up to a distance of up to 160 meters
  • Intelligent PoE features
    • Temperature threshold control
    • PoE usage threshold control
    • PoE schedule
    • PD alive check
    • LLDP PoE Neighbors



Industrial Protocol

  • Mod bus TCP for real-time monitoring in the SCADA system
  • IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode



Industrial Case and Installation

  • IP30 aluminum case
  • DIN-rail or wall-mount design
  • 48~54V DC, redundant power with reverse polarity protection
  • Supports 6KV DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature



Digital Input and Digital Output

  • 2 digital input (DI)
  • 2 digital output (DO)
  • Integrate sensors into auto alarm system
  • Transfer alarm to IP network via email and SNMP trap



Layer 3 IP Routing Features

  • Supports maximum 32 static routes and route summarization
  • Routing interface provides per VLAN routing mode



Layer 2 Features

  • Storm Control support
    • Broadcast / Multicast / Unicast
  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
    • Private VLAN Edge (PVE)
    • Port Isolation
    • MAC-based VLAN
    • IP Subnet-based VLAN
    • Protocol-based VLAN
    • VLAN Translation
    • Voice VLAN
    • GVRP
  • Supports Spanning Tree Protocol
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
    • BPDU Filtering/BPDU Guard
  • Supports Link Aggregation
    • 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
    • Maximum 6trunk groups with 4 ports per trunk group
    • Up to 8Gbps bandwidth (duplex mode)
  • Provide sport mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Compatible with Cisco Uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  • Link Layer Discovery Protocol (LLDP)
  • IEEE 802.3ah OAM



 Quality of Service

  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
    • IEEE 802.1p CoS
    • IP TOS/DSCP/IP precedence
    • IP TCP/UDP port number
    • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing on the switch port
  • DSCP remarking



Multicast

  • SupportsIPv4 IGMP snooping v1, v2 and v3
  • Supports IPv6 MLD snooping v1 and v2
  • Querier mode support
  • IPv4 IGMP snooping port filtering
  • IPv6 MLD snooping port filtering
  • MVR (Multicast VLAN Registration)



Security

  • Authentication
    • IEEE 802.1x port-based/MAC-based network access authentication
    • Built-in RADIUS client to co-operate with the RADIUS servers
    • TACACS+ login users access authentication
    • RADIUS / TACACS+ users access authentication
    • Guest VLAN assigns clients to a restricted VLAN with limited services
  • Access Control List
    • IP-based Access Control List (ACL)
    • MAC-based Access Control List
  • Source MAC/IP address binding
  • DHCP Snooping to filter un-trusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder



Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
    • Web switch management
    • Console and Telnet Command Line Interface
    • SNMP v1 and v2c switch management
    • SSHv2, TLSv1.2 and SNMP v3 secure access
  • SNMP Management
    • Four RMON groups (history, statistics, alarms, and events)
    • SNMP trap for interface Link Up and Link Down notification
  • IPv6 IP Address/NTP/DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
    • Firmware upload/download via HTTP
    • Reset button for system reboot or reset to factory default
    • Dual Images
  • DHCP Relay and DHCP Option82
  • DHCP Server
  • User Privilege levels control
  • NTP (Network Time Protocol)
  • UPnP
  • Network Diagnostic
    • ICMPv6/ICMPv4 Remote Ping
    • Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
    • SFP-DDM (Digital Diagnostic Monitor)
  • SMTP, Syslog and SNMP trap remote alarm
  • Local system Log
  • Provides ONVIF for co-operating with PLANET video IP surveillance
  • PLANET Smart Discovery Utility for deployment management
  • PLANET NMS system and CloudViewer for deployment management
Hardware Specifications
Copper Ports8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Fiber Ports2 100/1000BASE-X SFP interfaces (Port 9 and Port 10)
2 100/1000/2500BASE-X SFP interfaces (Port 11 and Port 12)
PoE Injector Ports8 ports with 802.3at/af PoE injector function (Ports 1 to 8)
Console1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
RAM128MBytes
Flash Memory64MBytes
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
ESD Protection6KV DC
EnclosureIP30 aluminum case
InstallationDIN-rail kit and wall-mount kit

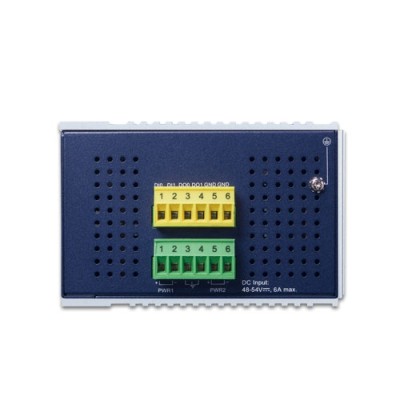

ConnectorRemovable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
AlarmOne relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input2 digital input (DI)
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input load to 24V DC, 10mA max.

2 digital output(DO)
Open collector to 24VDC, 100mA max.
Dimensions (W x D x H)76.8 x 107.3 x 152mm
Weight1130g
Power RequirementsDual 48~54V DC (>51V DC for PoE+ output recommended)
Power ConsumptionMax. 5.3 watts/18BTU (Power on without any connection)
Max.263 watts/896.8BTU (Full loading with PoE function)
LED IndicatorSystem:
Power 1 (Green)
Power 2 (Green)
Alarm (Red)
Ring (Green)
Ring Owner (Green)
DIDO (Red)

Per 10/100/1000T RJ45 PoE+ Ports:
PoE-in-Use (Amber)
LNK/ACT (Green)

Per SFP Interface:
100 LNK/ACT (Amber)
1G/2.5G LNK/ACT (Green)
Switching
Switch ArchitectureStore-and-Forward
Switch Fabric30Gbps/non-blocking
Throughput (packet per second)22.32Mpps@ 64 bytes packet
Address Table8K entries, automatic source address learning and aging
Shared Data Buffer4Mbits
Flow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame9Kbytes
Power Over Ethernet
PoE StandardIEEE 802.3at Power over Ethernet Plus/PSE
Backward compatible with 802.3af Power over Ethernet
PoE Power Supply TypeEnd-span
PoE Power OutputIEEE 802.3af Standard
Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
Per port 52V~54V DC (depending on the power supply), max. 36 watts
Power Pin Assignment1/2(+), 3/6(-)
PoE Power Budget48V Power input
125W maximum (depending on power input)
52~54V Power input
240W maximum (depending on power input)
Max. Number of Class 2 PDs8
Max. Number of Class 3 PDs8
Max. Number of Class 4 PDs8
PoE Management Functions
Active PoE device alive detectionYes
PoE Power RecyclingYes, daily or predeinded schedule
PoE Schedule4 schedule profiles
PoE Extend ModeYes, max. 160 to 200 meters
PoE System ManagementSystem PoE Admin control
Total PoE power budget control
PoE Legacy mode
Over-temperature threshold alarm
PoE usage threshold alarm
PoE Port ManagementPort Enable/Disable/Schedule
Port Priority
Layer 3 Functions
IP InterfacesMax. 8 VLAN interfaces
Routing TableMax. 32 routing entries
Routing ProtocolsIPv4 software static routing
IPv6 software static routing
Layer 2 Functions
Port ConfigurationPort disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Power saving mode control
Port StatusDisplay each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port MirroringTX / RX / Both
Many-to-1 monitor
VLANIEEE 802.1Q tag-based VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
VLAN Translation
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4094 VLAN IDs
Link AggregationIEEE 802.3ad LACP/static trunk
Supports 6 trunk groups with 4 ports per trunk group
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IGMP SnoopingIPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Up to 255 multicast groups
MLD SnoopingIPv6 MLD (v1/v2/v3) snooping
IPv6 MLD querier mode support
Up to 255 multicast groups
Bandwidth ControlPer port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps
RINGSupports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms
SynchronizationIEEE 1588v2 PTP(Precision Time Protocol)
Peer-to-peer transparent clock
End-to-end transparent clock
QoSTraffic classification based, strict priority and WRR
8-level priority for switching
Port number
802.1p priority
802.1Q VLAN tag
DSCP/TOS field in IP packet
Security Functions
Access Control ListIP-based ACL/MAC-based ACL
ACL based on:
MAC Address
IP Address
Ethertype
Protocol Type
VLAN ID
DSCP
802.1p Priority
Up to 256 entries
SecurityPort Security
IP source guard
Dynamic ARP inspection
Command line authority control based on user level
AAARADIUS client
TACACS+ client
Network Access ControlIEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Switch Management
Basic Management InterfacesConsole;Telnet; Web browser; SNMP v1, v2c
Secure Management InterfacesSSHv2, TLS v1.2, SNMP v3
System ManagementFirmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
Event ManagementRemote syslog
Local system log
SMTP
ONVIFONVIF device discovery
ONVIF device monitoring
Floor Map
SNMP MIBsRFC1213 MIB-II
RFC 2863 IF-MIB
RFC1493 Bridge MIB
RFC1643 Ethernet MIB
RFC2863 Interface MIB
RFC2665 Ether-Like MIB
RFC2737 Entity MIB
RFC2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC2618 RADIUS Client MIB
RFC3411SNMP-Frameworks-MIB
IEEE802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Stability TestingIEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards ComplianceIEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX/100BASE-FX
IEEE802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE802.3x flow control and back pressure
IEEE802.3ad port trunk with LACP
IEEE802.1D Spanning Tree Protocol
IEEE802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE802.1p Class of Service
IEEE802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3ah OAM
IEEE 1588 PTPv2
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU-T G.8032 ERPS Ring
Environment
Operating Temperature-40 ~ 75 degrees C
Storage Temperature-40 ~ 85 degrees C
Humidity5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2023-12-295.0IGS-5225-8P4S



Quick Guide

DateVersionDescriptionDownload
2024-02-061.9[Release for hardware version 5.0.]
Modify contents of Quick Guide.
2023-05-261.8Release for hardware version 5.0.



User's Manual

DateVersionDescriptionDownload
2024-02-172.4[Release for hardware version 5.0]
Modify contents of user manual.
2024-01-122.3Release for hardware version 5.0.



EC Declaration

DateVersionDescriptionDownload
2023-12-065.0Release for hardware version 5.0.
