PLANET KVM-210-16M 17" 16-Port Combo VGA LCD KVM Switch
  • Stock: In Stock
  • Brand: PLANET
  • Model: KVM-210-16M
  • Weight: 15.93kg
  • Dimensions: 54.40cm x 44.50cm x 4.50cm
1,251.83€
Ex Tax: 1,009.54€

Easy Switching, Efficient Management

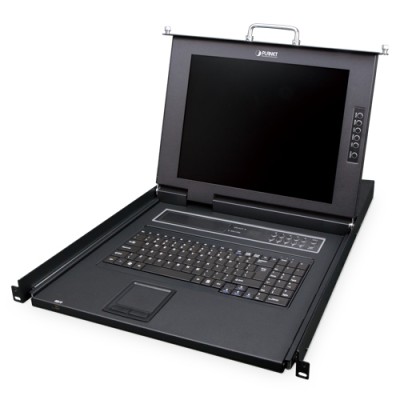

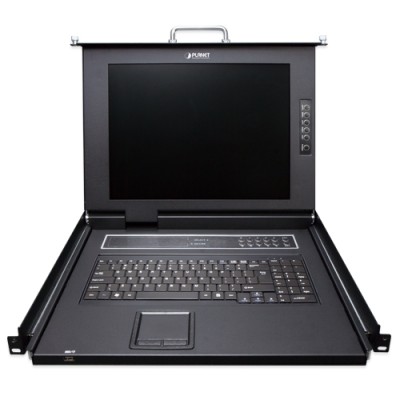

PLANET KVM-210-16M Combo VGA LCD KVM Switch features an integrated 17" LED-backlit LCD panel allowing access to and control up to 16 computers from a single console (keyboard, mouse and monitor). Simply use the supplied Combo VGA cable set to link the KVM-210-16M to the console ports of your KVM Switch, regardless of the connected interface -- USB or PS/2.

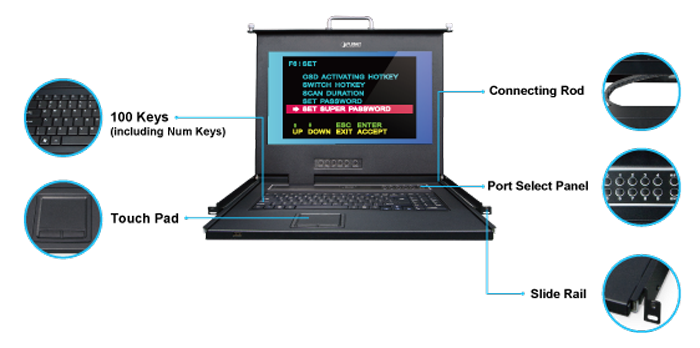

Easy to Install

With the uniquely separate rail design, it helps to install the KVM console easily. Moreover, when there is a need to maintain the console, the administrator can easily uninstall the device without affecting the server above or below.

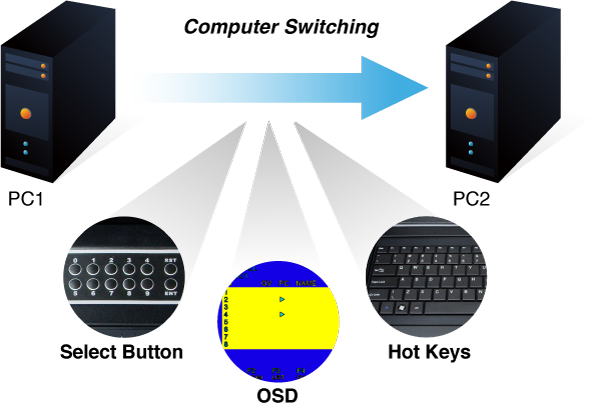

Computer Switching

There are three convenient methods to access any computer connected to the installation:

  • Port select button
  • Hotkeys on keyboard
  • OSD (on screen display)

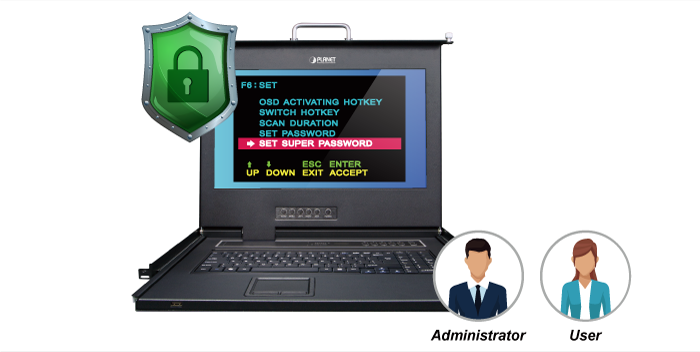

Security

Two level password security only authorizes up to one user and an administrator with a separate profile for each user.



Powerful Mouse/Keyboard Support

In the present computer applications, a mouse has become an indispensable device. The KVM-210-16M fully supports all models of PS/2 mice on the market. The KVM also supports the PS/2 keyboard port of code set 1/2/3 and further allows you to use the KVM for all kinds of servers, computers or their combination.

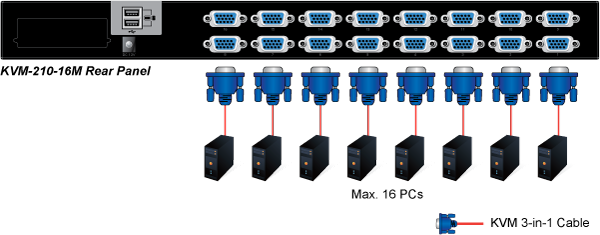

Standalone Operation

The KVM-210-16M allows access to and control up to 16 computers from the LCD control platform.

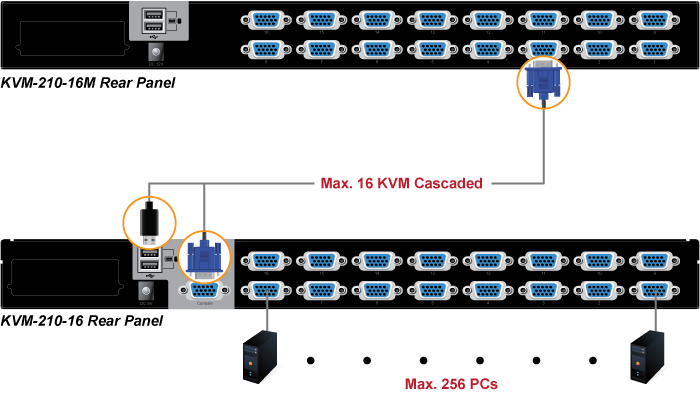

Cascade Operation

By cascading to 16 KVM switches, it can control up to 256 servers.



Hardware

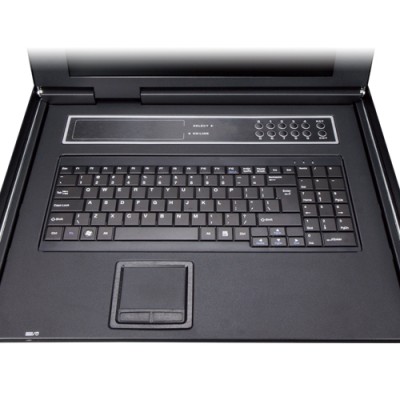

  • Integrated 17” LCD monitor and keyboard/touchpad module within 1U chassis
  • Standalone machine controls up to 16 sets of computers
  • Up to 2 levels can be cascaded and up to 256 computers can be controlled.
  • Port Select Panel status LEDs give a clear indication of the active computers
  • Supports high resolution up to 1280 x 1024
  • Mouse touch board with two function buttons
  • Full-size 100-key keyboard with integrated number pad
  • Front panel with lock to prevent damage by accident



Security

  • Two-layer password security protection



Management

  • Auto scan mode for monitoring computers
  • Requires no additional software or hardware
  • Computer selection via Port Select Button, Hotkey and On Screen Display (OSD)
  • Hot pluggable: Add or remove computers without having to power down the switch
  • QVS (Quick View Setting): Quickly select your computer by naming or SN number



Compatibility

  • Multiplatform support -- Windows, Linux and Sun
  • Supports Microsoft Intellimouse, Logitech Net Mouse and all other third party’s PS/2 mice



Hardware
Number of Ports16
Maximum256 by cascading (KVM-210-16 x 16)
PC PortsKeyboard:
USB Type A female head
Mouse:
USB Type A female head
Video:

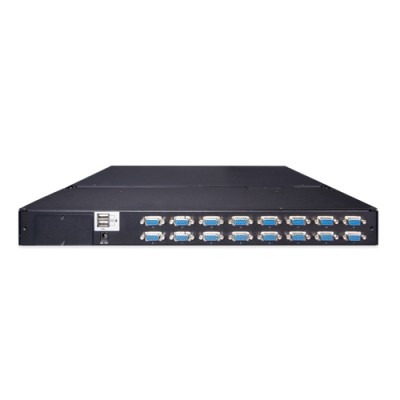

16 x VGA DB15 Blue Female Head
Port Select PanelNumber Key:10
Reset:1
Enter:1
LED:16
Segment display:1
LCD PanelMonitor
17‘’ SXGA COLOR TFT-LCD
Video Resolution
1280 x 1024 @ 60HZ Local
Pixel Pitch
0.264 x 0.264 mm
Support Color
16.7M colors
Contrast Ratio
1000:1
Backlight
LED
LCD Button6
Console USB Hub Ports3 x USB 2.0 Type A female
Keyboard100-key chocolate ultra-thin keyboard
Touch Pad1
HousingMetal
Dimensions (W x D x H)445 x 544 x 45mm
Weight10.43kg
Power Requirement12V DC, 4A
Installation1U rack-mountable
Management
PC SelectionPort select button
Hotkeys on keyboard
OSD (on screen display)
Scan Interval3~60 seconds
SecurityUser password and super password
Environment & Certification
Operating Temperature0 ~ 50 degrees C
Storage Temperature-20 ~ 60 degrees C
Operating Humidity0-80% RH, no coagulation
RegulatoryCE, FCC



Datasheet

DateVersionDescriptionDownload
2023-10-132.0KVM-210-16M



Quick Guide

DateVersionDescriptionDownload
2024-04-242.1[Release for hardware version 2.0]
For PSTI version.
2023-09-152.0Release for hardware version 2.0.



User's Manual

DateVersionDescriptionDownload
2023-10-202.0Release for hardware version 2.0.
