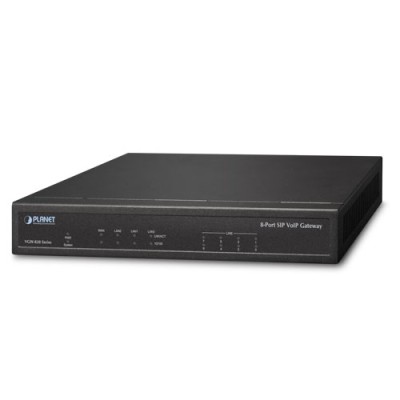

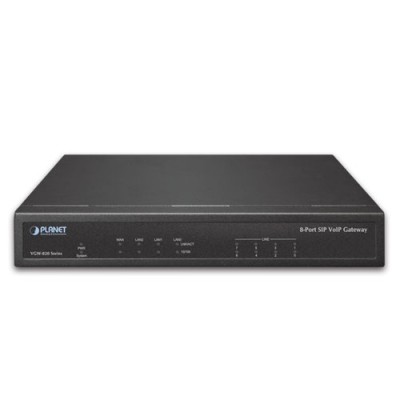

PLANET VGW-820FS 8-Port SIP VoIP Gateway (8 FXS)

PLANET VGW-820FS 8-Port SIP VoIP Gateway (8 FXS)
PLANET VGW-820FS 8-Port SIP VoIP Gateway (8 FXS)
PLANET VGW-820FS 8-Port SIP VoIP Gateway (8 FXS)
PLANET VGW-820FS 8-Port SIP VoIP Gateway (8 FXS)
PLANET VGW-820FS 8-Port SIP VoIP Gateway (8 FXS)
PLANET VGW-820FS 8-Port SIP VoIP Gateway (8 FXS)
PLANET VGW-820FS 8-Port SIP VoIP Gateway (8 FXS)
  • Stock: In Stock
  • Brand: PLANET
  • Model: VGW-820FS
  • Weight: 1.40kg
  • Dimensions: 15.40cm x 24.00cm x 3.70cm
334.79€
Ex Tax: 269.99€

High Quality yet Affordable for All Businesses

PLANET VGW-820FS enterprise-class 8-port SIP VoIP Gateway provides added flexibility during migration to Unified Communications by supporting the traditional analog devices. These devices include analog phones, fax machines, modems, voicemail systems and speakerphones.





Enhanced, Full-Featured Business Gateway

PLANET VGW-820FS 8-port FXS SIP VoIP Gateway is a fully IETF SIP RFC3261 standard compliant residential gateway that provides a total solution for integrating voice-data network with built-in SIP trunk and TLS/SRTP security, enabling up to 8 concurrent connections. Voice communications can be established from anywhere around the world, and it not only provides quality voice communications, but also offers secure, reliable Internet sharing capabilities for daily voice and Internet communications.

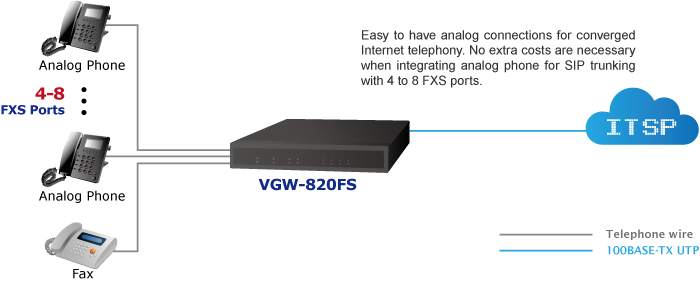

Distributed VoIP Network Infrastructure

PLANET VGW series is easy to use for all types of businesses. The VGW-820FS offers quality voice communications and real-time fax data over IP networks and it does not need human resources to deploy a VoIP network. With the optimized SIP architecture, PLANET VGW-820FS is the ideal choice for P2P/SIP proxy (IP PBX) voice chat, and ITSP cost-saving solution.



The VGW-820FS provides the essential features you need for business-class voice communications in an easy-to-manage solution. Designed for businesses with branch offices, it helps the enterprises to save money on long-distance calls.

SIP Applications

  • IETF SIP RFC3261 based on UDP/TCP/TLS
  • 8-line FXS connects to analog phone set or PABX
  • Fax over T.38 and pass-through
  • ITU-T G.711 A-law, G.711 μ-law, G.723.1 and G.729 voice coding
  • In-band / out of band DTMF (RFC4733, RFC2833 / SIP INFO)
  • Echo cancellation exceeding ITU-T G.168, up to 128ms tail length
  • Supports SIP trunk and caller ID: DTMF/FSK CLI presentation



Internet Features

  • Supports SNMP v1/v2/v3
  • Supports VLAN 802.1P and 802.1Q
  • Supports Layer 3 QoS and DiffServ
  • Supports STUN (RFC 3489) and Outbound Proxy
  • Supports TR069 and auto provisioning
  • Supports TLS/SRTP security



Call Features

  • Call waiting,  transfer (Blind transfer, Attend transfer)
  • Call hold, quick pick
  • Call forwarding (Unconditional)
  • Call forwarding on no reply
  • Hotline, speed dial and direct IP call
  • Do not disturb (DND)  and three-way conferencing

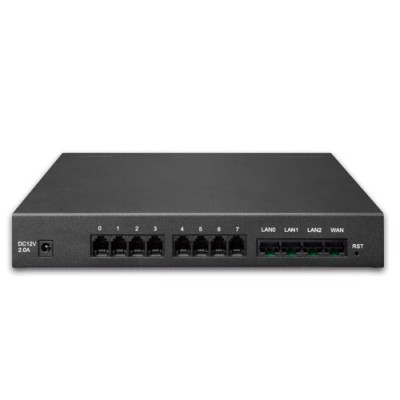

Hardware
WAN1 x 10/100BASE-TX RJ45 port
LAN2 x 10/100BASE-TX RJ45 port
Voice8 x RJ11 connection (8 x Foreign eXchange Station)
Weight1000g
Dimensions (W x D x H)240 x 154 x 37 mm
Power Requirements100-240VAC, 50-60 Hz@DC12V 2A
Power Consumption18W
Protocols and Standard
FXSDial Mode: DTMF and Pulse
Pulse: 10 and 20 PPS
Caller ID: DTMF/FSK CLI Presentation
Max Cable Length: 3KM
Reverse Polarity
Programmable Call Progress Tone
Voice & FaxG.711A/U law, G.723.1, G.729A/B,G.726 and iLBC
Silence Suppression
Comfort Noise Generation (CNG)
Voice Activity Detection(VAD)
Echo Cancellation (G.168), with up to 128ms
Adaptive (Dynamic) Jitter Buffer
Hook Flash
Programmable Gain Control
T.38/Pass-through
Modem/POS
DTMF mode: Signal/RFC2833/INBAND
VLAN 802.1P and 802.1Q
Layer3 QoS and DiffServ
VoIPProtocol: SIP v2.0 (UDP/TCP),RFC3261,SDP,RTP(RFC2833), RFC3262, 3263,3264,3265,3515,2976,3311
RTP/RTCP, RFC2198, 1889
RFC4028 Session Timer
RFC3266 IPv6 in SDP
RFC2806 TEL URI
RFC3581 NAT and rport
Primary/Backup SIP Server
Outbound Proxy
DNS SRV/ A Query/NATPR Query
SIP Trunk
Early Media/Early Answer
NAT:STUN, Static/Dynamic NAT
Supplementary ServiceCall Waiting
Blind Transfer
Attend Transfer
Call Forward on Busy
Call Forward on No Reply
Unconditional Call Forward
Warm/Immediately Hotline
Call Hold
Do-not-disturb
3-way Conferencing
Message Waiting Indicator
Software FeaturesHunting Group
Web ACL
Telnet ACL
Action URL
PPPoE/IPv4/IPv6
Digitmap
Bandwidth Optimization
Routing Rules based Prefixes
Caller/Called Number Manipulation
ManagementSNMP v1/v2/v3
TR069
Auto Provisioning
Web/Telnet
Configuration Backup/Restore
Firmware Upgrade via Web
CDR
Syslog
Ping and Tracert Test
Network Capture
Outward Test (GR909)
NTP and Daylight Saving Time
IVR local Maintenance
Environments
Operating Temperature0 ~ 45 degrees C
Storage Temperature-20 ~ 80 degrees C
Operating Humidity10%~90% relative humidity, non-condensing
EmissionCE, FCC



Datasheet

DateVersionDescriptionDownload
2020-09-111.0VGW-820FS



Firmware

DateVersionDescriptionDownload
2024-06-1924.83.11.23[Release for hardware version 2.0.]
Added PSTI function.
FW upgrade for PSTIA (Product Security and Telecommunications Infrastructure Act)
*Note: After updating the firmware, you will need to enter the product's MAC code at the first login. Please record the MAC code before proceeding with the update.
2023-08-2524.83.11.15[Release for hardware version 2.0.]
1.Fixed the webpage display issue after resetting to default from Web UI.
2.Fixed REN3, 4 issues and hid the Long Line Support function.
2023-04-0724.83.11.12Release for hardware version 2.0.



Quick Guide

DateVersionDescriptionDownload
2022-08-261.2Modify contents of Quick Guide.
2020-10-231.1For VGW-420FS/820FS/1620FS/2420FS/3220FS
2020-06-231.0Initial Release.



User's Manual

DateVersionDescriptionDownload
2020-11-171.0Initial Release
