Name: PLANET VGW-1620FS 16-Port SIP VoIP Gateway (16 FXS)
Brand: PLANET
Price: 548.28 EUR
Availability: InStock
Rating: 5 (2 reviews)

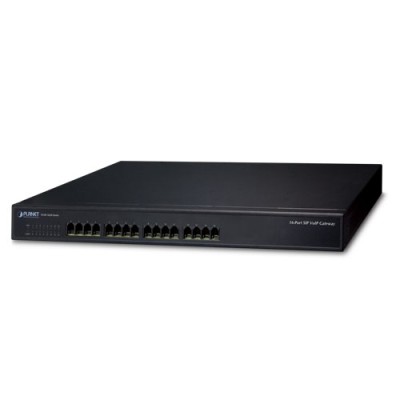

PLANET VGW-1620FS 16-Port SIP VoIP Gateway (16 FXS)

PLANET VGW-1620FS 16-Port SIP VoIP Gateway (16 FXS)

Stock: In Stock
Brand: PLANET
Model: VGW-1620FS
Weight: 3.54kg
Dimensions: 23.00cm x 44.00cm x 4.40cm

Based on 2 reviews. - Write a review

548.28€

Ex Tax: 442.16€

Qty

Add to Cart

Buy Now

High Quality yet Affordable for All Businesses

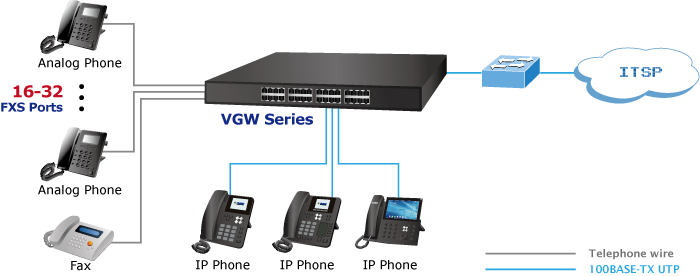

PLANET VGW-1620FS enterprise-class 16-port SIP VoIP Gateway provides added flexibility during migration to Unified Communications by supporting the traditional analog devices. These devices include analog phones, fax machines, modems, voicemail systems and speakerphones.

Enhanced, Full-Featured Business Gateway

PLANET VGW-1620FS 16-port FXS SIP VoIP Gateway is a fully IETF SIP RFC 3261 standard compliant residential gateway that provides a total solution for integrating voice-data network, with built-in SIP trunk and TLS/SRTP security, up to 16 concurrent connections. Voice communications can be established from anywhere around the world, and it not only provides quality voice communications, but also offers secure, reliable Internet sharing capabilities for daily voice and Internet communications.

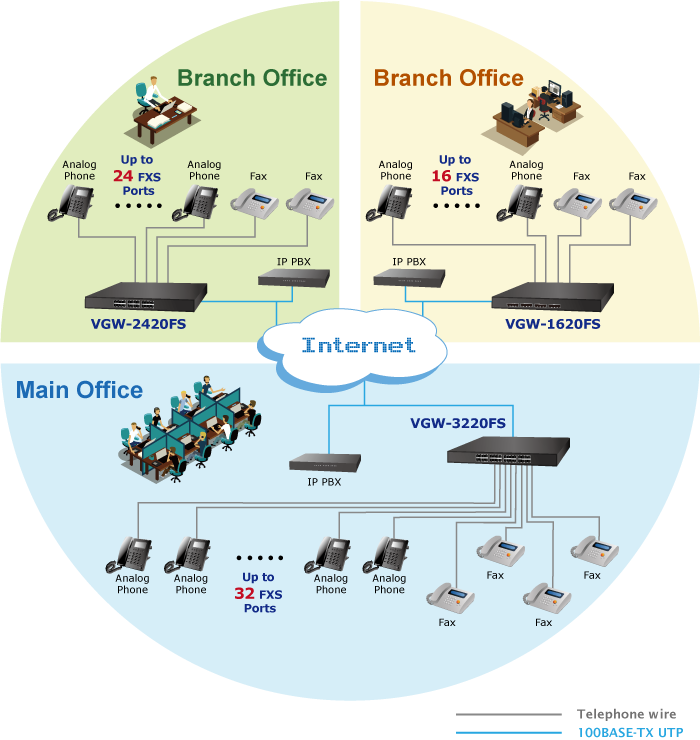

Distributed VoIP Network Infrastructure

PLANET VGW series is easy to use for all types of businesses. The VGW-1620FS offers quality voice communications and real-time fax data over IP networks and it does not need human resources to deploy a VoIP network. With the optimized SIP architecture, PLANET VGW-1620FS is the ideal choice for P2P/SIP proxy (IP PBX) voice chat, and ITSP cost-saving solution.

The VGW-1620FS provides the essential features you need for business-class voice communications in an easy-to-manage solution. Designed for businesses with branch offices, it helps the enterprises to save money on long-distance calls.

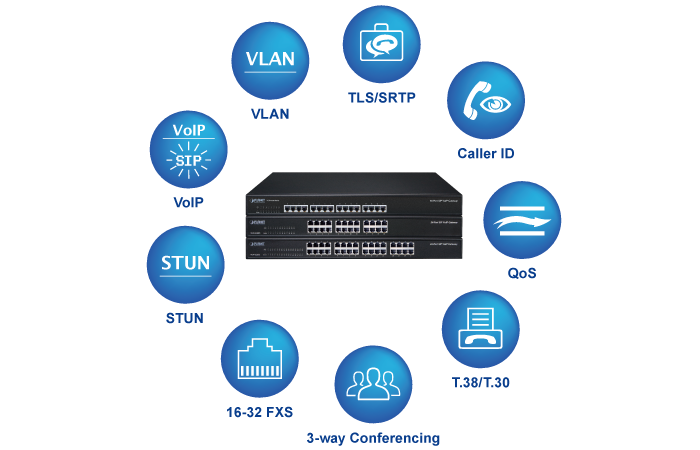

SIP Applications

IETF SIP RFC3261 based on UDP/TCP/TLS
16-line FXS connects to analog phone set or PABX
Fax over T.38 and Pass-through
ITU-T G.711 A-law, G.711 μ-law, G.723.1 and G.729 voice coding
In-band / out of band DTMF (RFC4733, RFC2833 / SIP INFO)
Echo cancellation exceeding ITU-T G.168, up to 128ms tail length
Supports SIP Trunk and Caller ID: DTMF/FSK CLI Presentation

Internet Features

Supports SNMP v1/v2/v3
Supports VLAN 802.1P and 802.1Q
Supports Layer3 QoS and DiffServ
Supports STUN (RFC 3489) and Outbound Proxy
Supports TR069 and Auto Provisioning
Supports TLS/SRTP Security

Call Features

Call waiting, transfer (Blind transfer, Attend transfer)
Call hold, quick pick
Call forwarding unconditional
Call forwarding on no reply
Hotline, speed dial, direct IP call
Do not disturb (DND), 3-way conferencing

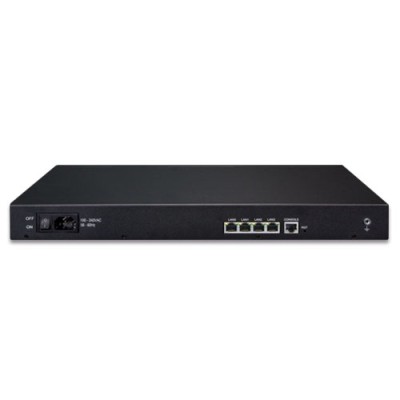

Hardware
LAN	4 x 10/100BASE-TX RJ45 port
Voice	16 x RJ11 connection (32 x Foreign eXchange Station)
Console	1 x RS232, 115200bps
Weight	2700g
Dimensions (W x D x H)	440 x 230 x 44 mm
Power Requirements	100-240VAC, 50-60 Hz
Power Consumption	30W
Protocols and Standard
FXS	Dial Mode: DTMF and Pulse Pulse: 10 and 20 PPS Caller ID: DTMF/FSK CLI Presentation Max Cable Length: 3KM Reverse Polarity Programmable Call Progress Tone
Voice & Fax	G.711A/U law, G.723.1, G.729A/B,G.726 and iLBC Silence Suppression Comfort Noise Generation (CNG) Voice Activity Detection (VAD) Echo Cancellation (G.168), with up to 128ms Adaptive (Dynamic) Jitter Buffer Hook Flash Programmable Gain Control T.38/Pass-through Modem/POS DTMF mode: Signal/RFC 2833/INBAND VLAN 802.1P and 802.1Q Layer 3 QoS and DiffServ
VoIP	IETF Session Initiation Protocol (SIP) v2.0 (UDP/TCP) RFC 3261 and Session Description Protocol (SDP) RTP (RFC 2833), RFC 3262, RFC 3263, RFC 3264, RFC 3265, RFC 3515, RFC 2976 and RFC 3311 RTP/RTCP, RFC 2198 and RFC 1889 RFC 4028 Session Timer RFC 3266 IPv6 in SDP RFC 2806 TEL URI RFC 3581 NAT and rport Primary/Backup SIP Server Outbound Proxy DNS SRV/A Query/NATPR Query SIP Trunk Early Media/Early Answer NAT:STUN, Static/Dynamic NAT
Supplementary Service	Call Waiting Blind Transfer Attend Transfer Call Forward on Busy Call Forward on No Reply Unconditional Call Forward Warm/Immediately Hotline Call Hold Do-not-disturb 3-Way Conferencing Message Waiting Indicator
Software Features	Hunting Group Web ACL Telnet ACL Action URL PPPoE/IPv4/IPv6 Digitmap Bandwidth Optimization Routing Rules based Prefixes Caller/Called Number Manipulation
Management	SNMP v1/v2/v3 TR069 Auto Provisioning Web/Telnet Configuration Backup/Restore Firmware Upgrade via Web CDR Syslog Ping and Tracert Test Network Capture Outward Test (GR909) NTP and Daylight Saving Time IVR local Maintenance
Standards Conformance
Emission	CE, FCC

Datasheet

Date	Version	Description	Download
2020-12-11	1.0	VGW-1620FS

Firmware

Date	Version	Description	Download
2023-08-25	24.83.11.15	[Release for hardware version 2.0.] 1.Fixed the webpage display issue after resetting to default from Web UI. 2.Fixed REN3, 4 issues and hid the Long Line Support function.
2023-04-07	24.83.11.12	Release for hardware version 2.0.
