- Stock: In Stock
- Brand: PLANET
- Model: IPX-2100
- Weight: 2.31kg
Intuitive, Ease-of-Use IP PBX Management
PLANET next-generation IPX-2100 IP PBX telephony system is easy to set up and manage thanks to a perceptive web-based user interface and quick setup wizard. Since it is an Asterisk-based equipment, the entire benefits of the pre-loaded SIP can be had as any other enterprise-level appliance would come equipped with the feature. The IPX-2100 is able to accept 100 user registrations, and easy to manage a full voice over IP system with the convenience and cost advantages. The equipment is best paired with PLANET color IP phones to get the function going smoothly and to have a seamless connection between the software and hardware.
| Model | IPX-330 | IPX-2100 | IPX-2200 | IPX-2500 |
| Extension User | 30 | 100 | 200 | 500 |
| Concurrent Call | 15 | 30 | 60 | 100 |
| Room Concurrent Call | 10 | 20 | 40 | 80 |
| Recording/Voicemail | 150 hrs | 150 hrs | 150 hrs | 7,500 hrs |
Off-net Calling Capability, Call Restriction, Call Access Control
The IPX-2100 integrates up to 8 calls via the IPX-21FO (4 FXO), IPX-21SL (2 FXO + 2 FXS) and IPX-21GS (4 GSM) modules to form a feature-rich PBX system that supports seamless communications between the existing PSTN calls, analog phones, IP phones and SIP-based endpoints.

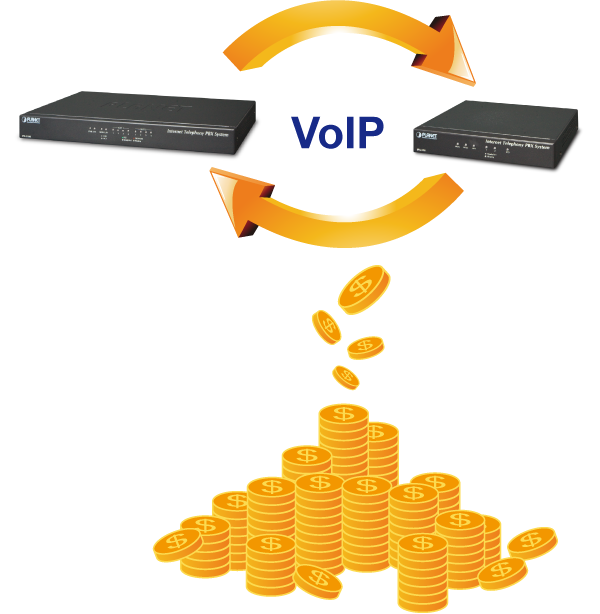

Replacing Old PBX Easily without New Wiring
Cost-effective, easy-to-install and simple-to-use, the IPX-2100 converts standard telephones into IP-based networks. It enables the service providers and enterprises to offer users traditional and enhanced telephony communication services via the existing broadband connection to the Internet or corporation network.
With the IPX-2100, home users and companies are able to save the installation cost and extend their past investments in telephones, conferences and speakerphones. The IPX-2100 can be the bridge between the traditional analog system and IP network without having to invest heavily.

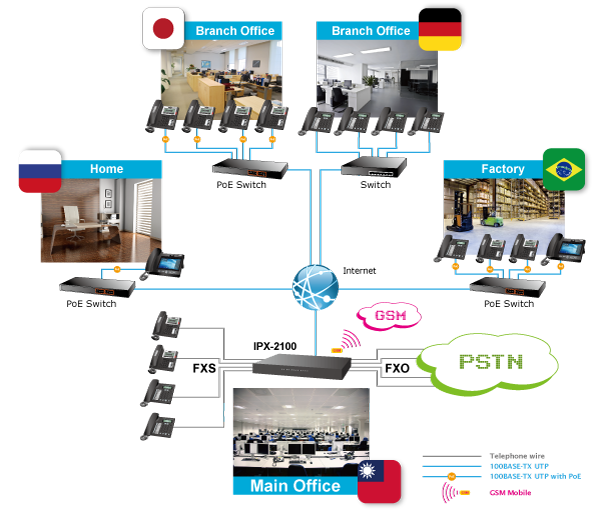

Distributed VoIP Network Infrastructure
In the new-generation communication age, the IPX-2100 supports IPv6 and VPN (client/server) connection to provide users with more flexible and advantageous communications products. With PLANET DDNS function, the IPX-2100 also helps users to apply and remember the login information easier. Its multiple-language feature helps user to quickly and friendly manage the system. Moreover, the IPX-2100 supports Lync server to which smart phone (using third-party app) and analog phone are connected via its communication with other devices of Lync server.

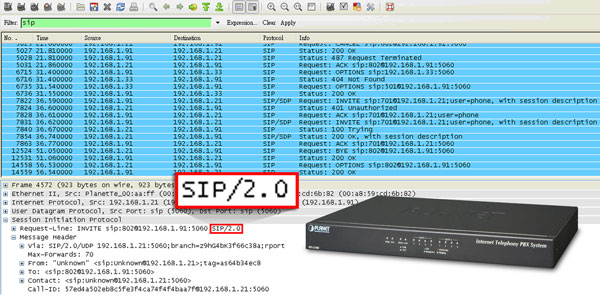

Standard Compliance
Compliant with the Session Initiation Protocol 2.0 (RFC 3261), the IPX-2100 is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

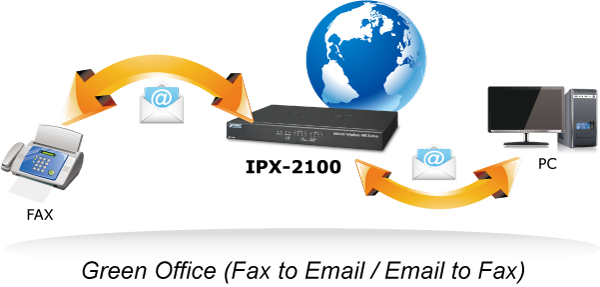

Green IP Office
The Fax to Email/Email to Fax service provided by the IPX-2100 allows users to transfer and receive faxes directly to or from your email inbox as file attachments. It is an easy and confidential way of receiving, storing and forwarding important fax documents, thus creating a paperless green office.

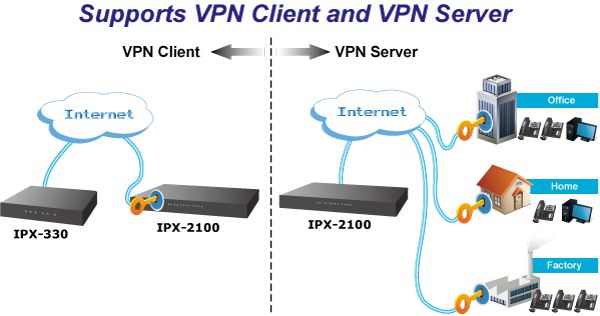

Full Security with VPN Support
The IPX-2100 VPN securely and cost-effectively connects geographically disparate offices of an organization, creating one cohesive virtual network. The IPX-2100 VPN technology is also used by ordinary Internet users to connect to proxy servers for the purpose of protecting one's identity. It includes VPN server and client function that can support users’ full security login.
The IPX-2100 provides the essential features you need for business-class voice communications in an easy-to-manage solution. Designed for medium-sized businesses with branch offices, the IPX-2100 voice, conferencing, mobility, voice gateway, and IP PBX services are created on a single appliance.
Datasheet
| Date | Version | Description | Download |
|---|---|---|---|
| 2018-03-09 | 1.0 | IPX-2100 |
 |
Firmware
| Date | Version | Description | Download |
|---|---|---|---|
| 2021-02-04 | 3.2.5 | For IPX-2100(v3) only. [Added] 1. Added Planet new IP phone models on Phone Provisioning list. 2. HTTPs port number modification. [Modified] 1. The default setting of Inband Progress is disabled. 2. Time rule is modified to multi-level setting. [Fixed] 1. FTP upload process. |
|
| 2020-04-20 | 3.2.4 | Fixed: 1. Fixed the issue that the generated time is wrong in the time rule setting 2. Fixed the issue where adjusting the time zone or area may cause the web to fail to start 3. Fixed the issue that the incoming call to department call recording, the recording file cannot be generated |
|
| 2019-02-13 | 3.1.1 | For IPX-2100(v3) only. [Added] 1. Added Meet Me Page feature 2. Added Dial by Name feature and added as an IVR event option [Fixed] 1. Adjusted default SIP TCP protocol port as 5060 2. Fixed the issue of inbound route on SIP trunks |
|
| 2018-10-31 | 3.0.3 | For IPX-2100(v3) only. [Added] 1. Enhanced the function of IVR name dialing 2. Increased the ability of the phone to record IVR voice [Fixed] 1. Fixed the extension line that could not ring normally in the department. 2. Modified the phone to automatically configure the phone and click the "Activate" button after selecting the phone. 3. Fixed the issue of the DDNS program that could not be used. |
|
Quick Guide
| Date | Version | Description | Download |
|---|---|---|---|
| 2018-01-26 | 3.0 | Initial release for PLANET IPX series 3.0 |
|
User's Manual
| Date | Version | Description | Download |
|---|---|---|---|
| 2018-11-02 | 3.0 | Initial release for IP PBX series V3 |
|
