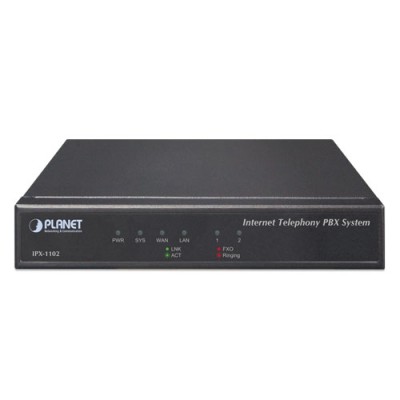

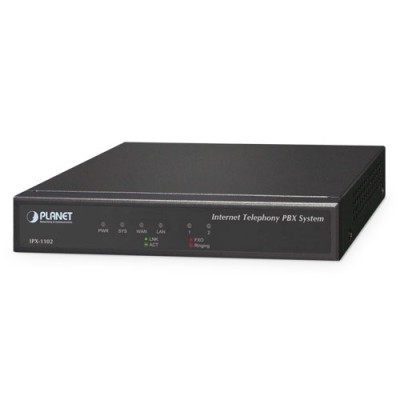

PLANET IPX-1102 Internet Telephony PBX system with 2-port FXO (100 SIP User Registrations)

PLANET IPX-1102 Internet Telephony PBX system with 2-port FXO (100 SIP User Registrations)
PLANET IPX-1102 Internet Telephony PBX system with 2-port FXO (100 SIP User Registrations)
PLANET IPX-1102 Internet Telephony PBX system with 2-port FXO (100 SIP User Registrations)
PLANET IPX-1102 Internet Telephony PBX system with 2-port FXO (100 SIP User Registrations)
PLANET IPX-1102 Internet Telephony PBX system with 2-port FXO (100 SIP User Registrations)
PLANET IPX-1102 Internet Telephony PBX system with 2-port FXO (100 SIP User Registrations)
PLANET IPX-1102 Internet Telephony PBX system with 2-port FXO (100 SIP User Registrations)
  • Stock: In Stock
  • Brand: PLANET
  • Model: IPX-1102
  • Weight: 0.98kg
  • Dimensions: 115.00cm x 167.60cm x 28.80cm
625.92€
Ex Tax: 504.77€

Intuitive, Ease-of-Use IP PBX Management

PLANET IPX-1102 advanced IP PBX telephony system is effortlessly set up and managed, thanks to its intuitive web-based user interface and quick setup wizard. As an Asterisk-based solution, it offers the complete benefits of pre-loaded SIP, akin to features found in other high-end enterprise-level appliances. With a capacity to accommodate 100 user registrations, the IPX-1102 simplifies the administration of a comprehensive voice-over-IP system, providing both convenience and cost advantages. The equipment is best paired with PLANET color IP phones to get the function going smoothly and to have a seamless connection between the software and hardware.

Model
IPX-1100
IPX-1102
Extension User
100
100
Concurrent Call
50
50
Room Concurrent Call
30
30
Recording/Voicemail
400 hrs
400 hrs
Module
-
2 FXO (Built-in)



Off-net Calling Capability, Call Restriction, Call Access Control

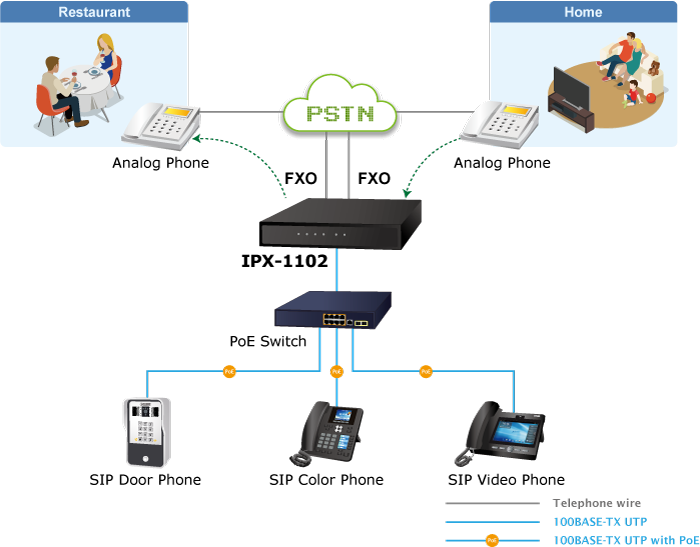

The IPX-1102, equipped with 2 FXO interfaces, establishes a PBX system supporting 2 analog calls. This ensures smooth communication across the existing PSTN calls, analog phones, IP phones, and SIP-based endpoints.

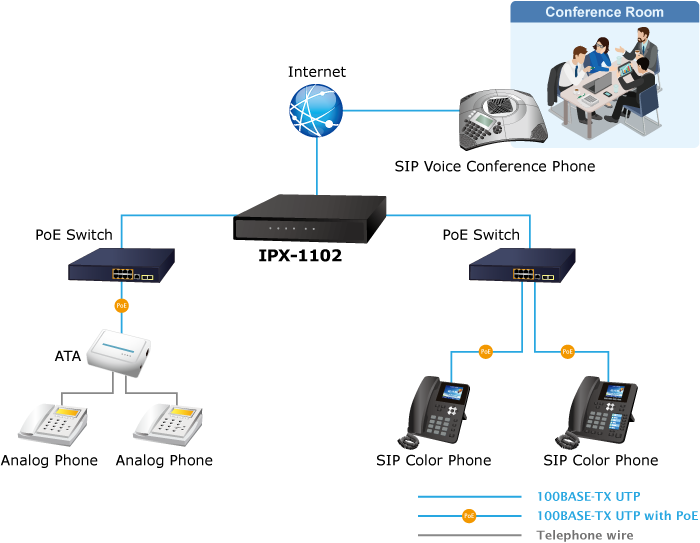

Replacing Old PBX Easily without New Wiring

Cost-effective, easy-to-install and simple-to-use, the IPX-1102 converts standard telephones into IP-based networks. It enables the service providers and enterprises to offer users traditional and enhanced telephony communication services via the existing broadband connection to the Internet or corporation network.

With the IPX-1102, SMBs are able to save the installation cost and extend their past investments in telephones, conferences and speakerphones. The IPX-1102 can be the bridge between the traditional analog system and IP network without having to invest heavily.

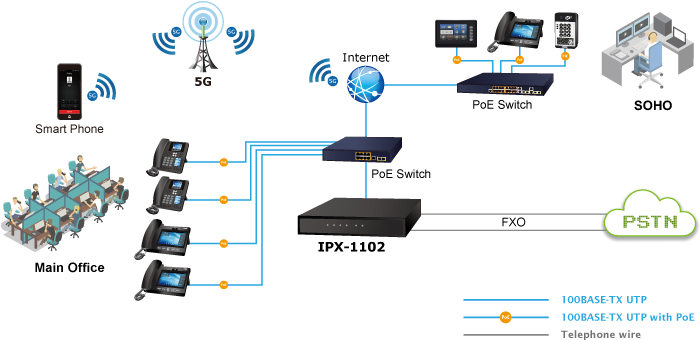

Distributed VoIP Network Infrastructure

In the new-generation communication age, the IPX-1102 supports IPv6 and VPN (client/server) connection to provide users with more flexible and advantageous communications products. With PLANET DDNS function, the IPX-1102 also helps users to apply and remember the login information easier. Its multiple-language feature helps user to quickly and friendly manage the system. Moreover, the IPX-1102 supports Lync server to which smart phone (using third-party app) and analog phone are connected via its communication with other devices of Lync server.

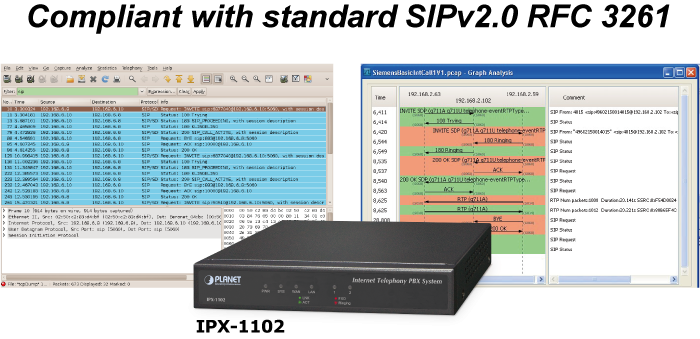

Standard Compliance

Compliant with the Session Initiation Protocol 2.0 (RFC 3261), the IPX-1102 is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.

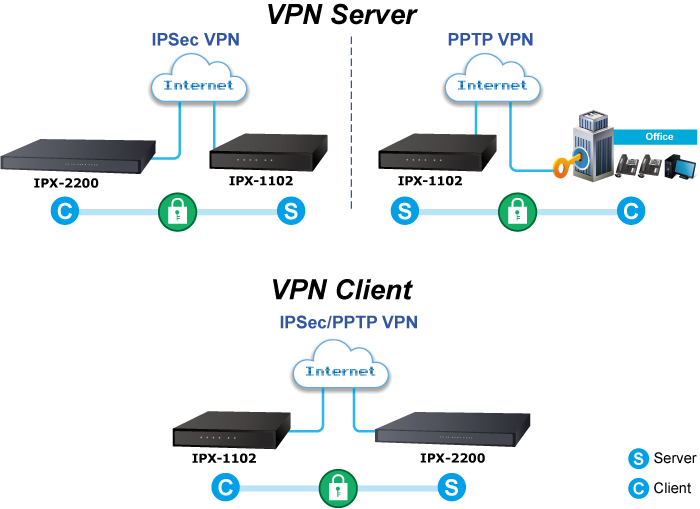

Full Security with VPN Support

The IPX-1102 guarantees robust security and cost-effective connectivity for geographically dispersed offices within an organization, establishing a unified virtual network. This advanced VPN technology is not only ideal for connecting corporate branches but also empowers individual internet users seeking identity protection through proxy servers. With both VPN server and client functions, the IPX-1102 provides users with secure login capabilities, ensuring full security."

The IPX-1102 provides the essential features you need for business-class voice communications in an easy-to-manage solution. Designed for medium-sized businesses with branch offices, the IPX-1102 voice, conferencing, mobility, voice gateway, and IP PBX services are created on a single appliance.

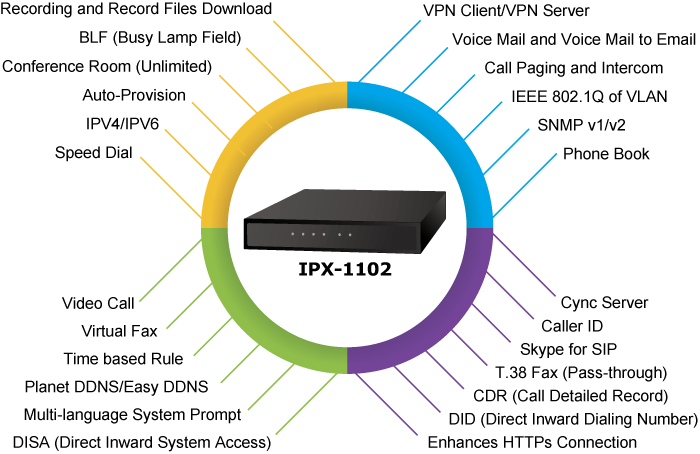

System Highlights

  • 50 concurrent calls and up to 100 registers
  • 30 conference attendees
  • 400- hour recording (Internal Storage)
  • Built-in 2 FXO interfaces
  • Unlimited SIP/IMS Trunks
  • HD voice codec G.722 for perfect voice quality
  • Voicemail to Email for not missing any important message
  • Paging and intercom function strengthens the work efficiency
  • Built-in SIP proxy server following RFC 3261
  • Multiple language of GUI for international business
  • Web-based control panel for easy configuration and management of the system
  • Hardware echo cancellation module for great and smooth communication
  • Strong security features protect your system from hacking
  • Records voice and voicemail to external USB disk
  • Quick setup wizard



Codec and Protocol

  • SIP 2.0 (RFC3261), IAX2 and Lync server compliant
  • Audio Codec: G.711-Ulaw, G.711-Alaw, G.722, G.726, G.729, GSM, SPEEX, Opus, AMR, AMR-WB
  • Video Codec: H.261, H.263, H.263+, H.264 and VP8
  • DTMF: RFC 4733, SIP info, in-band and auto



Network and Security Features

  • DHCP server, DDNS client (PLANET DDNS & Easy DDNS)
  • SNMP v1/v2, IEEE802.1Q VLAN
  • IPv4/IPv6, TR069
  • Manual configuration of static route table
  • Troubleshooting (Ping and Traceroute)
  • VPN server and VPN client
  • Mitigates SIP Register DoS attacks
  • Prevents Abort Invite DoS attacks
  • Prevents SSH Login DoS attacks
  • Firewall and enhances HTTPS connection
  • Geo-IP (Security policy based on IP address geographical locations)
  • Data backup and recovery



PBX Features

  • SIP Register with UDP/TCP/TLS/SRTP
  • One Touch Recording
  • Mobility Extension
  • Black List
  • BLF (Busy Lamp Field)
  • CDR (Call Detailed Record)
  • Conference Room
  • DID (Direct Inward Dialing Number)
  • SRTP (Secure Realtime Transport Protocol)
  • DND (Do Not Disturb)
  • IVR (Interactive Voice Responses)
  • Follow Me, Call Spy and PIN Set
  • Distinctive Ringtone
  • Multi-language System Prompt
  • Phone Book, Speed Dial
  • Ring Group, SIP Trunk
  • Skype for SIP, Smart DID, System Log
  • T.38 fax (pass-through), voicemail and voicemail to e-mail



Call Features

  • Call Back, Call Forward, Call Group
  • Call Hold, Call Paging and Intercom
  • Call Park, Call Pickup, Call Queue
  • Call Record, Call Route, Blind Transfer
  • Attend Transfer, Call Waiting
  • Caller ID, Dial by Name
  • Customized IVR, On-hold Music, Transfer
  • 30 Conference attendees
  • One-to-One Video Call

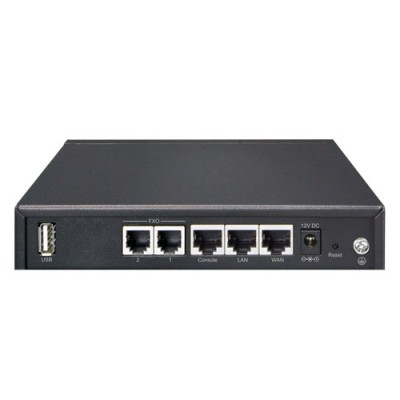

Hardware
WAN1 x 10/100BASE-T RJ45 for WAN, connecting to broadband modem or a WAN router
LAN1 x 10/100BASE-T RJ45 for LAN, connecting to a LAN switch
USB1 Port for external storage device (up to 2T Bytes)
File system format:FAT16, FAT32, EXTFAT, NTFS, EXT3, EXT4
Console Port1 Port (Baud Rate: 115200)
Reset KeyPress and hold for more than 5 secs to initiate a system reset to default settings
Analog Interface2 FXO
Protocols and Standard
StandardSIP 2.0 (RFC 3261), IAX2
ProtocolsRFC 768 UDP
RFC 793 TCP
RFC 5246 TLS
RFC 3711 SRTP
RFC 826 ARP
RFC 1034, 1035 DNS
RFC 1631 NAT
RFC 2068 HTTP
RFC 2131 DHCP
RFC 2516 PPPoE
RFC 3261, RFC 3311, RFC 3515
RFC 3265, RFC 3892, RFC 3361
RFC 3842, RFC 3389, RFC 3489
RFC 3428, RFC 2327, RFC 2833
RFC 2976, RFC 3263
IPv4, IPv6, VLAN, DHCP, PPPoE, DDNS, NTP, SNTP, TFTP, SSH, HTTPS, LDAP
Audio CodecsG.711-Ulaw, G.711-Alaw, G.722, G.726, G.729, GSM, SPEEX, Opus, AMR and AMR-WB
Video CodecH.261, H.263, H.263+, H.264 and VP8
Fax over IPT.38 Fax (pass-through)
Note: T.38 support is dependent on fax machine, SIP provider and network, transport resilience
Voice ProcessingDTMF detection and generation
RFC 4733, SIP info, in-band and Auto
Internet Sharing
Network FeaturesDDNS client (Planet DDNS and easy DDNS)
DHCP server/SNMP v1/v2
IEEE 802.1Q VLAN
IP assignment (DHCP/Static)
IPv4/IPv6
Manual configuration of static route table
Troubleshooting (ping and traceroute)
VPN server and VPN client
Security FeaturesMitigates SIP Register DoS Attacks
Prevents Abort Invite DoS Attacks
Prevents SSH Login DoS Attacks
Firewall and enhances HTTPS connection
Features
PBX FeaturesSIP Register with UDP/TCP/TLS/SRTP
Phone Auto-Provision
One Touch Recording
Mobility Extension
Black List
BLF (Busy Lamp Field)
CDR (Call Detailed Record)
Conference Room
DID (Direct Inward Dialing Number)
DISA (Direct Inward System Access)
DNIS (Dialed Number Identification Service)
SRTP (Secure Realtime Transport Protocol)
DND (Do Not Disturb)
FOP (Flash Operation Panel) Status Monitoring
IVR (Interactive Voice Responses)
Follow Me, Call Spy and PIN Set
Distinctive Ringtone
Multi-language System Prompt
Multiple Language of GUI
Phone Book, Speed Dial
LDAP Server for phonebook
Record Files Download
Ring Group, SIP Trunk
Skype for SIP, Smart DID, System Log
T.38 fax (pass-through), voicemail and voicemail to e-mail
Time-based Rule
PBX log, web access log and PBX debug log
Call FeaturesCall Back, Call Forward, Call Group
Call Hold, Call Paging and Intercom
Call Park, Call Pickup, Call Queue
Call Record, Call Route, Blind Transfer
Attend Transfer, Call Waiting
Caller ID, Dial by Name
Customized IVR, On-hold Music, Transfer
30 Conference attendees
One-on-One Video Call
System Capacity
System Capacity50 simultaneous calls
Up to 100 IP phone registers/extensions
Recording and Voicemail: 400 hours
Network and Configuration
Access ModeStatic IP, DHCP
LED IndicationsPWR: 1, LNK (Green)
SYS: 1, LNK/ACT (Green)
WAN: 1, LNK/ACT (Green)
LAN: 1, LNK/ACT (Green)
Analog Interface 1/2: FXO (Red)
Dimensions (W x D x H)167.6 x 115 x 28.8 mm
Operating Environment0~40 degrees C, 5~95% humidity
Power RequirementsDC 12V, 1A
EMC/EMICE, FCC Class B, RoHS
