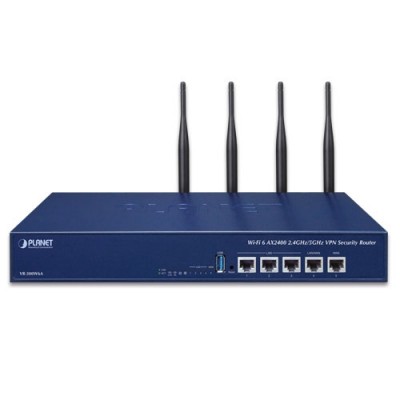

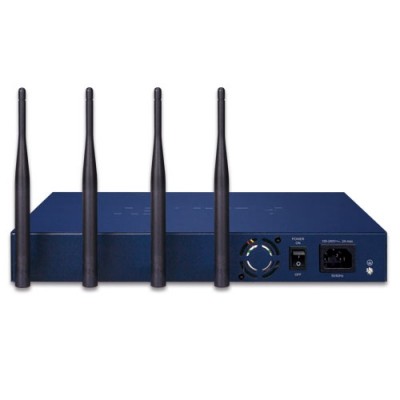

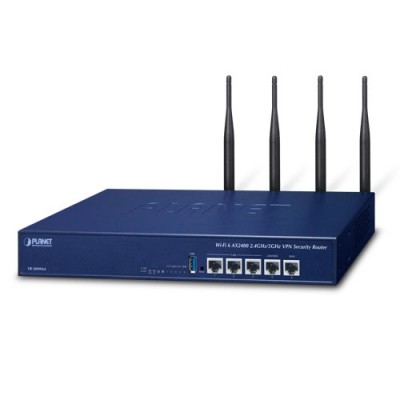

PLANET VR-300W6A Wi-Fi 6 AX2400 2.4GHz/5GHz VPN Security Router

Powerful Wi-Fi 6 and VPN Security Solution

The Wi-Fi 6 or 802.11ax is the latest generation of wireless networking technology and offers greater capacity, efficiency and performance for advanced connectivity. With Wi-Fi 6 technology, it creates tremendous worldwide opportunities for e-business and information sharing but also brings advanced network security issues for businesses. The demand for information security and wireless connetion has become the primary concern for the enterprises.

To fulfill this demand, PLANET has launched the all-in-one VR-300W6A and VR-300PW6A Wireless VPN Security Routers that carry several main categories across your network security deployments:

• Wi-Fi 6 technology
• Cybersecurity
• SPI firewall security protection,

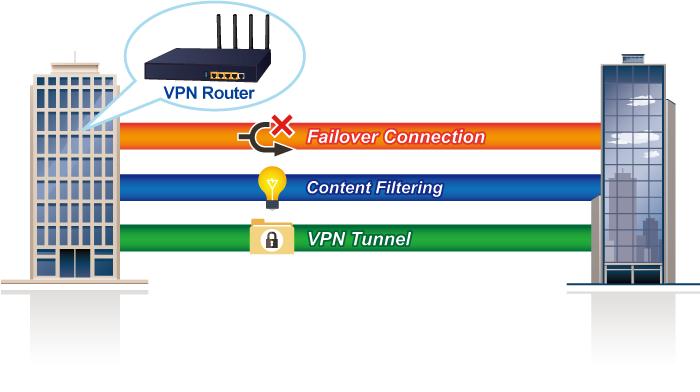

• Policy auditing (content filtering, VPN tunnel and MAC/IP filtering)
• AP controller
• Captive portal, RADIUS
• Easy management (Setup Wizard, DHCP Server and Dashboard).

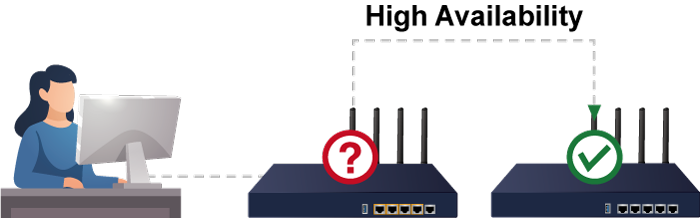

Furthermore, its Dual-WAN Failover, Outbound Load Balance and High-Availability features can improve the network efficiency while the web-based interface provides friendly and consistent user experience.

Wireless 11ax Brings Excellent Data Link Speed

The VR-300W6A and VR-300PW6A are designed with high power amplifier and 4 highly-sensitive antennas which provide stronger signal and excellent coverage even in the wide-ranging or bad environment. With adjustable transmit power option, the administrator can flexibly reduce or increase the output power for various environments, thus reducing interference to achieve maximum performance. Equipped with the next-generation Wi-Fi 6 (802.11ax) wireless network standard, the total bandwidth reaches 2400Mbps, and the 4-stream transmission technology improves the transmission efficiency of multiple devices, making AR/VR/IoT applications smoother.

Equipped with the next-generation Wi-Fi 6 (802.11ax) wireless network standard, the VR-300W6A and VR-300PW6A extend the 802.11n 40MHz channel binding to 80MHz+80MHz and the implementation of 1024-QAM modulation where higher transmitting/receiving rates go up to 2400Mbps in 5GHz less interference frequency band and the 4-stream transmission technology improves the transmission efficiency of multiple devices, making AR/VR/IoT applications smoother. In addition, the VR-300W6A and VR-300PW6A are equipped with Gigabit LAN port to eliminate the restriction of 100Mbps Fast Ethernet wired connection to let users fully enjoy the high speed provided by wireless. The IEEE 802.11ax also optimizes MU-MIMO (Multi-User MIMO) mechanism to serve multiple devices simultaneously.

WPA3 Next Generation Security for Your WLAN Solution

WPA3 is the next generation Wi-Fi security technology that provides the most advanced security protocol to the market. WPA3 makes your connection more secure by preventing hackers from easily cracking your password no matter how simplified the password is. WPA3 can also provide more reliable password-based authentication, so it can better protect the security of individual users.

* VR-300W6A and VR-300PW6A only support WPA3-Personal.

Wi-Fi Deployments and Authentication with Simplified Management

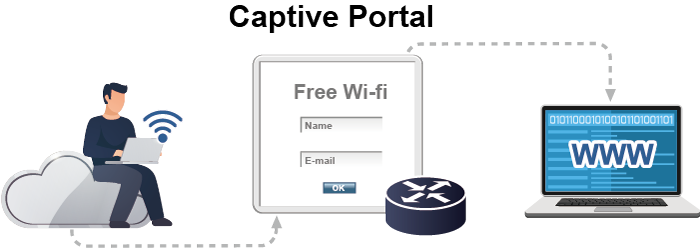

The VR-300W6A and VR-300PW6A also provides a built-in AP Controller, Captive Portal, RADIUS and a DHCP server to facilitate small and medium businesses to deploy secure employee and guest access services without any additional server. The VR-300W6A and VR-300PW6A can offer a secure Wi-Fi network with easy installation for your business.

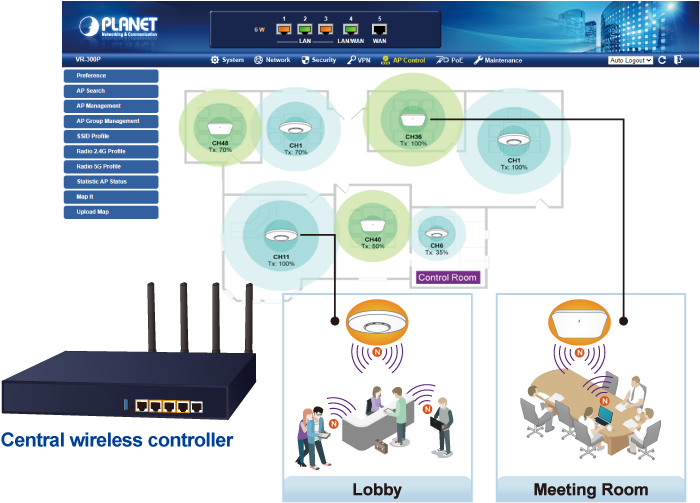

Centralized Remote Control of Managed APs*

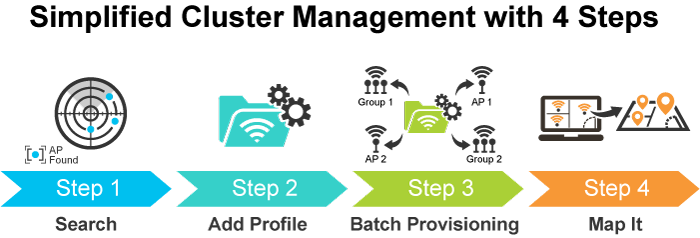

The VR-300W6A and VR-300PW6A provide centralized management of PLANET Smart AP series via a user-friendly Web GUI. It's easy to configure AP for the wireless SSID, radio band and security settings. With a four-step configuration process, different purposes of wireless profiles can be simultaneously delivered to multiple APs or AP groups to minimize deployment time, effort and cost.

For example, to configure multiple Smart APs of the same model, the VR-300W6A and VR-300PW6A allow clustering them to a managed group for unified management. According to requirements, wireless APs can be flexibly expanded or removed from a wireless AP group at any time. The AP cluster benefits bulk provision and bulk firmware upgrade through single entry point instead of having to configure settings in each of them separately.

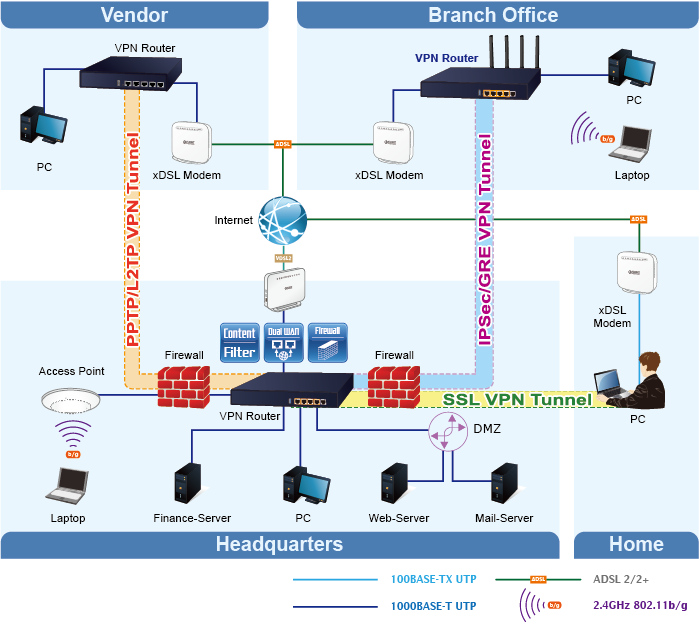

Ideal High-Availability VPN Security Router Solution for SMBs

The VR-300W6A and VR-300PW6A provide complete data security and privacy for accessing and exchanging most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the VR-300PW6A makes the connection secure, more flexible, and more capable.

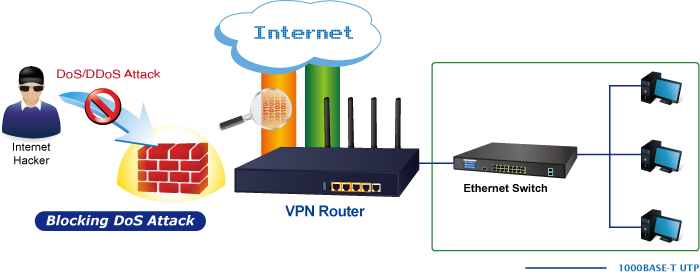

Excellent Ability in Threat Defense

The VR-300W6A and VR-300PW6A are built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions provide high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users.

Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the VR-300W6A and VR-300PW6A are equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the VR-300W6A and VR-300PW6A offer an easy-to-use, platform independent management and configuration facility. The VR-300W6A and VR-300PW6A support SNMP and it can be managed via any management software based on the standard SNMP protocol.
