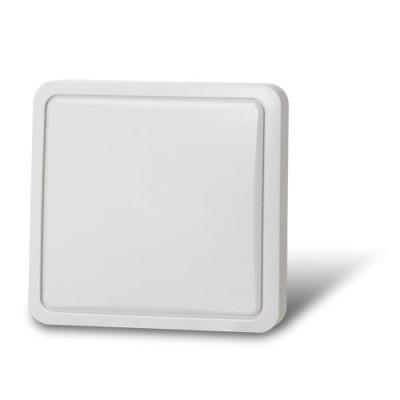

PLANET ANT-FP14AD 2x2 MIMO 5GHz 14dBi Flat-Panel Dual Polarization Direction Antenna

PLANET ANT-FP14AD 2x2 MIMO 5GHz 14dBi Flat-Panel Dual Polarization Direction Antenna
PLANET ANT-FP14AD 2x2 MIMO 5GHz 14dBi Flat-Panel Dual Polarization Direction Antenna
PLANET ANT-FP14AD 2x2 MIMO 5GHz 14dBi Flat-Panel Dual Polarization Direction Antenna
PLANET ANT-FP14AD 2x2 MIMO 5GHz 14dBi Flat-Panel Dual Polarization Direction Antenna
PLANET ANT-FP14AD 2x2 MIMO 5GHz 14dBi Flat-Panel Dual Polarization Direction Antenna
PLANET ANT-FP14AD 2x2 MIMO 5GHz 14dBi Flat-Panel Dual Polarization Direction Antenna
PLANET ANT-FP14AD 2x2 MIMO 5GHz 14dBi Flat-Panel Dual Polarization Direction Antenna
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: ANT-FP14AD
  • Βαρος: 1.16kg
  • Διαστασεις: 1.50 x 22.80 x 22.80
77,63€
Χωρίς ΦΠΑ: 62,61€

PLANET ANT-FP14AD is a 5GHz 14dBi Flat Panel Dual Polarization Directional Antenna equipped with two N-Type Female connectors. The ANT-FP14AD can increase wireless signal coverage and improve signal strength and quality for the current wireless environment. As the ANT-FP14AD can effectively enhance the performance and coverage of the 802.11a/n 5GHz facilities, it is quite suitable for outdoor wireless LAN applications, such as point-to-point connection between the warehouses.

The ANT-FP14AD Dual Polarization Directional Antenna can operate in both vertical and horizontal polarization. The dual-polarized antennas are perfectly helpful for 802.11n devices in multithreaded communications. This enables the wireless device to transmit data on one polarization and receive data on the other polarization simultaneously. Obviously, all the networking equipment in the wireless network must be multithreading complaint. It thus brings users the advantage that multithreaded communications can be achieved with use of only one antenna instead of two independent (and opposite polarized) antennas.



PLANET ANT-FP14AD 5GHz 14dBi Flat Panel Dual Polarization Directional Antenna, with its compact housing and lightning protection system design, can be flexibly installed in any outdoor wireless environment to meet today’s wireless LAN requirements, such as wide wireless signal coverage and improved signal strength and quality.

  • Designed to extend wireless coverage of 802.11a/n devices at frequency of 5GHz
  • Intergrating two polarities into one antenna helps to reduce cost of deployment
  • 14dBi high-gain antenna
  • IP55-rated case
  • Compact-sized housing and lightning protection system design

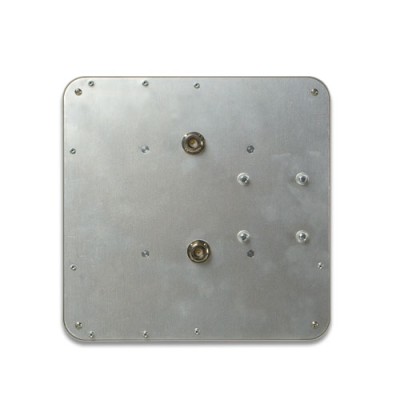

  • Built-in two N-Type female connectors
  • Easily-extended, point-to-point wireless coverage
Frequency Range
Frequency Range5.15 ~ 5.85GHz
Max. Gain14dBi
Antenna TypeUni-directional, flat panel
V.S.W.R.<1.5
PolarizationHorizontal and vertical (dual [polarization)
HPBW/Horizontal30 degrees
HPBW/Vertical30 degrees
Input Impedance50Ω
ConnectorN-Type (female) x 2
Environmental & Mechanical Characteristics
Survival Wind SpeedGreater than 150mph
Temperature-40 ~ 70 degrees C
Humidity95% @ 55 degrees C
Radome ColorGrayish-white
Radome MaterialABS, UV-resistant
Dimensions (W x D x H)228 x 15 x 228 mm (connector excluded)
Weight550g
Waterproof RatingIP55

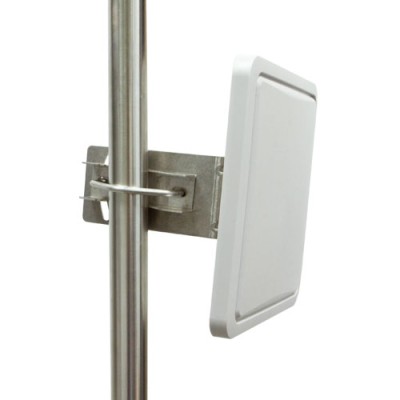

Mount TypePole Mount



Datasheet

DateVersionDescriptionDownload
2015-10-231.0ANT-FP14AD



Quick Guide

DateVersionDescriptionDownload
2015-10-161.0Initial release.
