Name: PLANET POE-TESTER+ IEEE 802.3af/at/bt Power over Ethernet Tester
Brand: PLANET
Price: 28.14 EUR
Availability: InStock
Rating: 5 (2 reviews)

PLANET POE-TESTER+ IEEE 802.3af/at/bt Power over Ethernet Tester

PLANET POE-TESTER+ IEEE 802.3af/at/bt Power over Ethernet Tester

Διαθεσιμοτητα: Άμεσα Διαθέσιμο
Κατασκευαστης: PLANET
Κωδικος Προϊοντος: POE-TESTER+
Βαρος: 0.06kg
Διαστασεις: 7.01 x 2.30 x 2.20

Σύμφωνα με 2 αξιολογήσεις. - Γράψτε μια αξιολόγηση

28,14€

Χωρίς ΦΠΑ: 22,70€

Ποσότητα

Καλάθι

Άμεση Αγορά

Quick and easy test on RJ45 outlet for Power over Ethernet existence in a second

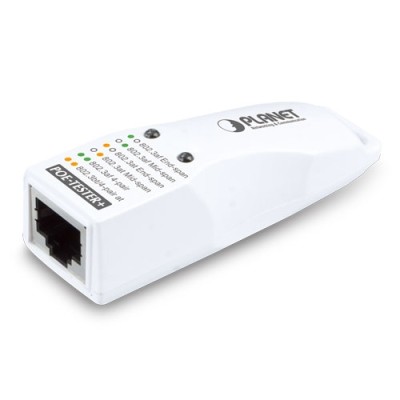

PLANET POE-TESTER+ is a new generation easy-to-use PoE diagnostic adapter for network installers, system integrator, company MIS and even home users to quickly identify the existence of Power over Ethernet on applications network. It is designed to detect if the IEEE 802.3af/at/bt PoE voltage runs over the UTP cable and identify the type of PSE (Power Source Equipment) for troubleshooting.

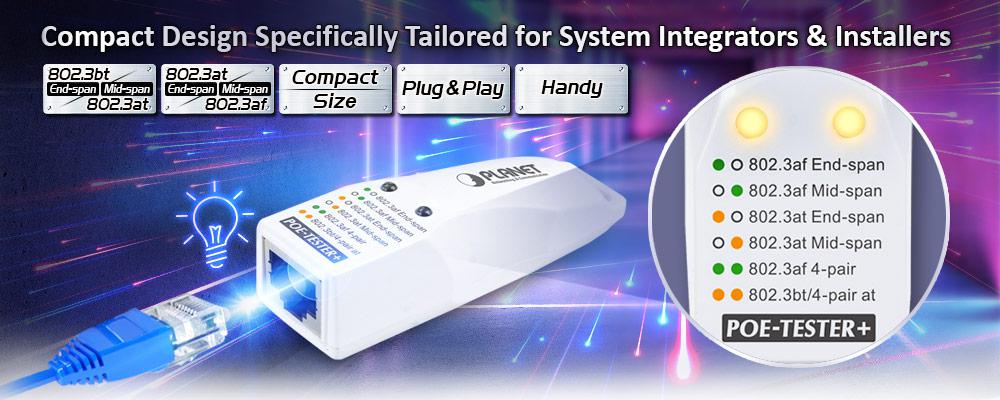

Plug and Show LED Indicators
Simply connect the POE-TESTER+ to the PSE or the RJ45 outlet and the LED will light up when it detects the PoE voltage via the UTP cable and identifies the PSE to be mid-span, end-span, 802.3af PoE mode, 802.3at PoE+ mode or even the latest 4-pair 802.3bt PoE++ mode in a second.

Identify PoE PSE Modes and Standards

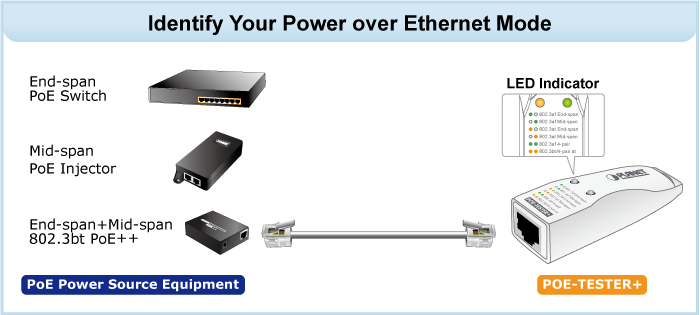

The POE-TESTER+ provides two bi-color LEDs for quick and easy PSE mode identification. A Power over Ethernet system comprises a PSE (Power Sourcing Equipment) and a PD (Powered Device). The PSE is a device that will provide power in a PoE setup. There are three types of PSE, Mode A, Mode B and 4-pair mode. The PSE may be a Mode A, end-span PoE switch or a Mode B, mid-span PoE injector or a 4-pair mode PSE that is end-span plus mid-span.

PoE PSE Modes	UTP Power Pin Assignment	PSE Devices
Mode A End-span	Pins 1, 2, 3 and 6	PoE Switch PoE Media Converter PoE Extender
Mode B Mid-span	Pins 4, 5, 7 and 8	PoE Single-port Injector PoE Multi-port Injector Hub
4-pair PSE	All pins	802.3bt/PoH PoE Switch 802.3bt/PoH Media Converter 802.3bt/PoH PoE Extender 802.3bt/PoH PoE Injector 802.3bt/PoH PoE Injector Hub

The PD is a PoE-enabled terminal by PSE and thus consumes energy, such as IP network cameras, VoIP phones and wireless access points and more.

PoE Installation Troubleshooting
Although PDs that implement only Mode A with end-span or Mode B with mid-span are disallowed by the IEEE 802.3af/at standard, there are still some of the PDs that are designed to work with only one of the modes. Thus, it will cause the PoE PSE and PD not to be compatible with each other in the applications. For example, an end-span designed PoE switch cannot power on the remote mid-span only wireless access point. But most of the time, the installers would not exactly know what the remote PSE devices are. PLANET POE-TESTER+ checks your UTP cable for power and identifies its source, mid-span, end-span or mid-span + end-span. Make sure at the end of UTP cable there is existence of PoE, and then the next step is to check if the PD is compatible with the PSE, or it is a malfunctioned PD.

With compact size and configure free design, the POE-TESTER+ is truly the best handy PoE test tool for the installation of PD device to test if IEEE 802.3af/at/bt PoE power is sent to wireless access points, IP surveillance cameras, VoIP phones and other PoE devices. It offers plug-and-play PoE diagnostic and PoE installation for installers and system integrators.

Quickly tests RJ45 outlet for Power over Ethernet existence

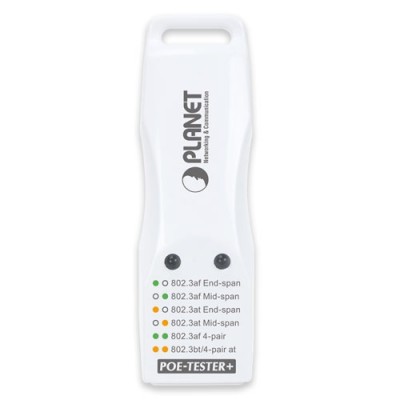

Two bi-color LEDs indicate the PoE standards and types of PSE (power source equipment)

- IEEE 802.3af PoE

- IEEE 802.3at PoE+

- IEEE 802.3bt PoE++

- End-span PoE switch

- Mid-span PoE injector / injector hub

- 4-pair, end-span + mid-span 802.3bt PoE++ switch/injector

Compliant with IEEE 802.3bt/at/af PoE standard
Compact size, Plug and Play design

Hardware Specifications
Interface	1 x RJ45 TP connector ■ PoE Power Input (PD)

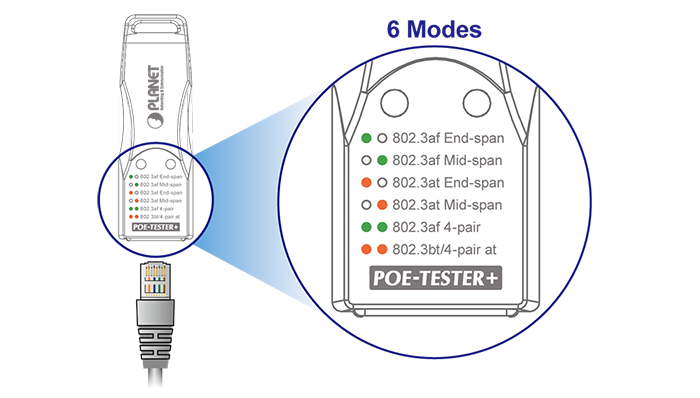

LED indicators	■ Left Amber - 802.3at PoE+ End-span / Pins 1, 2, 3 and 6 - The PoE standard is detected as 802.3at PoE+ and voltage is detected on pair 1,2,3,6 ■ Left Green - 802.3af PoE End-span / Pins 1, 2, 3 and 6 - The PoE standard is detected as 802.3af PoE and voltage is detected on pair 1,2,3,6 ■ Right Amber - 802.3at PoE+ Mid-span / Pins 4, 5, 7 and 8 - The PoE standard is detected as 802.3at PoE+ and voltage is detected on pair 4,5,7,8 ■ Right Green - 802.3af PoE Mid-span / Pins 4, 5, 7 and 8 - The PoE standard is detected as 802.3af PoE and voltage is detected on pair 4,5,7,8 ■ Both Amber - 4-pair 802.3bt PoE++ or 4-pair 802.3at PoE+ - The PoE standard is detected as IEEE 802.3bt PoE++ or PoH and voltage is detected on all pairs ■ Both Green - 4-pair 802.3af PoE or non-standard force mode PoE - The PoE standard is detected as IEEE 802.3af PoE or non-standard PoE and voltage is detected on all pairs
Power Input	IEEE 802.3af PoE compliant with DC voltage within 37~57V IEEE 802.3at PoE+ and IEEE 802.3bt PoE++ compliant with DC voltage within 42~57V
Dimensions	23 x 70.1 x 22 mm (W x D x H)
Weight	24g
Environments
Operating	Temperature: 0~50 degrees C Relative Humidity: 5~95% (non-condensing)
Storage	Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Standards Conformance
Standards Compliance	IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus
Emission	CE Compliance
