- Διαθεσιμοτητα: Άμεσα Διαθέσιμο
- Κατασκευαστης: PLANET
- Κωδικος Προϊοντος: GUP-805A-95W
- Βαρος: 1.08kg
- Διαστασεις: 7.00 x 9.40 x 2.60
802.3bt PoE++ 95-watt Power over 4-pair UTP Solution

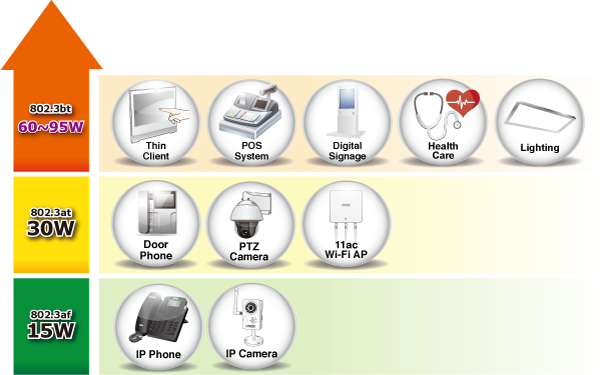

As PLANET GUP-805A-95W adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:
- PoE PTZ speed dome cameras
- Network devices
- Thin clients
- AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
- Remote digital signage displays
- PoE lightings
With a total power budget of up to 95 watts for different kinds of PoE applications, the GUP-805A-95W provide a quick, safe and higher 802.3bt PoE++ network solution for small businesses and enterprises.
Model | PoE Standard | PoE Budget | LAN Port Speed | SFP Slot Speed |
GUP-805A-95W | IEEE 802.3af/at/bt | 95 watts | 10M/100M/1000Mbps | 100M/1000BASE-X |

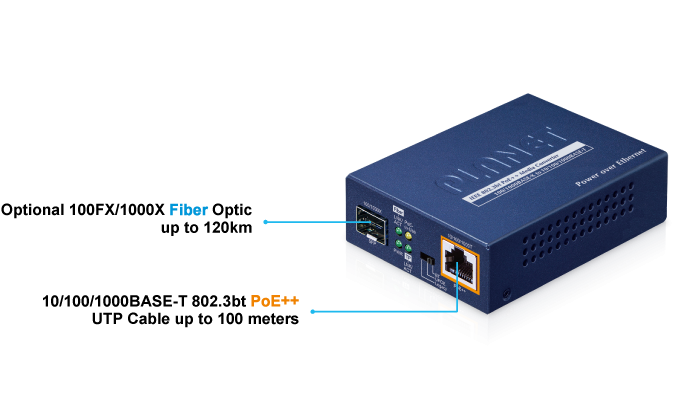

High Performance and Steady Network Communications Guaranteed Despite Distance Extension
The GUP-805A-95W extends communication distance with high Gigabit performance via SFP slot and SFP transceiver. The GUP-805A-95W provides media conversion between 10/100/1000BASE-T and 100/1000BASE-X interfaces for various fiber optic applications. The available SFP LC fiber interfaces are shown below:
Optic Mode | Connector Type | Distance |
Multi-mode | Duplex LC | 220m/550m/2km |
Single mode | Duplex LC | 20/40/60/80/120km |
Single mode WDM | Simplex LC | 2/10/20/40/80/120km |

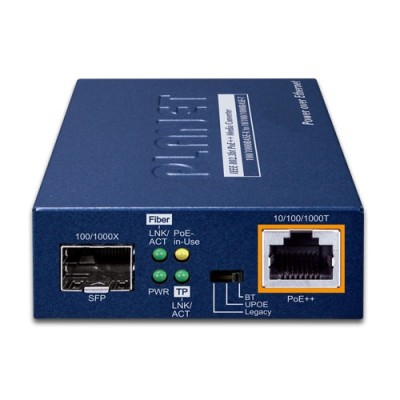

802.3bt PoE++ and DIP Switch for PoE Power Output Mode Options
To meet the demand of various powered devices consuming stable PoE power, the GUP-805A-95W provide one DIP switch for multi-PoE operation modes that include 95-watt 802.3bt type-4 PoE++ mode, UPOE and legacy mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.
- 802.3bt PoE++ Power Output Mode
- UPOE Power Output Mode
- Legacy Power Output Mode
PoE Mode | Function |
BT | This mode fully supports IEEE 802.3af/at/bt standards. |
UPOE | This mode fully supports Cisco UPoE standards or PoH standards. |
Legacy | The legacy detection is to identify the valid current signature of the PDs that do not fully follow the IEEE 802.3af/at/bt standard. This protects against damage to the PDs as the right PoE mode is applied. |

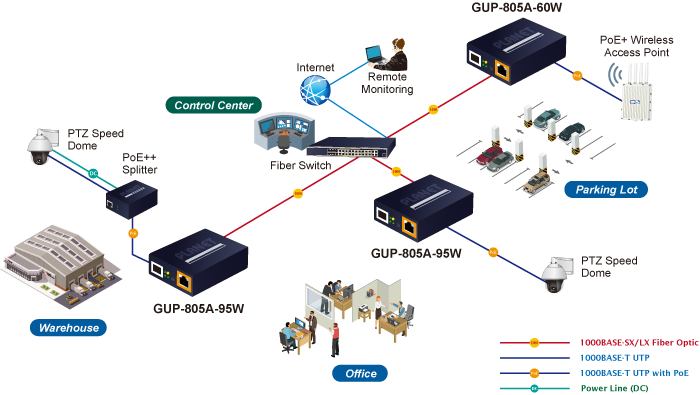

Flexible and User-friendly PoE Deployment with Gigabit SFP Fiber Extension
For the places difficult to find the power outlet, the GUP-805A-95W provides the easiest way to power network equipment such as PTZ (Pan, Tilt & Zoom) IP cameras, speed dome IP cameras, color touch-screen VoIP telephones, multi-channel (IEEE 802.11a/b/g/n/ac) wireless LAN access points and other network devices that need higher power to function normally. For instance, users can flexibly install security IP camera, wireless access point and other IEEE 802.3bt/at/af compliant network equipment in the public areas such as stations, freeways, airports and campuses for surveillance and wireless roaming needs.

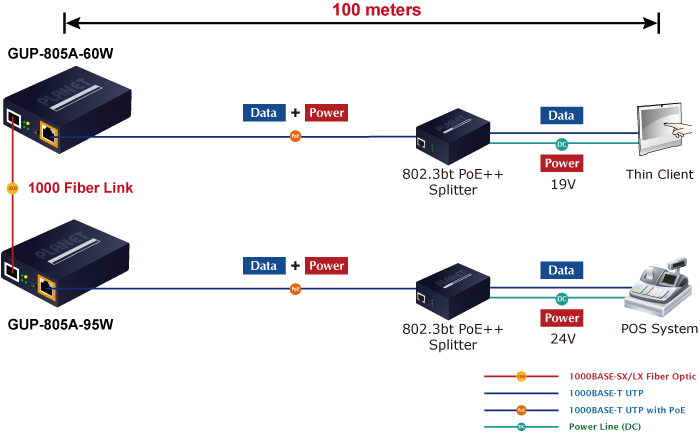

Gigabit 802.3bt PoE++ and PoE+ Network Deployment Solution
PLANET GUP-805A-95W can easily build an 802.3BT PoE++ networking solution for the enterprises. For instance, they can work with the POS system and thin client to perform comprehensive security protection for today’s businesses. The GUP-805A-95W and 802.3bt PoE++ Splitter-POE-173S operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. Receiving data and power from the GUP-805A-95W, the POE-173S separates digital data and power into three optional outputs (12V, 19V or 24V DC) to non-PoE devices such as laptops, Thin Client, POS System, PTZ (pan, tilt & zoom) network cameras, PTZ speed dome, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters.
