- Διαθεσιμοτητα: Άμεσα Διαθέσιμο
- Κατασκευαστης: PLANET
- Κωδικος Προϊοντος: POE-173S-12V
- Βαρος: 0.50kg
Quick and Easy Gigabit 802.3bt PoE++ Network Deployment
PLANET POE-173S-12V Gigabit 802.3bt Power over Ethernet splitter, which delivers the Ethernet digital data and PoE power from an 802.3bt type-4 PoE++ PSE (power source equipment) over an UTP cable, comes with a DC 12V output, enabling to deliver a maximum of 60-watt power output to a non-PoE powered Ethernet device. It supports passive 10/100/1000Mbps Ethernet connection and distance up to 100 meters.

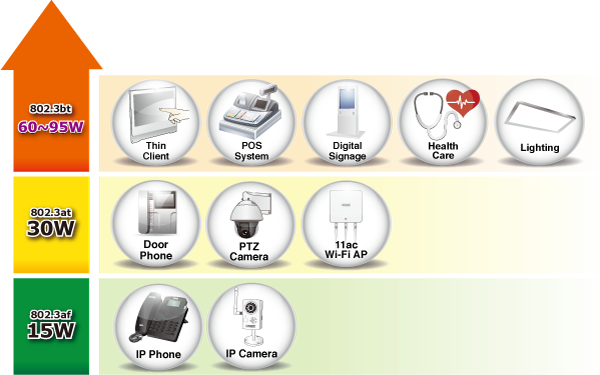

The POE-173S-12V, when working with PLANET 802.3bt type-4 PoE++ switches or injectors, offers more network applications to client devices, such as:
- PTZ speed dome camera
- Thin client
- AIO (All-in-One) touch PC
- Remote digital signage display
- Non-PoE network devices that need higher power to work normally
The POE-173S-12V frees the network device deployment from restrictions of power outlet locations, thus eliminating the costs for additional AC wiring and reducing the installation time.

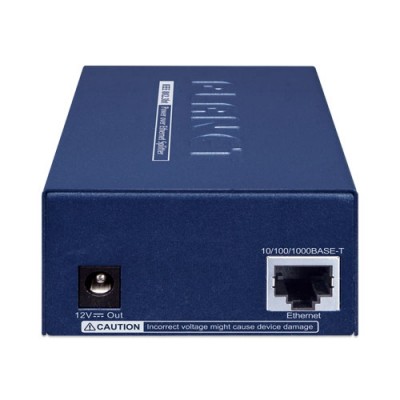

Stable DC 12V Power Output Voltage
The POE-173S-12V can supply 12V DC output to the common network devices, it highly increases the flexibility of the product applications.

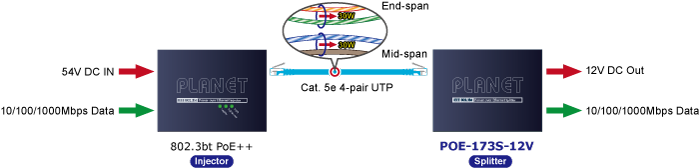

802.3bt PoE++ Power over 4-pair UTP Cable
The POE-173S-12V and 802.3bt type-4 PoE++ switches use cables that meet the IEEE 802.3bt standard. Instead of delivering power over 2-pair twisted UTP cable – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), they are able to transmit ultra PoE power and data by using all the four pairs of standard Cat. 5e/6 Ethernet cabling.
Environment-friendly Structure

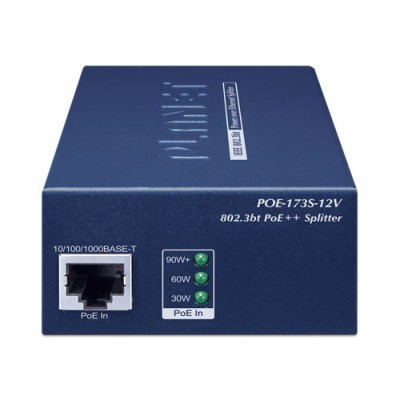

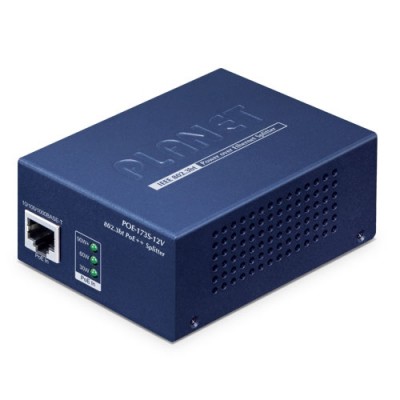

The POE-173S-12V comes with a compact-sized metal housing, making the placement of the unit convenient. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Moreover, the POE-173S-12V is able to operate reliably and stably without affecting its performance. The deployment of non-PoE equipment with constant power feeding can be easily and quickly done.

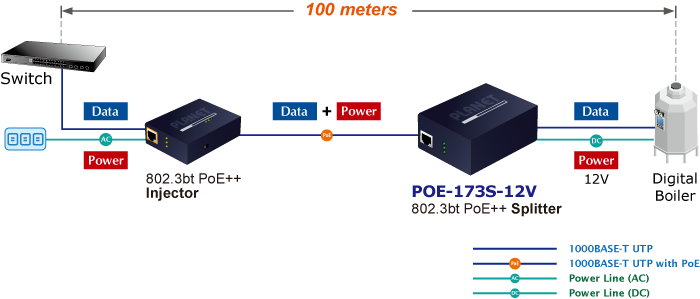

802.3bt PoE++ Splitter and Injector Installation
For a place which is hard to find the power inlet, the POE-173S-12V and PLANET 802.3bt PoE++ switches or injectors operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. The POE-173S-12V separates digital data and power into DC 12V outputs to non-PoE devices such as laptops, PTZ speed dome cameras, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters.
Datasheet
| Date | Version | Description | Download |
|---|---|---|---|
| 2024-06-21 | 1.0 | POE-173S-12V |
 |
User's Manual
| Date | Version | Description | Download |
|---|---|---|---|
| 2024-05-24 | 1.0 | Initial release. |
|
EC Declaration
| Date | Version | Description | Download |
|---|---|---|---|
| 2023-10-02 | 1.0 | EC Declaration. |
|
