PLANET IPOE-260 Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub

PLANET IPOE-260 Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub
PLANET IPOE-260 Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub
PLANET IPOE-260 Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub
PLANET IPOE-260 Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub
PLANET IPOE-260 Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub
PLANET IPOE-260 Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub
PLANET IPOE-260 Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub
PLANET IPOE-260 Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub
PLANET IPOE-260 Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub
PLANET IPOE-260 Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub
PLANET IPOE-260 Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: IPOE-260
  • Βαρος: 0.39kg
  • Διαστασεις: 7.00 x 3.00 x 10.50
135,86€
Χωρίς ΦΠΑ: 109,56€

Advanced 802.3at PoE+ Network Solution

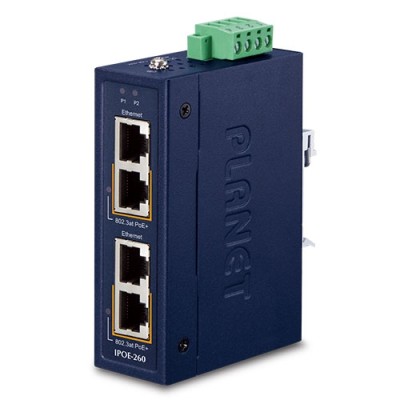

PLANET IPOE-260 2-Port, Mid-span Industrial IEEE 802.3at Power over Ethernet Plus Injector Hub series provides a maximum of up to 36 watts of power output over Ethernet cables. It frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall or ceiling, and most of all, it reduces installation time.

The IPOE-260 series includes two models: IPOE-260 and IPOE-260-12V.

Model

DC Input

PoE Standard

PoE Budget

IPOE-260

48~56V DC

IEEE 802.3at

72 watts

IPOE-260-12V

12~56V DC
IEEE 802.3at
72 watts

Quick and Easy High Power PoE Network Deployment

The IPOE-260 series can deliver 36-watt 54V DC power over Cat. 5/5e/6 Ethernet cables which allow data and power to transmit simultaneously through the cable between the injector (IPOE-260 series) and PoE PD (powered device) or PoE splitter (IPOE-162S). The maximum distance between the Injector and Splitter is 100 meters. The IPOE-260 series is also compatible with IEEE 802.3af PoE PD or PoE splitter and provides a maximum of up to 15.4-watt power output. With Industrial IEEE 802.3at Power over Ethernet Plus devices installed, the system administrator only has to use one single RJ45 Ethernet cable to carry both power and data to each device. It would make the network deployment easier and more reliable.

Convenient and Reliable Power System

To facilitate the 802.3at  PoE usage with commonly used 12~54V DC power input for transportation and industrial-level applications, the IPOE-260-12V adopts 12~54V DC to 54V power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs.

Environmentally Hardened Design for Industrial PoE Networks

The IPOE-260 series is specifically designed with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. The IPOE-260 series is packaged in a compact, IP30 rugged case that allows either DIN-rail or wall mounting to have the efficient use of cabinet space. It is ideal for service providers, campuses and public areas to deploy PoE wireless access points, IP cameras or IP phones in any places easily and efficiently with cost-effectiveness. It can also operate in a wide temperature range of -40 to 75 degrees C, so it can be placed in almost any location.

Connecting to IEEE 802.3at Compliant Devices

Having the capability of IEEE 802.3at Power over Ethernet standard, the IPOE-260 series can directly connect and inject power via RJ45 Ethernet cable to any IEEE 802.3at end-nodes like PTZ (Pan, Tilt & Zoom) IP cameras, color touch-screen voice over IP (VoIP) telephones, multi-channel wireless LAN access points and other network devices.



Installation of 802.3at PoE+ Injector and Splitter

For a place which is hard to find the power inlet, the IPOE-260 series and IPOE-162S can operate as a pair to provide the easiest way to power your Ethernet devices which need high power input, such as PTZ (Pan, Tilt & Zoom) IP cameras, color touch-screen voice over IP (VoIP) telephones, and multi-channel wireless LAN access points installed on the top of the building or in enterprise office or home.



Extended Installation of IEEE 802.3at Injector and PoE Network

Is 100-meter cable long enough for a wide range of IP surveillance deployments? The answer is certainly not. To achieve the benefits of IP surveillance and also the long-distance IP camera distribution, the IPOE-260 series and PLANET PoE Extender, IPOE-E202, can be a quick and cost-effective option. In the simplest application, the PoE Extender enables a PoE IP camera to be installed up to 200 meters away from the IPOE-260 series. The IPOE-260 series delivers PoE power over the first 100 meters to the PoE Extender over UTP cables, and then the PoE Extender forwards the Ethernet data and remaining PoE power to the remote PoE IP cameras.



Interface

  • 4 10/100/1000BASE-T RJ45 interfaces
    • 2-port Data + Power output
    • 2-port Data input
  • 1 terminal block for master and slave power input with reverse polarity protection
  • Power Range: 48 ~ 56V DC redundant power (IPOE-260)
  • Power Range: 12 ~ 56V DC redundant power (IPOE-260-12V)
  • LED indicators for power LED and PoE-in-use



PoE

  • Gigabit Power over Ethernet Plus mid-span PSE
  • IEEE 802.3at PoE+ compliant
  • IEEE 802.3at splitter devices compatible
  • Supports PoE Power up to 36 watts for PoE port
  • Provides DC 54V power over RJ45 Ethernet cable to device
  • Auto-detection of PoE IEEE 802.3af/at devices
  • Remote power feeding up to 100m



Industrial Case and Installation

  • IP30 slim metal case
  • DIN-rail, wall-mount or side wall-mount design
  • Supports 6KV DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature



IPOE-260 Series
Model

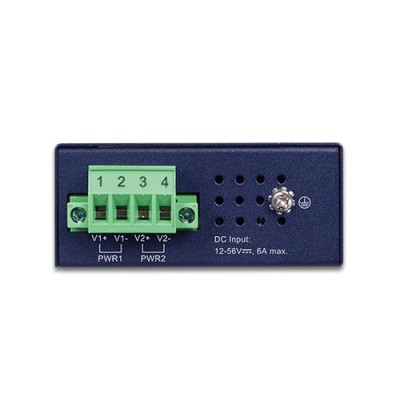

IPOE-260IPOE-260-12V
Hardware Specifications
Copper Ports2 pair 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports:

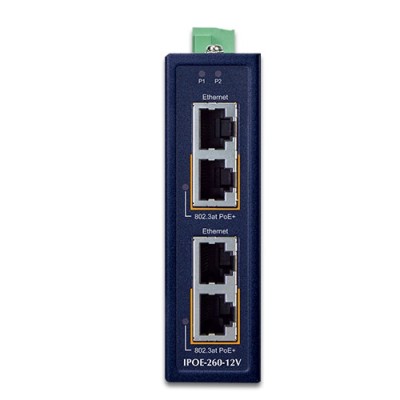

  • Data input port 1 and PoE output port 1
  • Data input port 2 and PoE output port 2

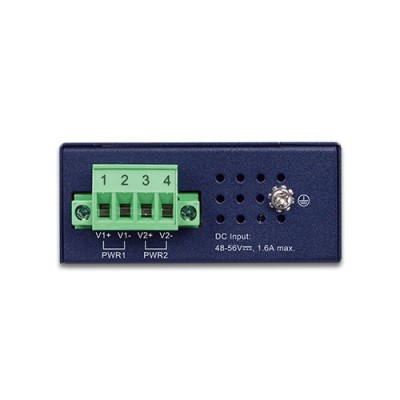

ConnectorRemovable 4-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for Power 2
LED IndicatorSystem:
Power 1 (Green),
Power 2 (Green),
PoE Port:
802.3at PoE+ x 1 (Green + Orange)
Network CableTwisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6
1000BASE-T: 4-pair UTP Cat. 5e, 6
Data Rate10/100/1000Mbps
Power Requirements
IPOE-260IPOE-260-12V
48~56V DC, redundant power with reverse polarity protection function.12~56V DC, redundant power with reverse polarity protection function.
Power Consumption (Ethernet Full Loading)
IPOE-260IPOE-260-12V
Max. 2 watts/6.8 BTU (Power on without any connection)
Max. 80 watts/272.9 BTU (Full loading with PoE function)
Max. 4 watts/13.6 BTU (Power on without any connection)
Max. 80 watts/272.9 BTU (Full loading with PoE function)
Dimensions (W x D x H)30 x 70 x 105 mm
Weight280g
EnclosureIP30 metal case
InstallationDIN-rail, wall-mount or side wall-mount design
ESD Protection6KV
EFT Protection6KV
Power over Ethernet
PoE StandardIEEE 802.3at Power over Ethernet Plus / mid-span PSE
PoE Power Output
IPOE-260IPOE-260-12V
48V DC input: Per PoE port max. 32 watts
56V DC input: Per PoE port max. 36 watts
Per port 54V DC, max. 36 watts
PoE Power Supply TypeMid-span
Power Pin Assignment4/5 (+), 7/8 (-)
PoE Power Budget (max.)
IPOE-260IPOE-260-12V
72 watts@48~56V DC input60W @12~23V DC input
72W @24~56V DC input
Number of devices that can be powered2
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Stability TestingIEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Environment
TemperatureOperating: -40~75 degrees C
Storage: -40~75 degrees C
HumidityOperating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2019-11-291.0IPOE-260 Series



User's Manual

DateVersionDescriptionDownload
2022-12-301.1Modify contents of user manual.
2019-09-121.0Initial Release



EC Declaration

DateVersionDescriptionDownload
2020-06-121.0Initial release
