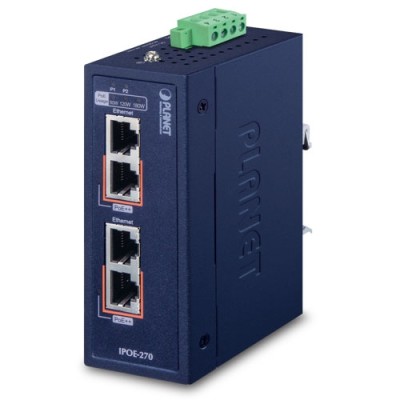

PLANET IPOE-270-12V Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub w/12V Booster (-40~75 degrees C, 12~54VDC)

PLANET IPOE-270-12V Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub w/12V Booster (-40~75 degrees C, 12~54VDC)
PLANET IPOE-270-12V Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub w/12V Booster (-40~75 degrees C, 12~54VDC)
PLANET IPOE-270-12V Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub w/12V Booster (-40~75 degrees C, 12~54VDC)
PLANET IPOE-270-12V Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub w/12V Booster (-40~75 degrees C, 12~54VDC)
PLANET IPOE-270-12V Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub w/12V Booster (-40~75 degrees C, 12~54VDC)
PLANET IPOE-270-12V Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub w/12V Booster (-40~75 degrees C, 12~54VDC)
PLANET IPOE-270-12V Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub w/12V Booster (-40~75 degrees C, 12~54VDC)
PLANET IPOE-270-12V Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub w/12V Booster (-40~75 degrees C, 12~54VDC)
PLANET IPOE-270-12V Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub w/12V Booster (-40~75 degrees C, 12~54VDC)
PLANET IPOE-270-12V Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub w/12V Booster (-40~75 degrees C, 12~54VDC)
PLANET IPOE-270-12V Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub w/12V Booster (-40~75 degrees C, 12~54VDC)
PLANET IPOE-270-12V Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub w/12V Booster (-40~75 degrees C, 12~54VDC)
PLANET IPOE-270-12V Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub w/12V Booster (-40~75 degrees C, 12~54VDC)
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: IPOE-270-12V
  • Βαρος: 0.59kg
  • Διαστασεις: 7.00 x 4.10 x 11.50
329,94€
Χωρίς ΦΠΑ: 266,08€

Compact and Robust IndustriaL 802.3bt PoE++ Network Solution

PLANET IPOE-270 2-port industrial IEEE 802.3bt PoE++ injector hub series features two 10/100/1G/2.5G/5GBASE-T 95-watt 802.3bt type-4 PoE++ injector ports. With a total PoE budget of 180 watts, it delivers 802.3bt PoE++ power over Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).





The IPOE-270 series provides a quick, safe and cost-effective 802.3bt PoE++ network solution for small businesses and enterprises. It is designed to perfectly upgrade an existing network infrastructure to 802.3bt PoE++ network system without replacing the existing Ethernet switches and also enables centralization of the power supply.

The IPOE-270 series includes two models: IPOE-270 and IPOE-270-12V.

ModelDC Redundant Power InputPoE Standard PoE Budget
IPOE-27048~54V DCIEEE 802.3bt PoE++180 watts
 IPOE-270-12V 12~54V DC180 watts




802.3bt PoE++ Meets High Power Demands of Powered Devices

As the IPOE-270 series adopts the IEEE 802.bt PoE++ standard, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant PD. It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:

  • PoE PTZ speed dome cameras
  • Network devices
  • Thin clients
  • AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
  • Remote digital signage displays
  • PoE lightings





DIP Switch for PoE BT and Legacy mode Option

The IPOE-270 series provides power to those powered devices which do not fully follow the IEEE 802.3af/at/bt standard. The BT and Legacy mode provide the PD with 95 watts of power output voltage.

  • BT mode: Powered devices that fully support IEEE 802.3 bt standards with per port output budget of 95W.
  • Legacy Mode: PD devices that support capacitive or resistance electronic tag with per port output budget of 95W.





Quick and Easy 802.3bt/at PoE Network Deployment

The IPOE-270 series is installed between a regular Ethernet Switch and the PDs. Two ports are network (Ethernet) ports for data input while the other two ports are PoE++ ports for data and power output. Both power and data are transferred simultaneously over the UTP cables to various 802.3bt/at PDs without affecting the existing network performance and functions.

With data and Power over Ethernet from one unit, the IPOE-270 series can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.





Intelligent LED Indicator for Power Input and Real-time PoE Usage

The IPOE-270 series helps users to monitor the current status of power input and PoE power usage easily and efficiently via its advanced LED indication. The “Power Input” allows user to know the status of dual DC power input. The “PoE Usage” displayed on the panel of the IPOE-270 series has three amber LED indicators of different power usages indicating 60W, 120W and 180W. Via the power usage LED, the IPOE-270 series enables the administrator to monitor the status of the power usage of the connected PDs in real time.





Convenient and Reliable Power System

To facilitate the 802.3bt PoE++ usage with commonly-used 12~54V DC power input for transportation and industrial-level applications, the IPOE-270-12V adopts the 12~54V DC to 54V power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs.





High Power Budget for PoE Extension

With up to 95-watt PoE output capability, the IPOE-270 series can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away.





Stable Operating Performance under Difficult Environments

Today, the PoE demand expands from commercial applications to many critical networks in the harsh environment. The IPOE-270 series provides a high level of immunity against electromagnetic interference and heavy electrical surges typical of environments found on plant floors or in curb-side traffic control cabinets.

The IPOE-270 series can be easily installed by way of Plug and Play and operates stably under temperature range from -40 to 75 degrees C which enables the users to conveniently apply the device in almost any location of the network.





The IPOE-270 series is also equipped with a compact IP30 standard metal case that allows either DIN-rail or wall mounting for space-limited environment.





    IEEE 802.3bt PoE++ Injector and 802.3bt PoE++ Compliant Devices Installation

    Having the capability of IEEE 802.3bt Power over Ethernet standard, the IPOE-270 series can directly connect and inject power via RJ45 Ethernet cable to any IEEE 802.3bt end-nodes like PoE PTZ speed dome cameras, thin clients, all-in-one touch PCs, point of sale (POS), information kiosks, remote digital signage displays and PoE lightings.





    IEEE 802.3bt PoE++ Injector and 802.3bt PoE++ Splitter Installation

    For a place which is hard to find the power inlet, the IPOE-270 series and IPOE-173S can operate as a pair to provide the easiest way to power your Ethernet devices which need high power input, such as PTZ (pan, tilt & zoom) IP cameras, color touch-screen voice over IP (VoIP) telephones, and multi-channel wireless LAN access points installed on the top of the building or in enterprise office or home, as well as thin clients, all-in-one touch PCs, point of sale (POS), information kiosks and remote digital signage displays.





    IEEE 802.3bt PoE++ Injector and 802.3at PoE+ Network Extension Installation

    Is 100-meter cable long enough for a wide range of IP surveillance deployments? The answer is certainly not. To achieve the benefits of IP surveillance and also the long-distance IP camera distribution, the IPOE-270 series and PLANET IPOE-E302 PoE Extender can be a quick and cost-effective option. In the simplest application, the PoE Extender enables a PoE IP camera to be installed up to 200 meters away from the IPOE-270 series. The IPOE-270 series delivers PoE power over the first 100 meters to the PoE Extender over UTP cables, and then the PoE Extender forwards the Ethernet data and remaining PoE power to the remote PoE IP cameras.



    Physical Interface

    • Two 10/100/1G/2.5G/5GBASE-T Gigabit RJ45 interfaces
      • 2-port data + power input
    • Two 10/100/1G/2.5G/5GBASE-T Gigabit RJ45 interfaces
      • 2-port data + power output
    • One PoE mode (IEEE 802.3bt(default)/legacy) DIP switch



    Power Requirements

    • 1 terminal block for master and slave power input with reverse polarity protection
    • Power Range: 48 ~ 54V DC redundant power (IPOE-270)
    • Power Range: 12 ~ 54V DC redundant power (IPOE-270-12V)



    Power over Ethernet

    • 2-port data + power output
      • Complies with 802.3bt Power over Ethernet Plus Plus end-span and mid-span PSE
      • Backward compatible with IEEE 802.3at Power over Ethernet Plus end-span/mid-span PSE
      • Up to 2 IEEE 802.3at/IEEE 802.3bt PoE devices powered
      • Supports PoE output power up to 95 watts for each PoE port
      • All PoE ports support 802.3at end-span/mid-span PoE 36-watt injector function
      • Auto detects powered device (PD)
      • Circuit protection prevents power interference between ports
    • Forwards both Ethernet data and PoE power to remote device over a 100-meter (328ft.) distance



    LED Indicators

    • LED indicators for power LEDs (Power 1 and Power 2)
    • LED indicators for PoE Usage (60W,120W and 180W)



    Industrial Case and Installation

    • IP30 metal case
    • DIN-rail and wall-mount designs
    • Supports 6KV DC Ethernet ESD protection
    • -40 to 75 degrees C operating temperature
    • Plug and Play installation
    Hardware Specifications
    Copper Ports2-pair 10/100/1G/2.5G/5GBASE-T RJ45 :
    Data input port 1 and PoE output port 1
    Data input port 2 and PoE output port 2
    ConnectorRemovable 4-pin terminal block
    Pins 1 and 2 for Power 1; Pins 3 and 4 for Power 2
    LED IndicatorSystem:
    Power 1 (Green)
    Power 2 (Green)
    PoE Usage:
    60W/120W/180W (Amber)
    802.3bt PoE++ Port:
    PoE-in-use x 1(Green: bt, Amber: at)
    Network CableTwisted-pair cable up to 100 meters (328ft)
    10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6
    100BASE-TX: 4-pair UTP Cat. 5, 5e, 6
    1000BASE-T: 4-pair UTP Cat. 5e, 6
    2.5G/5GBASE-T: 4-pair UTP Cat.6, 6A,7
    Data Rate10/100/1000/2500/5000Mbps
    Power RequirementsIPOE-27048~54V DC, redundant power with reverse polarity protection
    IPOE-270-12V12~54V DC, redundant power with reverse polarity protection
    Power Consumption (Ethernet Full Loading)IPOE-270
    System ON without loading
    48V DC: 1.4 watts/4.7BTU
    52V DC: 1.5 watts/5.1BTU
    54V DC: 1.6 watts/5.4BTU
    Full loading with PoE
    48V DC (120W PoE budget):
    128 watts/436BTU
    52V DC (180W PoE budget):
    177 watts/603BTU
    54V DC (180W PoE budget):
    187 watts/638BTU

    IPOE-270-12V
    System ON without loading
    12V DC: 1.8 watts/6.1BTU
    24V DC: 2.4 watts/8.1BTU
    48V DC: 2.4 watts/8.1BTU
    52V DC: 2.6 watts/8.8BTU
    54V DC: 2.1 watts/7.1BTU
    Full loading with PoE
    12V DC (60W PoE budget):
    60 watts/204BTU
    24V DC (120W PoE budget):
    124 watts/423BTU
    48V DC (120W PoE budget):
    120 watts/409BTU
    52V DC (180W PoE budget):
    188 watts/641BTU
    54V DC (180W PoE budget):
    188 watts/641BTU
    Dimensions41 x 70 x 115 mm (W x D x H)
    WeightIPOE-270:284g
    IPOE-270-12V:387g
    EnclosureIP30 metal case
    InstallationDIN-rail kit and wall-mount kit
    ESD Protection6KV
    Surge Protection6KV
    Power over Ethernet
    PoE StandardIEEE 802.3bt PoE++, 4-pair PSE
    Compatible with IEEE 802.3at PoE+ PSE
    PoE Power Supply TypeEnd-span + Mid-span
    Power Pin AssignmentEnd-span: 1/2 (-), 3/6 (+); Mid-span: 4/5 (+), 7/8 (-)
    Per PoE Port Output Power95 watts
    PoE Power Budget (max.)IPOE-270:
    120W@48V DC input
    180W@52V/54V DC input

    IPOE-270-12V:
    60W@12V DC input
    120W@24V/48V DC input
    180W@52V/54V DC input
    PoE DIP SwitchDIP switch for the following operation modes
    BT mode (Default)
    Legacy and Force modes
    Number of devices that can be powered
    Standards Conformance
    Regulatory ComplianceFCC Part 15 Class A, CE
    Stability TestingIEC 60068-2-32 (free fall)
    IEC 60068-2-27 (shock)
    IEC 60068-2-6 (vibration)
    Standards ComplianceIEEE 802.3 Ethernet
    IEEE 802.3u Fast Ethernet
    IEEE 802.3ab Gigabit Ethernet
    IEEE 802.3bz 2.5G/5GBASE-T
    IEEE 802.3at Power over Ethernet Plus
    IEEE 802.3bt Power over Ethernet Plus Plus
    Environment
    TemperatureOperating: -40~75 degrees C
    Storage: -40~75 degrees C
    HumidityOperating: 5~90% (non-condensing)
    Storage: 5~90% (non-condensing)



    Datasheet

    DateVersionDescriptionDownload
    2023-02-042.0IPOE-270_IPOE-270-12V



    User's Manual

    DateVersionDescriptionDownload
    2023-02-042.0Release for hardare version 2.0.



    EC Declaration

    DateVersionDescriptionDownload
    2023-04-272.0EC Declaration.
