- Διαθεσιμοτητα: Διαθέσιμο
- Κατασκευαστης: PLANET
- Κωδικος Προϊοντος: IGS-6325-4UP2X
- Βαρος: 1.77kg
- Διαστασεις: 13.50 x 7.60 x 15.20
2.5Gbps Copper Ports with 802.3bt PoE++ Support and 10Gbps Fiber Ports Deliver High-speed PoE Networking

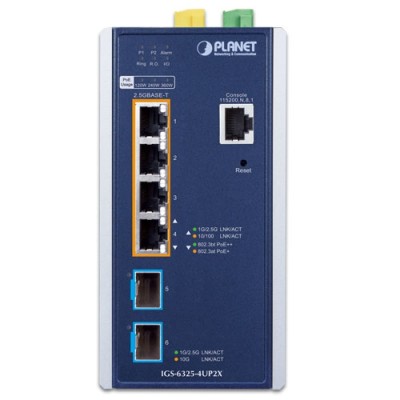

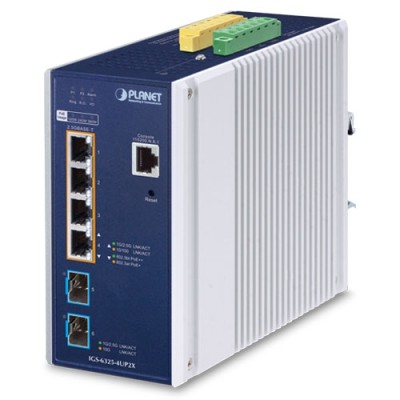

PLANET IGS-6325-4UP2X Industrial-grade, Multi-Gigabit L3 Managed PoE++ Ethernet Switch features four 2.5GBASE-T 802.3bt PoE++ ports, each of which can power up to 95 watts and two 10GBASE-X SFP+ ports. This switch comes in a rugged IP30 metal case and can withstand a temperature range of -40 to 75 degrees C, making operation in the heavy industrial environment more stable.
The IGS-6325-4UP2X supports rich PoE operation modes including 90-watt 802.3bt type-4 PoE++ mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.
High Power and Full-speed Data Delivered over 4-pair UTP Cabling
The IGS-6325-4UP2X is equipped with the IEEE 802.bt PoE++ technology, enabling it to provide up to 95 watts of power to each remote PoE compliant powered device (PD) using all four pairs of standard Cat5e/6 Ethernet cabling for high power and full-speed data delivery. Compared to the conventional 802.3at PoE+, it offers triple power capacity, making it the perfect solution for higher power consuming PDs, including:
- PoE PTZ speed dome cameras
- Network devices
- Thin clients
- AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
- Remote digital signage displays
- PoE lightings

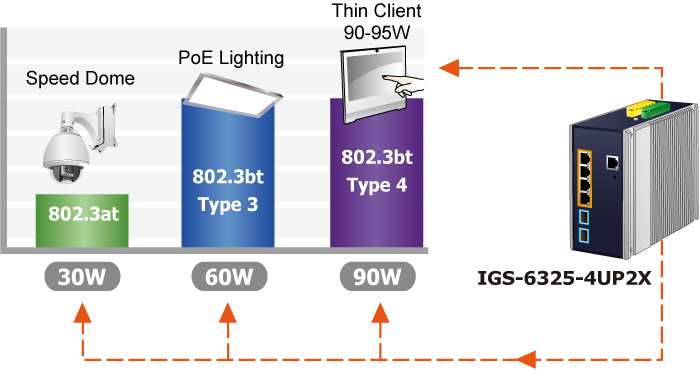

802.3bt PoE++ and Advanced PoE Power Output Mode Management
To meet the demand for supplying stable PoE power to various powered devices, the IGS-6325-4UP2X Switch offers five different PoE power output modes for selection.
- 90W 802.3bt PoE++ Power Output Mode (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)
- 95W UPOE Power Output Mode (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)
- 30W End-span PoE Power Output Mode (Pins 1, 2, 3, 6)
- 30W Mid-span PoE Power Output Mode (Pins 4, 5, 7, 8)
- 60W Force Power Output Mode (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)

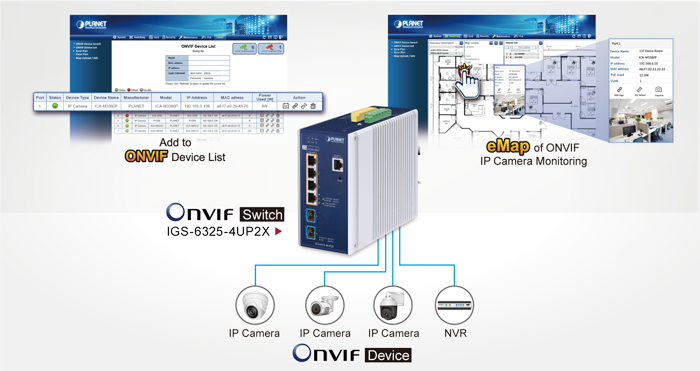

ONVIF Support Allows Effective and Centralized Control Over IP-based Security Products
The IGS-6325-4UP2X switch offers ONVIF support as part of its versatile feature set for seamless integration with IP surveillance cameras. Through the switch's web GUI, users can easily search for and display all ONVIF-compliant devices on their LAN.
Users can also upload floor plans to the switch and place IP surveillance cameras on the plan for more intuitive planning and faster inspection in the future. Additionally, the web GUI provides real-time surveillance information, online/offline status, and the ability to remotely reboot cameras.
Intelligent Alive Check for Powered Devices
The IGS-6325-4UP2X can be configured to monitor the status of connected powered devices (PDs) in real time through ping action. If a PD stops working and responding, the IGS-6325-4UP2X will recycle the PoE port power and bring the PD back to working condition. This greatly enhances reliability, as the assigned PoE port automatically reboots the PD, reducing the administrator's management burden.
PoE Scheduling to Save Energys
By implementing the "PoE schedule" function, businesses can reduce their energy consumption during non-business hours or periods of low network usage. This not only helps to reduce energy costs but also minimizes the overall carbon footprint of the organization.
Furthermore, the IGS-6325-4UP2X's PoE scheduling feature provides a convenient and easy-to-use interface for managing power usage. The user can easily set the time intervals for each PoE port, allowing for more efficient power management.
Scheduled Power Recycling
The IGS-6325-4UP2X enables connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. This will reduce the chance of IP camera or AP crashes resulting from buffer overflow.
Layer 3 Network Routing Support
The IGS-6325-4UP2X allows administrators to boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually or automatically through the Routing Information Protocol (RIP) or Open Shortest Path First (OSPF) settings.
The RIP uses hop count as a routing metric and prevents routing loops by setting a limit on the number of hops allowed in a path from source to destination.
The OSPF is an interior dynamic routing protocol for autonomous systems based on link state. The protocol creates a database of link states by exchanging link states among Layer 3 switches and then uses the Shortest Path First algorithm to generate a route table based on that database.
Robust Layer 2 Features
The IGS-6325-4UP2X is capable of advanced Layer 2 switch management functions, including dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control, IGMP snooping, and MLD snooping. By aggregating supporting ports, the IGS-6325-4UP2X can operate up to 3 high-speed trunk groups with multiple ports and fail-over support.
Modbus TCP Provides Flexible Network Connectivity for Factory Automation
The IGS-6325-4UP2X supports the Modbus TCP protocol, allowing for easy integration with SCADA systems, HMI systems, and other data acquisition systems in factory floors. This enables administrators to remotely monitor the industrial Ethernet switch's operating information, port information, communication status, and DI/DO status, thereby enhancing monitoring and maintenance of the entire factory.

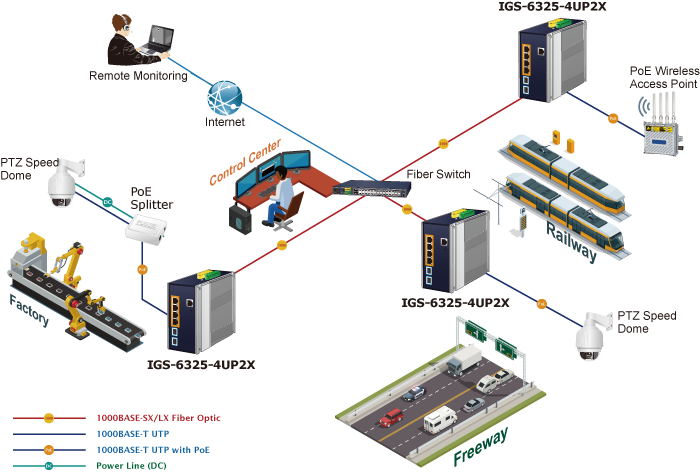

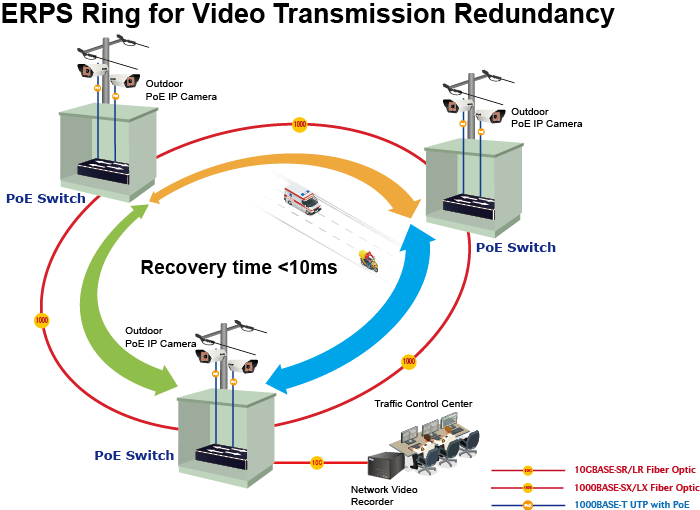

Redundant Ring, Fast Recovery for Critical Network Applications
The IGS-6325-4UP2X supports redundant ring technology and has strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Multiple Spanning Tree Protocol (IEEE 802.1s MSTP), and a redundant power input system into customer's industrial automation network, enhancing system reliability and uptime in harsh factory environments. In a simple ring network, the data link recovery time can be as fast as 10ms.

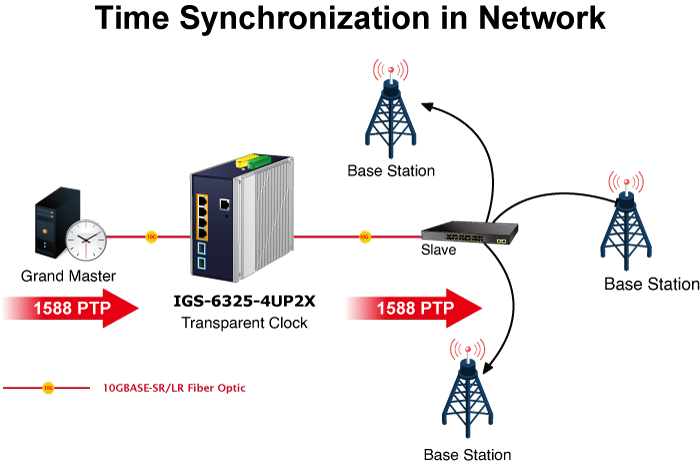

1588 Precision Time Protocol for Industrial Computing Networks
The IGS-6325-4UP2X is ideal for implementing precision time Ethernet applications. It is competent to play an undeniable role in an IEEE 1588 and synchronous Ethernet network by supporting MEF service delivery and timing over packet solutions.

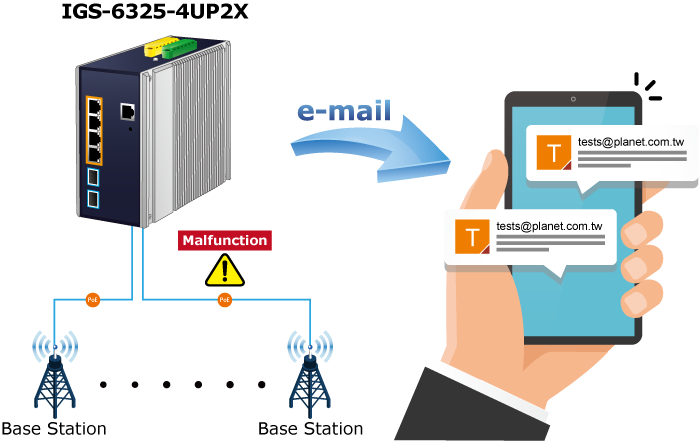

SMTP Event Alert
The IGS-6325-4UP2X supports SMTP event alert function to help quickly determine whether a device malfunction results from a network disconnection, or a rebooting response.

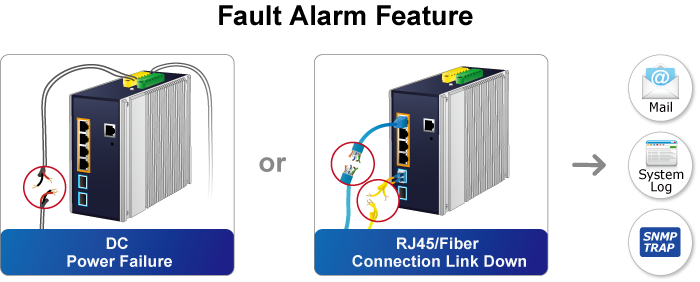

Effective Alarm Alert for Better Protection
The IGS-6325-4UP2X supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time to find where the problem is. It will help to save time and effort.

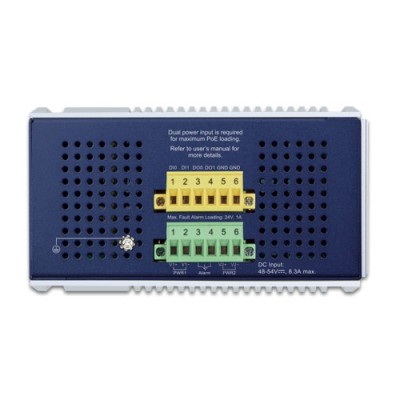

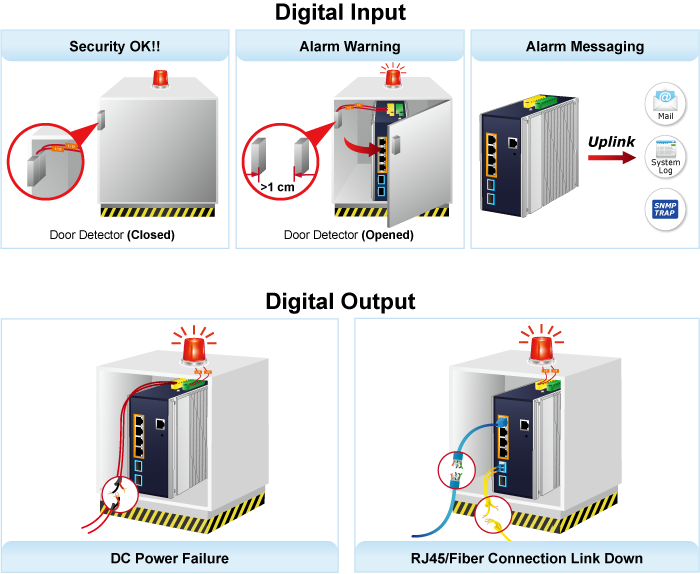

Digital Input and Digital Output for External Alarm
The IGS-6325-4UP2X supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to inform the administrator the IGS-6325-4UP2X’s port status including link down, link up or power failure.

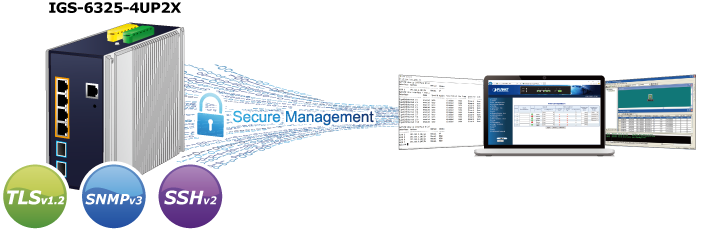

Efficient Management
For efficient management, the IGS-6325-4UP2X is equipped with console, Web and SNMP management interfaces.
- With the built-in Web-based management interface, the IGS-6325-4UP2X offers an easy-to-use, platform-independent management and configuration facility.
- For text-based management, it can be accessed via Telnet and the console port.
- For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.
Intelligent SFP Diagnosis Mechanism
The IGS-6325-4UP2X supports SFP-DDM (digital diagnostic monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
Increase Field Information Availability and Streamline Central Management
The IGS-6325-4UP2X provides up to four 802.3bt PoE++ in-line power interfaces, making it easy to build a centrally controlled power system for IP phone, IP camera, or wireless AP groups in an industrial network. For example, you can easily install four PoE IP cameras or wireless access points around the corner in an industrial environment for surveillance demands or for a wireless roaming network. The IGS-6325-4UP2X eliminates the power socket limitation, making the installation of IP cameras or wireless APs easier and more efficient.

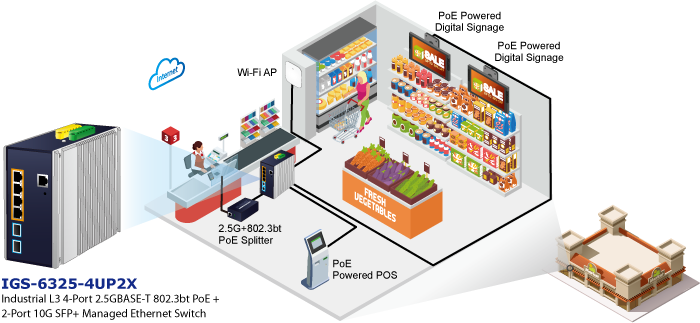

Used in a Supermarket

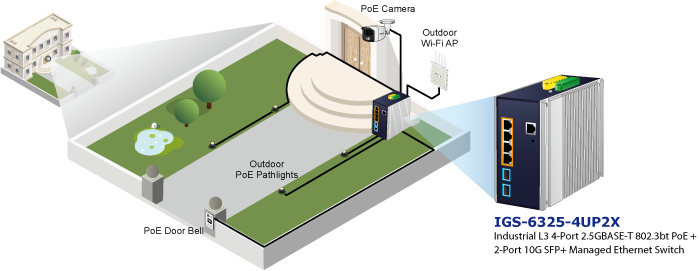

Used in a Front Yard
