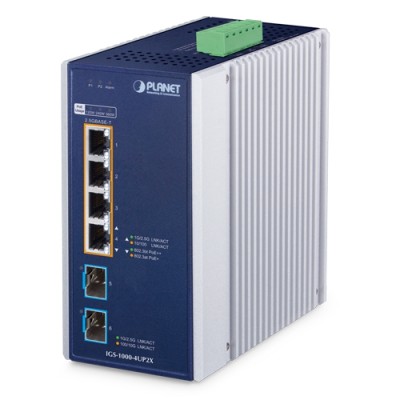

PLANET IGS-1000-4UP2X Industrial 4-Port 10/100/1000/2500T 802.3bt PoE + 2-Port 10G SFP+ Ethernet Switch

Reliable Industrial Ethernet Networks with 10G Fiber, and Plug and Play Configuration

Featuring Plug and Play and 10G SFP+ uplink ports, PLANET IGS-1000 Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet Switch is perfect for heavy industrial environments. The IGS-1000-4UP2X features four 10/100/1000/2500BASE-T ports and two auto-detected 1G/2.5G/100/10GBASE-X SFP+ fiber optic uplink ports that provide long-distance, high-speed and stable data transmission for the IoT and AIoT next-generation networks.

The IGS-1000-4UP2X is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing. Though it includes robust features designed for industrial Ethernet networks, its Plug and Play makes configuration easy.

10Gbps Fiber Ports and Multiple Dual Speed Ports Deliver High-speed Networking

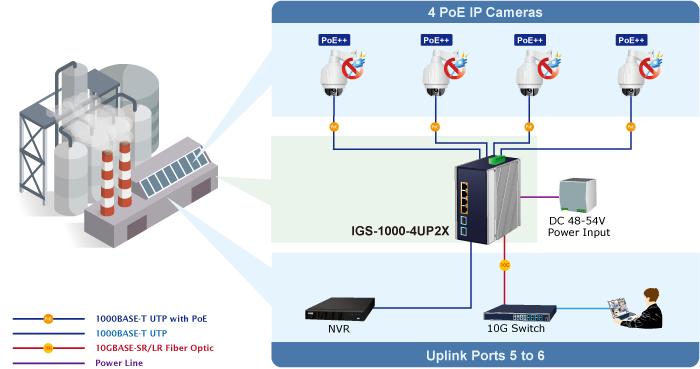

Featuring a 10Gbps uplink, the IGS-1000-4UP2X is suitable for connecting to an industrial backbone or high-capacity servers. Operating flawlessly across an extensive temperature range, it guarantees a non-blocking switch fabric, delivering astonishing wire-speed throughput of up to 60Gbps. The 10G fiber port serves as a backbone for high-bandwidth applications, such as video streaming, cloud computing, and virtualization, ensuring seamless and swift data transmission. This transformative capability simplifies the process of industrial LAN upgrades, efficiently catering to escalating bandwidth requirements.

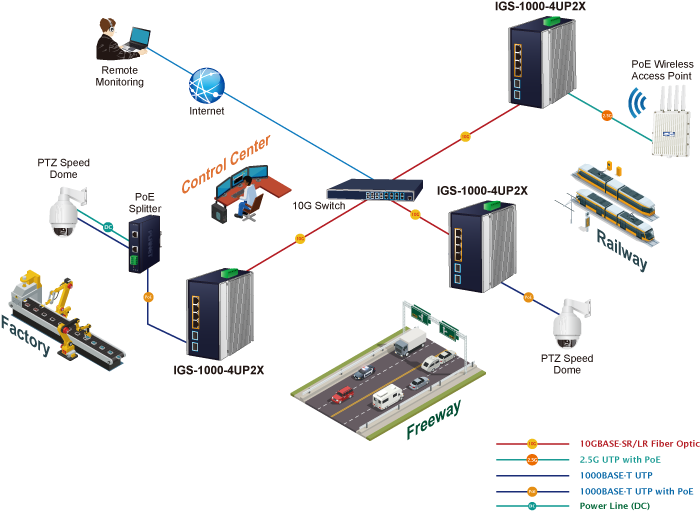

10G Fiber-optic Linking Capability Enables Extension of Network Deployment

The SFP+ slot of the IGS-1000-4UP2X is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceiver. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 2/10/20/40/60/70/80 kilometers (single-mode fiber cable). It is ideal for applications within the data centers and distributions

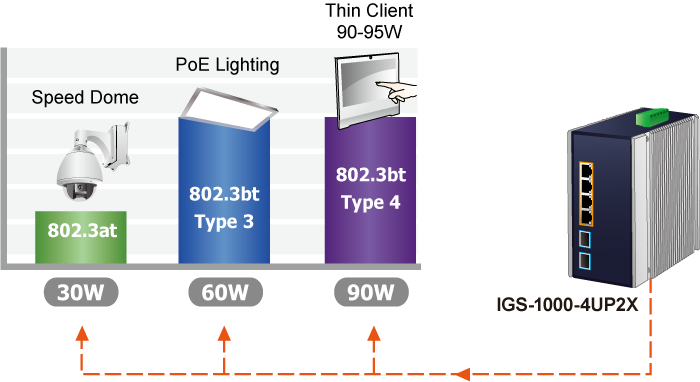

802.3bt PoE++ 90~95-watt Power over 4-pair UTP Solution

As the IGS-1000-4UP2X adopts the IEEE 802.3bt PoE++ standard technology, they are capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). They possess triple amount of power capability more than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:

• PoE PTZ speed dome cameras
• Thin clients
• AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
• Remote digital signage displays
• PoE lightings

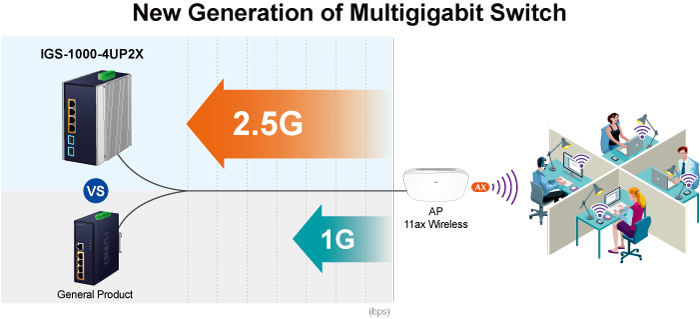

2.5Gbps Capability for Diversified Bandwidth Applications

With terminal access rates of 802.11ax/be wireless APs reaching up to 1.2Gbps to 3.6Gbps, Gigabit ports no longer suffice. The IGS-1000-4UP2X supports 2.5Gbps capability and 802.3at/bt PoE output, enabling it to deliver both high-speed data and power over existing CAT5e Ethernet cables to devices such as APs and IP cameras. It provides the speed you need and features Plug and Play for easy installation.

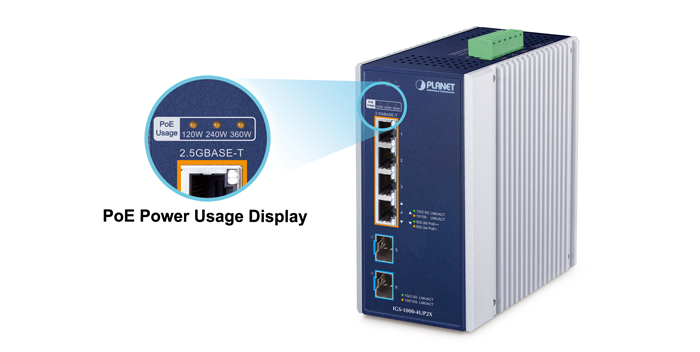

Intelligent LED Indicator for Real-time PoE Usage

The IGS-1000-4UP2X helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indicator. On the front panel of the IGS-1000-4UP2X, there are three different power usage LED indicators indicating 120W, 240W, and 360W.

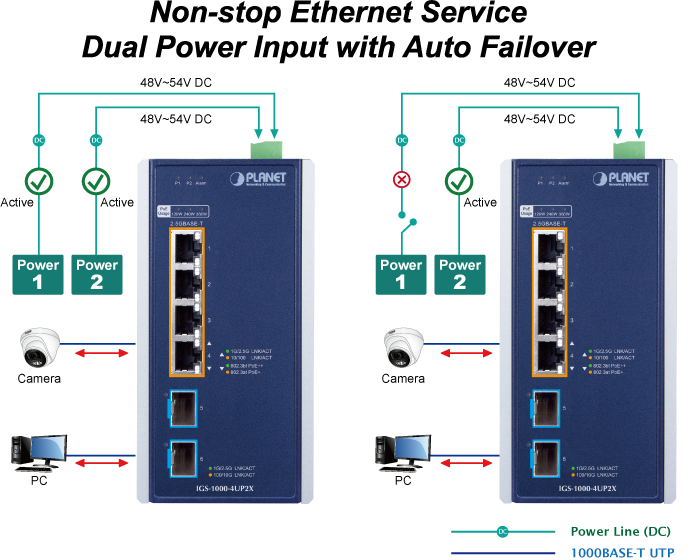

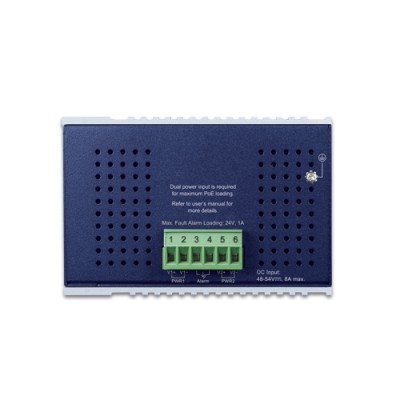

Dual Power Input for High Availability Network System

The IGS-1000-4UP2X features a strong dual power input system with 48~54V DC to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-1000-4UP2X via power supply 2 alternatively without any loss of operation.

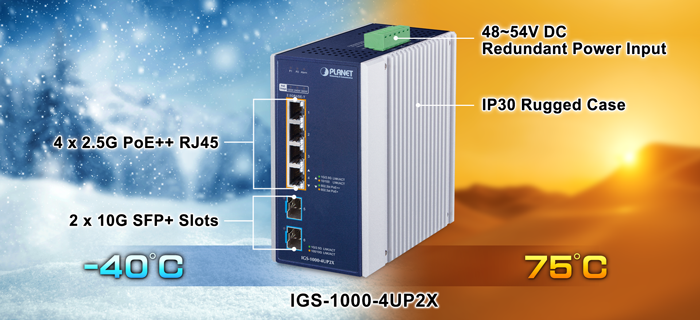

Environmentally Hardened Design

With the IP30 metal industrial case, the IGS-1000-4UP2X provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-1000-4UP2X can be placed in almost any difficult environment.

Robust Protection

The IGS-1000-4UP2X provides contact discharge of ±4KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±5KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
