PLANET UNI-NMS / UNI-NMS-LITE Universal Network Management System Software (LITE)

Universal Network Management System for Central Management

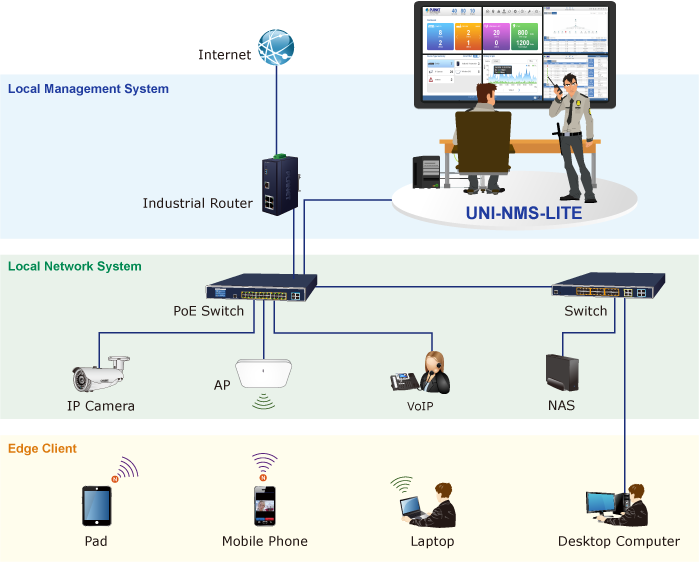

PLANET’s Universal Network Management System (UNI-NMS-LITE) incorporated in a workstation or PC can monitor all the deployed wired or wireless PoE industrial–grade network devices, such as managed switches, media converters, routers, smart APs, VoIP phones, IP cameras, etc. compliant with the MQTT Protocol, SNMP Protocol, ONVIF Protocol and PLANET Smart Discovery utility. It thus enables the administrator to centrally manage the network from a central office, greatly boosting network and power management efficiency. With its user authentication management, the UNI-NMS series enhances data transmission security in the modern network automation systems.

Watch Over Network within Minutes

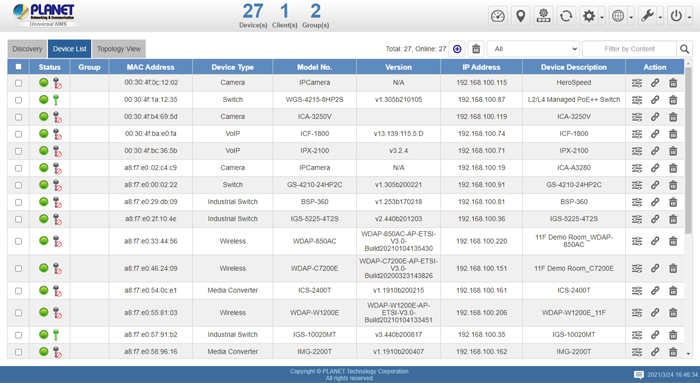

The domain information web page presents a managed devices list and topology view, providing the at-a-glance and efficient summary of your management network. It lets you have a valuable information on the current wired and wireless network statuses via data-driven graphical charts. The topology view and event reports enable you to visualize the system usage and node status in real time so as to address whatever issue they may have.

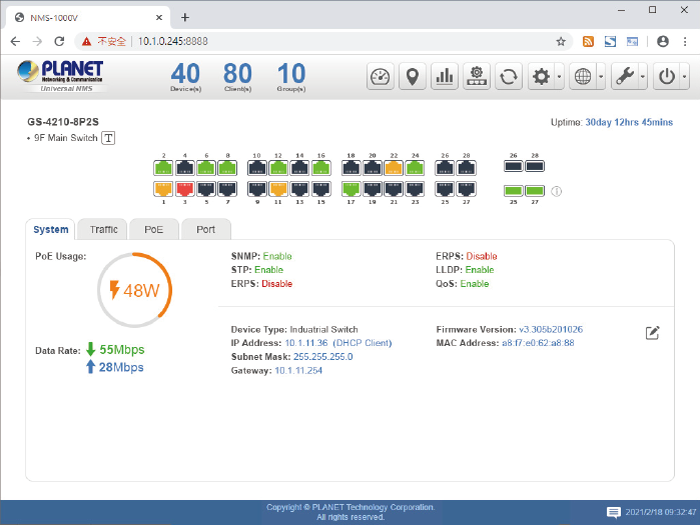

Switch Virtual Panel with Configuration Function

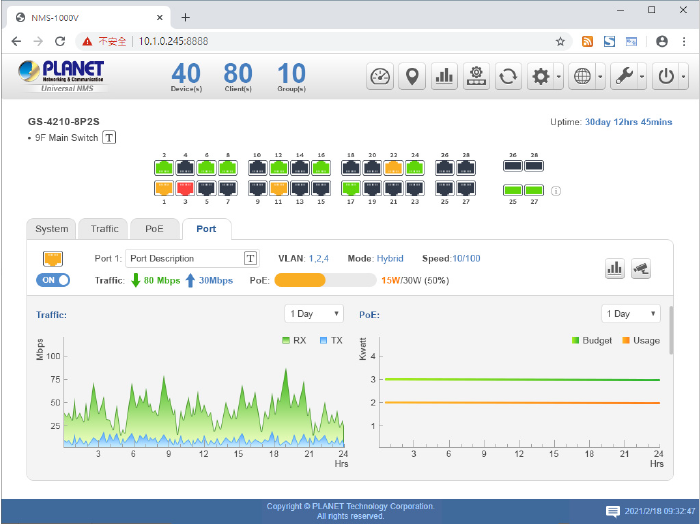

The UNI-NMS series enhances the switch by showing more information from devices list info. icon. It provides administrator with a faster way to manage switch and easily configure the system in NMS web UI. It also offers the PoE/Traffic usage statistical history graph from each port. If the network site has PLANET IP camera in device list, it can quickly do a snapshot of the video status on the site.

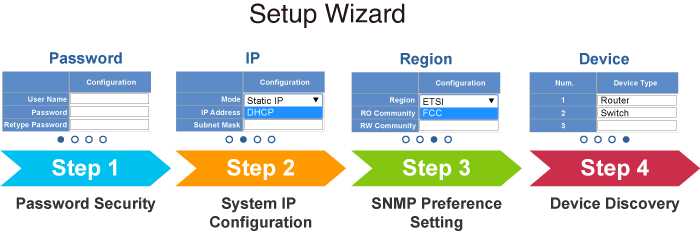

User-friendly Setup Wizard

The UNI-NMS-LITE enhances user experience by providing more user-friendly wizard and clear step-by-step guidance on each related function. Just like an app, it reduces training time and allows even non-technical users to be able to set up management network system within minutes.

Interactive Dashboard Shows Network Statuses in an Instant

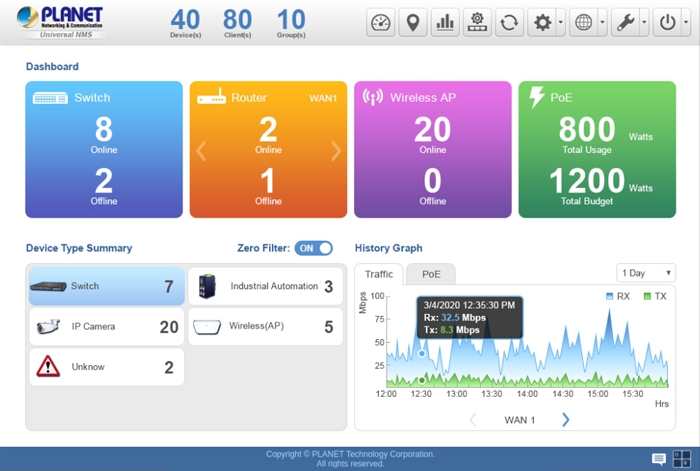

The UNI-NMS-LITE’s interactive dashboard includes local site network router, switch, access point statistics and WAN traffic/PoE history graph. The administrator can quickly view the status of a device, knowing whether it is online or offline. An alert through the pop-up message can be seen on the touch panel, immediately knowing what the system event is and where the disconnection issue comes from.

Real-time Centralized Monitoring

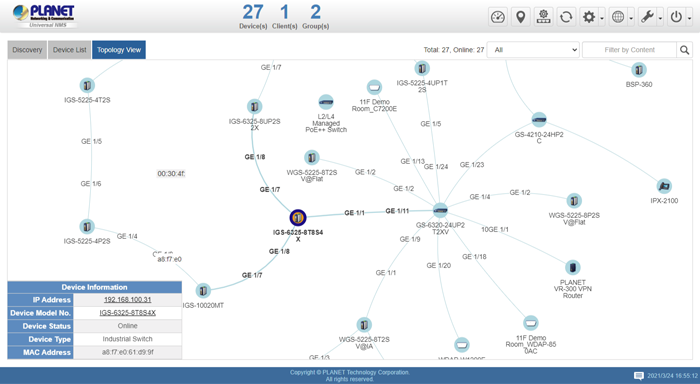

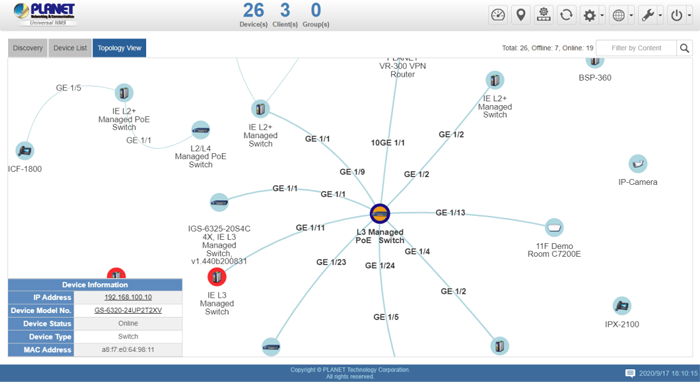

As the UNI-NMS-LITE can come out with a topology view of the network of the deployed powered devices, it enables to detect which device is online (Blue) or offline (Red). The real-time centralized monitoring of these devices can help the administrator know what the current statuses of these devices are.

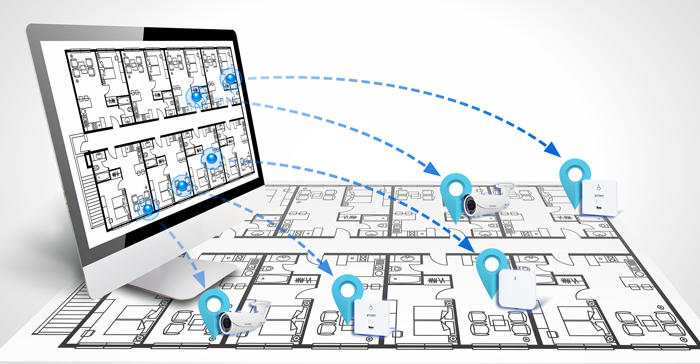

Optimizing Wi-Fi Deployment with Floor Maps

With the floor maps, devices can be located according to the field deployment, thus saving your time and cost of on-site support and monitoring. The current statuses of devices are shown in real time and the heat map is able to show the wireless signal coverage and strength to help the administrator fine-tune the overlapping of the adjacent devices anytime to optimize the wireless network performance.

Browser-based Control on VM Eliminates Limitation of OS

Designed to provide more flexibility, the UNI-NMS-LITE utilizes the Oracle VM VirtualBox technology to enable to import software image under different OS platforms, capable of operating from anywhere via web browser and network adapter that are able to access managed nodes on a DHCP-enabled network, thus controlling multiple devices through single PC, laptop or tablet which eliminates the hardware limitation of general hardware controllers. For better performance and more scalability, users just need to upgrade the personal equipment without replacing the original hardware controller. PLANET UNI-NMS-LITE is a value-added software which makes your network central management solution more efficient without any hardware installation and extra expensive budget.

 ※　Using Chrome browser is recommended.
