- Διαθεσιμοτητα: Άμεσα Διαθέσιμο
- Κατασκευαστης: PLANET
- Κωδικος Προϊοντος: VF-402-KIT
- Βαρος: 2.15kg
- Διαστασεις: 11.65 x 15.70 x 4.80
Reliable Long Distance Solution for Analog Surveillance System

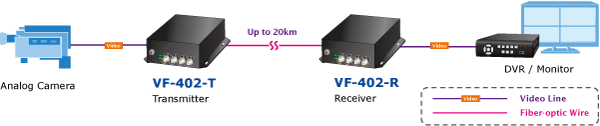

To deploy AHD/CVI/TVI/CVBS analog camera in a remote place efficiently and provide high video quality and reliable signal, PLANET has developed the video over fiber media converter kit, VF-402-KIT, which is ideal for extending the distance and signal conversion by transmitting the AHD/CVI/TVI/CVBS video and data over the fiber-optic cable. Adopting the intelligent encoding/decoding technology and with the compact box, the VF-402-KIT video over fiber media converter enables the videos to be delivered in high quality up to 20km long in distance.
Fiber Optic Communication for Video and Serial Data

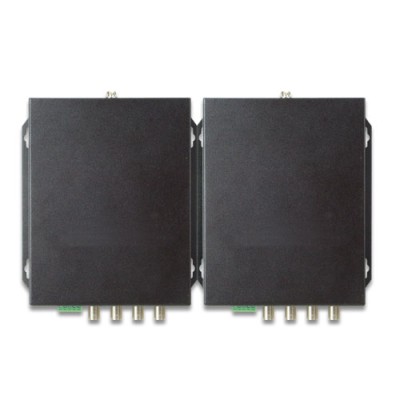

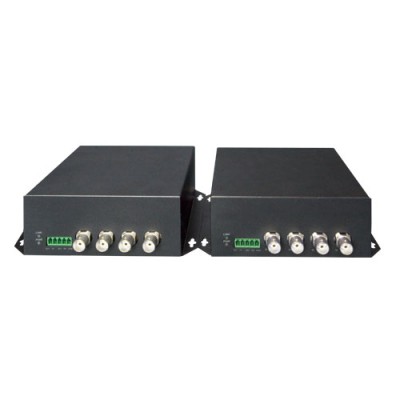

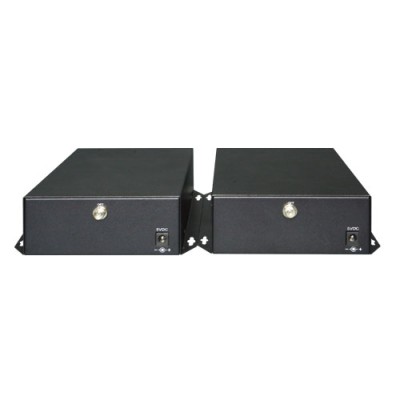

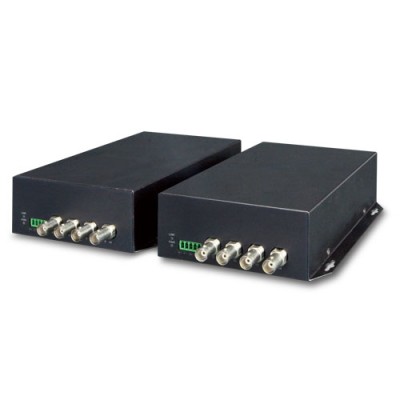

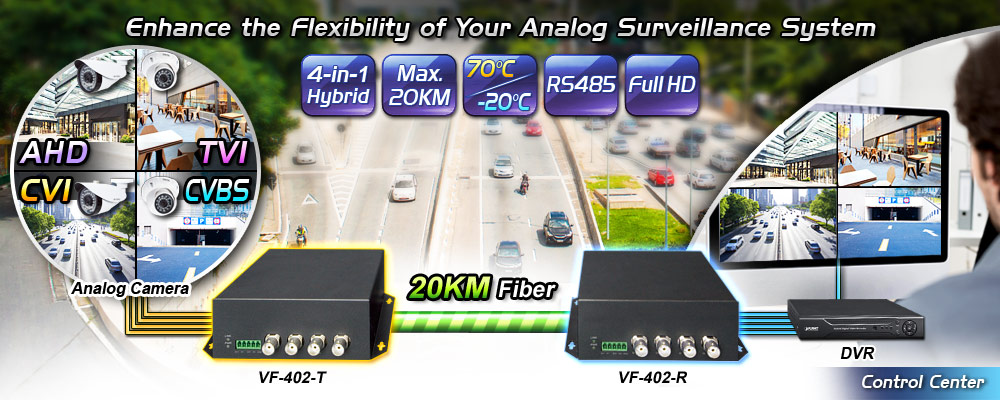

The VF-402-KIT consists of a Video Transmitter and a Video Receiver:
- VF-402-T: 4-channel Video over Fiber Transmitter
- VF-402-R: 4-channel Video over Fiber Receiver

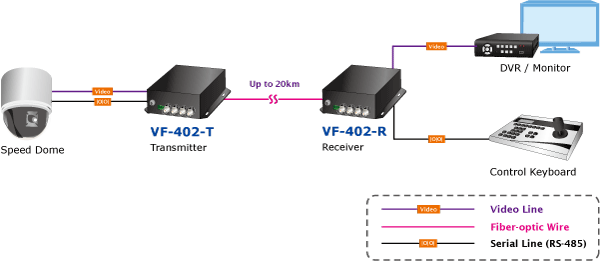

The VF-402-KIT is a digital fiber-optic transmission system that brings users a cost-effective solution for transmission of 4-channel uncompressed digital video and one reverse RS485 async data over one single fiber cable. The VF-402-KIT is an adjustable free device providing high-quality and real-time video transmission. It can be widely used in intelligent transportation systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts, etc.
Industrial Monitoring Systems
The industrial-level VF-402-KIT’s wide temperature ranges from -20 to 70 degrees C, applicable to all kinds of environments. It supports hot plugging and its 4-channel video adopts the full digital video non-compression and Gigabit fiber optic transmission technology that brings distortion-free videos over a long-distance fiber cable. Thus, it can observe working condition visually with LED. It can be a standalone or rack-mounted structure, and is simple to operate with no field adjustment needed.
The VF-402-KIT consists of 4-channel video over fiber optical transceiver and receiver to transmit video and RS485 signal through a reliable single mode or single fiber link. It is an ideal cost-effective solution for surveillance system that requires high display quality and high-performance signal transmission over long distances. The VF-402-KIT can be installed easily by way of “Plug and Play”, meaning the operator does not need to configure the pair of the video over fiber transmission in advance.

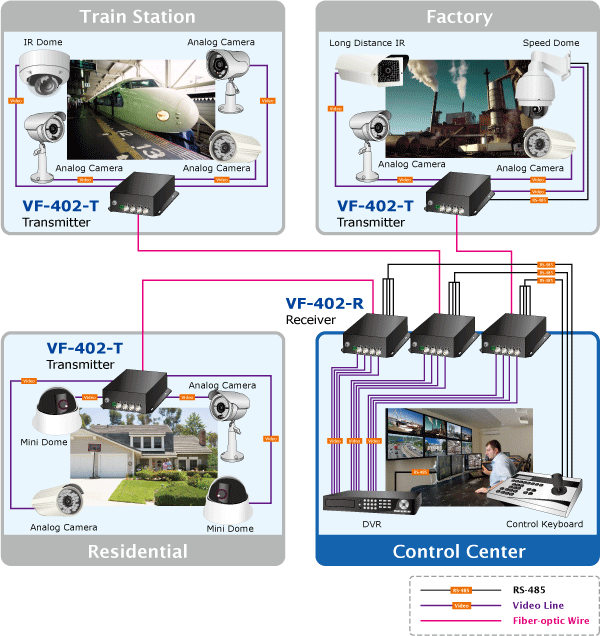

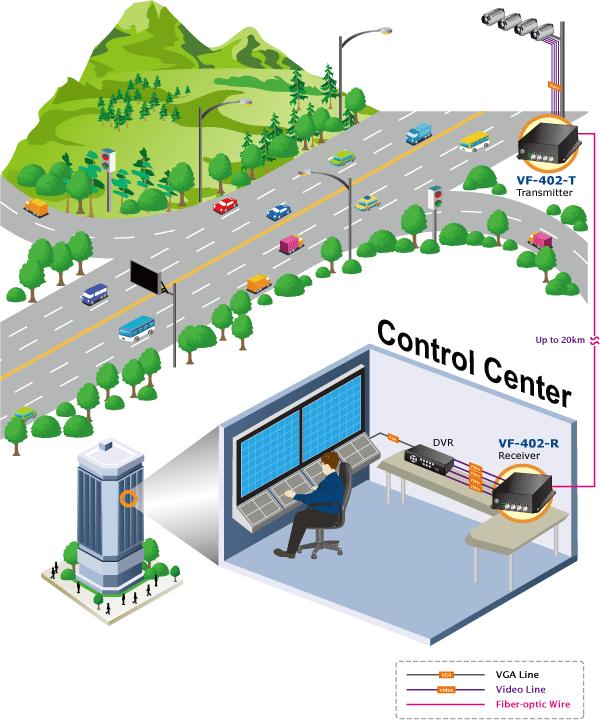

Typical Applications
- Intelligent Transportation Systems (ITS)
- Toll Collection
- Traffic Surveillance
- Air Traffic Management (ATM)
- Rail Signaling
- Perimeter Alarms and Area Monitoring
- Telemedicine and Teleconference
- Industrial Surveillance
- Intelligent Building
- CCTV Network
Datasheet
| Date | Version | Description | Download |
|---|---|---|---|
| 2017-06-13 | 1.0 | VF-402-KIT |
 |
User's Manual
| Date | Version | Description | Download |
|---|---|---|---|
| 2017-05-25 | 2.0 | Initial Release for VF-402-KIT(v2) |
|
