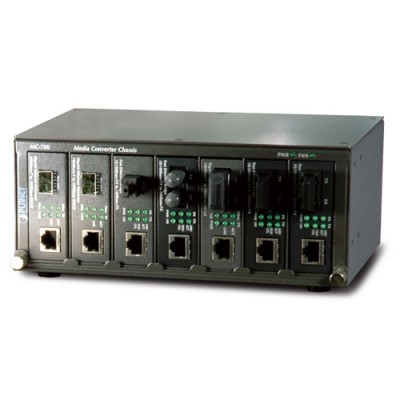

PLANET MC-700 7-Slot Media Converter Chassis

Centralized Media Converter Management

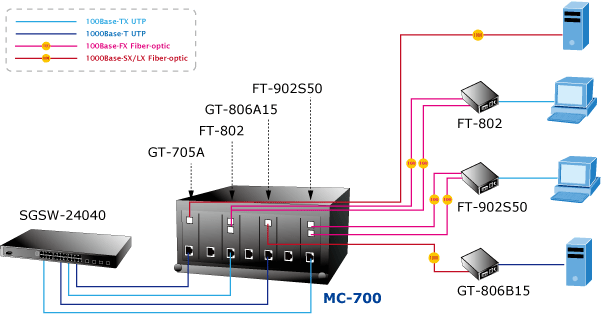

PLANET MC-700 provides advanced Media conversion technology to meet the growing demand for the current network. The media converter chassis allows to install up to seven PLANET FT-8 / FT-9 / GT-7 / GT-8 Fast / Gigabit Ethernet media converters with diverse options of fiber connecting type to fit in different network applications. It is very flexible for FT-8 / FT-9 / GT-7 / GT-8 series being installed in the MC-700 for centralized power feeding and media conversion management.

• Hardware
–High quality 10” Rack-mountable chassis installation
–Enables the converters to use Plug and Play
–Supports up to seven hot-swappable media converters
–One fan built-in for hardware cooling
–Reduces the effort of converter maintenance and management and can diagnose the status of converters at one time

• Power System
–100~240V AC power supply
–Power isolation in each bay
–Power protection from over voltage, over current and short circuit

• Compatibility
–Supports PLANET Fast Ethernet, Gigabit Ethernet Media Converter series: FT-80x / FT-90x and GT-70x / GT-80x / GT-90x
–Supports VDSL2 Media Converter: VC-201A / VC-231
–Supports Serial over Ethernet Converter: ICS-10x series

Datasheet

Date	Version	Description	Download
2014-02-27	1.0	MC-700

User's Manual

Date	Version	Description	Download
2021-09-17	1.32	Modify contents of user manual.
2015-07-30	1.31	Add French Rack Mount instruction.
2012-08-10	1.3	Add Rack Mount instruction.
2009-03-02	1.1	User's Manual
2008-03-24	1.0	Manual for MC-700_1500_1000R

EC Declaration

Date	Version	Description	Download
2013-12-20	1.0	EC Declaration.
