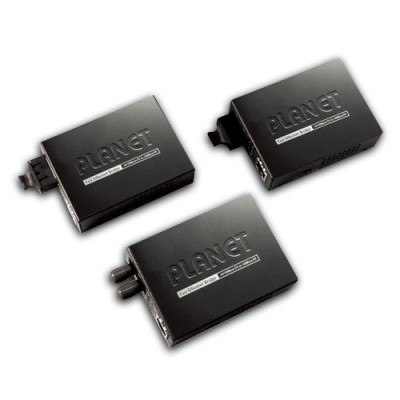

PLANET FT-802S15 10/100TX - 100Base-FX (SC, Single Mode) Bridge Fiber Converter - 15KM

PLANET FT-802S15 10/100TX - 100Base-FX (SC, Single Mode) Bridge Fiber Converter - 15KM
PLANET FT-802S15 10/100TX - 100Base-FX (SC, Single Mode) Bridge Fiber Converter - 15KM
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: FT-802S15
  • Βαρος: 0.58kg
77,63€
Χωρίς ΦΠΑ: 62,61€

PLANET FT-80x is a Fast Ethernet Bridge 100BASE-FX fiber to 10/100BASE-TX shielded twisted pair (STP) converter. It supports both half-duplex and full-duplex operations and a variety of fiber options. The converter auto-adapts to the highest level of performance supported by the device connected to the STP port. When the device is a switch or a workstation that supports full duplex, the converter adapts to the full-duplex mode and provides an effective 200Mbps bandwidth. When the connected device is a hub or a workstation that supports only half duplex, the converter adapts to the half-duplex mode and provides the nominal 100Mbps bandwidth. An override switch provides total manual control over the half/full-duplex operation in fiber-optic interface. The fiber port of the converter operates at 1310 nm and uses ST, SC, MTRJ, VF45 or WDM connectors. Multi-mode models that support distances up to 2km and single-mode models that support distances up to 15/20/35/50/60km are available.media and provide efficient solution to monitoring the net.

The FT-80x series is with LFP (Link Fault Pass-through function) (LLCF/LLR) and the DIP switch design. LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net. The DIP switch provides the disabling or enabling of the LFP function

LLCF (Link Loss Carry Forward) means when a device is connected to the converter and the TP line loses the link, the converter's fiber will disconnect the link of transmit. LLR (Link Loss Return) means when a device is connected to the converter and the fiber line loses the link, the converter's fiber will disconnect the transmit link. Both can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net.

Standalone and Centralized Management Media Converter Installation
To meet the demand for the growing network, PLANET FT-80x has provided the advanced media conversion technology. The FT-80x media converter provides various fiber connecting types to meet different network applications. It is very flexible for the FT-80x to work as a standalone device or install into the central standard media converter chassis for providing centralized power. The FT-80x is an ideal solution to building a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) and FTTB (Fiber to the Building) for ISPs, campuses and enterprises.

• Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX, 100BASE-FX standard
• Connectors: One RJ45 (auto-MDI/MDI-X) twisted pair, EIA568
• One fiber-optic, 1310nm wavelength, connector type and distance vary with model
- FT-806A20 / FT-806A60: Tx-1310nm, Rx-1550nm
- FT-806B20 / FT-806B60: Tx-1550nm, Rx-1310nm
• Data Transfer Rate:
- TP: 10/100Mbps
- FX: 100Mbps
• Duplex mode support:
- Full or half-duplex mode by auto-negotiation (TP)
- Full or half-duplex mode by DIP switch (FX)
• LED indicators: PWR, FX LNK/ACT, FX FDX/COL, TP 100, TP LNK/ACT, TP FDX/COL
• DIP switch: 2 DIP switches
- Rear DIP switch: FX duplex mode selection
- Side DIP switch: LFP (Link Fault Pass-through) mode selection
• IEEE 802.3x Full-Duplex Flow-Control and Back-Pressure in Half-Duplex eliminate the loss of packets

Product
ProtocolIEEE 802.3, 10BASE-T
IEEE 802.3u, 100BASE-TX
IEEE 802.3u, 100BASE-FX
IEEE 802.3x, Flow Control
Dimensions (W x D x H)94 x 70 x 26 mm
Weight0.2kg
Power Input5V DC, 2A, max.
Power SupplyAC Adapter 100-240VAC Frequency: 50-60Hz
EnclosureCompact-sized metal housing
Case with anticorrosion treatment
Electrostatic paint
Connectors and Cables
Shielded Twisted-pairRJ45, Category 5 (EIA/TIA 568)
Fiber-opticFT-801 : ST / Multi-mode / 2km
FT-802 : SC / Multi-mode / 2km
FT-803: MTRJ / Multi-mode / 2km
FT-802S15 : SC / Single mode / 15km
FT-802S35 : SC / Single mode / 35km
FT-802S50 : SC / Single mode / 50km
FT-806A20: WDM SC / Single mode / 20km
FT-806B20: WDM SC / Single mode / 20km
FT-806A60: WDM SC / Single mode / 60km
FT-806B60: WDM SC / Single mode / 60km
Multi-mode Cable50/125, 62.5/125 µm
Single-mode (SM) Cable9/125 µm
Optic WavelengthFT-801: 1310nm
FT-802: 1310nm
FT-803: 1310nm
FT-802S15: 1310nm
FT-802S35: 1310nm
FT-802S50: 1310nm
FT-806A20: TX: 1310nm; RX: 1550nm
FT-806B20: TX: 1550nm; RX: 1310nm
FT-806A60: TX: 1310nm; RX: 1550nm
FT-806B60: TX: 1550nm; RX: 1310nm
Max. Launch Power (dBm)FT-801: -14
FT-802: -14
FT-803: -14
FT-802S15:0
FT-802S35:-8
FT-802S50:0
FT-806A20:-8
FT-806B20:-8
FT-806A60:0
FT-806B60:0
Min. Launch Power (dBm)FT-801: -20 (62.5/125µm), -23.5 (50/125µm)
FT-802: -20 (62.5/125µm), -23.5 (50/125µm)
FT-803: -20 (62.5/125µm), -23.5 (50/125µm)
FT-802S15: −20
FT-802S35: -15
FT-802S50:-5
FT-806A20:-14
FT-806B20:-14
FT-806A60:-5
FT-806B60:-5
Receive Sensitivity (dBm)FT-801: -31.8
FT-802: -31.8
FT-803: -31.8
FT-802S15: -32
FT-802S35:-34
FT-802S50: -35
FT-806A20:-31
FT-806B20:-31
FT-806A60:-34
FT-806B60:-34
Maximum Input Power (dBm)FT-801: -14
FT-802: -14
FT-803: -14
FT-802S15:0
FT-802S35:0
FT-802S50:0
FT-806A20:0
FT-806B20:0
FT-806A60:0
FT-806B60:0
Supported Distances and Functions
Shielded Twisted-pair100m (328 ft.)
Multi-mode Fiber Optic412m (1,350 ft.) (half-duplex)
2km (1.2 miles) (full-duplex)
Single-mode (SM)412m (1,350 ft.) (half-duplex)
15km (9 miles) (full-duplex)
20km (12 miles) (full-duplex)
35km (21 miles) (full-duplex)
50km (31 miles) (full-duplex)
60km (37 miles) (full-duplex)
Port ModeTP: Half and full duplex, auto-negotiation
FX: Half and full duplex via DIP switch
Environment & Emissions
Operating EnvironmentTemperature: 0~50 degrees C
Humidity: 5~90% non-condensing
Storage EnvironmentTemperature: -40~70 degrees C
Humidity: 5~90% non-condensing
EmissionsFCC Class A, CE Class A



Datasheet

DateVersionDescriptionDownload
2021-01-154.0Release for hardware version 4.0.



User's Manual

DateVersionDescriptionDownload
2021-08-164.0Release for hardware version 4.0.
2016-04-227.3Release for hardware version 4.0.
Modify contents of user manual.
2011-11-117.2Multi-language version.
2010-06-097.1Energy note releases.



EC Declaration

DateVersionDescriptionDownload
2018-06-084.0EC Declaration
