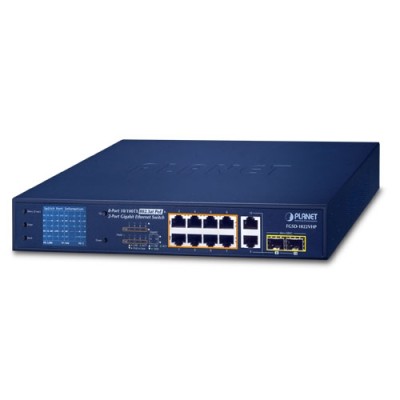

Just “Plug and Watch” for a Quick Solution

PLANET FGSD-1022VHP is an ideal Plug and Watch Power over Ethernet solution which provides quick installation, real-time PoE work status monitoring and immediate troubleshooting through its unique LCD display to improve work efficiency and quality without any PC or software required.



PLANET FGSD-1022VHP is equipped with 8 10/100BASE-TX ports with each port taking up 30 watts of PoE+ power, and 2 Gigabit TP/SFP combo interfaces with inner power system. With a total PoE+ power budget of 120 watts and non-blocking data switching performance, the FGSD-1022VHP can fulfill the demand of sufficient PoE power for HD IP surveillance. It offers a desktop-sized, reliable and visible power solution for small businesses and system integrators deploying Power over Ethernet networks.

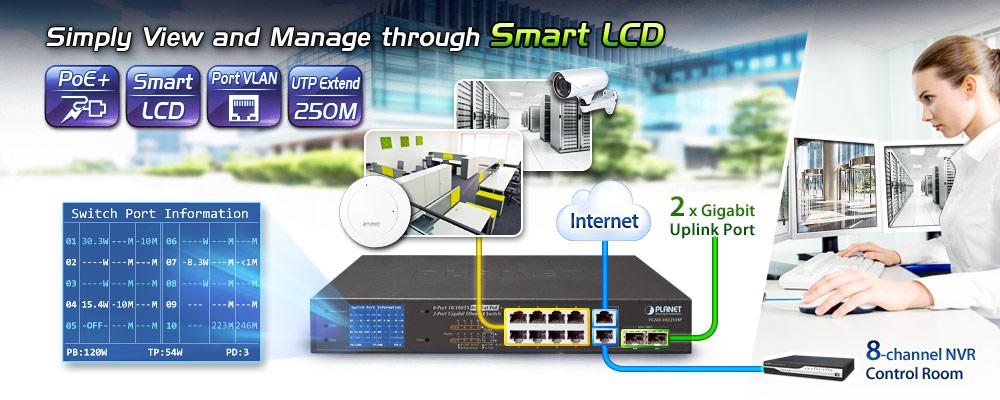

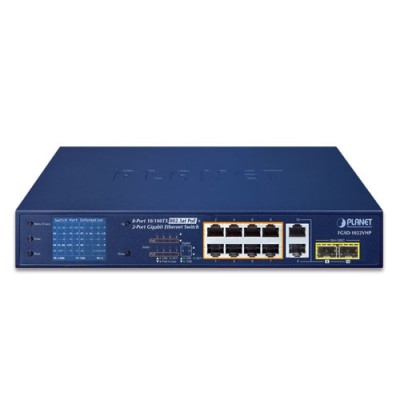

Smart and Intuitive LCD Control

PLANET FGSD-1022VHP provides an intuitive color panel on its front panel that facilitates the Ethernet management and PoE PD management. They greatly promote management efficiency in large-scale networks for enterprises, hotels, shopping malls, government buildings and other public areas, and feature the following special management and status functions:

  • PoE management and status
  • Port management and status
  • Switch mode: Standard, VLAN, Extend
  • Budget and bandwidth control
  • PD alive check
  • Maintenance: Screen saver, fan control, factory default and save configuration



Standard, VLAN and Extend Operation Modes Offered

PLANET FGSD-1022VHP provides Standard, VLAN and Extend operation modes. The FGSD-1022VHP operates as a normal IEEE 802.3af/at PoE Switch in the Standard operation mode. The VLAN operation mode features the port-based VLAN function that can help to prevent the IP camera’s multicast or broadcast storm from influencing each other.



In the Extend operation mode, the FGSD-1022VHP operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the FGSD-1022VHP provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation. Its VLAN isolation function isolates ports so as to prevent broadcast storm and defend DHCP spoofing in the Extend operation mode.



Flexible Extension Solution

PLANET FGSD-1022VHP provides 2 extra Gigabit TP/SFP combo interfaces supporting 10/100/1000BASE-T RJ45 copper for surveillance network devices such as NVR, video streaming server or NAS to facilitate surveillance management. Or through these Gigabit speed fiber SFP slots, the 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver is inserted to be uplinked to a backbone switch and monitoring center over a long distance. The distance can be extended from 550m to 2km (multi-mode fiber), even going up to 10/20/40/80/120 (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.



Robust Protection

PLANET FGSD-1022VHP provides contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.



Easy Installation and Cable Connection

As data and power are transmitted over one cable, the FGSD-1022VHP does not need a second cable and electrical outlets on the wall, ceiling or any unreachable place. Thus, it helps to lower the installation costs and simplify the installation effort. All the RJ45 copper interfaces of the FGSD-1022VHP support 10/100Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cable. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.



Perfectly-integrated Solution for PoE IP Camera and NVR System

With its 5.6Gbps high-performance switch architecture and 120-watt PoE power budget, the recorded video files from the 8 PoE IP cameras powered by the FGSD-1022VHP are saved in the 8-channel NVR systems or surveillance software in the monitoring center for possible backup references.





Ideal PoE Switch for All Enterprises

Providing sixteen 802.3at PoE+ in-line power interfaces, the FGSD-1022VHP can easily build a power that centrally controls IP phone system, IP camera system and wireless AP group for enterprises. Cameras can be installed around the corner in the company or campus for surveillance demands. Without the need for power sockets, the FGSD-1022VHP makes the installation of cameras easier and more efficient.



Physical Port

  • 8-port 10/100BASE-TX Gigabit RJ45 copper
  • 2 10/100/1000BASE-T TP interfaces and 2 1000BASE-X mini-GBIC SFP shared combo interfaces



Power over Ethernet

  • Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 30 watts for each PoE port
  • Each port supports 54V DC power to PoE powered device
  • 120-watt PoE budget
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m in standard mode and 250m in extend mode



Smart LCD

  • The LCD switch features “Standard”, “VLAN” and “Extend” mode selection; the “Extend” mode features 20-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
  • The LCD switch is able to isolate ports to prevent broadcast storm and defend DHCP spoofing
  • Power low-voltage, power over-voltage and PSE over-temperature protection
  • Screen saver, fan control, factory default and save configuration
  • PoE management
    • Total PoE power budget control
    • Per port PoE function enable/disable
    • PoE port power feeding priority
    • Per PoE port power limitation
    • PD alive check



Switching

  • Hardware-based  10/100Mbps auto-negotiation and auto MDI/MDI-X
  • Flow control for full duplex operation and back pressure for half duplex operation
  • 16K bytes packet size
  • Integrates address look-up engine, supporting 16K absolute MAC addresses
  • IEEE 802.1Q VLAN transparency
  • Automatic address learning and address aging



Hardware

  • 12-inch desktop size, 1U height, rack mountable
  • 2-inch color LCD with smart management functions
  • LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
  • 1 silent fan to provide stable and efficient power performance
  • Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
  • Supports contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protection
  • Supports ±4KV surge immunity



Hardware Specifications
802.3af/802.3at PoE Injector Port8
10/100BASE-TX MDI/MDIX Ports8
10/100/1000BASE-T MDI/MDIX Ports2 (Combo)
1000BASE-X SFP/mini-GBIC Slots2 (Combo)
Switch ArchitectureStore-and-Forward
Switch Fabric5.6Gbps/non-blocking
Switch Throughput@64 bytes4.17Mpps@64 bytes
MAC Address Table16K entries
Maximum Frame Size16K bytes
Flow ControlIEEE 802.3x pause frame for full duplex; back pressure for half duplex
LED IndicatorsSystem:
Power (Green)
10/100BASE-TX RJ45 Interfaces:
10/100Mbps LNK/ACT (Green)
PoE-in-Use (Orange)
1000BASE-X SFP Interfaces:
LNK/ACT (Green)
1000Mbps (Green)
1000BASE-T TP Interfaces:
LNK/ACT (Green)
1000Mbps (Green)
LCD Monitor (W x D)40.6mm x 30.5mm, 2-inch
ButtonsMenu, Enter, Back, Up and Down

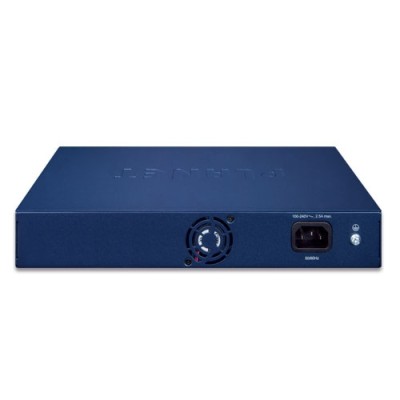

Dimensions (W x D x H)180 x 280 x 44mm (1U height)
EnclosureMetal
Weight1.8kg
Power Requirements100~240V AC, 50/60Hz, 2.5A max.
Power Consumption/DissipationMax. 130watts/446 BTU
Thermal Fan1
ESD ProtectionContact discharge of ±4KV DC
Air discharge of ±6KV DC
Surge Protection±4KV
Power over Ethernet
PoE StandardIEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply TypeEnd-span
PoE Power OutputPer port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
Power Pin Assignment1/2 (+), 3/6 (-)
PoE Power Budget120 watts
Max. Number of Class 2 PDs8
Max. Number of Class 3 PDs8
Max. Number of Class 4 PDs4
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x Flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
StorageTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
