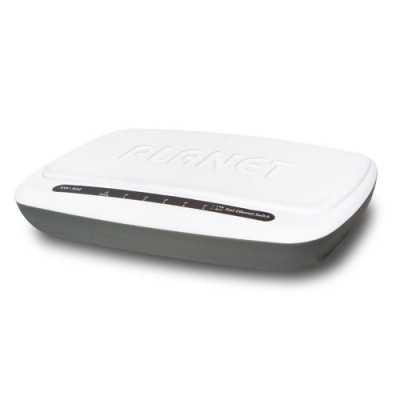

PLANET SW-504 5-Port 10/100Mbps Desktop Fast Ethernet Switch

PLANET SW-504 5-Port 10/100Mbps Desktop Fast Ethernet Switch
PLANET SW-504 5-Port 10/100Mbps Desktop Fast Ethernet Switch
  • Διαθεσιμοτητα: Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: SW-504
  • Βαρος: 0.43kg
  • Διαστασεις: 10.00 x 16.80 x 2.90
Σύμφωνα με 2 αξιολογήσεις. - Γράψτε μια αξιολόγηση
16,74€
Χωρίς ΦΠΑ: 13,50€
Καλάθι
Άμεση Αγορά

With concepts of "Easy to install and use", "Compact-sized design", and "Simple troubleshooting", PLANET SW-504 provides cost-conscious business and home users with the foundation of an integrated system of small-office / home-office networking. The SW-504 is a fancy-shaped plastic model, which is just right for your network of 10 to 50 users.

The SW-504 Desktop Fast Ethernet Switch is simple and cost-effective, and offers highly reliable network . And it is the ideal device for bridging Ethernet and Fast Ethernet workgroups or networks. Therefore, PLANET SW-504 switch will be recognized as one of the most important building blocks for today’s networking technology.

To segment the network and ease the network traffic, the 5-port 10/100Mbps is useful for the SOHO switched networks as the friendly network backbone. With LED indicators, the network status can be monitored at a glance.

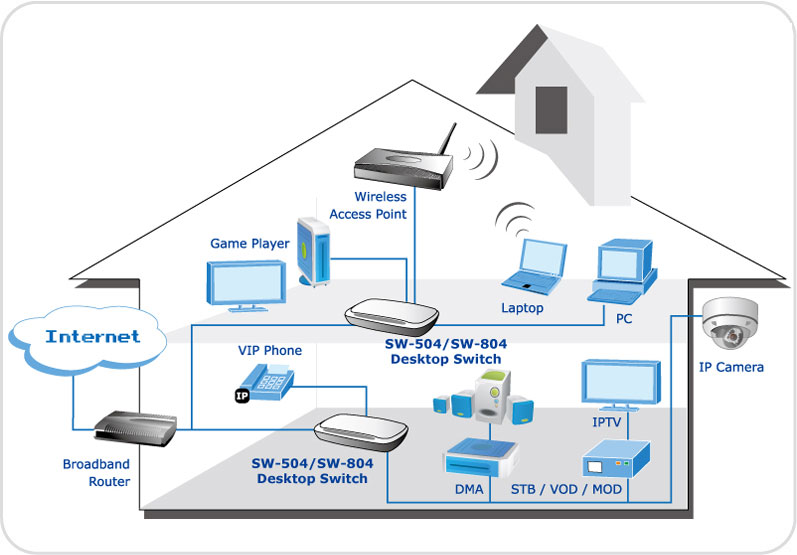

Home Use / SOHO Switch
With 5 10/100Mbps ports, the SW-504 provides a cost-effective and high-performance solution for Home/SOHO use. In multiple applications, the advanced functionality of the SW-504 eliminates the traditional issues associated with Ethernet.

  • 5 10/100Mbps TP interfaces
  • Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
  • IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • Supports 2K absolute MAC address
  • Automatic address learning and address aging
  • Supports Automatic MDI/MDI-X function
  • Full/half-duplex capability on each TX port
  • LED indicators for simple diagnostics and management
  • FCC Class B, CE compliant
Hardware Specifications
Hardware Version3
10/100Base-T Ports5 Auto MDI/MDIX ports
EnclosurePlastic
Dimensions (mm)168 x 100 x 29
Weight (g)142
Power Requirements (External power adapter)DC 5V, 1A
Power Consumption / Dissipation (Full operation)3.7 watts / 12 BTU
Switch Specification
Switch ArchitectureStore-and-Forward
Address Table2K entries
Share Buffer384K
Flow ControlBack pressure half duplex, IEEE 802.3x pause frame full duplex
Switch Fabric1.0Gbps
Throughput (packet per second)0.744Mpps
Standard Compliance
Standards ComplianceIEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3x (Full-duplex Flow Control)
TemperatureOperating: 0~50 degrees C
Storage: -20~70 degrees C
Operating HumidityOperating: 5% to 90%, Storage: 5% to 90% (non-condensing)
Regulation ComplianceFCC Part 15 Class B, CE



Datasheet

DateVersionDescriptionDownload
2013-11-081.0SW-504 For hardware version 3.0.
2008-02-011.0SW-504



User's Manual

DateVersionDescriptionDownload
2021-09-244.1[Release for hardware version 4.0.]
Modify contents of user manual.
2014-11-214.0Release for hardware version 4.0.
2008-01-231.0User's Manual



EC Declaration

DateVersionDescriptionDownload
2009-02-251.0EC Declaration
