- Διαθεσιμοτητα: Άμεσα Διαθέσιμο
- Κατασκευαστης: PLANET
- Κωδικος Προϊοντος: FSD-803
- Βαρος: 0.58kg
- Διαστασεις: 8.60 x 15.50 x 2.60
High-speed 10/100Mbps Workgroup Switch
PLANET Fast Ethernet Switch FSD-803 provides business and home users with a cost-effective integrated system of small-office / home-office networking. It is with compact-sized metal case design and just right for the network of 10 to 50 users.
Stable Fast Ethernet Switch Performance
The FSD-803 also supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity. The high performance throughput (filtering / forwarding rate: 14,880 packets per second in 10Mbps, and 148,800 packets per second in 100Mbps) and 448K bit packet buffer help the FSD-803 to boost bandwidth, eliminate unnecessary traffic, and relieve congestion on your critical server path. With an intelligent address recognition algorithm, the FSD-803 could recognize up to a 1K different MAC address and provide 1.6Gbps switching capacity, which makes the FSD-803 offer wire-speed packets transfer performance without risk of packet loss.
Flexible Desktop Size Design
The FSD-803 is the fancy-shaped standard metal model to fit into space-limited environment. With concepts of "Easy to install and use", "Compact sized design", and "Simple troubleshooting", the FSD-803 provides cost-conscious business and home users with the foundation from an integrated system of small-office / home-office networking.
Power Energy Saving

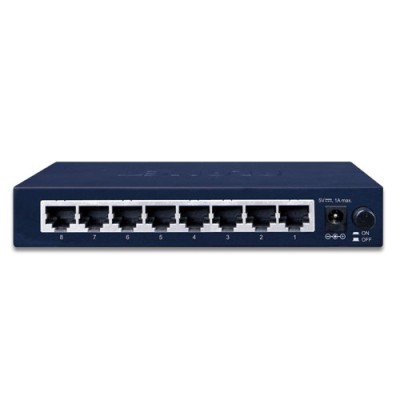

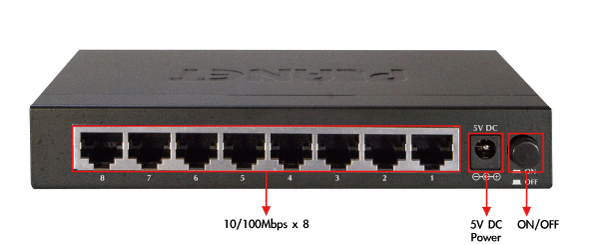

With one power ON/OFF button designed on the rear panel of the FSD-803, it can help users to reduce unnecessary power energy loss while the FSD-803 operation is OFF.
Plug & Play and Easy Installation
All RJ-45 copper interfaces in the FSD-803 support 10/100Mbps auto-negotiation for optimal speed detection through RJ-45 Category 5/5e cables. Supporting standard for auto-MDI/MDI-X can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. The Flow Control function allows the FSD-803 to support routers and servers for direct connection to this switch with fast and reliable data transfer.

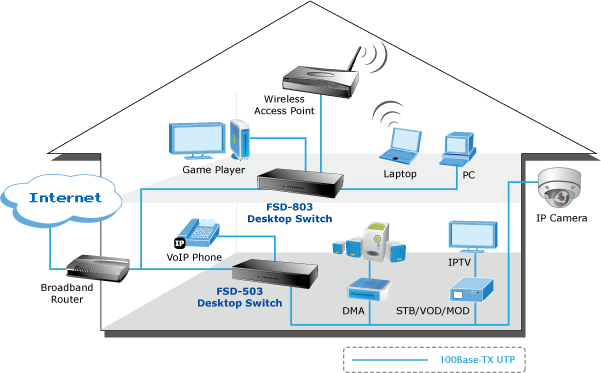

Ideal Switch for Home / SOHO Network
With eight 10/100Mbps ports, the FSD-803 provides a cost-effective and high-performance solution for Home and SOHO network applications. To segment the network and ease the network traffic, the FSD-803 is perfect for SOHO switched networks as the friendly network backbone. In addition, the network status can be monitored at a glance by the FSD-803 providing array LED indicators.
Datasheet
| Date | Version | Description | Download |
|---|---|---|---|
| 2019-11-01 | 1.0 | FSD-803 |
 |
User's Manual
| Date | Version | Description | Download |
|---|---|---|---|
| 2021-11-11 | 4.1 | [Release for hardware version 4.0.] Modify contents of user manual. |
|
| 2010-08-20 | 3.0 | Initial Release for hardware version 3.0. |
|
EC Declaration
| Date | Version | Description | Download |
|---|---|---|---|
| 2021-01-08 | 4.0 | EC Declaration. |
|
