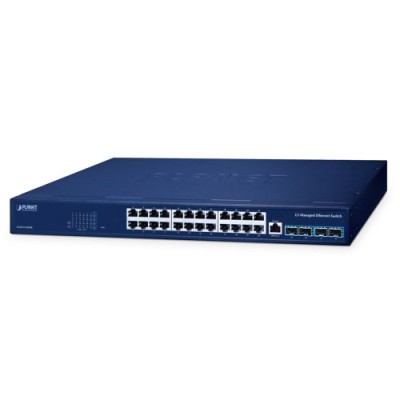

PLANET GS-6311-24T4X L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch

PLANET GS-6311-24T4X L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET GS-6311-24T4X L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET GS-6311-24T4X L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET GS-6311-24T4X L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET GS-6311-24T4X L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET GS-6311-24T4X L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET GS-6311-24T4X L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch
  • Διαθεσιμοτητα: Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: GS-6311-24T4X
  • Βαρος: 3.69kg
  • Διαστασεις: 20.70 x 44.00 x 4.40
359,05€
Χωρίς ΦΠΑ: 289,56€

Powerful 10Gbps and Layer 3 Routing Solution for Enterprise Backbone and Data Center Networking

PLANET GS-6311-24T4X is a brand-new Layer 3 Managed Gigabit Switch with 10Gbps uplink capability for various kinds of network applications and flexible deployment. The GS-6311-24T4X features 24 10/100/1000BASE-T RJ45 copper ports and 4 1G/10GBASE-X SFP+ ports with 128Gbps switch fabric delivered in a 1U rugged case with fanless design.



The GS-6311-24T4X provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First). With 10Gbps interfaces and 128Gbps switching fabric, the GS-6311-24T4X can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high-capacity servers. The powerful multicast routing and network security features make the GS-6311-24T4X perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications.



High Performance 10Gbps Ethernet Capacity

The four SFP+ ports built in the GS-6311-24T4X boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as up to 128Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Each of the SFP+ ports supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

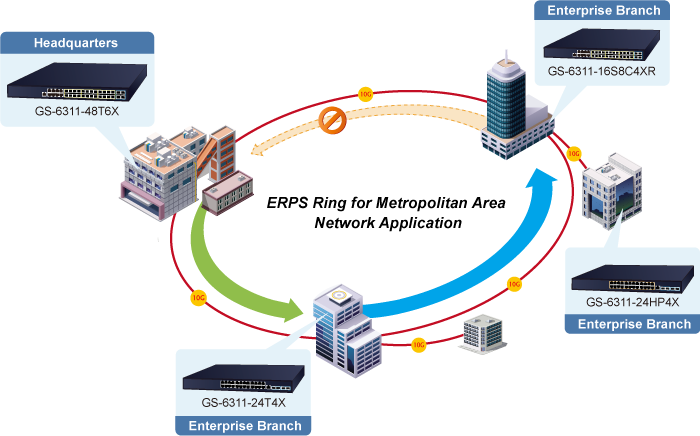

Redundant Ring, Fast Recovery for Critical Network Applications

The GS-6311-24T4X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 50ms to quickly bring the network back to normal operation.

 Layer 3 Routing Support

The GS-6311-24T4X enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically.

  • The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.
  • The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.



Strong Multicast

The GS-6311-24T4X supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1/v2 snooping. In Layer 3 multicast protocols, it features IGMPv1/v2/v3. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions which make the GS-6311-24T4X great for any robust networking.



Full IPv6 Support

The GS-6311-24T4X provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR and RADIUS authentication. It thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built.



Robust Layer 2 Features

The GS-6311-24T4X can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol, bandwidth control and IGMP snooping. This switch provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol functions. By supporting port aggregation, the GS-6311-24T4X allows the operation of a high-speed trunk combined with multiple ports.  It enables up to 64 groups for trunking with a maximum of 8 ports for each group.

 Excellent Layer 2 to Layer 4 Traffic Control

The GS-6311-24T4X is loaded with powerful traffic management and WRR features to enhance services offered by telecoms. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best in VoIP and video conferencing transmission.



Powerful Network Security

The GS-6311-24T4X offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based, MAC-based and web-based user and device authentications, which can be deployed with RADIUS, to ensure the port level security and block illegal users.



Advanced IP Network Protection

The GS-6311-24T4X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.



Efficient and Secure Management

For efficient management, the GS-6311-24T4X is equipped with console, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the GS-6311-24T4X offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port. For reducing product learning time, the GS-6311-24T4X offers Cisco-like command and customer doesn’t need to learn new command from these switches
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

Moreover, the GS-6311-24T4X offers secure remote management by supporting SSHv2 connection which encrypts the packet content at each session.



Intelligent SFP Diagnosis Mechanism

The GS-6311-24T4X supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

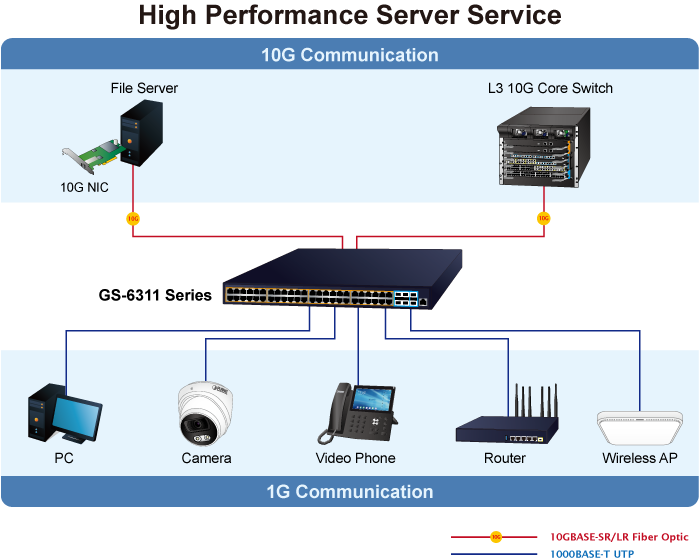

Excellent Solution to Enterprise Security and QoS Switch

The GS-6311-24T4X performs 128 Gigabits per second non-blocking switch fabric, so it can easily provide a local 10Gbps high bandwidth Ethernet network for the backbone of your department. With the four built-in SFP+ ports, the GS-6311-24T4X provides the uplink to the backbone network through the 10G Ethernet LR/SR SFP+ modules. It further improves the network efficiency and protects the network clients by offering the security and QoS features.

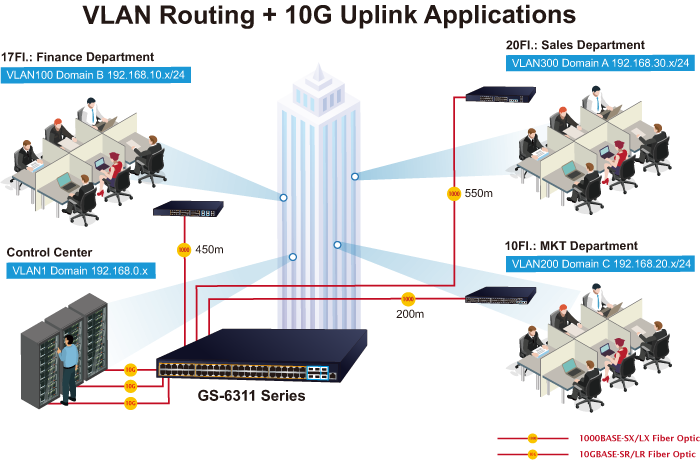

Layer 3 VLAN Routing

With the built-in robust Layer 3 traffic routing protocols, the GS-6311-24T4X ensures reliable routing between VLANs and network segments. The routing protocols can be applied via VLAN interface. The GS-6311-24T4X is certainly a cost-effective and ideal solution for enterprises.

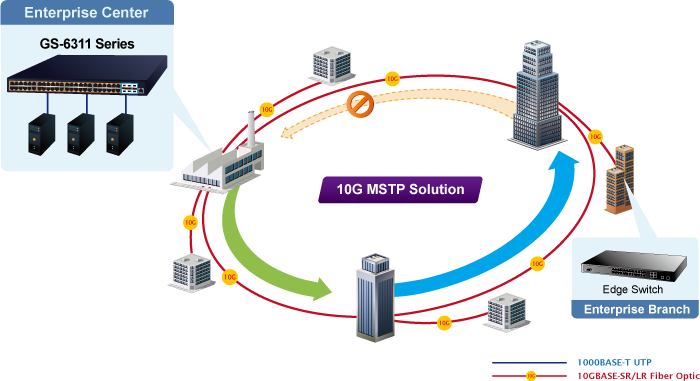

High Availability Mesh Networking Solution for Big Data System

With highly-flexible, highly-extendable and easy-to-install features, the GS-6311-24T4X offers up to 128Gbps data exchange speed via optical fiber interface and the transmission distance can be extended to 120km. The GS-6311-24T4X features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates IEEE 802.1s MSTP (Multiple Spanning Tree Protocol, spanning tree by VLAN) into customer’s automation network to enhance system reliability and uptime. The GS-6311-24T4X is the ideal solution for data centers, service providers and telecoms to build redundant connection and establish high bandwidth for Big Data server farm.

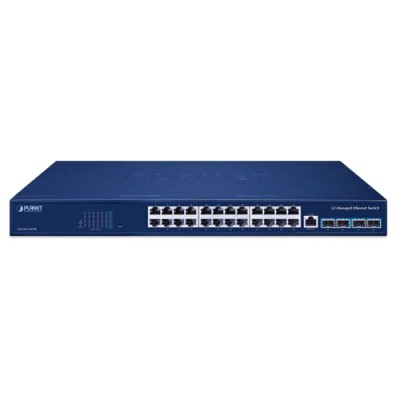

Physical Ports

  • 24 10/100/1000BASE-T RJ45 copper ports (Ports 1 to 24)
  • 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP (Ports 25 to 28)
  • RJ45 to DB9 console interface for switch basic management and setup



IP Routing Features

  • IP routing protocol supports RIPv1/v2, OSPFv2
  • Routing interface provides per VLAN routing mode
  • Supports route redistribution



Multicast Routing Features

  • Supports IGMP v1/v2/v3 and MLD v1/v2



Layer 2 Features

  • Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard
  • Prevents packet loss flow control
    • IEEE 802.3x pause frame flow control in full-duplex mode
    • Back pressure flow control in half-duplex mode
  • High performance Store-and-Forward architecture, broadcast storm control, port loopback detection
  • 16K MAC address table, automatic source address learning and aging
  • Supports VLAN
    • IEEE 802.1Q tag-based VLAN
    • GVRP for dynamic VLAN management
    • Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
    • Private VLAN Edge (PVE) supported
    • GVRP protocol for Management VLAN
    • Protocol-based VLAN
    • MAC-based VLAN
    • IP subnet VLAN
  • Supports Link Aggregation
    • Maximum 64 trunk groups, up to 8 ports per trunk group
    • IEEE 802.3ad LACP (Link Aggregation Control Protocol)
    • Cisco ether-channel (static trunk)
  • Supports Spanning Tree Protocol
    • STP, IEEE 802.1D (Classic Spanning Tree Protocol)
    • RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
    • MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
    • Supports BPDU & root guard
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
  • Provides port mirror (many-to-1)
  • Supports G.8032 ERPS (Ethernet Ring Protection Switching)



Quality of Service

  • 8 priority queues on all switch ports
  • Support for strict priority and WRR (Weighted Round Robin) CoS policies
  • Traffic classification
    • IEEE 802.1p CoS/ToS
    • IPv4/IPv6 DSCP
    • Port-based WRR
  • Strict priority and WRR CoS policies



Multicast

  • Supports IPv4 IGMP snooping v1, v2 and v3
  • Supports IPv6 MLD v1 and v2 snooping
  • Querier mode support
  • Supports Multicast VLAN Register (MVR)



Security

  • IEEE 802.1x port-based network access authentication
  • MAC-based network access authentication
  • Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
  • TACACS+ login users access authentication
  • IP-based Access Control List (ACL)
  • MAC-based Access Control List
  • Supports DHCP snooping
  • Supports ARP inspection
  • IP Source Guard prevents IP spoofing attacks
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding



Management

  • Management IP for IPv4 and IPv6
  • Switch Management Interface
    • Console/Telnet Command Line Interface
    • Web switch management
    • SNMP v1, v2c, and v3 switch management
    • SSHv2/TLSv1.2 secure access
  • BOOTP and DHCP for IP address assignment
  • Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
  • SNTP (Simple Network Time Protocol) for IPv4 and IPv6
  • User privilege levels control
  • Syslog server for IPv4 and IPv6
  • Supports DDM
  • Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
  • Supports sFlow
  • Supports ULDP
  • Supports ULPP (Uplink Protection Protocol)
  • Supports ULSM (Uplink State Monitor protocol)
  • Supports LLDP/LLDP MED
  • Supports DHCP Option82/43/60/61/67
  • Supports ping, trace route function for IPv4 and IPv6
  • PLANET Smart Discovery Utility for deployment management
Hardware Specifications
Copper Ports24 10/100/1000BASE-T RJ45 copper ports (ports 1 to 24)
10G SFP+ Ports4 10GBASE-SR/LR SFP+ interfaces (ports 25 to 28)
Backward compatible with 1000BASE-SX/LX/BX SFP transceiver
Console Port1 x RJ45-to-RS232 serial port (9600, 8, N, 1)
CPUMIPS 800MHz
RAM512Mbytes
Flash Memory32Mbytes
ESD ProtectionContact ±6KV , Air ±8KV
Surge ProtectionDifferential mode ±2KV , Common mode ±4KV
Dimensions (W x D x H)440 x 207 x 44mm
Weight2742g
Power Consumption23.2 watts/79.11 BTU

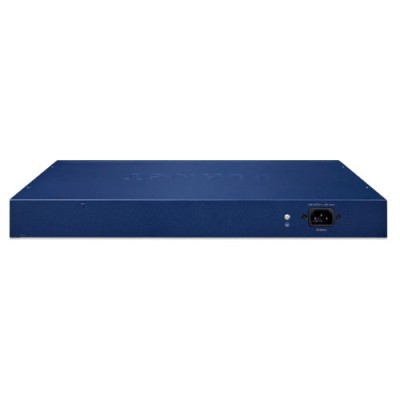

Power Requirements- ACAC 100~240V, 50/60Hz
Fan--
LEDSystem:
PWR (Green), SYS (Green)
Ports:
LNK/ACT (Green)
Switching Specifications
Switch ArchitectureStore-and-forward
Switch Fabric128Gbps/non-blocking
Switch Throughput95.23Mpps
Address Table16K MAC address table with auto learning function
ARP Table8K
Routing Table6K
IP Interface1024
ACL Table2K
Shared Data Buffer12MB
Jumbo Frame12KBytes
Flow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplex
IPv4 Layer 3 Functions
IP Routing ProtocolStatic route
RIPv1/v2
OSPFv2
Multicast Routing ProtocolIGMP v1/v2/v3
Layer 3 ProtocolARP
ARP Proxy
IGMP Proxy
IPv6 Layer 3 Functions
OtherICMPv6,ND,DNSv6
Layer 2 Functions
Port ConfigurationPort disable/enable
Flow control disable/enable
Bandwidth control on each port
Port loopback detect
Port StatusDisplay each port’s speed duplex mode, link status, flow control status and auto negotiation status
VLAN802.1Q tagged VLAN, up to 4K VLAN groups
802.1ad Q-in-Q (VLAN stacking)
GVRP for VLAN management
Private VLAN Edge (PVE) supported
Protocol-based VLAN
MAC-based VLAN
IP subnet VLAN
Bandwidth ControlTX/RX/Both
Link AggregationIEEE 802.3ad LACP/static trunk
Supports 64 groups with 8 ports per trunk group
QoS8 priority queues on all switch ports
Supports strict priority and Weighted Round Robin (WRR) CoS policies
Traffic classification:
IEEE 802.1p CoS/ToS
IPv4/IPv6 DSCP
Port-based WRR
MulticastIPv4 IGMP v1/v2/v3 snooping
IPv4 Querier mode support
IPv6 MLD v1/v2 snooping
Multicast VLAN Register (MVR)
Up to 1024
Security Functions
Access Control ListSupports Standard and Expanded ACL
IP-based ACL/MAC-based ACL
Time-based ACL
Up to 2K entries
SecurityPort isolation
Supports IP + MAC + port binding
Identification and filtering of L2/L3/L4 based ACL
Defend against DOS or TCP attacks
Suppression of broadcast, multicast and unknown unicast packet
DHCP Snooping, DHCP Option 82/43/60/61/67
Command line authority control based on user levels
AAATACACS+ and IPv4/IPv6 over RADIUS
AuthenticationIEEE 802.1x port-based network access control
Switch Management Functions
System ConfigurationConsole, Telnet, Web browser, SNMP v1, v2c
Secure Management IntefacesSSHv2, TLSv1.2, SNMPv3
ManagementIPv4 and IPv6 dual stack management
User IP security inspection for IPv4/IPv6 SNMP
SNMP v1, v2c and v3
SNMP MIB and TRAP
SNMP RMON 1, 2, 3, 9 four groups
IPv4/IPv6 FTP/TFTP
IPv4/IPv6 NTP
RADIUS authentication for IPv4/IPv6 Telnet user name and password
IPv4/IPv6 SSH
The right configuration for users to adopt RADIUS server’s shell management
CLI, console, Telnet
Security IP safety net management function: avoid unlawful landing at nonrestrictive area
Syslog server for IPv4 and IPv6
TACACS+
PLANET Smart Discovery Utility
SNMP MIBsRFC 1213 MIB-II
RFC 1215 Internet Engineering Task Force
RFC 1271 RMON
RFC 1354 IP-Forwarding MIB
RFC 1493 Bridge MIB
RFC 1643 Ether-like MIB
RFC 1907 SNMP v2
RFC 2011 IP/ICMP MIB
RFC 2012 TCP MIB
RFC 2013 UDP MIB
RFC 2096 IP forward MIB
RFC 2233 if MIB
RFC 2452 TCP6 MIB
RFC 2454 UDP6 MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMP6 MIB
RFC 2573 SNMP v3 notify
RFC 2574 SNMP v3 vacm
RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB)
RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB)
Standard Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1ag CFM
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X port authentication network control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 783 TFTP
RFC 793 TCP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
RFC 1058 RIP v1
RFC 2453 RIP v2
ITU-T G.8032 ERPS Ring
Environment
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
StorageTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2024-08-021.2GS-6311-24T4X



Quick Guide

DateVersionDescriptionDownload
2024-07-191.2Added PSTI function.
2023-06-301.1Initial release.



User's Manual

DateVersionDescriptionDownload
2023-11-221.0Initial release.



EC Declaration

DateVersionDescriptionDownload
2023-09-191.0EC declaration.
