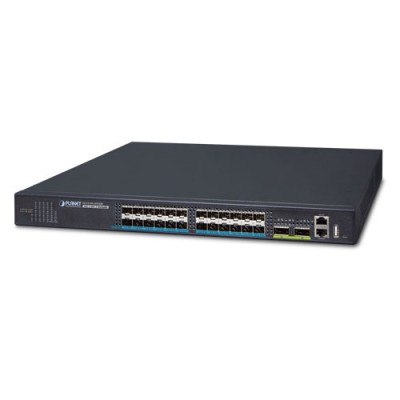

PLANET XGS-5240-24X2QR Layer 2+ 24-Port 10G SFP+ + 2-Port 40G QSFP+ Stackable Managed Switch

PLANET XGS-5240-24X2QR Layer 2+ 24-Port 10G SFP+ + 2-Port 40G QSFP+ Stackable Managed Switch
PLANET XGS-5240-24X2QR Layer 2+ 24-Port 10G SFP+ + 2-Port 40G QSFP+ Stackable Managed Switch
PLANET XGS-5240-24X2QR Layer 2+ 24-Port 10G SFP+ + 2-Port 40G QSFP+ Stackable Managed Switch
PLANET XGS-5240-24X2QR Layer 2+ 24-Port 10G SFP+ + 2-Port 40G QSFP+ Stackable Managed Switch
PLANET XGS-5240-24X2QR Layer 2+ 24-Port 10G SFP+ + 2-Port 40G QSFP+ Stackable Managed Switch
PLANET XGS-5240-24X2QR Layer 2+ 24-Port 10G SFP+ + 2-Port 40G QSFP+ Stackable Managed Switch
PLANET XGS-5240-24X2QR Layer 2+ 24-Port 10G SFP+ + 2-Port 40G QSFP+ Stackable Managed Switch
  • Διαθεσιμοτητα: Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: XGS-5240-24X2QR
  • Βαρος: 6.25kg
  • Διαστασεις: 31.80 x 44.00 x 4.46
2.028,17€
Χωρίς ΦΠΑ: 1.635,62€

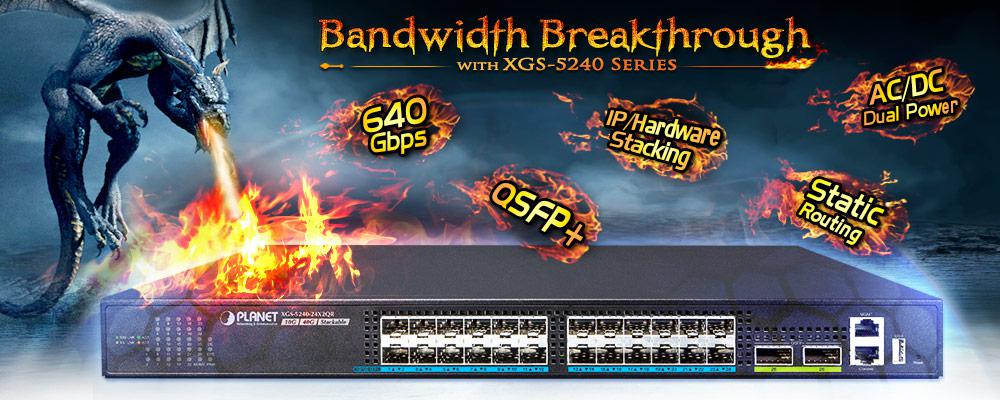

Powerfully-combined 40Gbps Solution for High-capacity Networks

PLANET XGS-5240-24X2QR is a high performance Layer 2+ Stackable Managed Switch that meets the next generation Metro, Data Center, Campus and Enterprise network requirements. It supports IPv4/IPv6 Layer 3 static routing capability and abundant L2/L4 switching engine, and provides high-density 24 10G SFP+ and 2 40G QSFP+ fiber interfaces delivered in a 1U rugged case. Up to 4 switches with a total of 96 10G SFP+ slots can be stacked up, making the management of a high-capacity network and all-purpose applications easier and more flexible.

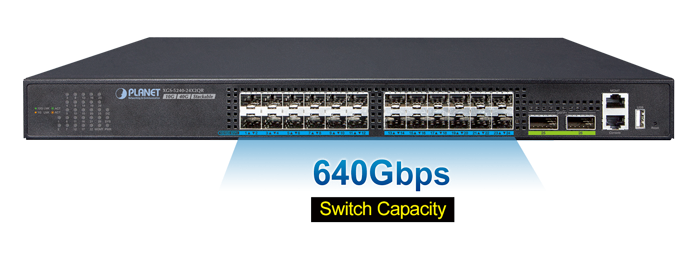

Totaling 640Gbps Switching Capacity

The XGS-5240-24X2QR provides twenty-four 10Gbps SFP+ and two 40Gbps QSFP+ fiber interfaces. Each of the SFP+ slots supports Dual Speed, 10GBASE-SR/LR or 1000BASE-SX/LX and each of the QSFP+ slots supports native 40GBASE-SR/LR and four 10GBASE-SR/LR Ethernet modes.

The administrator can flexibly choose the suitable transceivers according to the transmission distance or the transmission speed required extending the 1G/10G/40G networks efficiently. Besides, with 640Gbps switching capacity, the XGS-5240-24X2QR can handle extremely large amounts of data in a secure topology linking to backbone or high capacity servers where audio, video streaming and multicast applications are utilized.

Centralized IP Stacking Management

Positioned as the distribution or aggregation layer switch for large networks, the XGS-5240-24X2QR supports IP stacking function that helps network managers to easily configure up to 24 switches in the same series via one single IP address instead of connecting and setting each unit one by one. The IP stacking technology groups the XGS-5240-24X2QR switches together to enable centralized management through a single unit, regardless of physical location or switch type, as long as they are connected to the same local network.

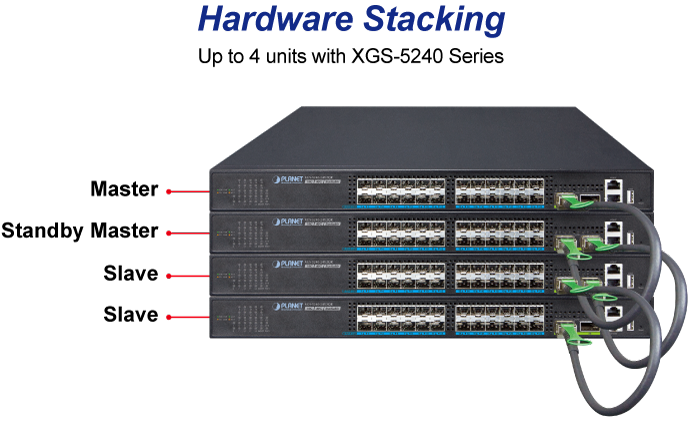

High Reliability Hardware Stacking

Using two user specified QSFP+ ports or SFP+ ports to connect up to 4 switches in the same series and build a virtually logical facility, the XGS-5240-24X2QR gives the enterprises, service providers and telecoms flexible control over port density, uplinks and switch stack performance. The stack redundancy of the XGS-5240-24X2QR ensures that data integrity is retained even if one switch in the stack fails. You can even hot-swap switches without disrupting the network, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.

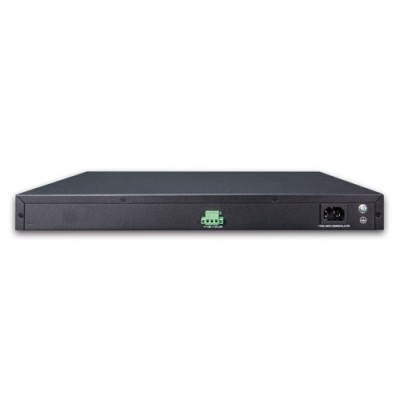

AC and DC Redundant Power to Ensure Continuous Operation

The XGS-5240-24X2QR is equipped with one 100~240V AC power supply unit and one additional 36-72V DC power supply unit for redundant power supply. A redundant power system is also provided to enhance the reliability with either AC or DC power supply unit. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity.



IPv4 and IPv6 VLAN Routing for Secure and Flexible Management

To help customer stay on top of business, the XGS-5240-24X2QR not only offers ultra-high transmission performance, but also IPv4/IPv6 VLAN routing feature which allows to cross over different VLAN groups and IP addresses for the purpose of having a highly-secure, flexible management.



Robust Layer 2 Features

The XGS-5240-24X2QR can be programmed for basic switch management functions such as dynamic port aggregation, Multiple Spanning Tree Protocol (MSTP), L2/L4 QoS bandwidth control, IPv4 IGMP snooping and IPv6 MLD snooping. It also supports 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol. By supporting port aggregation, the XGS-5240-24X2QR allows the operation of a high-speed trunk combined with multiple ports.



Efficient and Secure Management

For efficient management, the XGS-5240-24X2QR is equipped with console, Web and SNMP management interfaces. With its built-in Web-based management interface, the XGS-5240-24X2QR offers an easy-to-use, platform-independent management and configuration facility. For reducing product learning time, the XGS-5240-24X2QR offers Cisco-like command via Telnet or console port so that users do not need to learn new command.

The XGS-5240-24X2QR supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. Moreover, the XGS-5240-24X2QR offers secure remote management by supporting SNMPv3, SSH and SSL connection which encrypts the packet content at each session.



Enhanced Security

The XGS-5240-24X2QR offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network application. Their protection mechanism also comprises 802.1x Port-based and MAC-based customer and device authentication. As to private VLAN function, communications between edge ports can be protected to ensure customer privacy. The XGS-5240-24X2QR also provides functions of DHCP snooping, Option 82 and ARP guard, and Anti-ARP scanning so as to prevent IP from attacking and discarding ARP packets with invalid MAC address. The network administrators can now construct a highly-secure corporate network with considerably less time and effort than before.



Intelligent SFP Diagnosis Mechanism

The XGS-5240-24X2QR supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP+, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

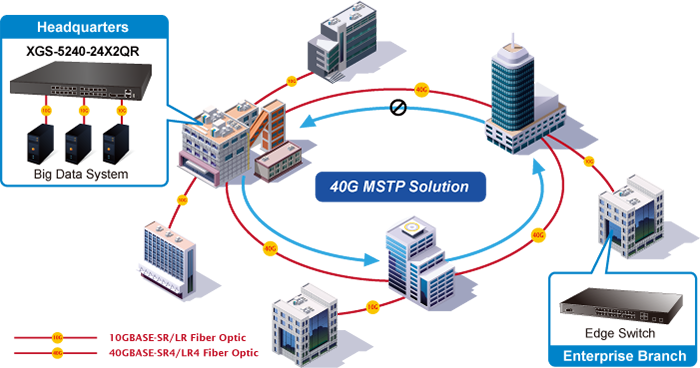

High Availability Mesh Networking Solution for Big Data System

By means of improving the technology of optical fiber Ethernet with highly-flexible, highly-extendable and easy-to-install features, the XGS-5240-24X2QR offers up to 640Gbps data exchange speed via optical fiber interface and the transmission distance can be extended to 120km (single-mode fiber). The XGS-5240-24X2QR features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates Multiple Spanning Tree Protocol (802.1s MSTP) into customer’s automation network to enhance system reliability and uptime. The XGS-5240-24X2QR is the ideal solution for data centers, service providers and telecoms to build redundant connection and establish high bandwidth for Big Data server farm.

Triple Play Service of Backbone Network Solution

In telecommunications, triple play service is a marketing term for the provisioning over a single broadband connection of more bandwidth-intensive services, such as broadband Internet access, television and the latency-sensitive telephone. The XGS-5240-24X2QR provides up to 640Gbps bandwidth to exchange data, voice and video packets via fiber patch cable. It’s the suitable aggregation switch for ISPs and Telcos that builds a heavy traffic backbone network infrastructure.

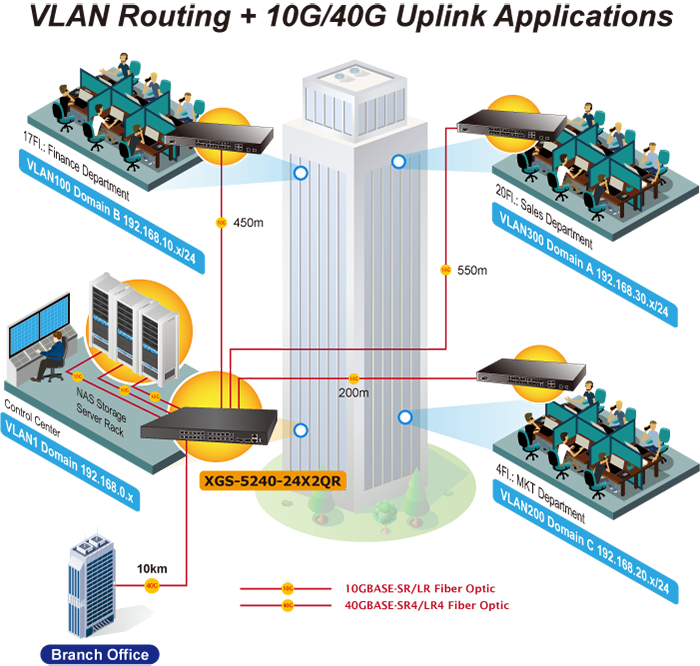

Layer 3 VLAN Routing and 40G Uplink Application

With the built-in Layer 3 static routing ability, the XGS-5240-24X2QR ensures reliable routing between VLANs and network segments. The XGS-5240-24X2QR, the ideal solution for enterprises, offers greater security, control and bandwidth conservation, and high-speed uplink.

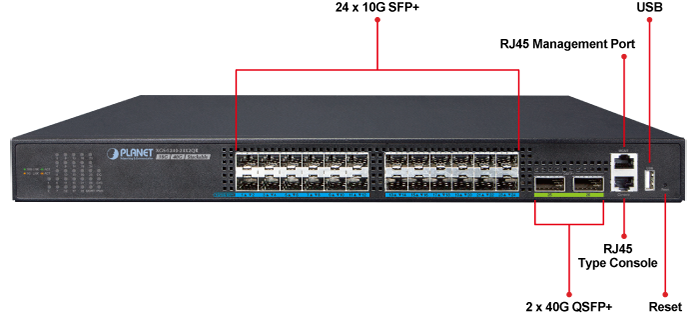

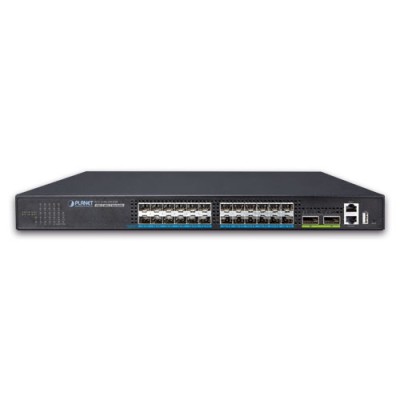

Physical Port

  • 24 10GBASE-SR/LR SFP+ ports, compatible with 1000BASE-SX/LX/BX SFP
  • 2 QSFP+ slots with each supporting native 40G and four 10 Gigabit Ethernet modes.
  • 1 10/100/1000BASE-T RJ45 in-band management port
  • 1 USB2.0 interface for configuration and firmware storage
  • RJ45 console interface for switch basic management and setup



Stacking Features

  • Hardware Stacking
  • - Virtualized multiple XGS-5240-24X2QR switches into one logical device
    - Connects with stack member via assigned 10G SFP+ interfaces or 40G QSFP+ interfaces
    - Single IP address stack management, supporting up to 4 switches stacked together
    - Stacking architecture supports redundancy Ring mode

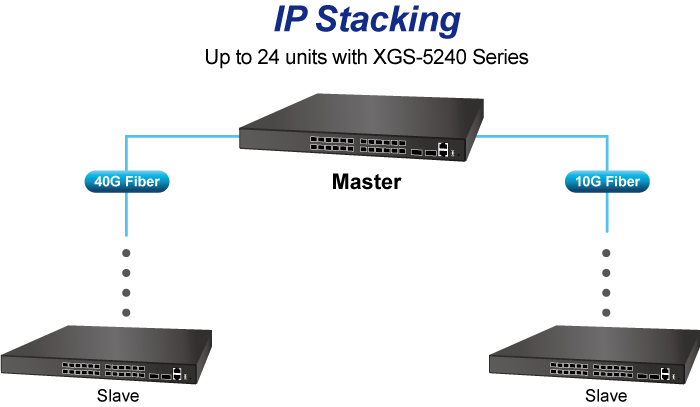

  • IP Stacking
  • - Connects with stack member via both SFP+ and QSFP+ interfaces
    - Single IP address management, supporting up to 24 units stacked together



IP Routing Features

  • IP routing protocol supports
  • Routing interface provides per VLAN routing mode
  • Supports route redistribution



Layer 2 Features

  • Prevents packet loss flow control
  • - IEEE 802.3x pause frame flow control in full-duplex mode
    - Back-pressure flow control in half-duplex mode
  • High performance Store-and-Forward architecture, broadcast storm control and port loopback detection
  • 32K MAC address table, automatic source address learning and aging
  • Supports VLAN
  • - IEEE 802.1Q tag-based VLAN
    - GVRP for dynamic VLAN management
    - Up to 256 VLANs groups, out of 4041 VLAN IDs
    - Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
    - Private VLAN Edge (PVE) supported
    - GVRP protocol for Management VLAN
    - Protocol-based VLAN
    - MAC-based VLAN
    - IP subnet VLAN
  • Supports Link Aggregation
  • - Maximum 12 trunk groups, up to 8 ports per trunk group
    - IEEE 802.3ad LACP (Link Aggregation Control Protocol)
    - Cisco ether-channel (static trunk)
  • Supports Spanning Tree Protocol
  • - STP, IEEE 802.1D (Classic Spanning Tree Protocol)
    - RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
    - MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
    - Supports BPDU and root guard
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
  • Provides port mirror (many-to-1)



Quality of Service

  • 8 priority queues on all switch ports
  • Support for strict priority and WRR (Weighted Round Robin) CoS policies
  • Traffic classification
  • - IEEE 802.1p CoS/ToS
    - IPv4/IPv6 DSCP
    - Port-based WRR
  • Strict priority and WRR CoS policies



Multicast

  • Supports IPv4 IGMP snooping v1, v2 and v3
  • Supports IPv6 MLD v1 and v2 snooping
  • Querier mode support
  • Supports Multicast VLAN Register (MVR)



Security

  • IEEE 802.1x port-based network access authentication
  • MAC-based network access authentication
  • Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
  • TACACS+ login users access authentication
  • IP-based Access Control List (ACL)
  • MAC-based Access Control List
  • Supports DHCP snooping
  • Supports ARP inspection
  • IP Source Guard prevents IP spoofing attacks
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding



Management

  • Management IP for IPv4 and IPv6
  • Switch Management Interface
  • - Console/Telnet Command Line Interface
    - Web switch management
    - SNMP v1, v2c, and v3 switch management
    - SSH/SSL secure access
  • BOOTP and DHCP for IP address assignment
  • Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
  • SNTP (Simple Network Time Protocol) for IPv4 and IPv6
  • User privilege levels control
  • Syslog server for IPv4 and IPv6
  • Supports DDM
  • OAM EFM; OAM CFM
  • Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
  • Supports sFlow
  • Supports ULDP
  • Supports ULPP (Uplink Protection Protocol)
  • Supports ULSM (Uplink State Monitor Protocol)
  • Supports LLDP/LLDP MED
  • Supports DHCP Option82
  • IPv4/IPv6 DHCP Client
  • IPv4/IPv6 DHCP Relay
  • IPv4/IPv6 DHCP Snooping
  • IPv4/IPv6 DHCP Server
  • Supports ping, trace route function for IPv4 and IPv6



Redundant Power System

  • Redundant 100~240V AC/36-72V DC dual power
  • Active-active redundant power failure protection
  • Backup of catastrophic power failure on one supply
  • Fault tolerance and resilience
Hardware Specifications
SFP+ Slots24 10GBASE-SR/LR SFP+ interfaces
Compatible with 1000BASE-SX/LX/BX SFP transceiver
QSFP+ Slots2 with each supporting native 40 Gigabit Ethernet and four 10GBASE-SR/LR Ethernet modes
MGMTOne 10/100/1000BASE-T RJ45 port
Console1 RJ45-to-DB9 serial port (9600, 8, N, 1)
USB1 USB 2.0
Switch ArchitectureStore-and-forward
Switch Capacity640Gbps/non-blocking
Switch Throughput476Mpps
Address Table32K MAC address table with auto learning function
Shared Data Buffer4MB
Flow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplex
Jumbo Frame9KB
LED IndicatorSystem:
PWR/DC/MGMT/SYS (Green)
Ports:
1/10G SFP+ slot: LNK/ACT(Orange/Green)
40G QSFP+ slot: LNK/ACT (Green)
Dimensions (W x D x H)440 x 318 x 44.6 mm, 1U height
Weight4.3kg
Power Consumption75 watts/210 BTU (maximum)
Power RequirementsAC 100~240V, 50/60Hz
DC 36-72V
Fan3
Layer 3 Functions
Routing ProtocolIPv4 Static routing
IPv6 Static routing
Routing Table64 entries
DHCPDHCP client
DHCP server, default route
DHCP relay
Layer 2 Functions
Port ConfigurationPort disable/enable
1 &10Gbps full duplex mode selection
Flow control disable/enable
Bandwidth control on each port
Port loopback detection
Port StatusDisplay each port’s speed duplex mode, link status, flow control status and
auto negotiation status
VLAN802.1Q tag-based VLAN, up to 4K VLAN entries
802.1ad Q-in-Q (VLAN stacking)
GVRP for VLAN management
Private VLAN Edge (PVE) supported
Protocol-based VLAN
MAC-based VLAN
IP subnet VLAN
Bandwidth ControlTX/RX/both
Link AggregationIEEE 802.3ad LACP/static trunk
Supports 12 trunk groups with 8 ports per trunk group
QoS8 priority queues on all switch ports
Supports strict priority and Weighted Round Robin (WRR) CoS policies
Traffic classification:
- IEEE 802.1p CoS/ToS
- IPv4/IPv6 DSCP
- Port-based WRR
MulticastIPv4 IGMP v1/v2/v3 snooping
IGMP Querier mode support
Ipv6 MLD v1/v2 snooping
MLD Querier mode support
Multicast VLAN Register (MVR)
Access Control ListSupports Standard and Expanded ACL
IP-based ACL/MAC-based ACL
Time-based ACL
Up to 4K entries (3K ingress; 1K egress)
SecurityPort isolation
Supports IP + MAC + port binding
Identification and filtering of L2/L3/L4 based ACL
Defends against DOS or TCP attacks
Suppression of broadcast, multicast and unknown unicast packet
DHCP Snooping, DHCP Option 82
Command line authority control based on user levels
AuthenticationIEEE 802.1x port-based network access control
AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS
Management Function
System ConfigurationConsole, Telnet, Web browser, SNMP v1, v2c
Secure Management InterfacesSSH, SSL, SNMPv3
ManagementSupports both IPv4 and IPv6 Protocols
Supports the user IP security inspection for IPv4/IPv6 SNMP
Supports MIB and TRAP
Supports IPv4/IPv6 TFTP
Supports IPv4/IPv6 NTP
Supports RMON 1, 2, 3, 9 groups
Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password
Supports IPv4/IPv6 SSH
The right configuration for users to adopt RADIUS server’s shell management
Supports CLI, console, Telnet
Supports SNMPv1, v2c and v3
Supports Security IP safety net management function: avoid unlawful landing at non-restrictive area
Supports syslog server for IPv4 and IPv6
Supports TACACS+
SNMP MIBsRFC 1213 MIB-II
RFC 1215 Internet Engineering Task Force
RFC 1271 RMON
RFC 1354 IP-Forwarding MIB
RFC 1493 Bridge MIB
RFC 1643 Ether-like MIB
RFC 1907 SNMPv2
RFC 2011 IP/ICMP MIB
RFC 2012 TCP MIB
RFC 2013 UDP MIB
RFC 2096 IP forward MIB
RFC 2233 if MIB
RFC 2452 TCP6 MIB
RFC 2454 UDP6 MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMP6 MIB
RFC 2573 SNMPv3 notification
RFC 2574 SNMPv3 VACM
RFC 2674 Bridge MIB Extensions
Standard Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X port authentication network control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
Environment
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 10 ~ 85% (non-condensing)
StorageTemperature: -40 ~ 80 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2019-07-191.0XGS-5240-24X2QR



Quick Guide

DateVersionDescriptionDownload
2019-07-171.0Initial release.



User's Manual

DateVersionDescriptionDownload
2019-06-141.0Initial release.
