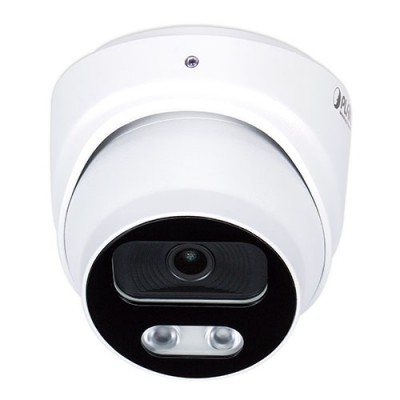

PLANET ICA-4480 H.265+ 4MP Smart IR Dome IP Camera

PLANET ICA-4480 H.265+ 4MP Smart IR Dome IP Camera
PLANET ICA-4480 H.265+ 4MP Smart IR Dome IP Camera
PLANET ICA-4480 H.265+ 4MP Smart IR Dome IP Camera
PLANET ICA-4480 H.265+ 4MP Smart IR Dome IP Camera
PLANET ICA-4480 H.265+ 4MP Smart IR Dome IP Camera
PLANET ICA-4480 H.265+ 4MP Smart IR Dome IP Camera
PLANET ICA-4480 H.265+ 4MP Smart IR Dome IP Camera
PLANET ICA-4480 H.265+ 4MP Smart IR Dome IP Camera
PLANET ICA-4480 H.265+ 4MP Smart IR Dome IP Camera
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: ICA-4480
  • Βαρος: 0.57kg
  • Διαστασεις: 9.60 x 9.60 x 9.10
76,66€
Χωρίς ΦΠΑ: 61,82€

Excellently Efficient Surveillance Video

PLANET ICA-4480 PoE IP Camera delivers excellent picture quality in H.264(+)/H.265(+) 4 mega-pixel resolutions. Users can benefit from reduced 83% bandwidth and data storage through more efficient video compression.



Incorporating the 1/3" Progressive Scan CMOS Sensor and 25-meter Smart IR illuminators, which are specially designed for surveillance applications, the ICA-4480 provides sharp images under all lighting conditions. Being able to operate under the temperature range from -20 to 60 degrees C, the ICA-4480, equipped with a tough IP67-rated metal housing and its outdoor and handy features, enables you to easily install the camera in any public areas, such as buildings, gardens, parking areas, markets, railway stations and hospitals. It ensures the highest level of reliability for mission-critical applications in any difficult environment.

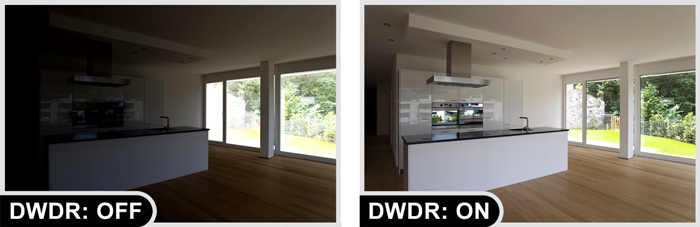

Exceptional Image Quality by DWDR technology

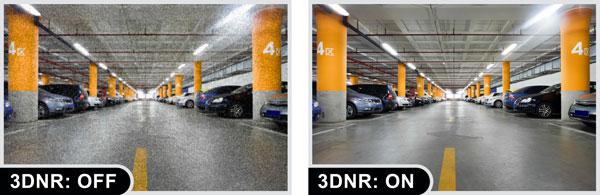

For specific surveillance applications, wide dynamic technology has become a standard feature of high-definition surveillance cameras. Together with powerful image processing attributes like Digital Wide Dynamic Range (DWDR) and 3-dimensional Noise Reduction (3DNR) technology, the ICA-4480 is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.

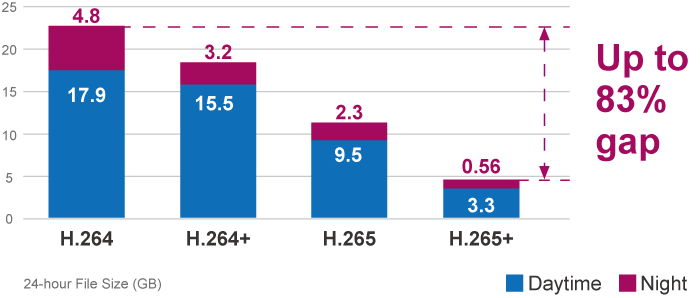

High Efficiency Video Compression

The ICA-4480 employs the H.264(+)/H.265(+) technology to enable the camera to provide higher and more efficient image compression rates. If the same image quality level of H.264 is compared with that of H.265, the latter is able to save around 83% of bandwidth, meaning H.264(+)/H.265(+) offers much higher quality video for less bandwidth. Thus, it can further enhance the overall performance of its IP surveillance system.



Advanced Media Management

The ICA-4480 supports a number of advanced features to enhance surveillance flexibility and event management capabilities. The advanced features include ROI (region of interest), motion detection, 3 configurable regions of privacy mask to protect personal privacy, and video tampering function. It also comes with defog model and image adjustment options, newly-added anti-overexposure protection function, three white balance modes, and five backlight compensation modes.



With more user-friendly GUI interface that allows users to better monitor, the ICA-4480 supports IPv6, QoS and IEEE 802.1x functions. Newly-added secure email for password reset and email encryption protocol now can support TLS.



Flexible Installation and Power Functionality

Powered from a PoE power sourcing equipment such as 802.3af/at PoE switch or 802.3af/at PoE injector over a network cable, the ICA-4480, adopting the IEEE 802.3af/at standard, does not need extra power cables and manpower, thus reducing installation costs while increasing deployment flexibility and scalability. The ICA-4480 is ONVIF compliant and interoperable with other brands in the market, making it an indisputably ideal choice for reliable and high-performance surveillance.

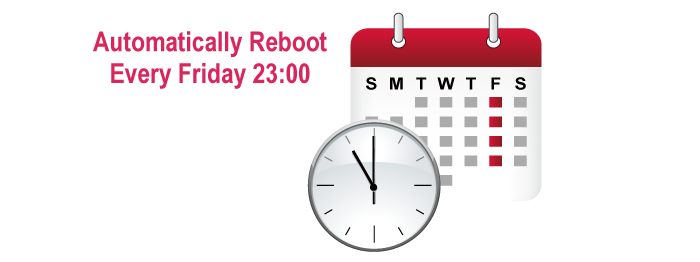

Scheduled Power Rebooting

The ICA-4480 can be scheduled to reboot at a specified time like every minute, every hour, every week or every month to reduce the chance of crash resulting from buffer overflow.





Remote Access via Mobile App, Web Browser or PVMS

Remote management makes you easy to set the configuration and live viewing via Mobile App, NVR, HDVR, and Web browser. Besides, the ICA-4480 provides central surveillance management capability with the adoption of its bundled PLANET Video Management Software. With the PVMS, the ICA-4480 is expandable for multi-sites management of up to 256-ch IP cameras simultaneously. Users are able to monitor the IP cameras anytime, anywhere.

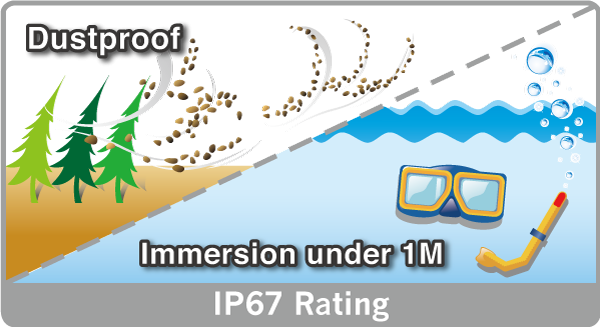

Water-resistant and Dust-proof Protection

The IP67-rated metal housing protects the camera body against rain and dust, and ensures operation under extreme weather conditions, which makes it an ideal solution for outdoor applications, such as buildings, roads, parking areas, garages, railway stations and airports.

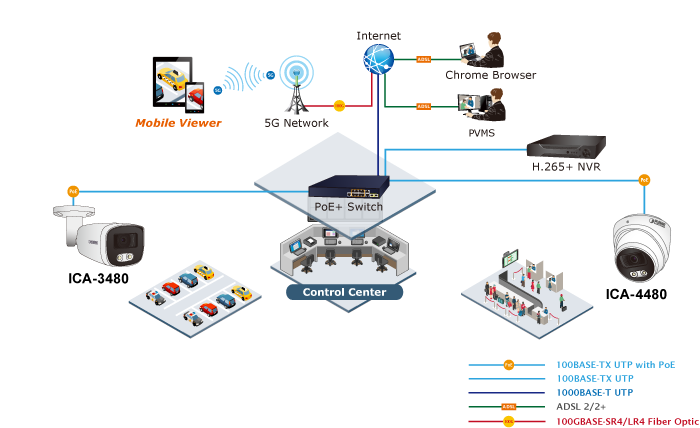

High Scalability for Various Industrial IP Surveillance Solutions

PLANET high-resolution ICA-4480 can offer various surveillance applications as it can capture clear images and is perfect for identifying objects and persons. Moreover, the ICA-4480 supports 802.3af/at PoE PD interface, and facilitates the outdoor surveillance applications without worrying the electric source. Besides, PLANET VMS, NVR, HDVR, Web UI and management app make you easy to do the configuration and live viewing. With powerful features offered, the ICA-4480 no doubt is your best choice for outdoor surveillance solution.



Camera

  • 1/3" Progressive Scan CMOS Sensor
  • 3.6mm fixed with 4MP lens
  • 0.03 lux minimum illumination at F1.6
  • Built-in smart IR illuminators, effective up to 25 meters
  • Switchable IR-cut filter for Day & Night function



Video and Audio

  • Simultaneous H.264(+)/H.265(+) dual-stream video encoding
  • Simultaneous multi-stream support
  • H.264(+)/H.265(+) baseline profile, main profile or high profile options
  • Max. resolution of 2688 x 1512@25fps
  • Supports Digital WDR (DWDR) (60dB)
  • 3DNR to improve picture quality at low lux
  • One-way audio support
  • Image adjustment options
    • Image Adjustment
    • Exposure Settings
    • Backlight Settings
    • Day and night switch
    • White Balance
    • Video Adjustment
    • Image Enhancement
    • Defog Model
  • OSD Settings
  • Event Detection
    • Motion detection
    • Video Tampering
    • Intrusion Detection
  • 3 configurable regions of privacy mask to protect personal privacy
  • ROI (Region of Interest)



Power over Ethernet

  • Compatible with IEEE 802.3af/at Power over Ethernet PD for flexible deployment



Network Configuration and Management

  • PPPoE, IPv4 DHCP Client and IPv4 Static IP Address management
  • Supports IPv6
  • PLANET DDNS and Easy DDNS, TCP/IP, UDP, PPPoE, HTTPS, ICMP, FTP, SMTP, QoS, 802.1X, P2P, RTP, NTP, Cloud, RTSP, RTCP Encryption and IPEYE available options
  • ONVIF compliant for interoperability
  • SNTP Network Time Protocol/synchronize with computing time
  • Schedule power rebooting
  • System log
  • User management options for various authorities:
    • Admin
    • Operator
    • Guest
  • System maintenance
    • Firmware upload/download via HTTP
    • Configuration upload/download through web interface
    • Hardware-based reset button for resetting to factory default
  • Easy configuration and management via Windows-based software or web interface
  • PLANET Search Tools utility and Professional Video/Central Management Software
  • NDAA Compliant



Case and Installation

  • IP67-rated metal housing with cable management bracket for rigorous environment
  • Waterproof and dustproof designs
  • -20 to 60 degrees C operating temperature
  • Plug and Play installation



Camera
Image Sensor1/3" Progressive Scan CMOS Sensor
LensFocus Length: 3.6mm
Focus Control: Fixed
Lens Type: Fixed
Pixels:4MP
Angle of view:
Horizontal: 81 degrees
Vertical: 41 degrees
Min. Illumination0.03 lux (color) @ F1.6
0lux (B/W) @ IR on
IR IlluminationsBuilt-in smart IR illuminators, effective up to 25 meters
*The IR distance is based on the environment
Effective Pixels (H x V)2560 x 1440
Power over Ethernet
PoE StandardIEEE 802.3af/at PoE PD
Video CompressionH.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
Video Resolution
ItemMain Stream:Sub Stream:

H.264/H.264+
H.265/H.265+
2688 x 1512@25fps
2560 x 1440@30fps
1920 x 1080@30fps
1280 x 720@30fps

1280 x 720@30fps
720 x 480@30fps
MJPEG/
Frame RateUp to 25~30 fps for all resolutions
Bitrate32~16384kbps
Shutter TimeAuto: 1/3-1/100000 Sec
Image SettingImage Adjustment
Exposure Settings
Backlight Settings
Day and night switch
White Balance
Video Adjustment
Image Enhancement
Defog Model
Distortion
OSD Settings
Motion detection
3 configurable regions of privacy mask to protect personal privacy
StreamingStreaming over UDP, TCP, HTTP, or HTTPS
Controllable frame rate
M-JPEG streaming over HTTP (server push)
Constant and variable bit rate
Audio
Audio StreamingOne-way audio
Audio CompressionG711A/U,AAC
Audio InputExternal microphone input
Networking & Configuration
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3af/at Power over Ethernet
ProtocolTCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, PLANET DDNS, Easy DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, UDP, QoS, 802.1X, P2P, IPEYE, Cloud
SecurityUser Management options for various authority
Admin
Operator
Guest
UsersOn-line monitoring of 16 clients at the same time
Web BrowerMicrosoft IE8-11, Edge, Google Chrome, Firefox
AppYes (Android, IOS with P2P QR code)
LanguageChinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Dutch, Czech, Vietnamese
System Integration
Application Programming InterfaceONVIF compliant
Alarm TriggeringMotion detection / Video Tampering/ Intrusion Detection
Alarm EventsSMTP, FTP, Cloud (Google)
Hardware Specifications
Power Requirements12V DC, 0.7A
IEEE 802.3af/at Power over Ethernet
Power Consumption4.2W(IR on)
Dimensions (Φ x H)96 x 91 mm
Weight472g
Reset ButtonYes
LED42µ x 2PCS

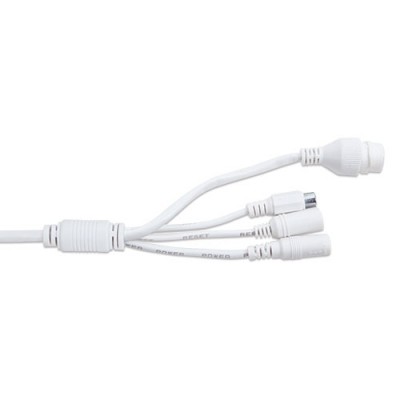

Connector10/100Mbps Ethernet, waterproof/dustproof RJ45 connector
DC power jack
RCA audio in (white)
EnclosureIP67 metal case
Standards Conformance
Regulatory ComplianceFCC Part 15 Class B, CE
NDAA ComplianceYes
Environment
OperatingTemperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
