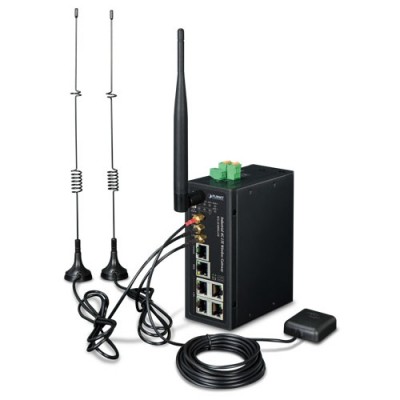

PLANET ICG-2510WG-LTE-EU Industrial 4G LTE Cellular Wireless Gateway with 5-Port 10/100/1000T

PLANET ICG-2510WG-LTE-EU Industrial 4G LTE Cellular Wireless Gateway with 5-Port 10/100/1000T
PLANET ICG-2510WG-LTE-EU Industrial 4G LTE Cellular Wireless Gateway with 5-Port 10/100/1000T
PLANET ICG-2510WG-LTE-EU Industrial 4G LTE Cellular Wireless Gateway with 5-Port 10/100/1000T
PLANET ICG-2510WG-LTE-EU Industrial 4G LTE Cellular Wireless Gateway with 5-Port 10/100/1000T
PLANET ICG-2510WG-LTE-EU Industrial 4G LTE Cellular Wireless Gateway with 5-Port 10/100/1000T
PLANET ICG-2510WG-LTE-EU Industrial 4G LTE Cellular Wireless Gateway with 5-Port 10/100/1000T
PLANET ICG-2510WG-LTE-EU Industrial 4G LTE Cellular Wireless Gateway with 5-Port 10/100/1000T
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: ICG-2510WG-LTE-EU
  • Βαρος: 1.14kg
  • Διαστασεις: 11.57 x 13.30 x 4.50
630,77€
Χωρίς ΦΠΑ: 508,68€

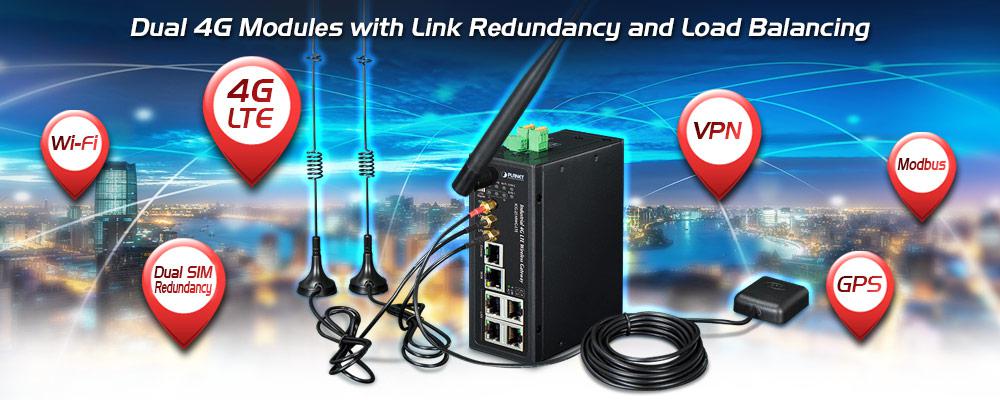

Making Network Connection Easy with 4G LTE Cellular Gateway

PLANET ICG-2510WG-LTE is a reliable, secure and high-bandwidth communications industrial-grade cellular gateway for demanding mobile applications, M2M (machine-to-machine) and IoT deployments. It features 4G LTE (Long Term Evolution), 2.4G/5G Wi-Fi, five Ethernet ports (4 LAN and 1 WAN), serial console port, DI and DO interfaces, and VPN technology bundled in a compact yet rugged metal case. It establishes a fast cellular connection between Ethernet and serial port equipped devices.



High-performance 4G LTE

The ICG-2510WG-LTE supports LTE 2x1 DL MIMO technology which can reach a download (DL) speed of up to 150Mbps and an upload (UL) speed of 50Mbps. The Cellular Gateway also supports multi-band connectivity including LTE FDD/TDD, WCDMA and GSM for a wide range of applications.

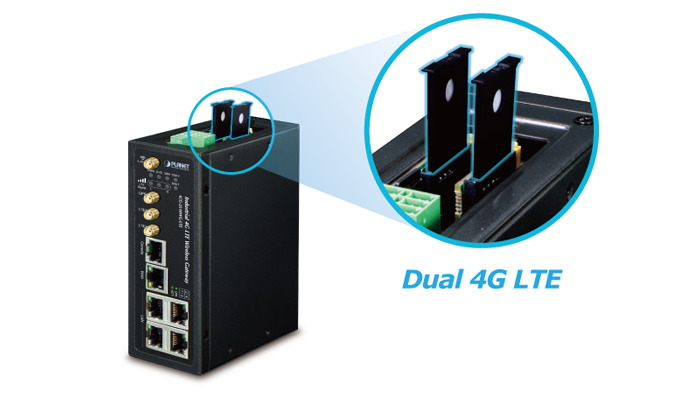

Dual SIM Design

To enhance reliability, the ICG-2510WG-LTE is equipped with dual SIM slots that support failover and roaming over to ensure uninterrupted connectivity for mission-critical cellular communications. Besides, the ICG-2510WG-LTE supports load balance function to improve network efficiency. It provides a more flexible and easier way for users to create an instant network sharing service via 4G LTE whenever in public places like transportation, outdoor event, etc.

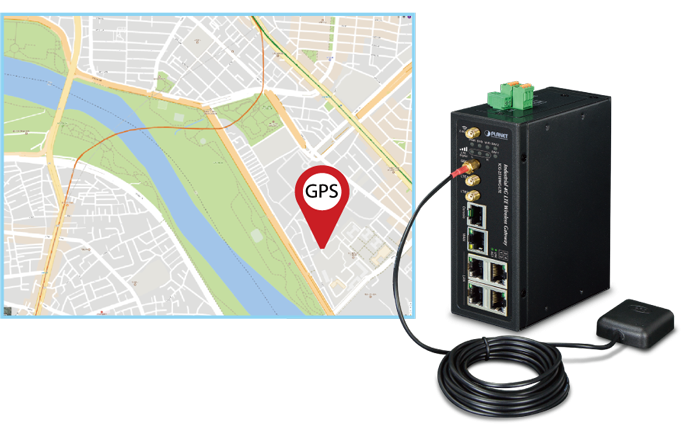

GPS Included

The ICG-2510WG-LTE is equipped with one convenient feature and that is GPS (global positioning system). It is a positioning system based on a network of satellites that continuously transmits necessary data. More signals transmitted from more satellites can triangulate its location on the ground, meaning any location can be easily tracked.



Dual-band WLAN Solution

PLANET ICG-2510WG-LTE, adopting the IEEE 802.11b/g/n/ac standard, provides a high-speed transmission of power and data, meaning two remote nodes in the 5GHz frequency band can be bridged. The 2.4GHz wireless connection can also be used simultaneously. The Wireless Protected Access (WPA/WPA2 with TKIP/AES) and Wireless Encryption Protocol (WEP) features enhance the level of transmission security and access control over wireless LAN.

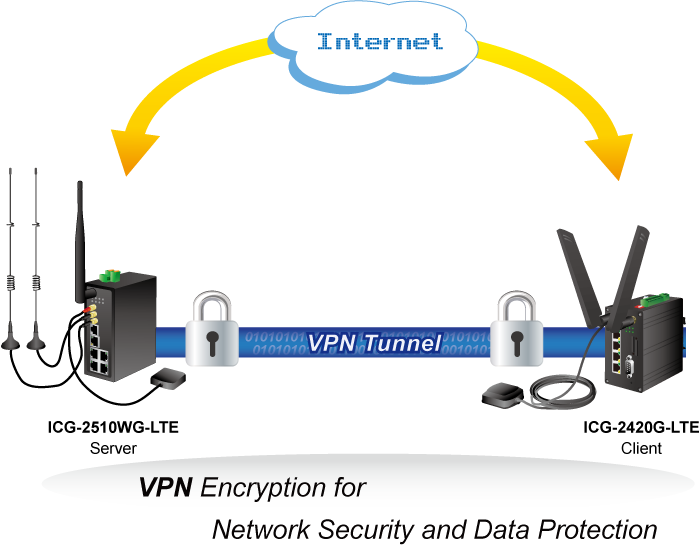

Cost-effective VPN Solution

The ICG-2510WG-LTE provides a complete data security and privacy feature for access and exchange of sensitive data. The full VPN capability of the ICG-2510WG-LTE including built-in PPTP, L2TP, OpenVPN, GRE and IPSec VPN functions with DES/3DES/AES encryption and MD5/SHA-1/SHA-2 authentication makes the shared connection more secure and flexible. The IPSec VPN also makes the private tunnel over Internet more secure for enterprises doing business transactions.

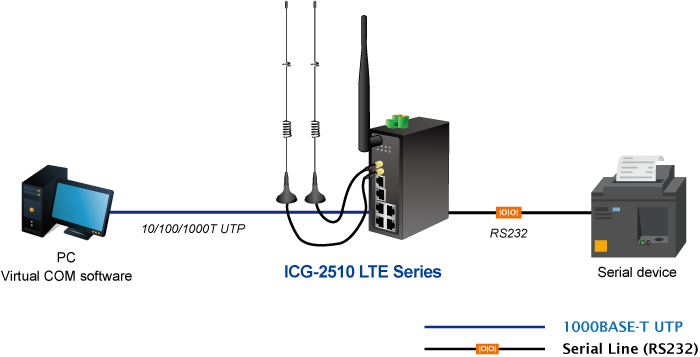

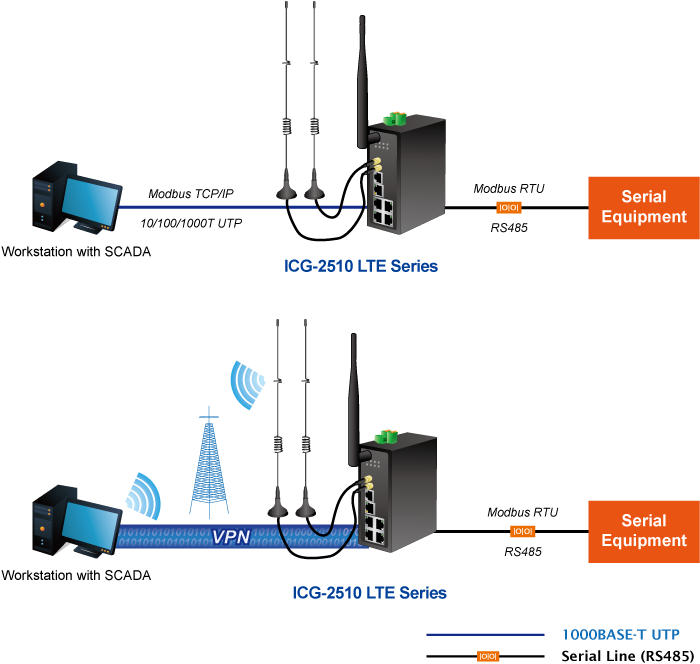

Remote Manageable Solution for Ethernet to RS232/RS485 Application

PLANET ICG-2510WG-LTE’s serial RS232/RS485 communication interface can be converted over the Fast Ethernet networking. It can operate as a virtual server or client where IP-based serial equipment can be managed. The ICG-2510WG-LTE helps save the network administrator’s valuable time in detecting and locating network problems, rather than visual inspection of cabling and equipment.



Superior Management Functions

For networking management features, the ICG-2510WG-LTE provides such functions as DHCP server, DMZ and port forwarding, as well as full secure functions including  Network Address Translation (NAT), WAN access policy, URL/Packet/MAC filtering. The ICG-2510WG-LTE has 4G and WAN connection failover characteristics, which can automatically switch over to the redundant, stable WAN connection to keep users always online without missing any fascinating moments.



User-friendly and Secure Management

For efficient management, the ICG-2510WG-LTE is equipped with console, web, SNMP and CMS (Central Management System) management interfaces. With the built-in web-based management interface, the ICG-2510WG-LTE offers an easy-to-use, platform-independent management and configuration facility. The ICG-2510WG-LTE supports SNMP and it can be managed via any management software based on the standard SNMP v1 or v2 Protocol. Moreover, the ICG-2510WG-LTE offers the remotely secure management by supporting SSH connection where the packet content can be encrypted at each session. The CMS is able to manage multiple devices and achieve instant status.

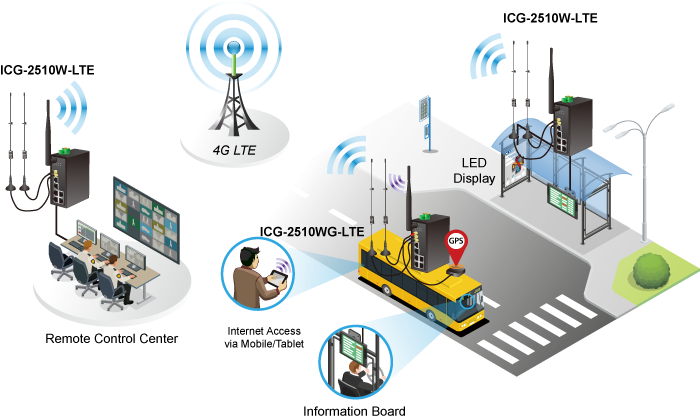

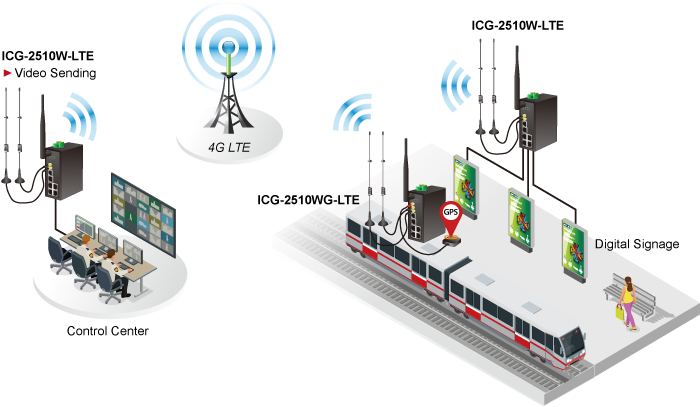

4G LTE Cellular Communication Solution

PLANET ICG-2510WG-LTE adopts 4G LTE cellular technology and thus breaks the 100m limitation of RJ45 transmission.  Besides, integrating with an 802.11b/g/n/ac (2.4GHz/5GHz) access point, users can access to the Internet easily. To avoid data loss affected by an unexpected breakdown connection on the part of ISP, the ICG-2510WG-LTE provides dual SIM card slots, failover, load balance functions and advanced features like VLAN, VPN, Modbus, GPS, and CMS to cover more applications.



Benefits

  • Dual module SIMs for network load balancing and redundancy
  • Wi-Fi compliant IEEE 802.11b/g/n/ac dual-band for mobile client connectivity
  • 5-port Gigabit Ethernet, built-in redundant VRRP protocol
  • 2 DI, 1DO and 1 serial console port (RS232 or RS485) for Modbus applications
  • Multiple VPNs with IPSEC, OpenVPN, PPTP, L2TP, GRE and VPN Failover
  • Full security with VLAN, NAT, DMZ, static routing, firewall and IP/MAC/port filtering
  • Supports CMS for remote management
  • -40 to 75 degrees C operating temperature and fanless design
  • GPS antenna allows to detect the location via sat nav system (for ICG-2510WG-LTE only)
  • PLANET Smart Discovery utility and NMS controller supported



Physical Port

  • Four 10/100/1000BASE-T RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X
  • One 10/100/1000BASE-T RJ45 WAN port, auto-negotiation, auto MDI/MDI-X
  • Two 4G LTE antennas
  • One 2.4G/5G Wi-Fi antenna
  • Two SIM card slots
  • One GPS antenna
  • One serial console port (RS232 or RS485)
  • One reset button
  • One MicroSD slot to save files for serial port data



Cellular Interface

  • Supports multi-band connectivity with FDD LTE/ TDD LTE/ WCDMA/ GSM/ LTE Cat4
  • Supports failover and load balancing
  • Built-in SIM and broadband backup for network redundancy
  • Two detachable antennas for 4G LTE connection
  • LED indicators for signal strength and connection status



Wi-Fi Interface

  • Complies with IEEE 802.11b/g/n/ac 2.4/5GHz
  • Supports AP, Client, Repeater and Repeater Bridge modes
  • One detachable dual band antenna for wireless connection
  • 64/128-bit WEP, WPA/WPA2 with TKIP/AES encryption
  • LED indicator for connection status



Industrial Case and Installation

  • IP30 metal case
  • DIN-rail/desktop design
  • Power requirement: 9~36V DC
  • Supports EFT protection for 1.5KV DC power and 15KV DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature

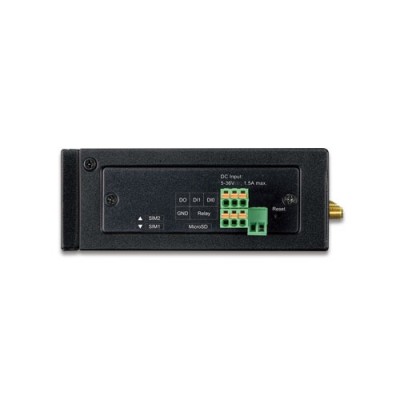

Digital Input and Digital Output

  • 2 digital input (DI)
  • 1 digital output (DO)
  • 1 relay



Advanced Features

  • Supports NAT, demilitarized zone (DMZ), port forwarding and virtual IP mapping
  • Supports VLAN to improve the performance of a network or apply appropriate security features
  • Supports static routing and dynamic routing for gateway and router operating modes
  • Supports QoS to manage WAN bandwidth
  • Supports PPTP, L2TP, OpenVPN, IPSec and GRE VPN modes
  • Supports IPSec (3DES, AES128, AES256, MD5, SHA1, SHA2-256, SHA2-512)
  • Supports TCP, UDP, TCP Server and Modbus TCP
  • Supports Dynamic DNS and PLANET DDNS
  • Provides firewall and access policy functions
  • Supports WAN connection types: DHCP-4G, DHCP Client, Static IP, PPPoE Client, 3G Link1, 3G Link 2, DHCP-Backup 4G
  • Secures network connection
    • WAN access
    • URL filter
    • Packet filter
    • MAC filter



Management

  • Switch management interfaces
    • Console/Telnet Command Line interface
    • Web user interface management
    • SNMP v1, v2c
    • SSH secure access
  • Keep Alive (schedule reboot)
  • System Maintenance
    • Firmware upload via HTTP
    • Reset button for system reboot or reset to factory default
    • Configuration backup and restore
  • System log
  • Remote system log
  • NTP (Network Time Protocol) client support
  • Supports CMS to manage multiple devices



Hardware Specifications
Copper Ports4 LAN 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
1 WAN 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
Serial InterfaceDB9 to RJ45 serial console port
  • TCP/UDP PAD mode
  • Modbus (ASCII, DTU, variable)
  • PPP
  • Reverse Telnet
SIM Interface2 SIM card slots with mini SIM card tray
Cellular Antenna2 5dBi external antennas with SMA connectors for LTE
Wi-Fi Antenna1 1dBi (2.4~2.5G)/3dBi (5.15~5.85G) external antenna with RP-SMA-J connector for dual-band Wi-Fi
GPS Antenna1 28dB gain external antennas with SMA connectors - 3m
DI & DO Interfaces■ 2 Digital Input (DI)
■ 1 Digital Output(DO)
■ 1 Relay
Input ON Voltage: DC 5 -30 V
Input OOFF Voltage: DC 0-3 V
Output < 50mA@DC 30V
Relay: AC 250V/DC 30V, 1A
Connector1 removable 2-pin terminal block for power input
2 removable 3-pin terminal block for DI/DO and relay interface
Storage1 MicroSD (TF) slot for saving serial port data
Switch ArchitectureStore-and-Forward
Flow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Reset Button< 15 sec: Factory default
Surge Protection1.5KV DC
ESD Protection15KV DC
EnclosureIP30 metal case
InstallationDIN rail, desktop

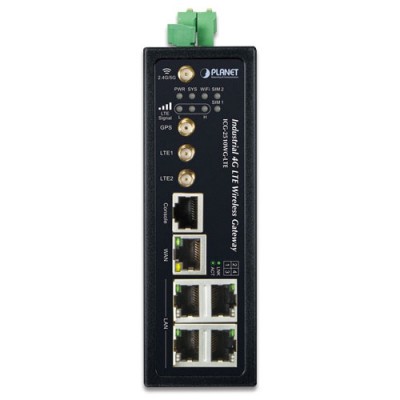

LED IndicatorsSystem:
PWR (Blue)
SYS (Blue)
Wireless Interface :
Wi-Fi Active (Blue)
Ethernet Interfaces (Port1-4 and WAN Port):
LNK/ACT (Green)
LTE SIM and Signal :
SIM1 and SIM2 (Blue)
LTE signal: High and low (Blue)
Dimensions (W x D x H)133 x 115.7 x 45 mm
Weight564g
Power Requirements – DC9~36V DC, 1.5A
Power Consumption8.4 watts/28.6 BTU
Multi Band Supports
EU Model
  • FDD LTE B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800)
  • TDD LTE B38/B40/B41 (2600/2300/2500)
  • WCDMA B1/B5/B8 (2100/850/900)
  • GSM/EDGE B3/B8 (1800/900)
US Model
  • FDD LTE B2/B4/B12 (1900/AWS1700/700)
  • WCDMA B2/B4/B5 (1900/AWS1700/850)
LTE Data Rate1.4/3/5/10/15/20MHz bandwidth: 150Mbps (DL), 50Mbps (UL)
Wireless Specifications
StandardIEEE 802.11 b/g/n/ac
Wireless ModeAP, Client, Repeater, Repeater Bridge
Band Mode2.4G and 5G concurrent mode
Frequency Range2.4GHz
FCC: 2.412~2.462GHz
ETSI: 2.412~2.472GHz

5GHz
FCC: 5.180~5.240GHz, 5.745~5.825GHz
ETSI: 5.180~5.700GHz
Operating ChannelsFCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 (9 Channels)
ETSI: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140 (16 Channels)
*5GHz channel list will vary in different countries according to their regulations.
Channel Width20MHz, 40MHz, 80MHz
Encryption SecurityWEP, WPA Personal, WPA Enterprise, WPA2 Personal, WPA2 Enterprise, WPA2 Personal Mixed, WPA2 Enterprise Mixed
Data RateUp to 300Mbps
Max. Transmit Power (dBm)26
Max. Clients30
Advanced Functions
VPN
  • PPTP server and PPTP client
  • L2TP server and L2TP client
  • Open server and Open client
  • IPSec
  • GRE

Tunnel Number
  • PPTP: 1
  • L2TP: 1
  • OpenVPN: 1
  • IPSec: 12
  • GRE: 12
WAN Connection TypesDHCP-4G, DHCP Client, Static IP, PPPoE Client, 3G Link1, 3G Link 2, DHCP-Backup 4G
Secure Network
OtherSupports demilitarized zone (DMZ)
Supports QoS for bandwidth management
Supports VLAN, 15 VLAN ID
Supports Modbus TCP (only functions with console)
Supports Port Forwarding
Supports Dynamic DNS and PLANET DDNS
Supports NTP client
Management
Basic Management InterfacesConsole, Telnet, HTTP, HTTPS, SNMP v1, v2c, CMS
PLANET Smart Discovery utility and NMS controller supported
Secure Management InterfacesSSH
SNMP MIBsRFC 1158 MIB
RFC 1213 MIB
RFC 1269 MIB
RFC 1271 MIB
RFC 1285 MIB
RFC 1316 MIB
RFC 1381 MIB
RFC 1382 MIB
RFC 1414 MIB
Standards Conformance
Regulatory ComplianceCE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.11 b/g/n
IEEE 802.11 ac
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
Environment
OperatingTemperature: -40 ~ 75 degrees C
Relative humidity: 90%@60 degrees C (non-condensing)
StorageTemperature: -40 ~ 85 degrees C
Relative humidity: 90%@60 degrees C (non-condensing)
