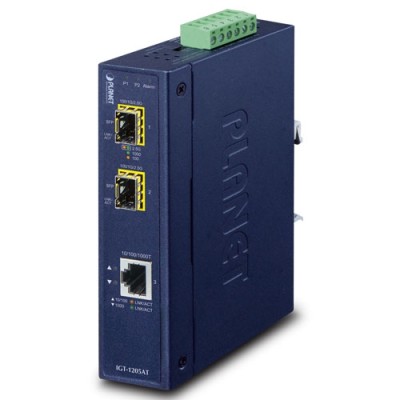

PLANET IGT-1205AT Industrial 1-port 10/100/1000T to 2-port 100/1000/2500X SFP Media Converter

PLANET IGT-1205AT Industrial 1-port 10/100/1000T to 2-port 100/1000/2500X SFP Media Converter
PLANET IGT-1205AT Industrial 1-port 10/100/1000T to 2-port 100/1000/2500X SFP Media Converter
PLANET IGT-1205AT Industrial 1-port 10/100/1000T to 2-port 100/1000/2500X SFP Media Converter
PLANET IGT-1205AT Industrial 1-port 10/100/1000T to 2-port 100/1000/2500X SFP Media Converter
PLANET IGT-1205AT Industrial 1-port 10/100/1000T to 2-port 100/1000/2500X SFP Media Converter
PLANET IGT-1205AT Industrial 1-port 10/100/1000T to 2-port 100/1000/2500X SFP Media Converter
PLANET IGT-1205AT Industrial 1-port 10/100/1000T to 2-port 100/1000/2500X SFP Media Converter
  • Διαθεσιμοτητα: Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: IGT-1205AT
  • Βαρος: 0.62kg
  • Διαστασεις: 8.70 x 3.20 x 13.50
223,20€
Χωρίς ΦΠΑ: 180,00€

Flexible, Reliable and Industrial-grade Network Distance Extension Solution

PLANET IGT-1205AT is an Industrial Gigabit Media Converter providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 10/100/1000BASE-T RJ45 copper port and two 100/1000/2500BASE-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. The IGT-1205AT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.

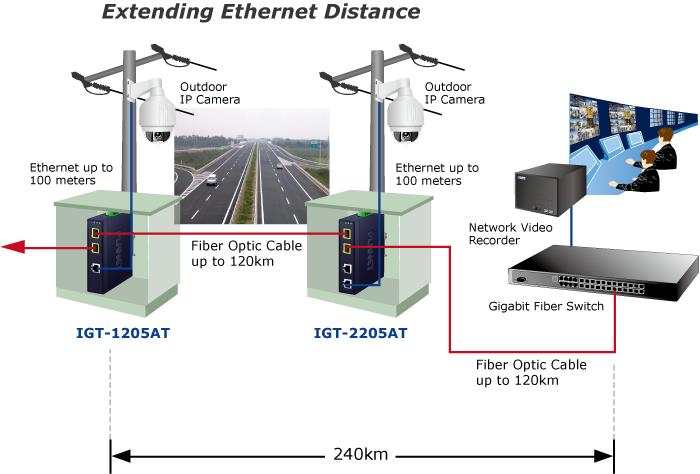

Fiber-Optic Link Capability Enables Extension of Network Deployment

The two SFP ports are compatible with 100BASE-FX, 1000BASE-X and 2500BASE-X SFP (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the Gigabit Ethernet distance can be extended from 300 meters (Multi-mode fiber cable) to 20/40/80/120 kilometers (Single-mode fiber cable), and also the Fast Ethernet distance can be extended from 2km (Multi-mode fiber cable) to 20/40/60 kilometers (Single-mode fiber cable). They are well suited for applications within the factory data centers and distributions.







Adjustable 3-port Switch Mode or 2-port Fiber Redundant Mode

Via the built-in DIP switch, the two SFP fiber interfaces of the IGT-1205AT can be configured as Ethernet switch mode or fiber redundant mode. With the Ethernet switch mode, it can operate in Store-and-Forward mechanism with high performance; with the 2-port Fiber redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode supports auto-recovering function. If the destination port of a packet is link-down, it will forward the packet to the other port of the backup pair.





Environmentally Hardened Design

The IGT-1205AT is equipped with the slim-type IP30 metal case for easy deployment in heavy Industrial demanding environments. With IP30 industrial case protection, the IGT-1205AT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGT-1205AT can be placed in almost any difficult environment.  The IGT-1205AT also allows either DIN rail or wall mounting for efficient use of cabinet space.



Convenient and Reliable Power System

To enhance the operation reliability and flexibility, the IGT-1205AT is equipped with two DC power input connectors for redundant power supply installation. It also possesses an integrated power supply source with wide-ranging voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs.

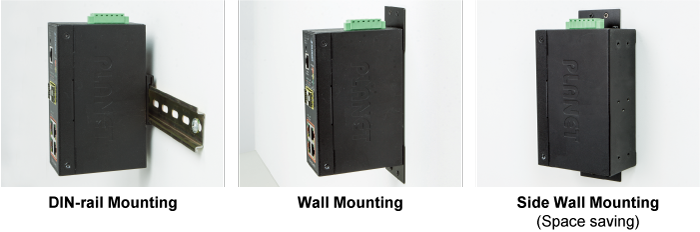

Flexible and Easy Installation with Limited Space

The compact-sized IGT-1205AT is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexible and easier in any space-limited location.

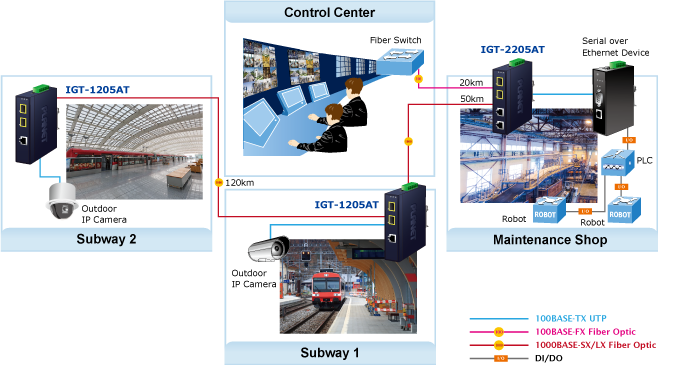

Hardened Environment Application

PLANET IGT-1205AT Industrial Gigabit Media Converter offers full port Gigabit speed. It provides very high reliability and security features to make sure the continuous operation in harsh environments such as control cabinet of transportation, factory, outdoors and places where extreme low or high temperatures can be experienced. Moreover, the IGT-1205AT is also compatible with 100/1000/2500Mbps SFP transceivers to provide a strong, stable and long-distance connection and flexible industrial networking deployment.

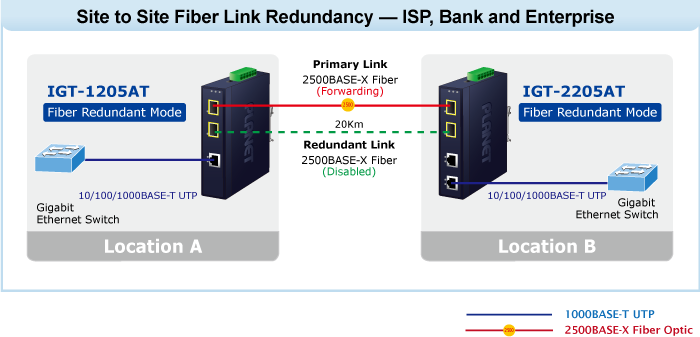

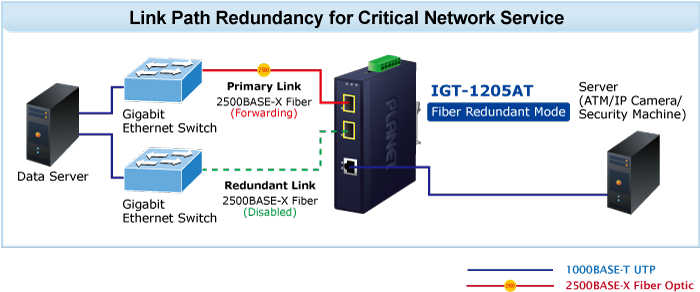

Redundancy Application

The IGT-1205AT industrial Gigabit Media Converter provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode supports auto-recover function. If the destination port of a packet is link-down, it forwards the packet to the other port of the backup pair.



Physical Port

  • 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
  • 2-port SFP, supporting 100/1000/2500BASE-X transceiver type auto detection



Fiber Port Redundancy

  • Automatically detects link status and redundancy on dual ports with the same connector type.
  • Only primary port is active at a time, while the backup port is blocked.
  • When primary port link failure occurs, the traffic will swap to backup port automatically.
  • Once the primary port status is back to linkup, the traffic will swap from backup port to primary port.



Layer 2 Features

  • Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
  • High-performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 9K jumbo frame size support
  • Integrated address look-up engine, supporting 4K absolute MAC addresses
  • Automatic address learning and address aging



Industrial Case and Installation

  • Slim IP30 metal case
  • DIN-rail, wall-mount or side wall-mount design for redundant power design
  • Redundant Power Design
  • 12 to 48V DC, redundant power with reverse polarity protection
  • AC 24V power adapter acceptable
  • Supports 6000 VDC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
Hardware Specifications
Copper Interface1 x 10/100/1000BASE-T RJ45
Fiber Optic Interfaces2 x 100/1G/2.5GBASE-X SFP interfaces (Port-1 and Port-2)
Supports auto detection

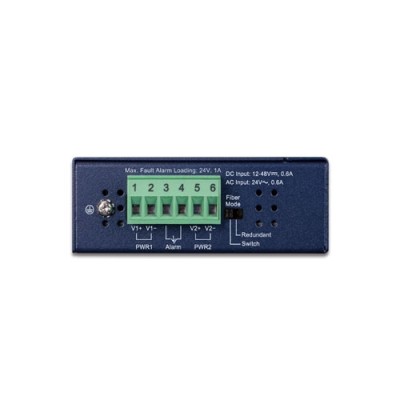

ConnectorRemovable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2

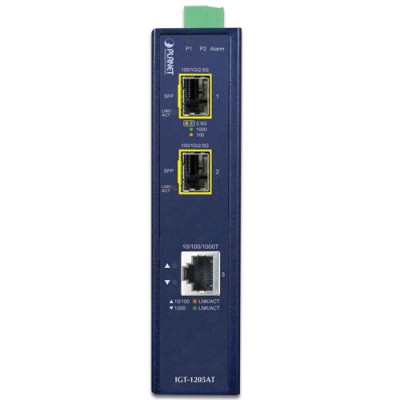

LEDSystem and Power:
Green: DC Power 1
Green: DC Power 2
Red: Alarm
Per Copper Port (Port-3~Port-4):
Green: 1G LNK/ACT
Amber:100 LNK/ACT
SFP interface (Port-1~ Port-2)
Green + Amber: 2.5G LNK/ACT
Green: 1G LNK/ACT
Amber:100 LNK/ACT
DIP Switch
DIP
Position
Function
Fiber ModeONFiber Redundancy
OFF (default)Switch Mode
AlarmProvides one relay output for power failure
Alarm Relay current carry ability: 1A @ DC 24V
Power RequirementsDC 12~48V or AC 24V
Redundant power with reverse polarity protection
Power Consumption / Dissipation4.8 watts/16BTU
Dimensions (W x D x H)32 x 87 x 135mm
Weight412g
EnclosureIP30 type metal case
InstallationDIN-rail kit and wall-mount ear
ESD Protection6KV DC
Converter Specifications
Processing SchemeStore-and-Forward
Fabric12Gbps
Throughput (packet per second)8.93Mpps@64bytes
Flow ControlBack pressure for half duplex.
IEEE 802.3x pause frame for full duplex
Address Table4K entries
Jumbo Frame9216bytes
Standards Conformance
Standards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1p Class of Service
Regulatory ComplianceFCC Part 15 Class A, CE
Stability TestingIEC60068-2-32 (free fall)
IEC60068-2-27(shock)
IEC60068-2-6 (vibration)
Environment
TemperatureOperating: -40~75 degrees C
Storage: -40~75 degrees C
HumidityOperating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2021-05-212.0IGT-1205AT



User's Manual

DateVersionDescriptionDownload
2021-05-142.0Release for hardware version 2.0.
