- Διαθεσιμοτητα: Άμεσα Διαθέσιμο
- Κατασκευαστης: PLANET
- Κωδικος Προϊοντος: WGS-4215-8T2S
- Βαρος: 0.92kg
- Διαστασεις: 2.50 x 17.80 x 13.40
Easily-deployed and Expanded Network

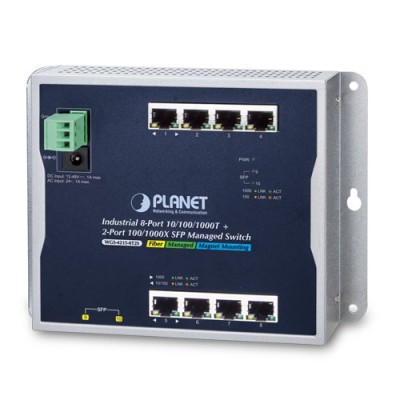

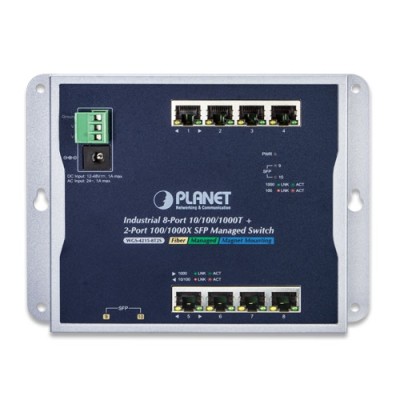

Designed to be installed in a wall enclosure or simply mounted on a wall at any convenient location, PLANET WGS-4215-8T2S, an innovative, Industrial 8-port 10/100/1000T + 2-port 100/1000X SFP Wall-mount Managed Switch, offers IPv6/IPv4 dual stack management, intelligent Layer 2 management functions, and user-friendly interface. The WGS-4215-8T2S is able to operate reliably, stably and quietly in any environment without affecting its performance. Featuring ultra networking speed and operating temperature ranging from -40 to 75 degrees C in a compact but rugged IP30 metal housing, the WGS-4215-8T2S is an ideal solution to meeting the demand for the following network applications:
- Building/Home automation network
- Internet of things (IoT)
- IP surveillance
- Wireless LAN
Cybersecurity Network Solution to Minimize Security Risks
The WGS-4215-8T2S supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.
Redundant Ring, Fast Recovery for Critical Network Applications
The WGS-4215-8T2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.

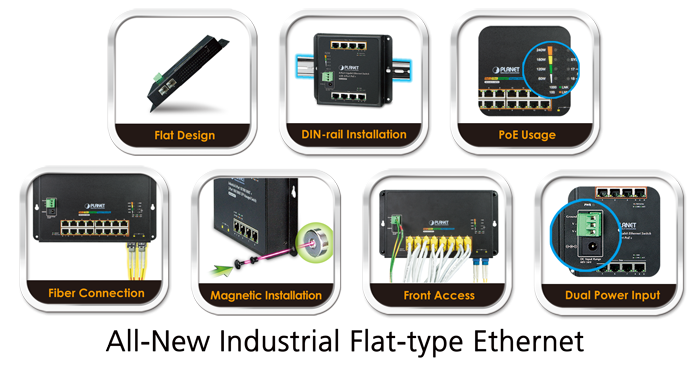

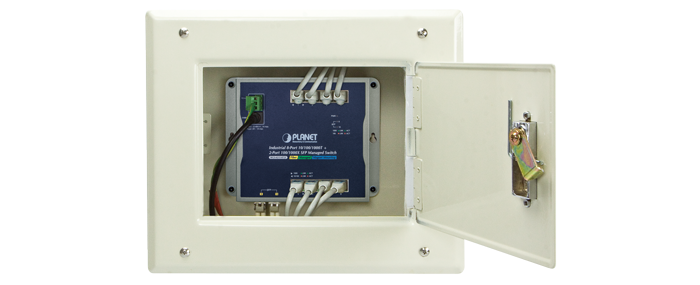

Innovative Wall-mount Installation

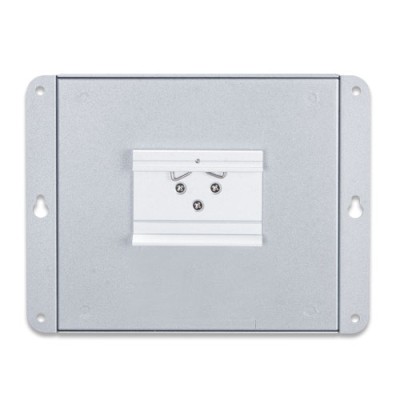

The WGS-4215-8T2S is specially designed to be installed in a narrow environment, such as wall enclosure. The compact, flat and wall-mounted design fits easily in any space-limited location. It adopts the user-friendly “Front Access” design, making the installing, cable wiring, LED monitoring and maintenance of the WGS-4215-8T2S placed in an enclosure very convenient for technicians. The WGS-4215-8T2S can be installed by fixed wall mounting, magnetic wall mounting or DIN rail, thereby making its usability more flexible.

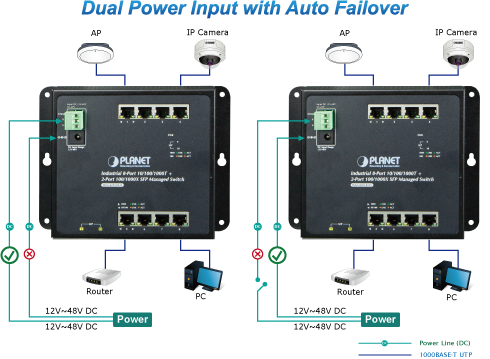

Dual Power Input for High Availability Network System

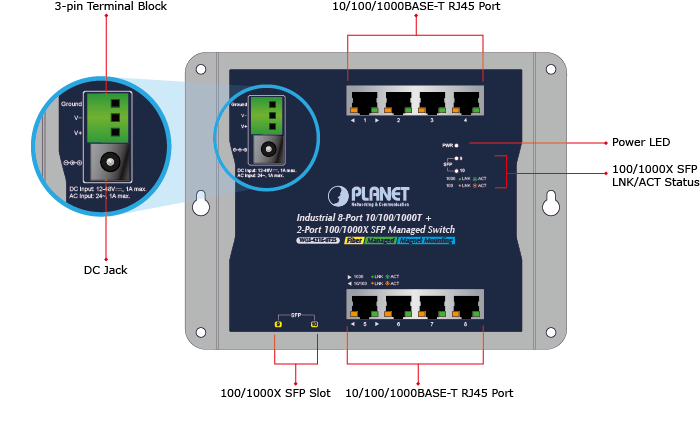

The WGS-4215-8T2S features a strong dual power input system (12V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when the 3-pin terminal block fails to work, the hardware failover function will be activated automatically to keep powering the WGS-4215-8T2S via the DC plug power alternatively without any loss of operation.
Environmentally Hardened Design
With IP30, flat but rugged metal housing protection, the WGS-4215-8T2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 degrees C, the WGS-4215-8T2S can be placed in almost any difficult environment.

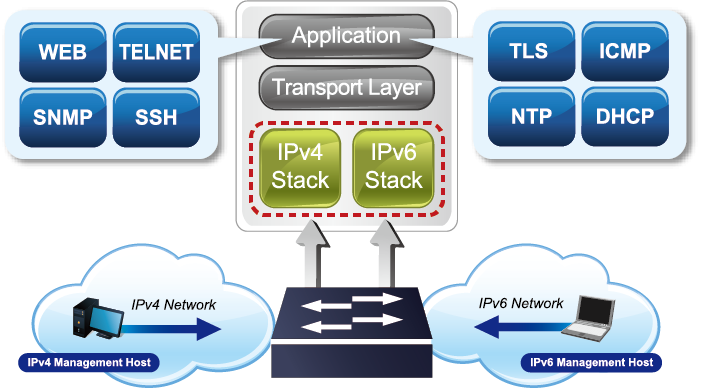

IPv6 / IPv4 Dual Stack Management
Supporting both IPv6 and IPv4 protocols, the WGS-4215-8T2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

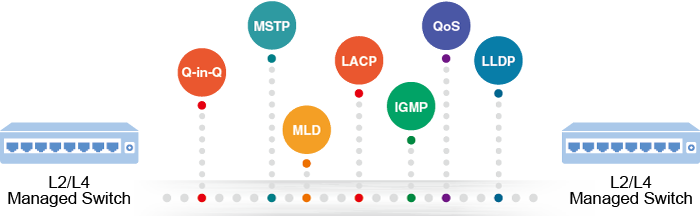

Robust Layer 2 Features
The WGS-4215-8T2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop and BPDU Guard, IGMP Snooping, and MLD Snooping. Via the link aggregation, the WGS-4215-8T2S allows the operation of a high-speed trunk to combine with multiple ports such as a 16Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.
Efficient Traffic Control
The WGS-4215-8T2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance at VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.
Powerful Security
PLANET WGS-4215-8T2S offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.
Friendly and Secure Management
For efficient management, the WGS-4215-8T2S is equipped with Command line, Web and SNMP management interfaces.
- With the built-in Web-based management interface, the WGS-4215-8T2S offers an easy-to-use, platform-independent management and configuration facility.
- For text-based management, it can be accessed via Telnet and the console port.
- By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.

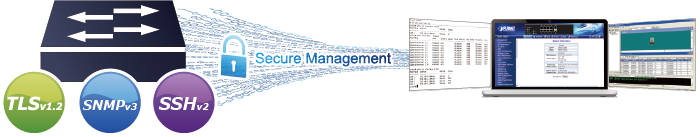

Moreover, the WGS-4215-8T2S offers secure remote management by supporting SSHv2, TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session.
Flexibility and Long-distance Extension Solution

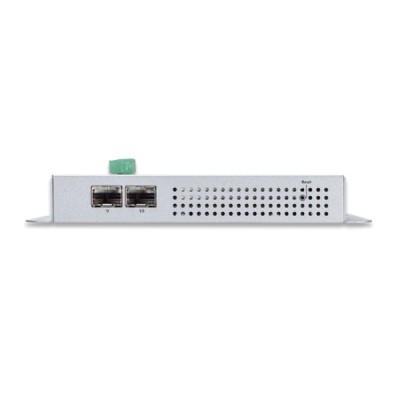

The two mini-GBIC slots built in the WGS-4215-8T2S support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to above 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

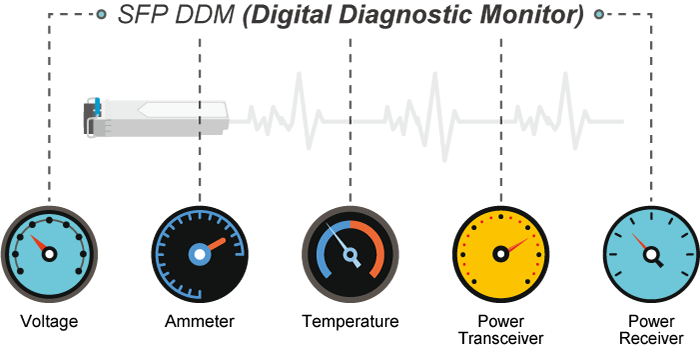

Intelligent SFP Diagnosis Mechanism
The WGS-4215-8T2S supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current and transceiver supply voltage.
Ready to Go with IoT Generation
Internet is very popular the world over as users surf online daily with their mobile devices, such as smart phones, tablets, or laptop computers. However, users expect more from the convenience of Internet, like how to use their mobile devices to control something via the Internet, thus making life more convenient. The WGS-4215-8T2S is based on such concept to help users implement the Internet of things (IoT) on the SOHO/Home network. Home automation is no longer a dream as Gigabit network can easily cloud IoT equipment, making it a smart home.

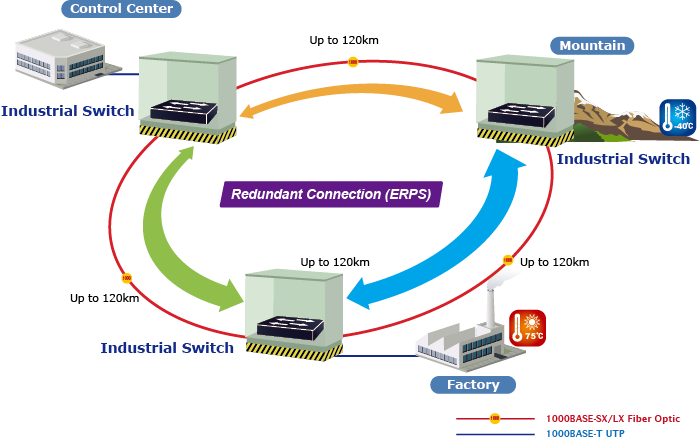

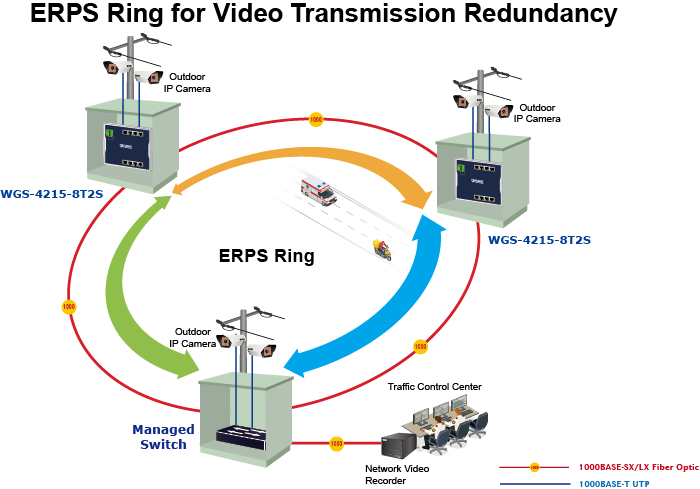

ITU-T G.8032 ERPS Makes Data Transmission Uninterrupted
The WGS-4215-8T2S features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology into customer’s automation network to enhance system reliability and uptime. Applying the IEEE 802.3at Power over Ethernet standard, the WGS-4215-8T2S can directly connect with any IEEE 802.3at end-nodes like PTZ (Pan, Tilt & Zoom) network cameras and speed dome cameras. The WGS-4215-8T2S can easily help system integrators with the available network infrastructure to build wireless AP, IP camera and VoIP systems where power can be centrally-controlled.

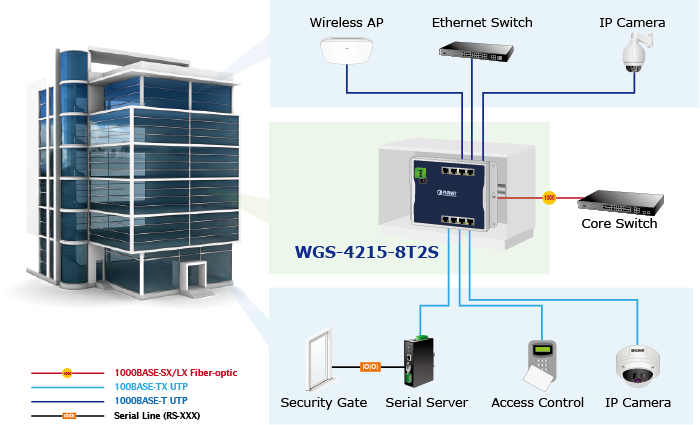

Security Building Automation Switch
Suitable for buildings where security is strictly to be enforced, the WGS-4215-8T2S Industrial Wall-mount Managed Switch offers a comprehensive Layer 2 to Layer 4 Access Control List (ACL). The switch can restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. With the WGS-4215-8T2S, a tightly-controlled network can be easily had in no time.

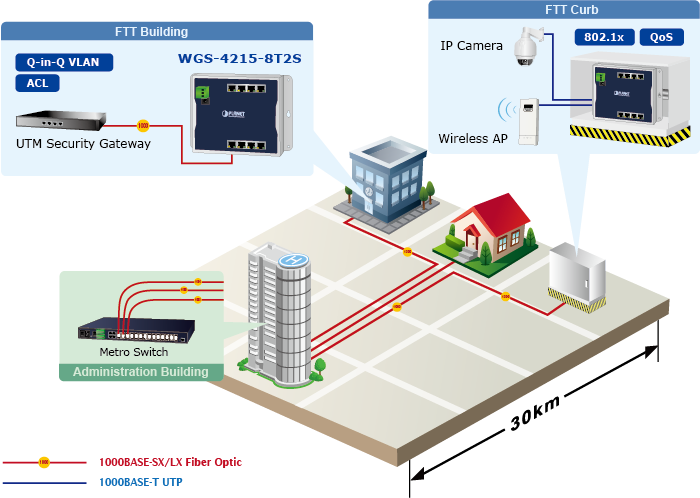

FTTX / MAN Application
The WGS-4215-8T2S adopts the double tag VLAN (Q-in-Q) technology to provide low cost and easy operation for service providers carrying traffic for multiple customers across their networks. With two dual-speed SFP slots built in, the deployment distance of the WGS-4215-8T2S can be extended up to 120 kilometers (single-mode fiber), which provides a high-performance edge service for FTTx solutions.
To build a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs, and FTTB (Fiber to the Building) for enterprises, the various distances of SFP and Bidi (WDM) transceivers are optional for customers. For security and various applications, the 8 Gigabit ports of the WGS-4215-8T2S can be configured with VLAN settings and connected to different units, offices, floors, houses and departments.

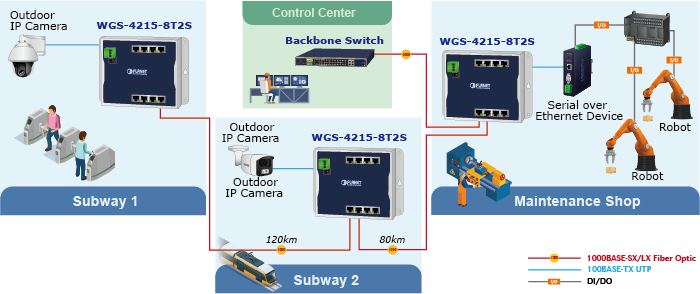

Industrial Area Switch for Data Collection and Forwarding
The WGS-4215-8T2S is equipped with 8 10/100/1000Mbps ports offering auto MDI/MDIX feature and 2 Gigabit SFP interfaces (port 9 and port 10), providing 20Gbps non-blocking switch fabric and the 8K MAC address table so that the WGS-4215-8T2S can perform wire-speed packets transfer without the risk of packet loss. The WGS-4215-8T2S with the slim type IP30 metal case is ideal for most heavy industrial demanding environments.
Datasheet
| Date | Version | Description | Download |
|---|---|---|---|
| 2022-03-24 | 1.1 | WGS-4215-8T2S |
 |
| 2018-12-27 | 1.0 | WGS-4215-8T2S |
|
Firmware
| Date | Version | Description | Download |
|---|---|---|---|
| 2021-07-09 | 1.305b210527 | Functions added - (1) Added ERPS ring support. (2) Added enhanced cybersecurity support. |
|
| 2021-01-08 | 1.305b201229 | 1. Supports PLANET CloudViewer app and NMS controller 2. Supports SNMP LLDP MIB 3. Supports Cybersecurity |
|
Quick Guide
| Date | Version | Description | Download |
|---|---|---|---|
| 2024-06-13 | 2.1 | Added PSTI function. |
|
| 2018-11-02 | 1.2 | Add WGS-4215-16P2S. |
|
| 2016-03-24 | 1.1 | Add new model. |
|
| 2015-08-14 | 1.0 | Initial release. |
|
User's Manual
| Date | Version | Description | Download |
|---|---|---|---|
| 2018-12-07 | 1.2 | Add WGS-4215-16P2S. |
|
| 2016-05-13 | 1.1 | Add WGS-4215-8P2S. |
|
| 2015-09-03 | 1.0 | Initial release. |
|
EC Declaration
| Date | Version | Description | Download |
|---|---|---|---|
| 2017-01-05 | 1.0 | EC Declaration |
|
