- Διαθεσιμοτητα: Άμεσα Διαθέσιμο
- Κατασκευαστης: PLANET
- Κωδικος Προϊοντος: IGS-6325-5X1T
- Βαρος: 1.94kg
- Διαστασεις: 13.50 x 8.00 x 13.50
10Gbps Fiber Ports and Multiple Dual Speed Ports Deliver High-speed Networking

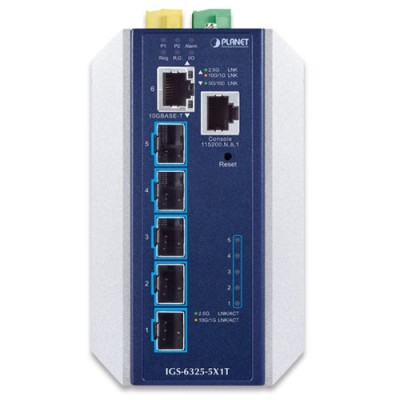

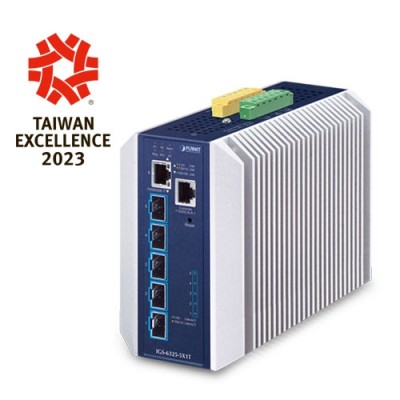

PLANET IGS-6325-5X1T is a brand-new all-port 10Gbps Industrial-grade Layer 3 Managed Ethernet Switch which features 5 10GBASE-SR/LR SFP+ ports, 1 10GBASE-T copper port and Layer 3 IP routing in a rugged IP30 metal case for stable operation in heavy industrial environments.

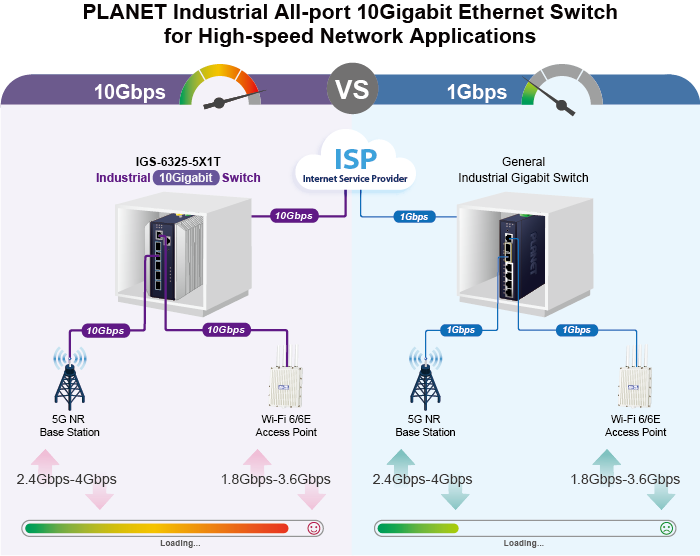

With 10Gbps fiber or copper interfaces, the IGS-6325-5X1T can handle extremely large amounts of data in a secure topology linking to an industrial backbone, 5G NR base station or Wi-Fi6/6E wireless AP. The IGS-6325-5X1T is capable of providing non-blocking switch fabric and wire-speed throughput as high as 120Gbps in the temperature range from -40 to 75 degrees C. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands.
10GBASE-T and 10GBASE-X SFP Dual Media Interfaces for Diversified Bandwidth Applications

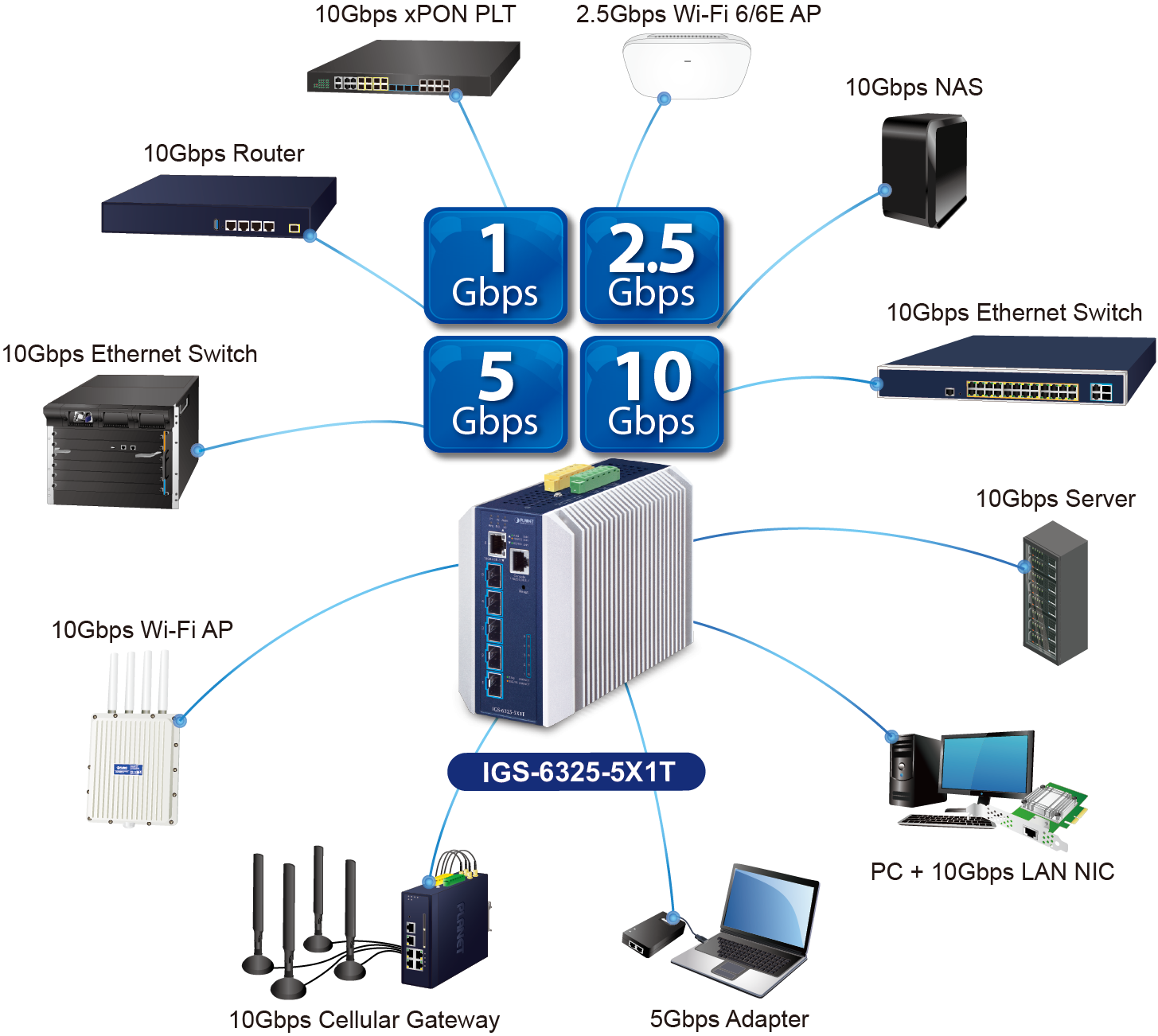

The IGS-6325-5X1T has the capability to reach a high speed of 10Gbps over copper or fiber-optic cabling which helps to accelerate the performance of large data transmission. The built-in 10GBASE-T copper interfaces support 5-speed (10G/5G/2.5G/1G/100) auto-negotiation, and 10Gbps data transmission with the existing Cat6A/Cat7 UTP cabling, meaning the speed can be increased without costs. It can definitely give you the speed you demand and its Plug and Play makes installation easy.
The fiber-optic 10GBASE-X SFP+ interfaces support triple speeds, 10GBASE-SR/LR, 2500BASE-X and 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The IGS-6325-5X1T provides broad bandwidth and powerful processing capacity.

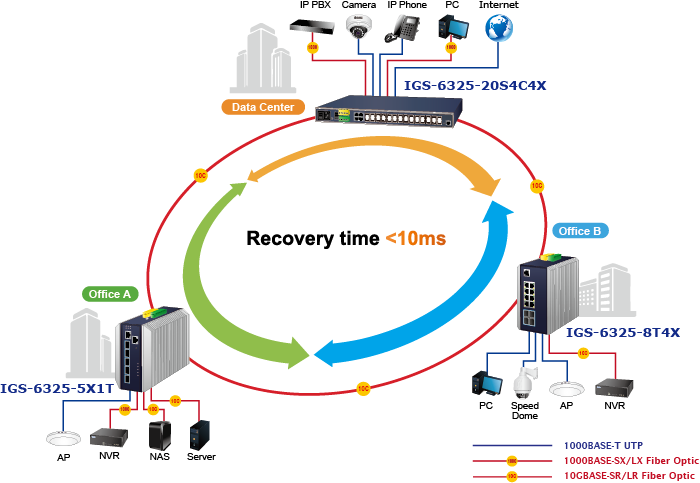

Redundant Ring, Fast Recovery for Critical Network Applications

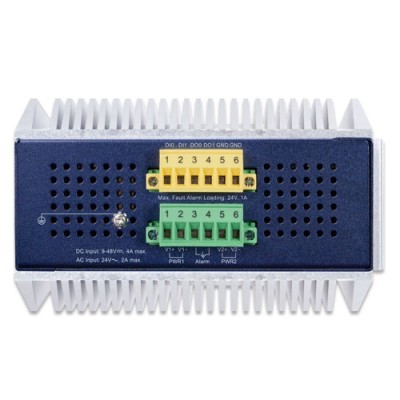

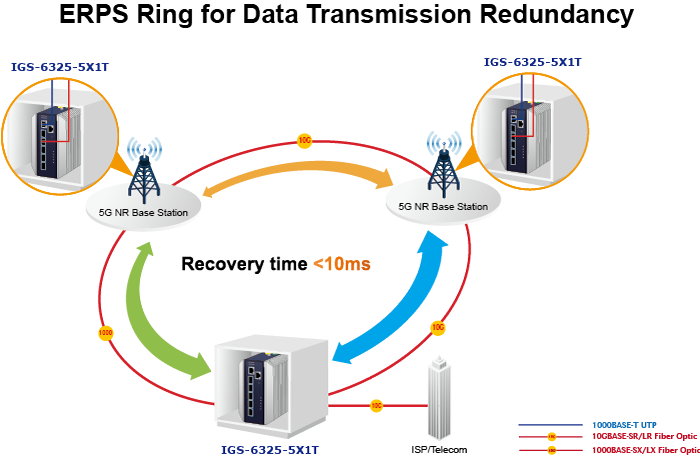

The IGS-6325-5X1T supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple ring network, the recovery time of data link can be as fast as 10ms.
Layer 3 Routing Support
The IGS-6325-5X1T enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically.
The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.
The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.
Robust Layer 2 Features
The IGS-6325-5X1T can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control, IGMP snooping and MLD snooping. Via the aggregation of supporting ports, the IGS-6325-5X1T allows the operation of a high-speed trunk group that comes with multiple ports and supports fail-over as well.
High Availability Mesh Networking Solution for Big Data System
To improve the technology of Optical Fiber Ethernet with highly-flexible, highly-extendable and easy-to-install features, the IGS-6325-5X1T offers up to 120Gbps data exchange speed via Optical Fiber interface and the transmission distance can be extended to 120km.
The IGS-6325-5X1T features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) into customer’s automation network to enhance system reliability and uptime. The IGS-6325 DIN-rail series is the ideal solution for data centers, service providers and telecoms to build redundant connection and establish high bandwidth for Big Data server farm.
Layer 3 VLAN Routing
With the built-in, robust Layer 3 routing protocols, the IGS-6325-5X1T ensures reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 128 routing entries. The IGS-6325-5X1T, certainly an ideal solution for industries, offers greater security, control and bandwidth conservation, and high-speed uplink.
Datasheet
| Date | Version | Description | Download |
|---|---|---|---|
| 2022-11-04 | 1.0 | IGS-6325-5X1T |
 |
Firmware
| Date | Version | Description | Download |
|---|---|---|---|
| 2024-08-09 | 1.2112b240802 | Function added: - Added PSTI function. FW upgrade for PSTIA (Product Security and Telecommunications Infrastructure Act) *Note: After updating the firmware, you will need to enter the product's MAC code at the first login. Please record the MAC code before proceeding with the update. |
|
Quick Guide
| Date | Version | Description | Download |
|---|---|---|---|
| 2024-05-03 | 1.3 | Release for PSTI version. |
|
| 2023-03-31 | 1.2 | Modify contents of Quick Guide. |
|
| 2022-12-09 | 1.1 | Add IGS-6325-4T2X. |
|
| 2022-08-30 | 1.0 | Initial release. |
|
User's Manual
| Date | Version | Description | Download |
|---|---|---|---|
| 2024-06-28 | 1.7 | Added PSTI function. |
|
| 2023-09-15 | 1.6 | Modify contents of user manual. |
|
| 2023-02-03 | 1.4 | Add IGS-6325-4T2X. |
|
EC Declaration
| Date | Version | Description | Download |
|---|---|---|---|
| 2023-01-12 | 1.0 | EC Declaration. |
|
