- Διαθεσιμοτητα: Διαθέσιμο
- Κατασκευαστης: PLANET
- Κωδικος Προϊοντος: IGS-4215-16T2S
- Βαρος: 1.25kg
- Διαστασεις: 10.70 x 6.60 x 15.20
Cost-effective Full Solution Ideal for Hardened Environment

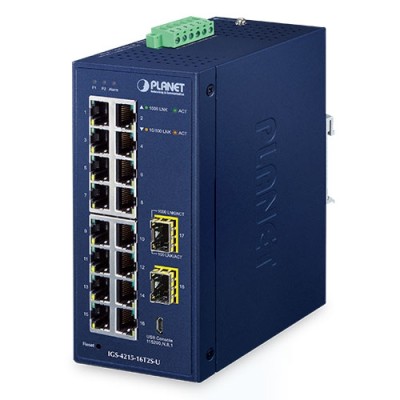

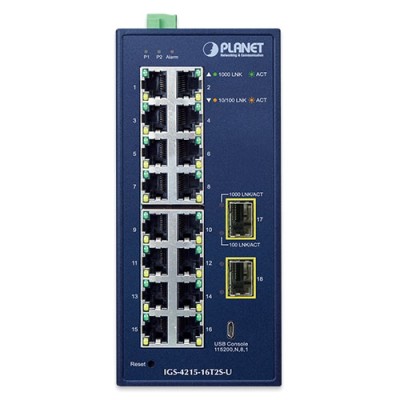

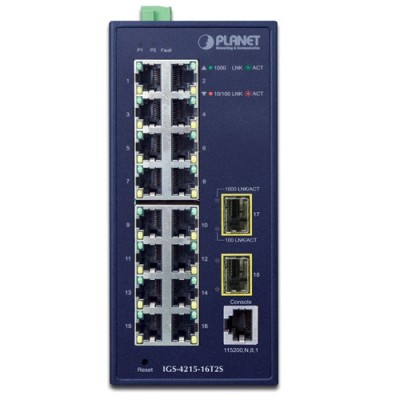

Designed to be installed in heavy industrial demanding environments, the IGS-4215-16T2S / IGS-4215-16T2S-U is the new member of PLANET Industrial-grade, DIN-rail type L2/L4 Managed Gigabit Switch family to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 16 10/100/1000BASE-T ports, and 2 extra 100/1000BASE-X SFP fiber slots for data and video uplink. The IGS-4215-16T2S / IGS-4215-16T2S-U is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.
Environmentally Hardened Design
With the IP30 industrial case, the IGS-4215-16T2S / IGS-4215-16T2S-U provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-4215-16T2S / IGS-4215-16T2S-U can be placed in almost any difficult environment.
Robust Protection
The IGS-4215-16T2S / IGS-4215-16T2S-U provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
Redundant Ring, Fast Recovery for Critical Network Applications
The IGS-4215-16T2S / IGS-4215-16T2S-U supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.
Robust Layer 2 Features
The IGS-4215-16T2S / IGS-4215-16T2S-U can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the IGS-4215-16T2S / IGS-4215-16T2S-U allows the operation of a high-speed trunk to combine with multiple ports such as an 8Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.
IPv6/IPv4 Dual Stack Management
Supporting both IPv6 and IPv4 protocols, the IGS-4215-16T2S / IGS-4215-16T2S-U helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.
Efficient Traffic Control
The IGS-4215-16T2S / IGS-4215-16T2S-U is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.
User-friendly and Secure Management
The IGS-4215-16T2S / IGS-4215-16T2S-U comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2, TLSv1.2 and SNMPv3 protocols to provide strong protection against advanced threats. Served as a key point to transmit data, the cybersecurity feature of the IGS-4215-16T2S / IGS-4215-16T2S-U protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.
Powerful Security
PLANET IGS-4215-16T2S / IGS-4215-16T2S-U offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the Protected Port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port Security function allows limiting the number of network devices on a given port.
Advanced Network Security
The IGS-4215-16T2S / IGS-4215-16T2S-U also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.
Remote Management Solution
PLANET's Universal Network Management System (UNI-NMS) and CloudViewer app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewer app, all kinds of businesses can now be speedily and efficiently managed from one platform.
Flexibility and Long-distance Extension Solution
The two additional SFP slots built in the IGS-4215-16T2S / IGS-4215-16T2S-U support 100BASE-FX /1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to 120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.
Intelligent SFP Diagnosis Mechanism
The IGS-4215-16T2S / IGS-4215-16T2S-U supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for the network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
Industrial-grade Switch for Building Automation and Security
Suitable for buildings where security is strictly to be enforced, the IGS-4215-16T2S / IGS-4215-16T2S-U, with sixteen high-speed Gigabit Ethernet interfaces, can easily build a power centrally controlled for an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment.
Model that Withstands Harsh Operation and Extends Distance
The IGS-4215-16T2S / IGS-4215-16T2S-U is made to withstand any harsh operation in such environments as traffic control cabinets, factory floors, and indoor and outdoor locations where temperatures are extremely high or low. With a non-blocking design and compact size, the installation of the IGS-4215-16T2S / IGS-4215-16T2S-U is easy and helpful to build a Gigabit high-bandwidth switched network quickly.
ITU-T G.8032 ERPS Makes Data Transmission Uninterrupted
The IGS-4215-16T2S / IGS-4215-16T2S-U features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology into customer’s automation network to enhance system reliability and uptime. Applying the IEEE 802.3at Power over Ethernet standard, the IGS-4215-16T2S / IGS-4215-16T2S-U can directly connect with any IEEE 802.3at end-nodes like PTZ (Pan, Tilt & Zoom) network cameras and speed dome cameras. The IGS-4215-16T2S / IGS-4215-16T2S-U can easily help system integrators with the available network infrastructure to build wireless AP, IP camera and VoIP systems where power can be centrally-controlled.
Datasheet
| Date | Version | Description | Download |
|---|---|---|---|
| 2023-04-14 | 1.2 | IGS-4215-16T2S-U |
 |
| 2023-04-14 | 1.2 | IGS-4215-16T2S |
|
| 2020-01-10 | 1.0 | IGS-4215-16T2S |
|
Firmware
| Date | Version | Description | Download |
|---|---|---|---|
| 2024-08-07 | 1.305b240729 | [IGS-4215-16T2S-U] Function added: - Added PSTI function. FW upgrade for PSTIA (Product Security and Telecommunications Infrastructure Act) *Note: After updating the firmware, you will need to enter the product's MAC code at the first login. Please record the MAC code before proceeding with the update. |
|
| 2024-07-10 | 1.305b240227 | [IGS-4215-16T2S] Function Added: -Added PSTI function. FW upgrade for PSTIA (Product Security and Telecommunications Infrastructure Act) *Note: After updating the firmware, you will need to enter the product's MAC code at the first login. Please record the MAC code before proceeding with the update. |
|
| 2023-05-12 | 1.305b230224 | Initial Release for IGS-4215-16T2S-U. |
|
| 2021-06-04 | 1.305b210528 | [IGS-4215-16T2S] Function Added - 1. ERPS Ring 2. Enhanced Cybersecurity - Telnet default disabled - SSH default disabled 3. Supports NMS Controller 4. Supports SNMP LLDP MIB 5. Patch DDM SFP LOS information |
|
| 2020-02-27 | 1.305b200221 | [IGS-4215-16T2S] Bugs Fixed - 1. Fixed spelling errors. 2. Fixed the issue that the port description couldn't be synchronized to the SNMP Interface MIB. 3. Synchronized Cable Diagnostic to display network cable length. |
|
Quick Guide
| Date | Version | Description | Download |
|---|---|---|---|
| 2024-04-12 | 1.3 | Release for PSTI version. |
|
| 2023-03-25 | 1.2 | Add IGS-4215-16T2S-U. |
|
| 2020-02-10 | 1.0 | Initial release. |
|
User's Manual
| Date | Version | Description | Download |
|---|---|---|---|
| 2023-06-09 | 1.2 | Modify contents of user manual. |
|
| 2021-11-17 | 1.1 | Add IGS-4215-8T2S and IGS-4215-4T2S. |
|
| 2020-01-24 | 1.0 | Initial release. |
|
EC Declaration
| Date | Version | Description | Download |
|---|---|---|---|
| 2020-07-08 | 1.0 | EC Declaration. |
|
