PLANET GPN-400ACV GPON HGU with 4-Port GbE, 1200Mbps 802.11ac Wireless and 2-Port FXS (1 x USB)

Delivering High-Demand Service Connectivity for ISP/Triple Play Devices

PLANET GPN-400ACV is a GPON/EPON Wi-Fi ONU (optical network unit) equipped with one xPON port, four 10/100/1000Mbps RJ45 LAN ports and two FXS RJ11 interfaces. It is also a high-end IEEE 802.11ac/n standard multi-terminal product. It provides residential and office users with the ideal solution for sharing an ultra high-speed fiber optic broadband connection. When functioning with PLANET GPON Optical Network Terminal (OLT) GPL-8000, the GPN-400ACV provides highly-effective GPON solutions for FTTH network.

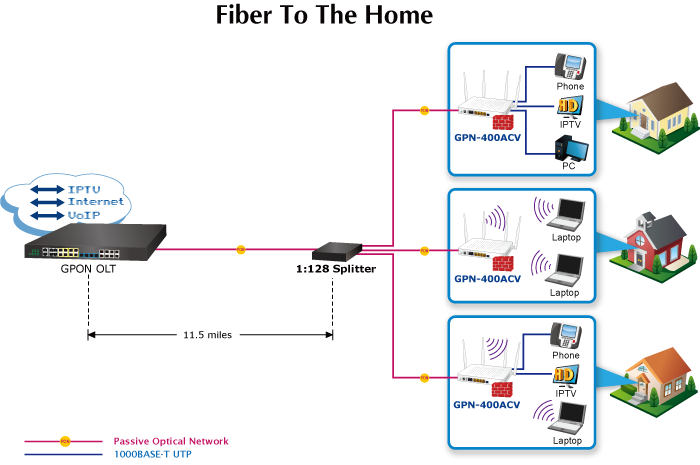

Perfectly Designed for Fiber to the Home Applications

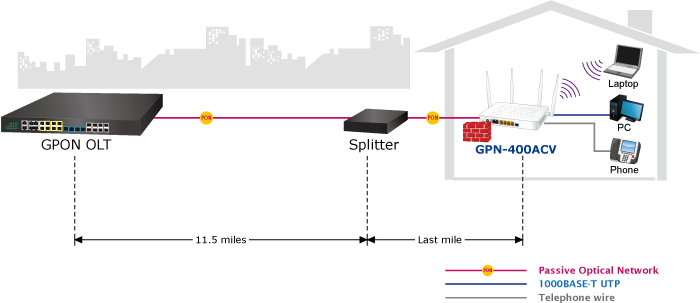

PLANET GPN-400ACV is a fiber to the home (FTTH) broadband access equipment type. With built-in 1.25Gbps GPON fiber interface, the GPN-400ACV supports different optic types for WAN and the distance can be up to 20km through the fiber connection. It can handle multiple high-throughput services such as IPTV, on-line gaming, VoIP and Internet access, and keep the bandwidth usage smoothly via its QoS features. Thus, with advantages of high reliability and scalability, the GPN-400ACV can further be applied in the network of SOHO (small office or home office) or small businesses that provide high-performance access services.

High-Speed 802.11ac Wireless

PLANET GPN-400ACV Wireless Broadband Router supports IEEE 802.11a/b/g/n/ac standard, dual band, and Gigabit LAN and WAN, thus providing the wireless speed of 867Mbps in the 5GHz frequency band and 300Mbps in the 2.4GHz frequency band at the same time. With its outstanding stability of high-speed wireless transmission and enhanced reliability, the GPN-400ACV can provide users with excellent multimedia streaming through their mobile devices anywhere, anytime in the home and office.

Gigabit LAN Throughput Boosts Network Traffic

Improving communication speed is one of the major requirements of today’s Gigabit local area networks. With throughput up to 10 times faster than the existing 100Mbps solution, the GPN-400ACV fully employs the full functionality of the 802.11ac wireless standards, eliminating the bottleneck of the transmission speed of the megabit wired type. Using the GPN-400ACV to connect your desktop, NAS, media player and game console guarantees extremely high throughput and excellent signal quality.

Standard Compliance with FXS Port

The GPN-400ACV provides two FXS ports that can easily integrate with general voice over IP system. The GPN-400ACV makes it simple for the enterprise featuring voice and data system or expanding voice system to new locations. It helps you to save money on long-distance calls; for example, the remote users can dial in through a Unified VoIP Communication System just like an extension call but no long-distance call charge would occur.

IPv6/IPv4 Dual Stack Capability

With fully supporting both IPv4 and IPv6 protocols, the GPN-400ACV can work with the original IPv4 network structure and also support the new IPv6 network structure now and in the future. As more network devices are growing and the need for larger addressing and higher security becomes critical, the GPN-400ACV is the best choice for ISPs to build the IPv6 FTTx edge service to connect with the IPv6 network.
